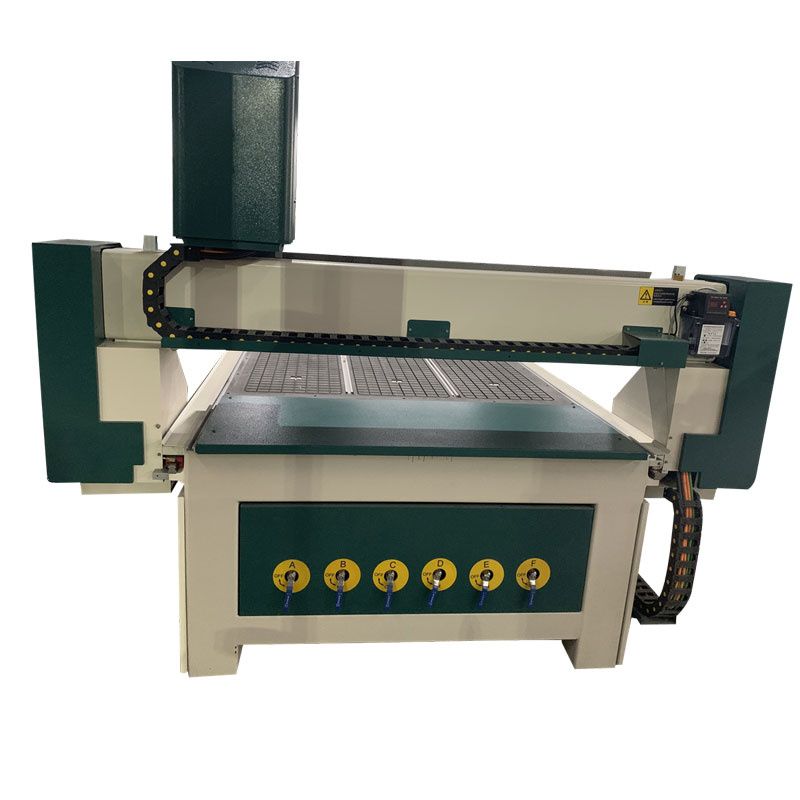

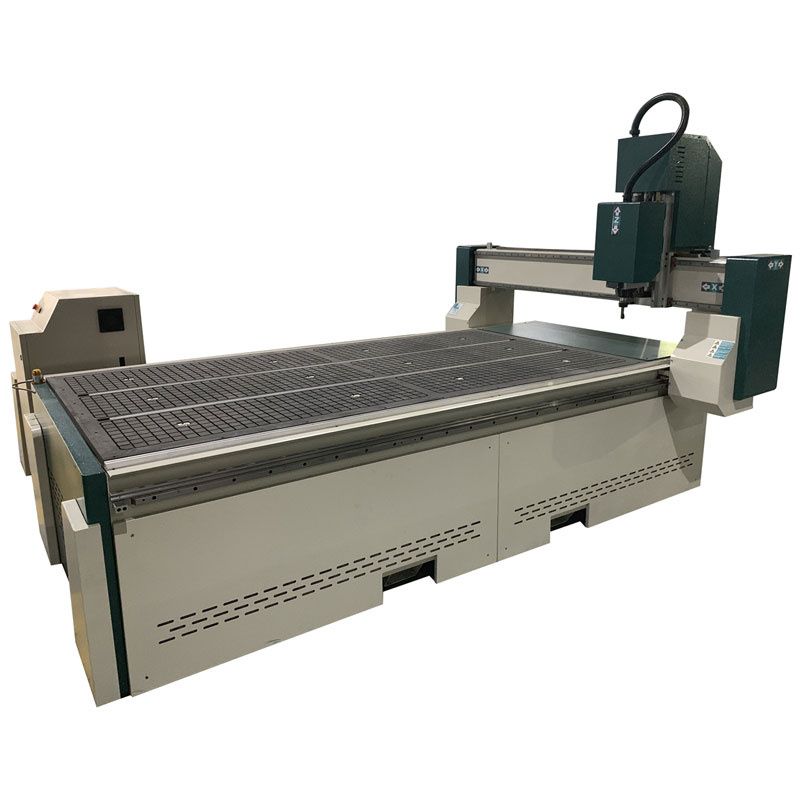

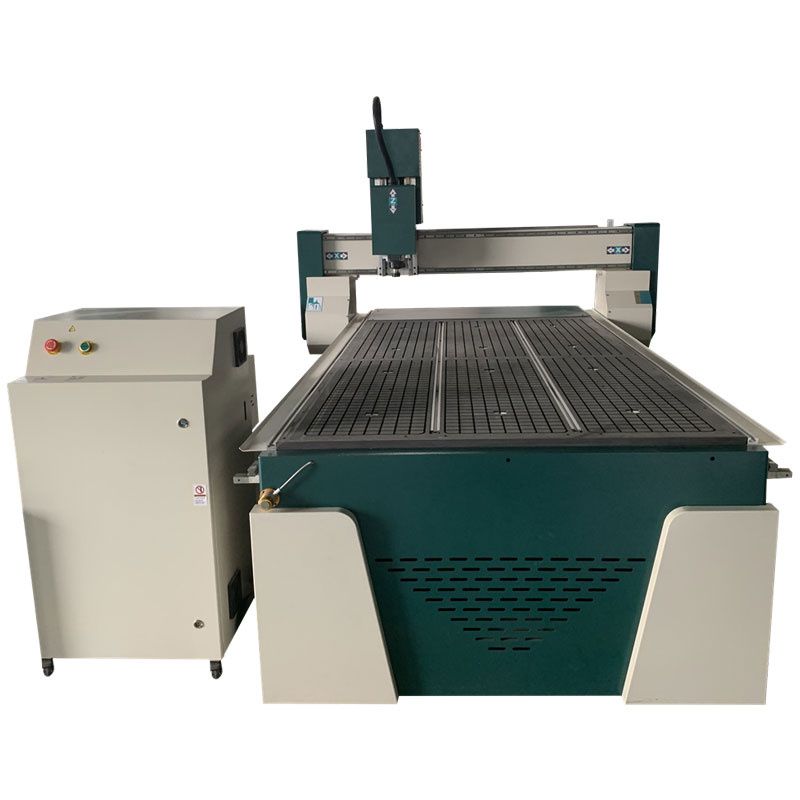

Ready to Ship! ! Foot Base 1815 1325 CNC Router
Product DescriptionKit CNC Router Kit 4X8 CNC Wood Router with DSP / Mach3 / Nc-studio / Mach4 Controller CNC Milling and Engraving MachineThe design of ABS Series CNC Router is from Europe, the machine looks more modern and fancy. The machine body is welded by thick steel pipes, it is strong to pro......
Send Inquiry
Product Description
Product Description
Kit CNC Router Kit 4X8 CNC Wood Router with DSP / Mach3 / Nc-studio / Mach4 Controller CNC Milling and Engraving Machine
The machine features all steel construction, powerful spindle, Taiwanese precision Hiwin linear rails and bearings, Germany precision helical racks on the X and Y axes, with TBI ballscrew Z axis drive, brushless microstepper motors. Controls with a very easy-to-use DSP or Mach 3 controller.
It is worth mentioning that the vacuum function is avilable, which will help to vacuum suck the material in only 3 seconds. This function will greatly help to improve efficiency.
Industries:
Furniture &Decoration industry(Woodworking, door, curtainwall, decorative partition)

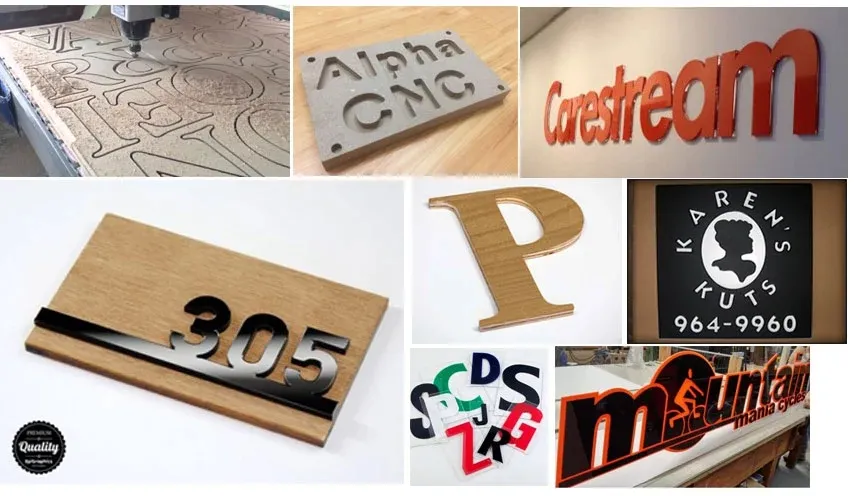

Sign& Advertising (Signage Indoor & Outdoor, Engraving& Bas-Relief, 3D Letters)
Models & Prototyping
Plastics & Composites (ACP, ACM and solid surface material etc)
Non-ferrous metals & Marine
Materials:
Wood: Plywood, Soft Wood, Hard Wood, MDF, Chipboard, etc.
Plastic: Acrylic, ABS, HDPE, PVC, UHMW, HDPE, etc.
Metal: Aluminium, Brass, Copper, etc.
Composite: Aluminium Composite, Copper Composite, Titanium, Composite, Zinc Composite, etc.
Parameters | ABS-1325-V-ZK |
Working Size | 1300*2500mm/4x8ft 1500*3000mm/5x10ft 2000*3000mm/7x10ft 2000*4000mm/7x13ft Other size |
CNC Router Table Size | 1450*2950mm |
Accuracy | ±0.03mm |
CNC Router Table Surface | Hybrid vacuum and T-slot table |
Thicken steel Square Heavy structure Frame | 20,000mm/min |
X, Y Structure | Gear and rack Transmission |
Z Structure | Taiwan TBI Ball Screw |
Max. Rapid Travel Rate | 25,000mm/min |
Max. Working Speed | 20,000mm/min |
Spindle Power | 3.2kw as standard (4.5kw or 6kw for option) |
Spindle Speed | 0-18,000RPM for air cooling spindle, 0-24,000RPM for water cooling spindle |
Collet | ER25 |
Drive Motors | Stepper motor and driver |
Working Voltage | AC380V/3PH/50Hz(option:220V or custom made) |
Command Language | G Code |
Vacuum pump | 7.5kw(5.5kw for option) |
Operating System | Mach 3 (DSP, Nc-studio for option) |
Computer Interface | Ethernet or USB |
Software | Option: Vectric Aspire, Type3, Ucancam, Artcam, AlphaCam, Powermill, Solidworks,etc. |
Running Environment | Temperature: 0ºC~45ºC Relative Humidity: 30%~75% |
Machine Power | 5kw(not including vacuum pump) |
Machine Dimension | 2150*3000*1800mm |
Packing Size | 2250*3200*2100mm |
Net/Gross Weight | 1200kg/1380kg |
Detailed Images

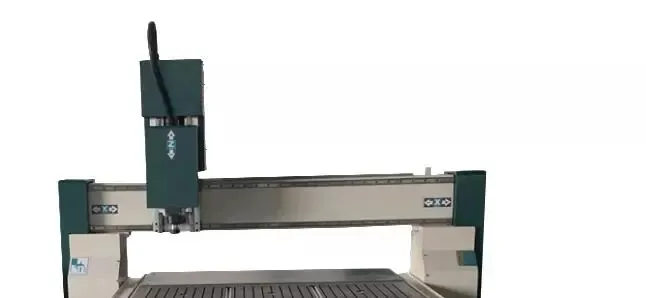

Gantry
The gantry is constructed of tubular steel with reinforcing ribs welded throughout the length of the column which results in a steady firm beam assembly. This quality engineering and workmanship result in smooth precision cutting.

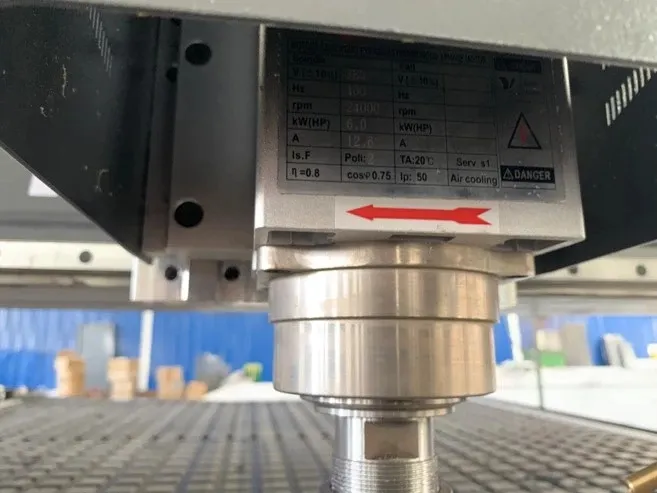

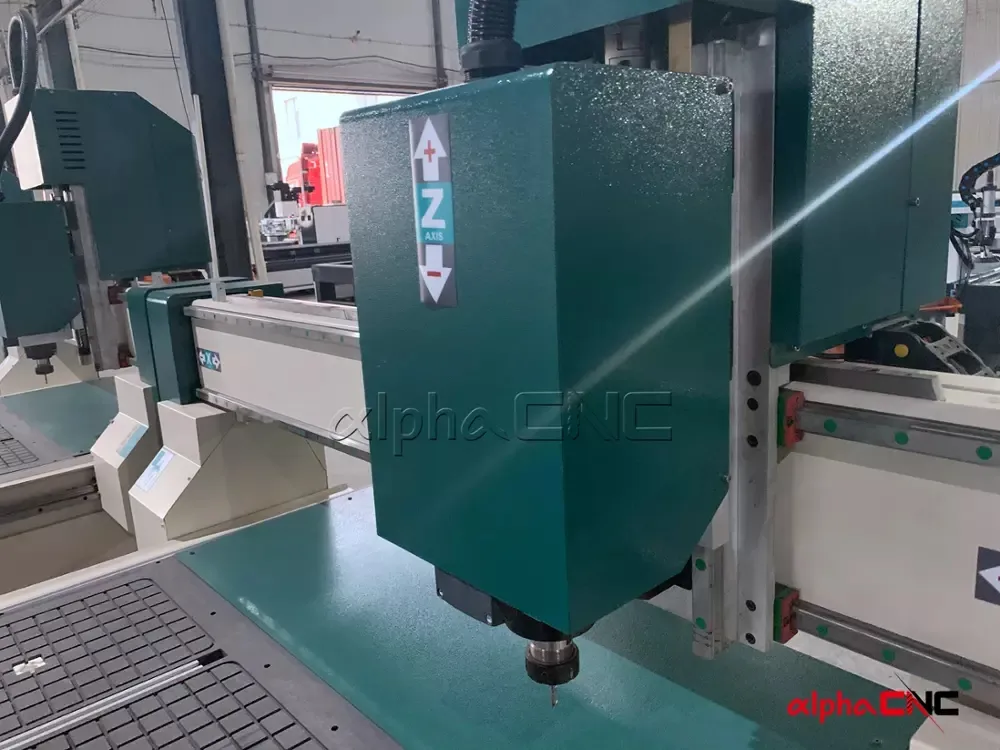

High Frequency Powerful spindle
The High quality Alpha ABS series CNC Router machine comes standard with 3.2kw high frequency spindle. This precision spindle requires no maintenance. Fully programmable speeds from 6000 to 24000 RPM, more powerful and less noise.

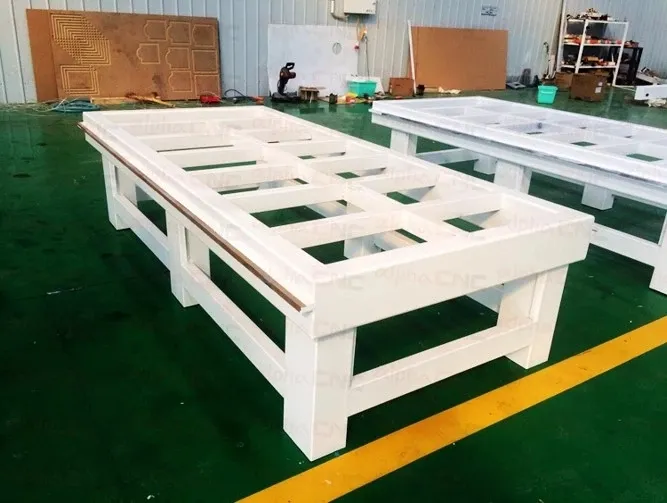

Base Frame
The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.
Gantry Support (Uprights)
The Gantry uprights are cast iron with heavy duty gussets formed into the casting. Each support is machined for housing the various drive assemblies including motors, bearings, belts, and wiring harnesses.

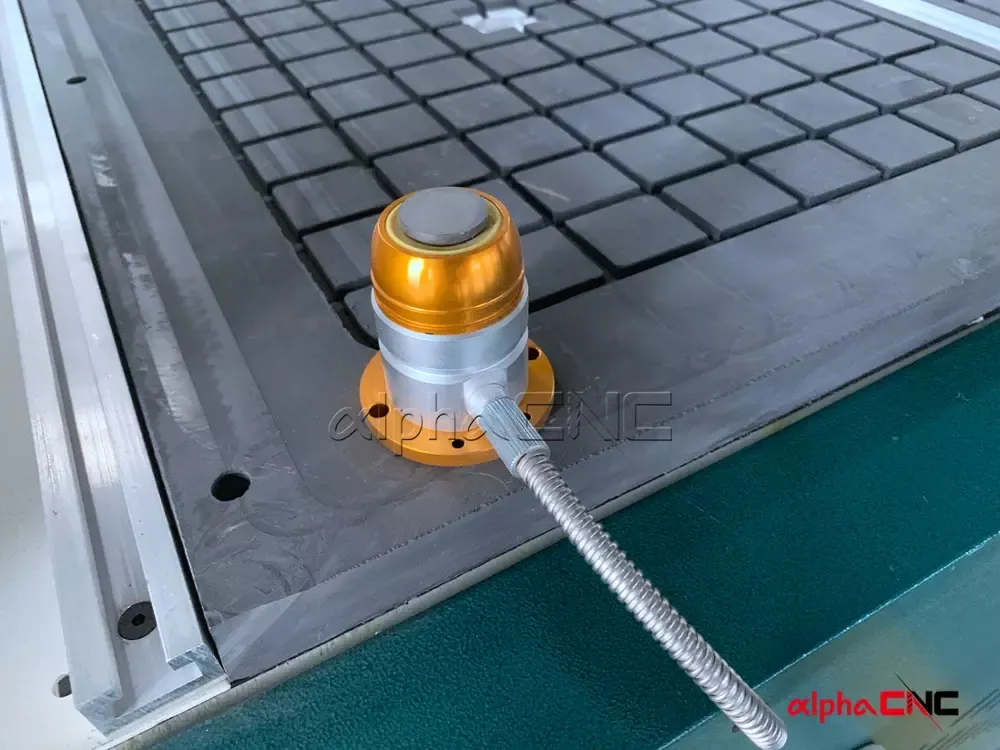

CNC Tool Calibration
Automatic tool calibration pad allows for easy and accurate "Z" zero position for single and multiple tool changes through the program.

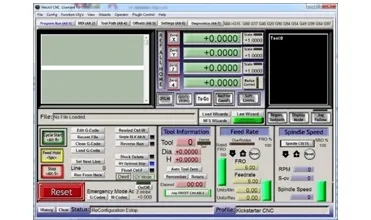

MACH 3 Controller
Mach3 is designed to control the CNC machine. The program is installed on a computer connected to the control machine. Mach3 was developed by American programmers, both for professional and amateur use, so it is the most common software for CNC machines in the world. Using Mach3, it is possible to control the following types of machines: turning, milling, routers, laser and plasma plotter, engraving.

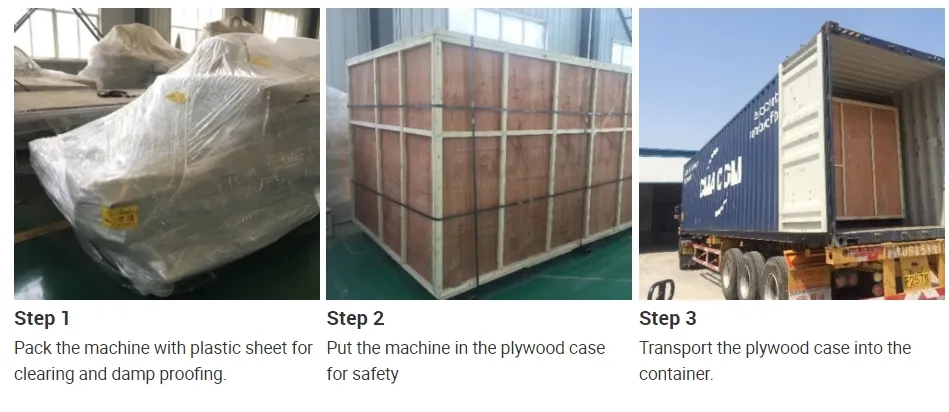

Payment&Shipment
