Automatic Tool Changing Woodworking CNC Router Machine/CNC Router Machine
Why choose Hefei Aquila CNC Equipment Co., Ltd?1.Our company has 15 years experience of production, and is a set research and development, manufacturing, sales,and has the national certification of "High-tech enterprises."2.With over 15 years experience and dozens of national patents, our......
Send Inquiry
Product Description
Why choose Hefei Aquila CNC Equipment Co., Ltd?
1.Our company has 15 years experience of production, and is a set research and development, manufacturing, sales,and has the national certification of "High-tech enterprises."
2.With over 15 years experience and dozens of national patents, our company has passed the ISO9001:2008 Quality Management System and CE Certificate, and is also entitled as the AAA Level Enterprise which Honors Contract and Keeps Promise.
3.We have the professional R&D team and quality control system, to provide you with the most valuable products and services.
4. Our sales& service network has covered all dometic major cities and overseas markets, such as the USA, European, Southeast Asia, Middle East etc.Let you have the most perfect after-sales service.
We are searching distributors all over the world. If you have any demands, welcome to contact us and visit our factory.
Automatic Tool Changing Woodworking CNC Router Machine/CNC Router Machine
Optional Accessories
Aquila Co.devotes to design all products and accessories,can maximize meeting customers demands.According to the market's different demands, its provides various accessory spareparts for kinds of requirements. The production mode of Aquila is to Act according to actual circumstances, which won the customer's trust and favour.
Parameters
Application
Sample
Company show
Certificate
FAQ
Q1:Could you pls use our own brand on your machine ?
A1:Yes,we can do it according to your request.
Q1:Could you modified and production machine according to our designer ?
A2:Of course yes,but order quantity each model more than 6 sets.
Q3:Could you supply technical guidance ?
A3: Yes.You can come to our factory study in China and we also can dispatch our engineer go to your country and assist you on installation and operation.
Q4:What"s your fast delivery time ?
A4:If have stock after we received pre payment with 15days can arrange shipment.
Generally delivery time around 30 days not include national holiday.
Q5: How to solve the quality problems after sales?
A5: Take photos or video of the problems and send to us After we check and confirm the problems, within 24 hours days,we will reply satisfied solution for you.
Q6:What is your terms of payment?
A6:Usually,we accept T/T,irrevocable L/C at sight.
For regular orders,we prefer 30% in advance,70% before shipment.
Contact Us:
1.Our company has 15 years experience of production, and is a set research and development, manufacturing, sales,and has the national certification of "High-tech enterprises."
2.With over 15 years experience and dozens of national patents, our company has passed the ISO9001:2008 Quality Management System and CE Certificate, and is also entitled as the AAA Level Enterprise which Honors Contract and Keeps Promise.
3.We have the professional R&D team and quality control system, to provide you with the most valuable products and services.
4. Our sales& service network has covered all dometic major cities and overseas markets, such as the USA, European, Southeast Asia, Middle East etc.Let you have the most perfect after-sales service.
We are searching distributors all over the world. If you have any demands, welcome to contact us and visit our factory.

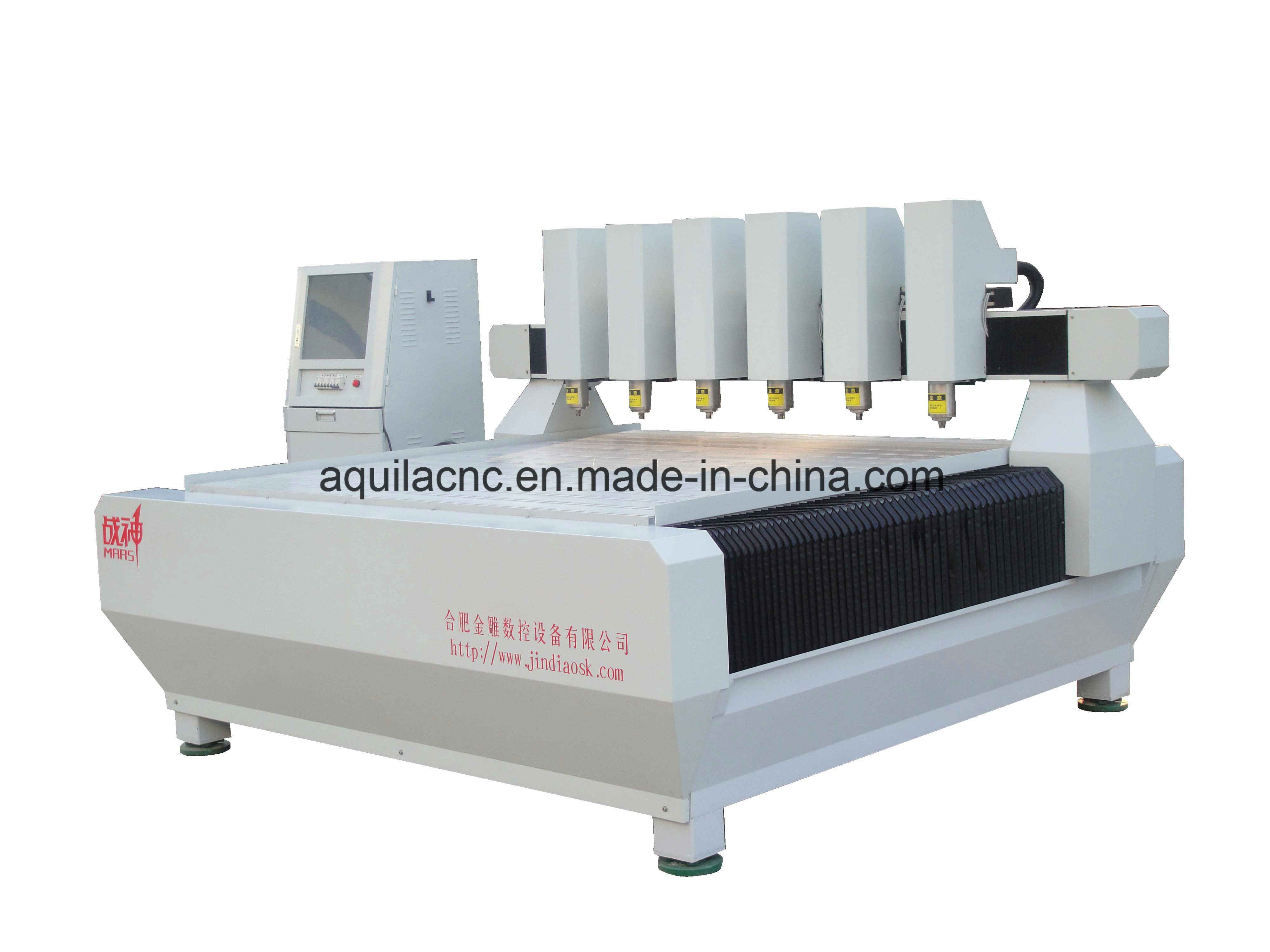

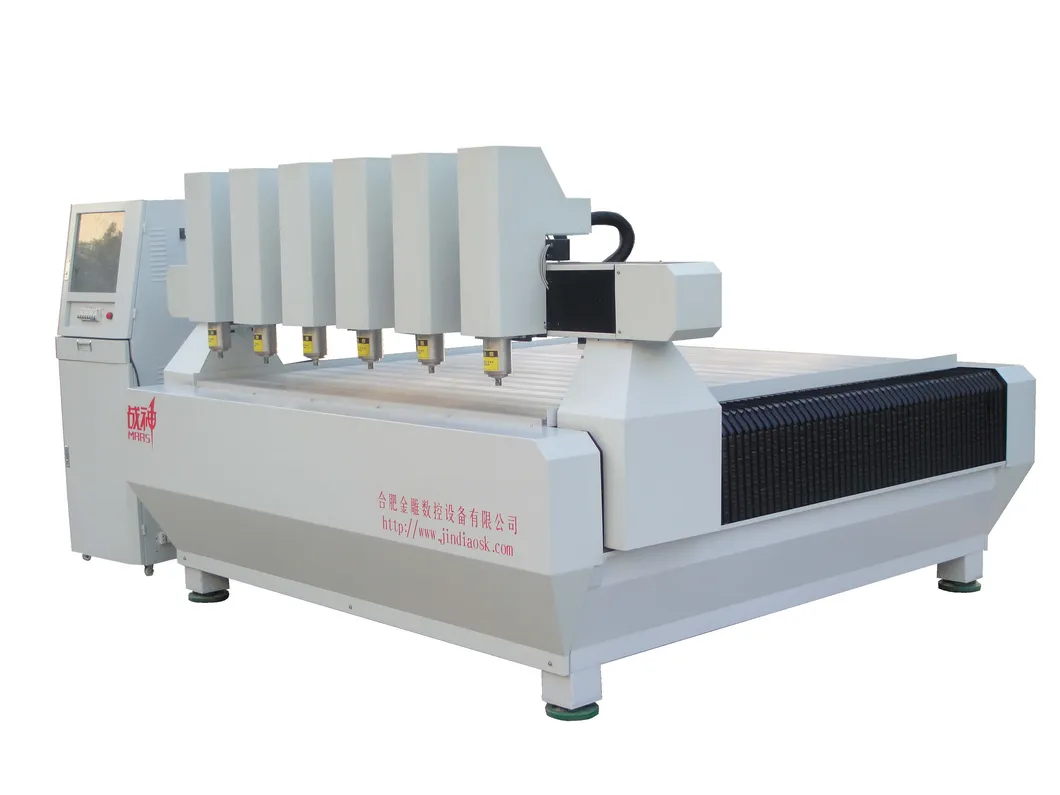

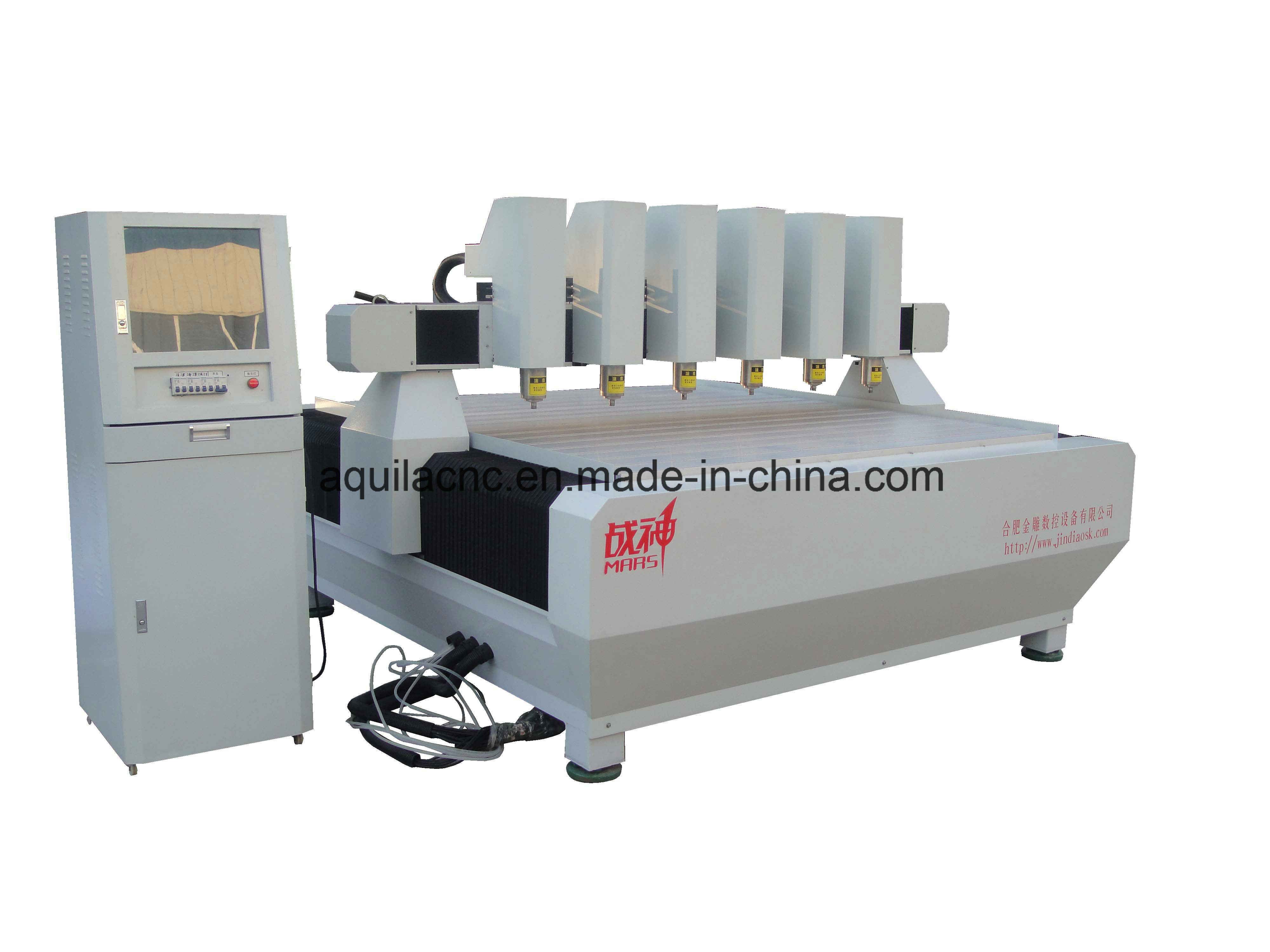

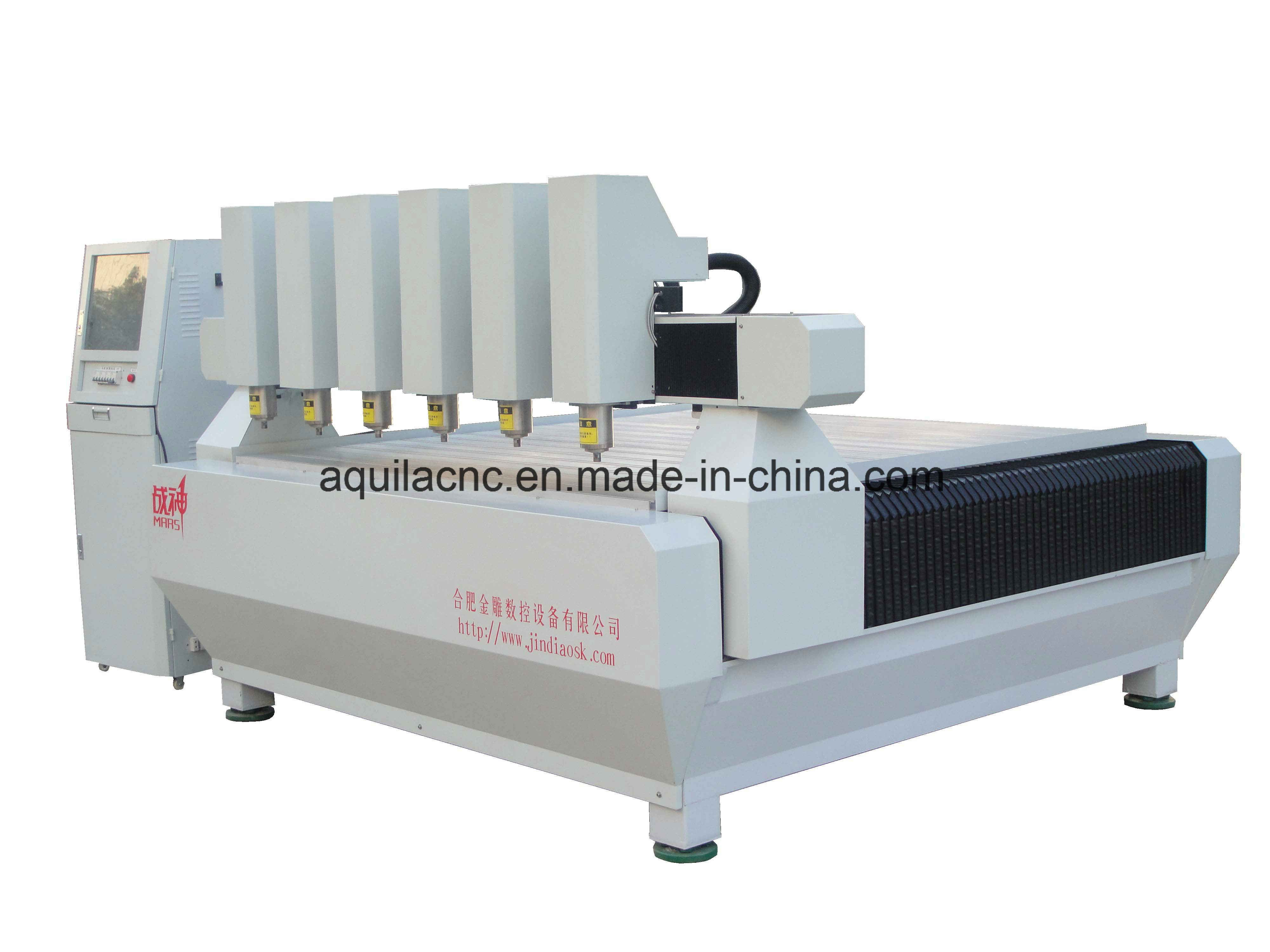

Automatic Tool Changing Woodworking CNC Router Machine/CNC Router Machine
Feature
1.Equipped with world famous control system, with powerful functions, high precision, fast speed.
2.All components are of world top-class brand to ensure high quality.
3.CNC machining center with 5 synchronizing interpolated axes, is well suited for 3D curved surface processing.
4.Working speed/ traveling speed/ cutting speed can all be controlled separately, which dramatically improve productivity and finish quality.
5.Any machine size can be customized as per your special request.
Optional Accessories
Aquila Co.devotes to design all products and accessories,can maximize meeting customers demands.According to the market's different demands, its provides various accessory spareparts for kinds of requirements. The production mode of Aquila is to Act according to actual circumstances, which won the customer's trust and favour.
Parameters
| Model | 4 Axis CNC Machining Center |
| X/Y/Z axis working stroke | 1300*3000*400mm |
| The 4th axis working stroke | Can rotate ± 90° left and right |
| Table surface | T-slot vacuum Table |
| Frame machine | Thick steel tube welded structure, w/ aging treatment |
| Spindle power | 9KW Italy HSD ATC air cooling spindle |
| Spindle speed | 0-24000 rpm |
| Automaitc tool change | Carousel, 8pcs |
| Control system | Taiwan Syntec 4 axis control System |
| Drive sytem | Japan Yaskawa servo motor & driver |
| Transmission | X/Y axis helical rack & pinion, Z axis ball screw |
| Gue rail | Taiwan imported linear guide rail |
| Vacuum pump | 7.5kw vacuum pump |
| Inverter | Fuling or Zoncn |
| Oil lubrication | Automatic |
| Positioning Accuracy | ± 0.03mm |
| Repositioning Accuracy | ± 0.03mm |
| Max. Rapid Travel Rate | 40 m/min |
| Max. Working Speed | 30 m/min |
| Command language | G code/ HPGL |
| Working voltage | AC380V 3PH 50HZ |
| Software Compatibility | Type3/ Ucancam / Artcam |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
Note
1). Spindle motor can be 800W/1.5KW/2.2KW.
2). Option: Italy HSD spindle, DSP controller servo motor etc..
3). Any machine size can be customized as per request.
Application
1. Mold industry: casting mold, automobile, sanitary ware mold, ship, yacht, aviation industry, etc.
2.3D processing: chairs, fiberglass trimming, resin and other non-metal carbon-mixed work pieces processing.
3.Suitable materials: wood, styrofoam (EPS), resin, plaster, clay and non-metallic carbide composite material.
Sample

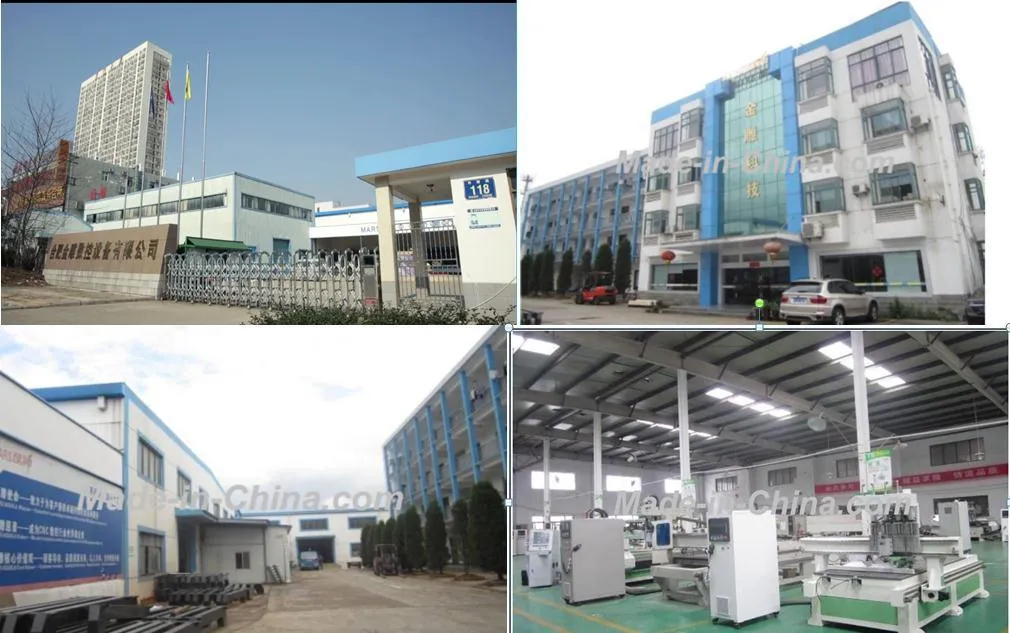

Company show
Certificate
FAQ
Q1:Could you pls use our own brand on your machine ?
A1:Yes,we can do it according to your request.
Q1:Could you modified and production machine according to our designer ?
A2:Of course yes,but order quantity each model more than 6 sets.
Q3:Could you supply technical guidance ?
A3: Yes.You can come to our factory study in China and we also can dispatch our engineer go to your country and assist you on installation and operation.
Q4:What"s your fast delivery time ?
A4:If have stock after we received pre payment with 15days can arrange shipment.
Generally delivery time around 30 days not include national holiday.
Q5: How to solve the quality problems after sales?
A5: Take photos or video of the problems and send to us After we check and confirm the problems, within 24 hours days,we will reply satisfied solution for you.
Q6:What is your terms of payment?
A6:Usually,we accept T/T,irrevocable L/C at sight.
For regular orders,we prefer 30% in advance,70% before shipment.
Contact Us:
