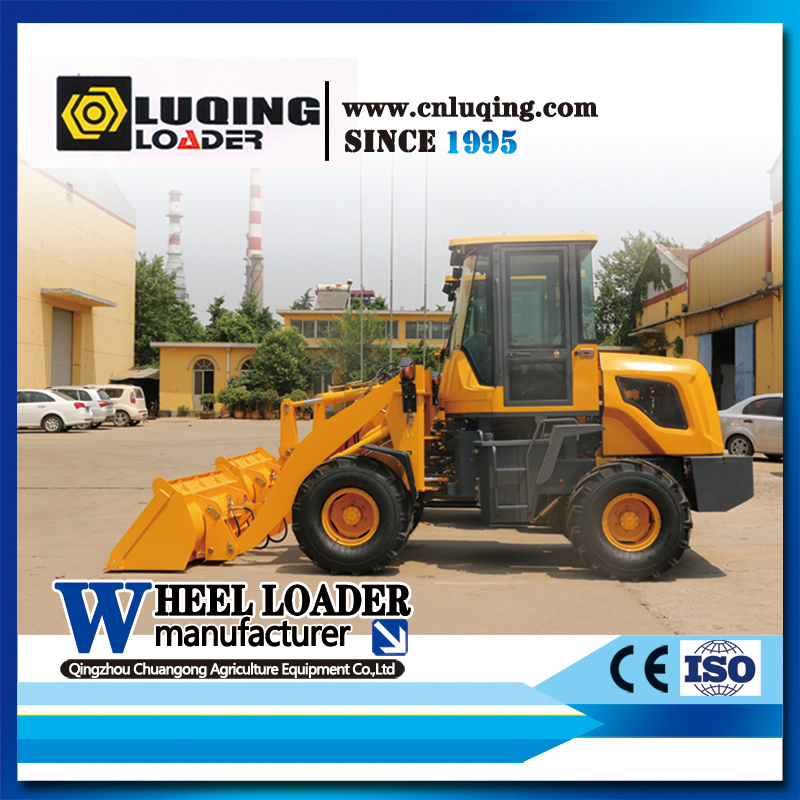

China Brand Luqing Small Mini Front End Loader 1 Ton 2 Ton 3 Ton Clamp Wheel Loader for Sale

Product Description

Performance And Characteristics

1. Originted from Komatsu technology, high reliability and productivity.
2. Torque converter and counter-shaft transmission gearbox-Komatsu tecnology.
3. Bucket can be leveled automatically, optimized working device.
4.Comfortable operation environmrnt, new design cabin, grammer seat, A/C at option

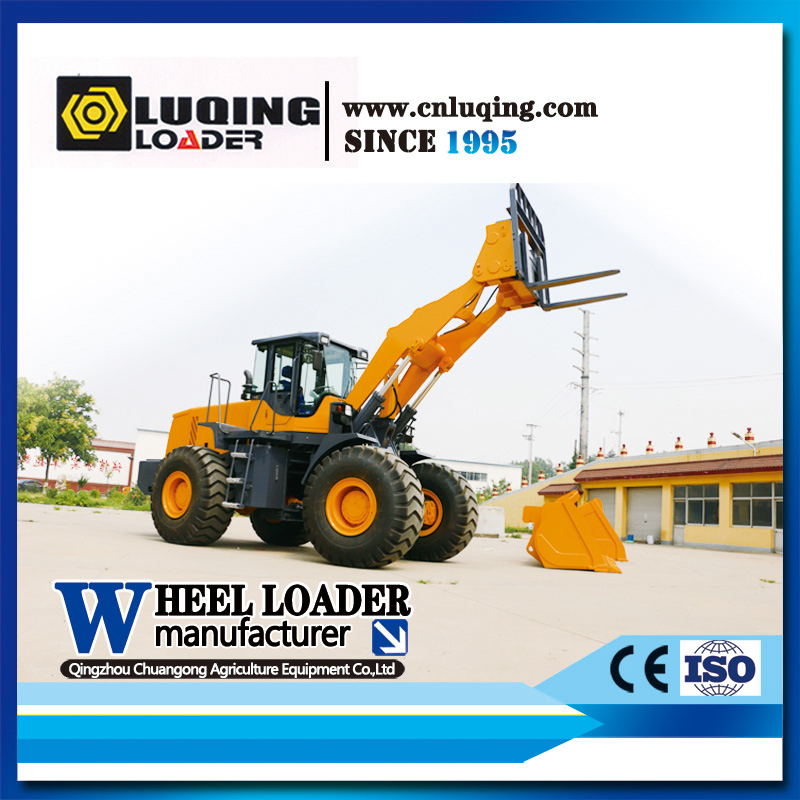

5.Various working devices of attachment are available, such as wooden fork, pipe fork, grass fork, stone bucket, enlarged bucket, plow, fork etc, to meet different need.

SPECIFICATIONS LQ920
Rated capacity	1.3m 3
Rated weight	2000Kg
Operating weight	5200Kg
Max .dump height	3200mm
Max .dump reach	885mm
Min .ground clearance	310mm
Wheel base	2150mm
Tread	1440mm
Height with bucket at full raise	3440mm
Performance of bucket being set level	Yes
Static tilting load at full steering position	32KN
Max.breakout force	48.87KN
Max.drawbar pull	34.5KN
Max.grade ability	30°
Total of three:lifting,dumping,lowering	9.8s
Overrall demensions(lengthwidthheight)	591019102810
Engine model	Yunnei 4105 with turbo charge
Cylinder-bore*stroke	4-100*115
Max.torsion	206Nm
Rated power	76kw
Min.fuel consumption	251.6g/kw.h
Rated speed	2200r/min
Model of torque devicePattern	YJ280
Pattern	3_element,single stage
Number of gear shift	4 forward,2 revers
Max.travel speed	24km/h
Main reducer type	Arc taper gear,moderation of first stage
Pattern of wheelside moderation	Planet gear moderation of single
Tyre size	16/70_20
Front tyre pressure	220kpa
Rear tyre pressure	180kpa
Streering system	B225_250
Min.turning radius(outside of bucket)	4239mm
Valve distributing working	ZL20E_04T.QW
Working pumps	CBG2063
Brake system	Air assisted oil disc type four wheel brake
Fuel capacity	80L
