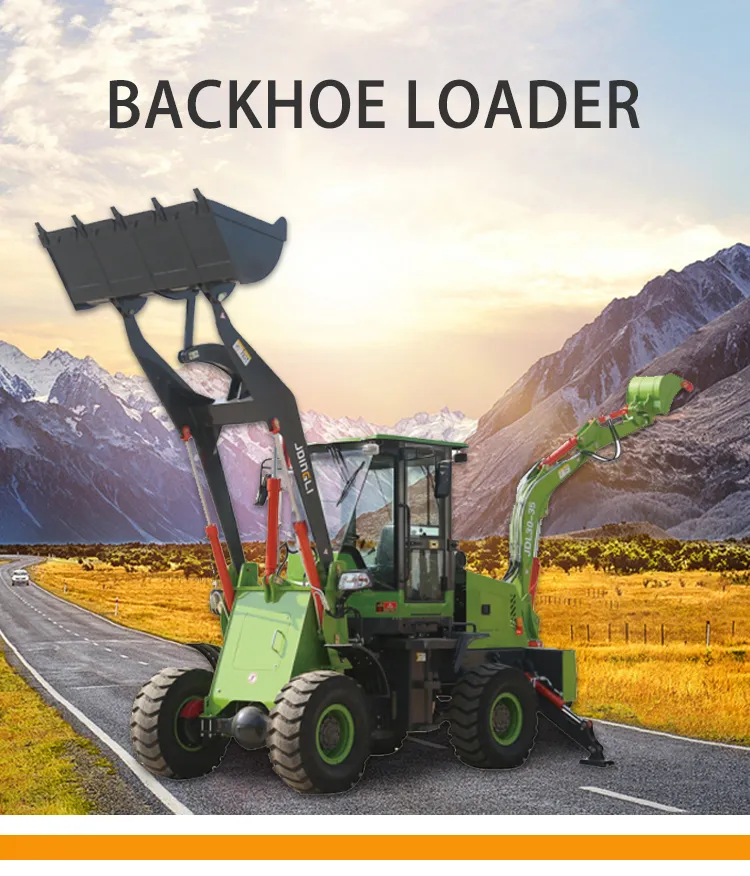

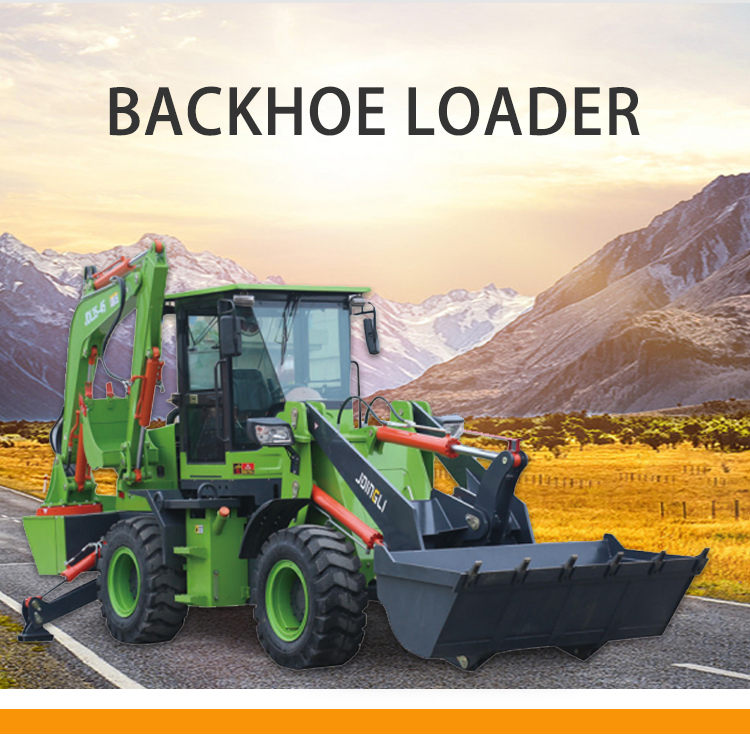

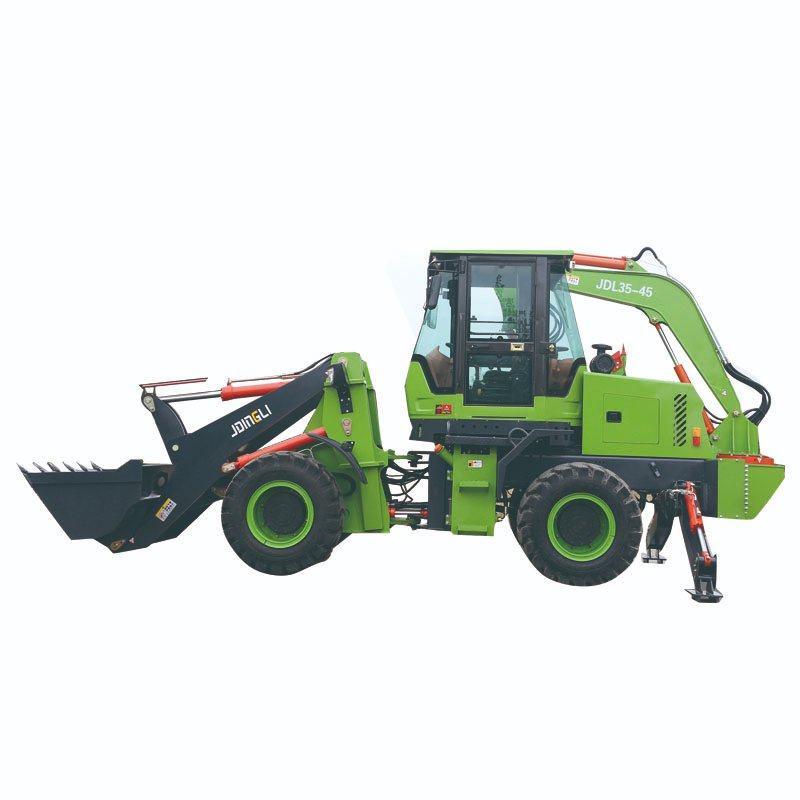

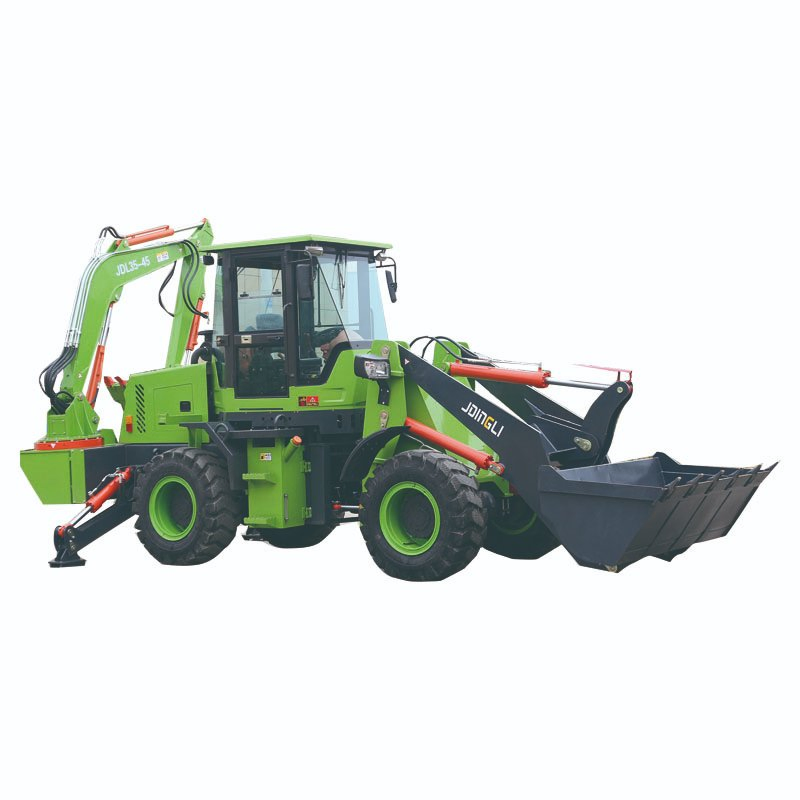

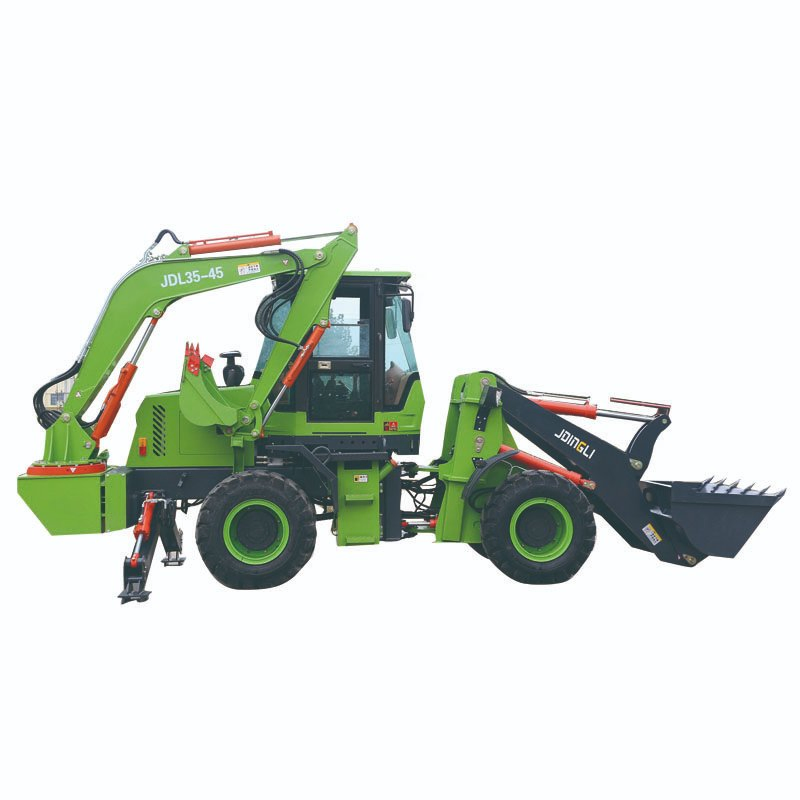

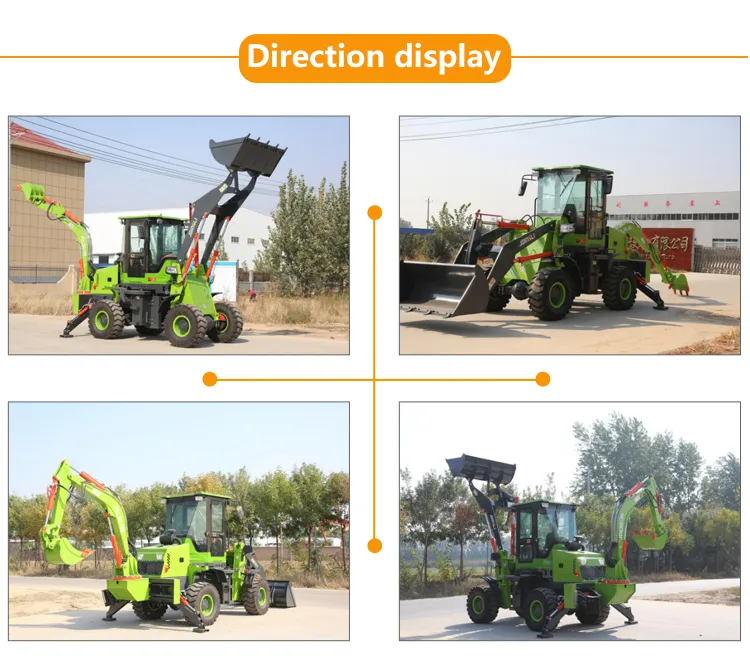

China Factory Sale CE Certified 35-45 Backhoe 7 Ton Backhoeloader 3X 4X Model Jdy 35-45 Backhoe Loader
JDY35-45 CHINA FACTORY SALE CE CERTIFIED 35-45 BACKHOE 7 TON BACKHOELOADER 3X 4X MODEL JDY 35-45 BACKHOE LOADERBackhoe Loaders provide superior digging, trenching, back-filling and material handling capability and can be used for many applications, including but not limited to General Construct......
Send Inquiry
Product Description
JDY35-45 CHINA FACTORY SALE CE CERTIFIED 35-45 BACKHOE 7 TON BACKHOELOADER 3X 4X MODEL JDY 35-45 BACKHOE LOADER
Backhoe Loaders provide superior digging, trenching, back-filling and material handling capability and can be used for many applications, including but not limited to General Construction, Demolitions and Excavations, Landscaping, Breaking Asphalt and Paving. JDY backhoes deliver the power and precise handling you need when operating in areas where using larger equipment is not practical. JDY backhoe loader has both excavating and loading functions.
Main parameters:
ADVANTAGES:

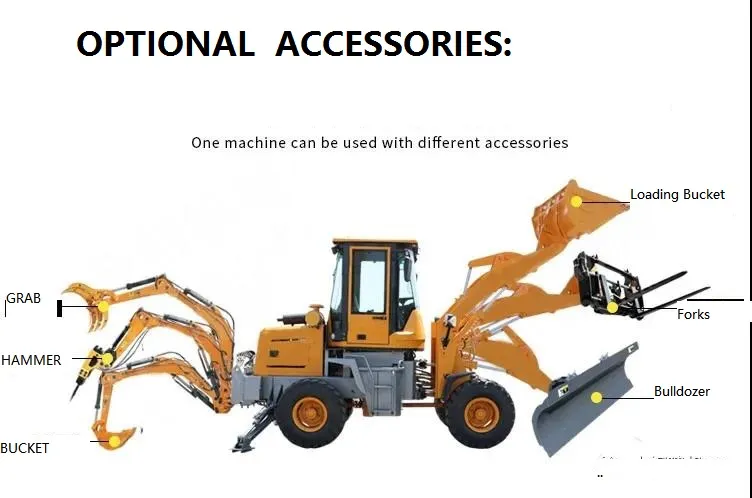

OPTIONAL ACCESSORIES:
There are many accessories for backhoe loaders.For excavating,there are hammer,auger,ripple;
rake etc; For loading, there are pallet,fork;bulldozer and so on.
RELATED PRODUCTS:
OUR FACTORY:
Backhoe Loaders provide superior digging, trenching, back-filling and material handling capability and can be used for many applications, including but not limited to General Construction, Demolitions and Excavations, Landscaping, Breaking Asphalt and Paving. JDY backhoes deliver the power and precise handling you need when operating in areas where using larger equipment is not practical. JDY backhoe loader has both excavating and loading functions.
Main parameters:
| Overall dimensions | Engine | ||||||||||

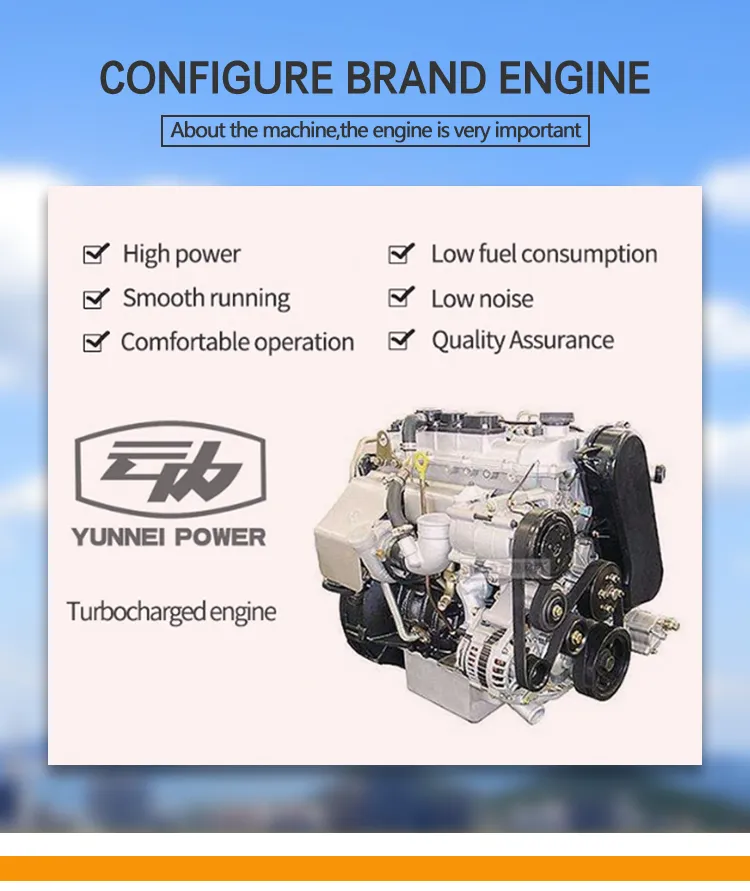

| 1 | Dimensions | 6800*1900*2900 mm | 1 | Model | YN38GBZ Turbo | ||||||
| 2 | Wheelbase | 2550mm | 2 | Type | Supercharged, four stroke | ||||||
| 3 | Track | 1750mm | 3 | Power | 76kw | ||||||
| 4 | Min. ground clearance | 270mm | 4 | Rated speed | 2400r/min | ||||||
| Performance parameter | 5 | Number of cylinders-inner diameter | 4-108 | ||||||||
| 1 | System pressure | 20MPa | Transmission system | ||||||||
| 2 | Total Weight | 6900Kg | 1 | Gearbox | Fixed-shaft power shift | ||||||
| 3 | Top speed | 25Km/h | 2 | Number of gears | Before 2 After 2 | ||||||
| 4 | Max. climbing ability | 25° | 3 | Torque converter | 280 Oneness | ||||||
| 5 | Min. Turning radius | 3500mm | Steering system | ||||||||
| Mining parameters | 1 | Type | Articulated full hydraulic steering | ||||||||
| 1 | Maximum digging depth | 3000mm | 2 | Steering angle | 45° | ||||||
| 2 | Digging and unloading height | 4000mm | Wheel bridge | ||||||||
| 3 | Maximum digging radius | 4800mm | 1 | Type | Wheel deceleration | ||||||
| 4 | Bucket width | 600mm | Tires | ||||||||
| 5 | Bucket capacity | 0.1m³ | 1 | Specification | 16/70-20 | ||||||
| 6 | Digging height | 5500mm | 2 | Front wheel air pressure | 250KPa | ||||||
| 7 | Maximum digging force | 14KN | 3 | Rear wheel air pressure | 250KPa | ||||||
| 8 | Excavator rotation angle | 270°/360° | 4 | Service brake | Pneumatic oil brake disc brake | ||||||
| Loading parameters | 5 | Parking brake | Manual | ||||||||
| 1 | Unloading height | 3500mm | Oil amount | ||||||||
| 2 | Max. unloading distance | 900mm | 1 | Fuel tank | 50L | ||||||
| 3 | Bucket width | 2000mm | 2 | Hydraulic tank | 50L | ||||||
| 4 | Bucket capacity | 1.2m³ | Other | ||||||||
| 5 | Loading maximum lifting height | 5200mm | 1 | Drive type | four-wheel drive | ||||||
| 6 | Max. rise | 40KN | 2 | Variable speed type | Hydraulic speed | ||||||
| 7 | Working a time and | 8s | 3 | Braking distance | 1800mm | ||||||
ADVANTAGES:
OPTIONAL ACCESSORIES:
There are many accessories for backhoe loaders.For excavating,there are hammer,auger,ripple;
rake etc; For loading, there are pallet,fork;bulldozer and so on.
RELATED PRODUCTS:OUR FACTORY:
