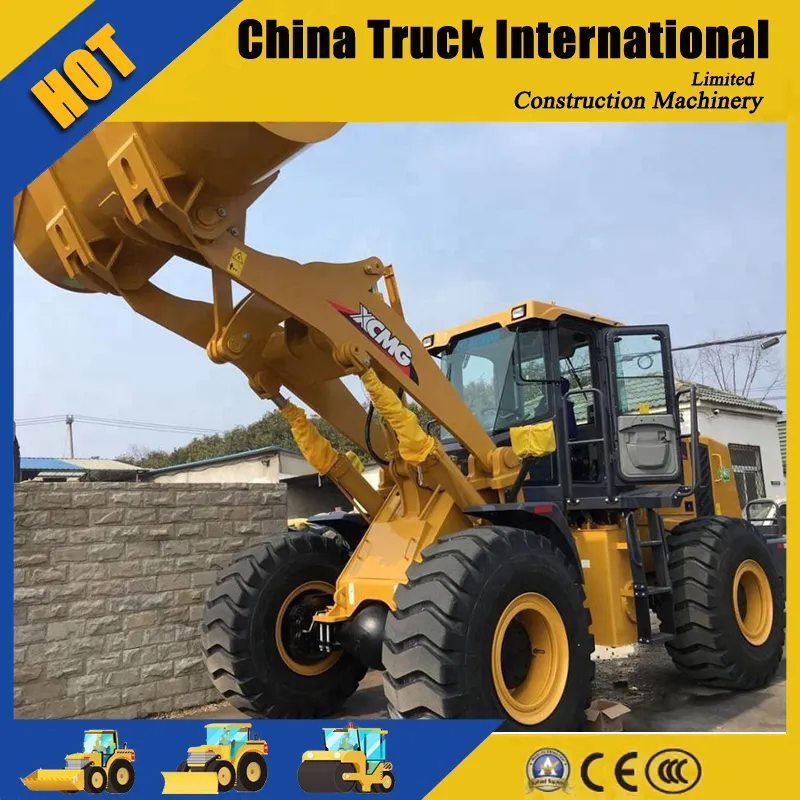

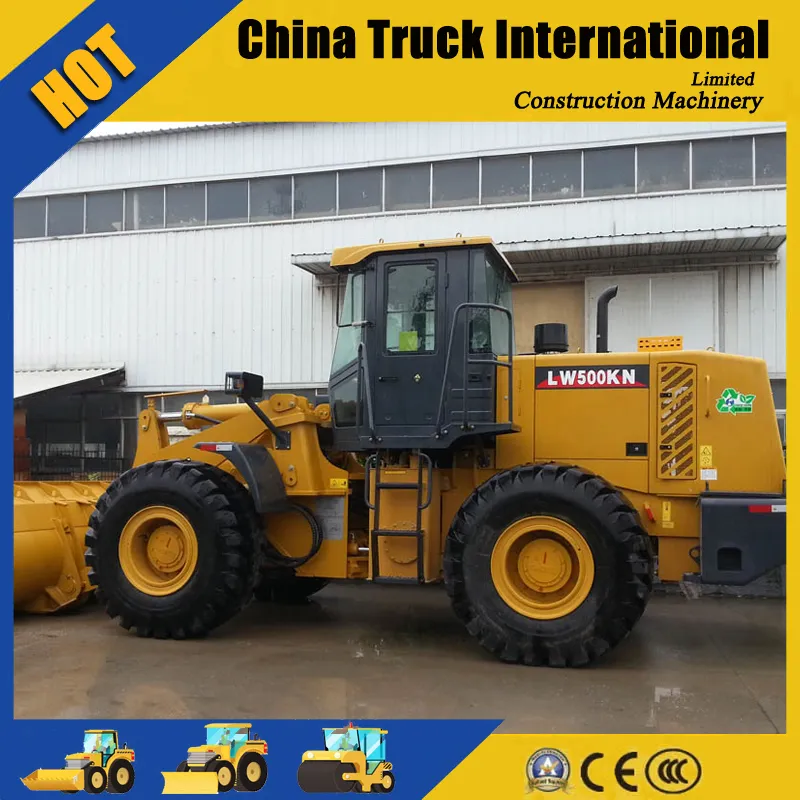

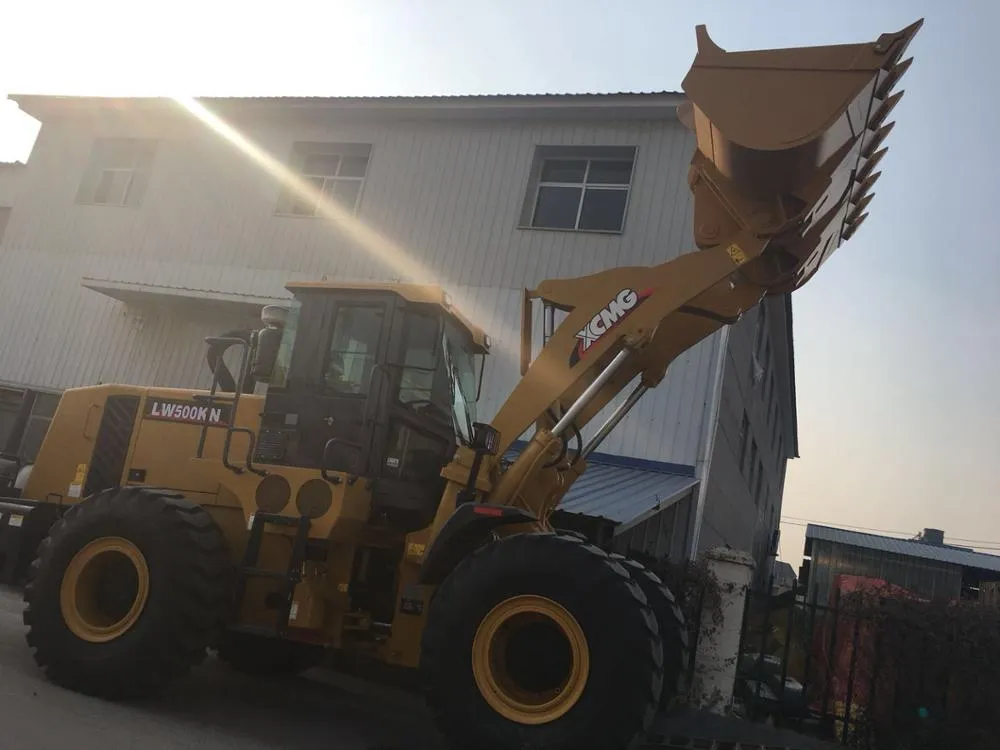

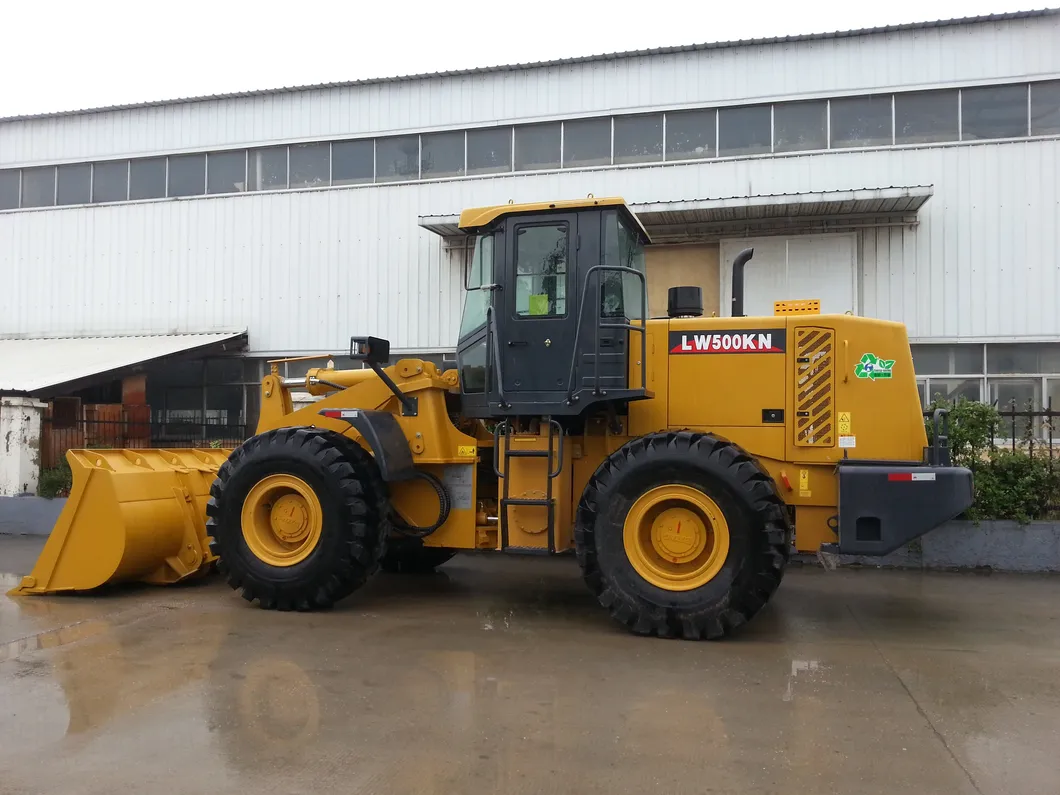

China Front End Bucket 5 Ton Front Loader Price Lw500kn
China Front End Bucket 5 Ton Front Loader Price LW500KNK series loader is latest wheel loader of high efficiency with more than 10 years' experience.The performance, efficiency, structural strength, service life, daily maintenance and operation condition are upgraded all round.With the two break......
Send Inquiry
Product Description

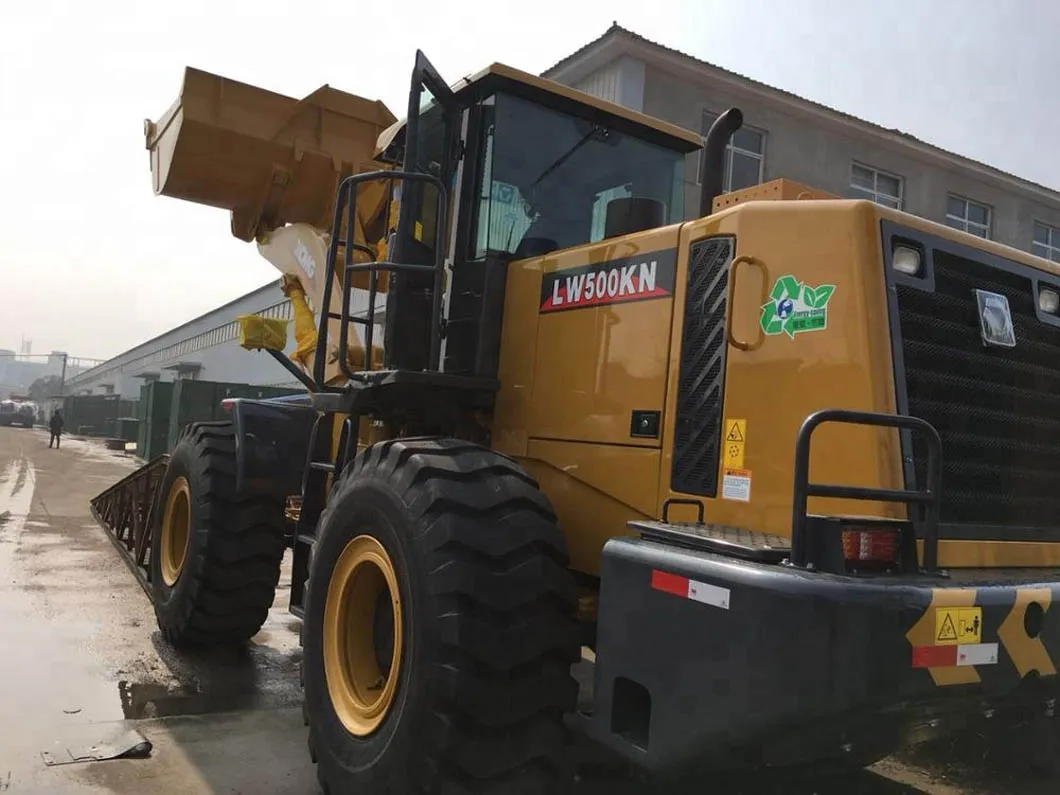

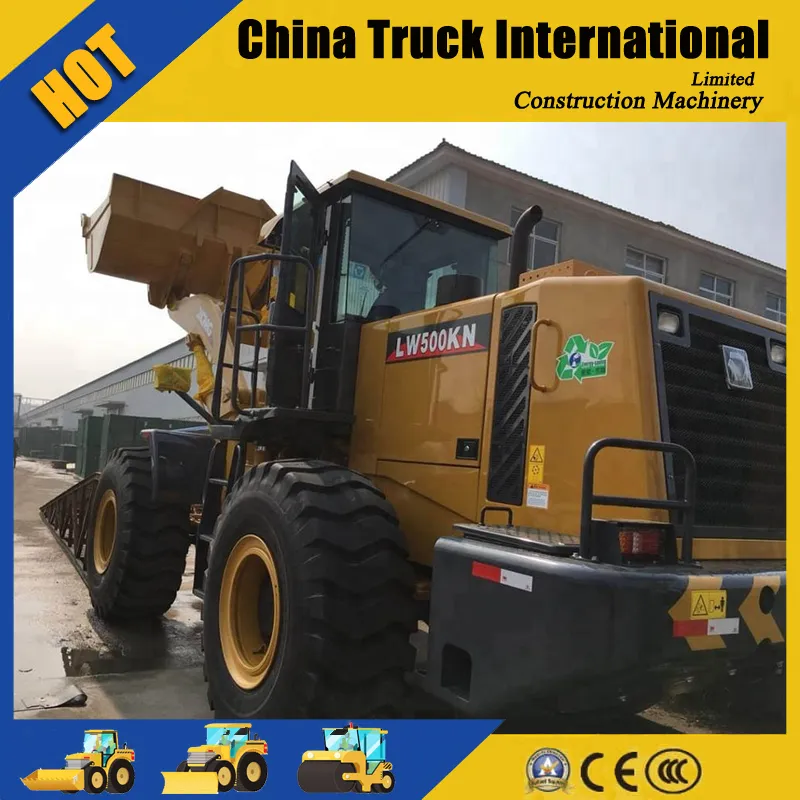

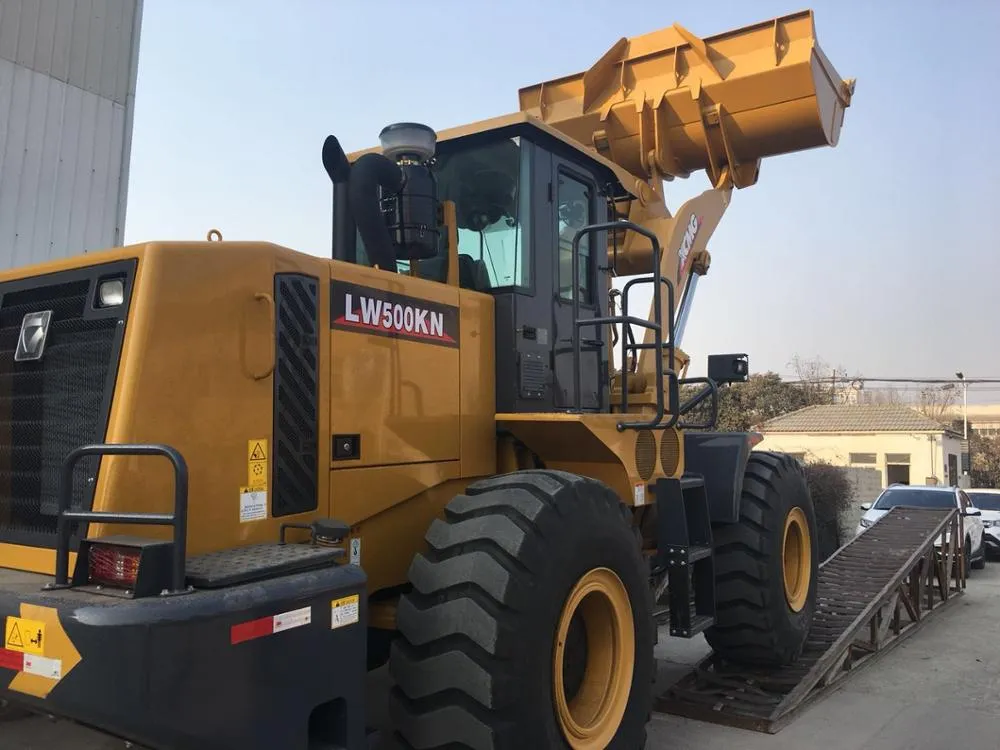

China Front End Bucket 5 Ton Front Loader Price LW500KN
The performance, efficiency, structural strength, service life, daily maintenance and operation condition are upgraded all round.
With the two breakthroughs of driving medium and covering part, the machine is ahead of other product of the same kind essentially.
All series products adopt large vehicle body and superstrong structure, especially for the heavyload work condition.
LW500K features the super large operation weight, long machine body, and strong strength and high efficiency, leading in the industry.
| Item | Parameter | Unit | |
| Rated load | 5 | t | |
| Bucket capacity | 3 | m 3 | |
| Dumping height | 3090 | mm | |
| Dumping distance | 1130 | mm | |
| Max.drawing force | 170 | kN | |
| Max. traction | 165 | kN | |
| Dimension | 8185×3000×3465 | mm | |
| Operating weight | 17200 | kg | |
| Boom lifting time | ≤6.0 | ≤6.0 | |
| Total time of three devices | 11 | s | |
| Wheelbase | 3300 | s | |
| Min. turning radius (bucket outer) | 6910 | mm | |
| Rated power | 162 | kW | |
| Travel speed | I Gear (Forward/Backward) | 0-11.5/16.5 | km/h |
| II Gear (Forward) | 0-38 | km/h | |
| Long boom parameter | |||
| Item | Standard bucket | Coal bucket | |
| Bucket capacity | 2.7m³ | 3.5 | |
| Rated load | 4.5t | 4.0t | |
| Dumping height | 3710mm | 3550mm | |
| Dumping distance | 1180mm | 1300mm | |
| Dimension | 8870×3000×3350 | 8870×3000×3465 | |
| Attachment parameter | |||
| Attachment parameter _ snow plow | |||
| Pushing snow width | 3800 | mm | |
| Horizontal rotary angle | ±38 | ° | |
| Vibrating angle | ±6 | ° | |
| Obstacle crossing height | 0~150 | mm | |
| Rated power | 162 | KW | |
| Attachment parameter-clamp | |||
| Dumping height | 3241 | ||
| Dumping distance | 1902 | ||
| Min. circle diameter and max. opening | |||
| Basic model | 800×1990 | ||
| IV model | 430×2000 | ||
| Attachment parameter-Sliding fork | |||
| Fork folding angle | 20 | ° | |
| Attachment length | 2053 | mm | |
| Attachment width | 2516 | mm | |
| Attachment height | 1200 | mm | |
| Fork teeth length | 1200 | mm | |
| Attachment parameter-Side dumping | |||
| Bucket width | 3000 | mm | |
| Dimension | 8310×3040×3465 | mm | |
| Dumping height( straight/side ) dumping | 2960/4125 | mm | |
| Dumping distance( straight/side ) dumping | 1272/105 | mm | |
| Lifting height( straight/side ) dumping | 5407/6830 | mm | |
More modles for your reference:
LW500FN
Rated Power:
162kW 217HP @2,000rpm
Operating Weight: 16,500kg 36,376lb
Dimensions(L×W×H):
8,305mmX2,850mmX3,515mm
27'3''X9'4'''X11'6''
LW500K
Rated Power:
162kW 217HP @2,000rpm
Operating Weight: 17,200kg 37,919lb
Dimensions(L×W×H):
8,530mmX2,850mmX3,515mm
28'X9'4'''X11'6''
LW500K-LNG
Rated Power:
162kW 217HP @2,000rpm
Operating Weight: 17,600kg 38,801lb
Dimensions(L×W×H):
8,685mmX2,850mmX3,515mm
28'6''X9'4'''X11'6''
LW500KN
Rated Power:
162kW 217HP @2,000rpm
Operating Weight: 17,200kg 37,919lb
Dimensions(L×W×H):
8,530mmX2,850mmX3,515mm
28'X9'4'''X11'6''
ZL50G
Rated Power:
162kW 217HP @2,000rpm
Operating Weight: 17,500kg 38,580lb
Dimensions(L×W×H):
8,470mmX2,850mmX3,485mm
27'10''X9'4'''X11'5''
ZL50GN
Rated Power:
162kW 217HP @2,000rpm
Operating Weight: 17,500kg 38,580lb
Dimensions(L×W×H):
8,470mmX2,850mmX3,485mm
27'10''X9'4'''X11'5''
ZL50G-Super
Rated Power:
162kW 217HP @2,000rpm
Operating Weight: 17,500kg 38,580lb
Dimensions(L×W×H):
8,470mmX2,850mmX3,485mm
27'10''X9'4'''X11'5''
