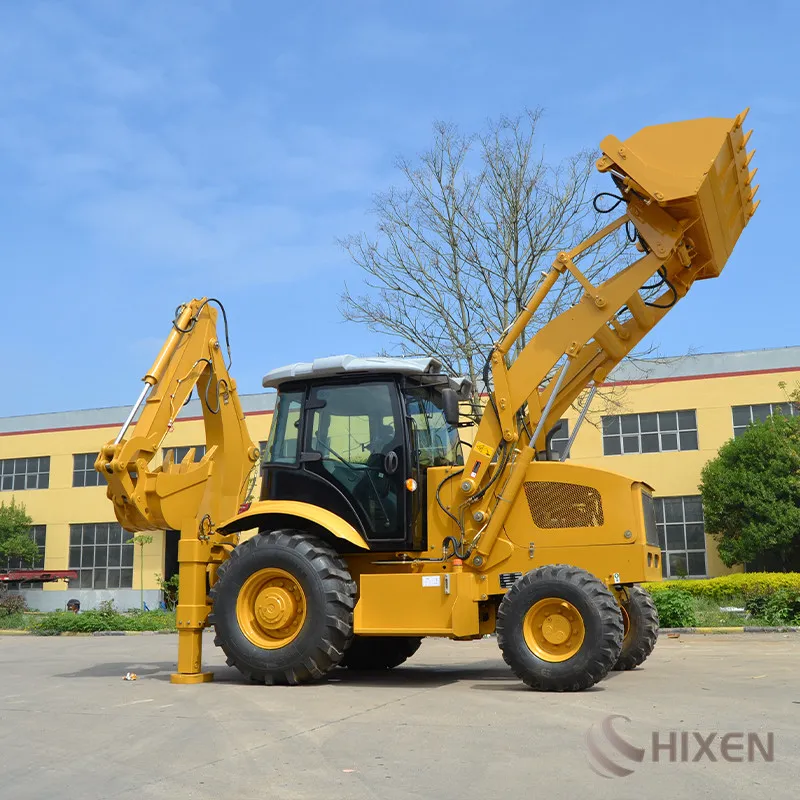

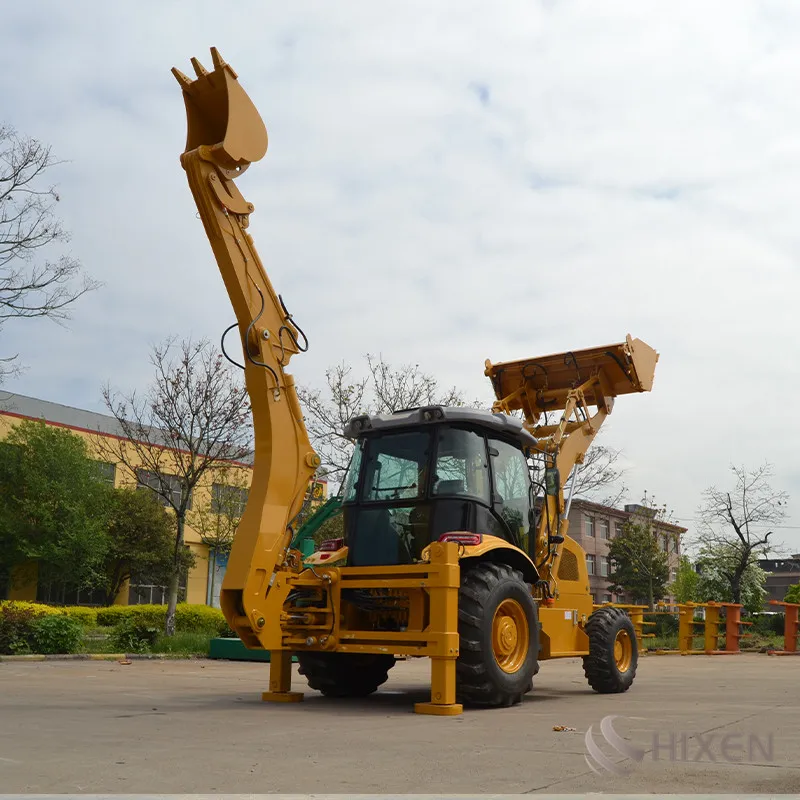

China Hot Sale Articulated Backhoe Loader Machine Wz40-28

Product Description

1. Product Description
Backhoe loader is mainly used for small-scale engineering operations such as afforestation, agriculture and animal husbandry construction, channel construction, sewer cleaning, water channel dredging, clean-up and reloading in factories and mines, and is widely used in small and medium-sized roadways with a width of 2 meters or more.

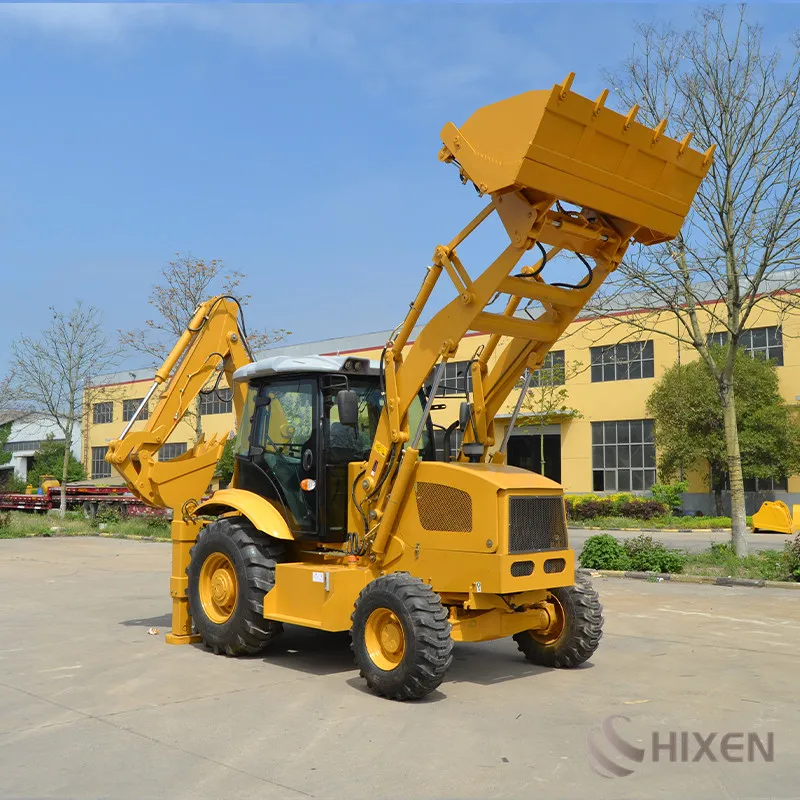

China Hot Sale Articulated Backhoe Loader Machine Wz40-28

2. Product Parameters

Overall operating weight	8125KG
Transport dimension
LWH	5919×2217×3764 mm
Wheel base	2200mm
Min. ground clearance	300mm
Bucket capacity	1.0m3
Breakout force	38KN
Loading lifting capacity	2500KG
Bucket dumping height	2742mm
Bucket dumping distance	1062mm
Digging depth	52mm
Backhoe capacity	0.3 m3
Max. digging depth	4082mm
Swing angle of excavator grab	190o
Max. pulling force	39KN
Engine
Model	YUCHAI engine
Type	In line direct injection four- stroke and injection combustion chamber, turbo type
Rated power	78KW or 85KW
Optional brand	CUMMINS 74.5KW engine
Steering System
Model of Steering Device	BZZ5-250
Steering Angle	±36o
Min. turning radius	6581mm
Pressure of the system	12Mpa
Axle
Manufacturer	Front Axle:YTO Rear Axle: Feicheng Axle Factory
Main transmission type	Double reduction
Final reducer	Single stage final reducer
Rated loader of axle	4/18.5t
Transmission System
Torque Converter
Model	YJ280
Type	Single-stage three elements
Max. efficiency	84.4%
Inlet pressure	0.4Mpa-0.55 Mpa
Outlet pressure	1.2Mpa-1.5 Mpa
Cooling method	Oil-cooling pressure circulation
Gearbox
Type	Fixed shaft power transmission
Oil pressure of clutch	1373Kpa-1569 Kpa
Gears	Two gears ahead, two gears astern
Max. speed	25Km/h
Tyre
Model	14-17.5/19.5L-24
Pressure of front wheel	0.22 Mpa
Pressure of back Wheel	0.22 Mpa
Brake System
Service brake	Air over oil caliper brake
	External type
	Self-regulation
	Self-balance
Emergency brake	Operation power implementing brake
Emergency brake	Manual operation power terminating brake
Hydraulic System
Digging power of excavator grab	46.5KN
Digging power of dipper	31KN
Bucket lifting time	5.4S
Bucket lowering time	3.1S
Bucket discharge time	2.0S

3. Main feathres:

1) Front-end loading and back-end excavation structure, streamline design.
2) Cab with an air conditioner and fan, and front tilting function for good service maintenance.
3) Brake system with Hydraulically-actuated, wet disc brakes, safe and reliable.
4) High performance diesel engine, powerful and environmental protect.

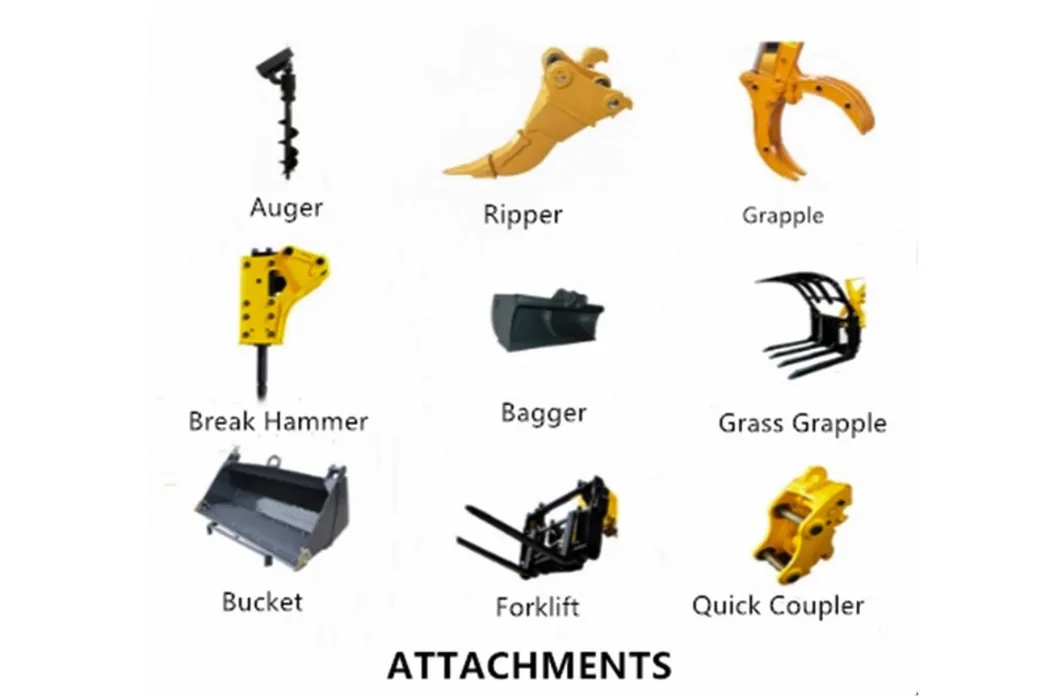

4. Multifunctional Attachments:

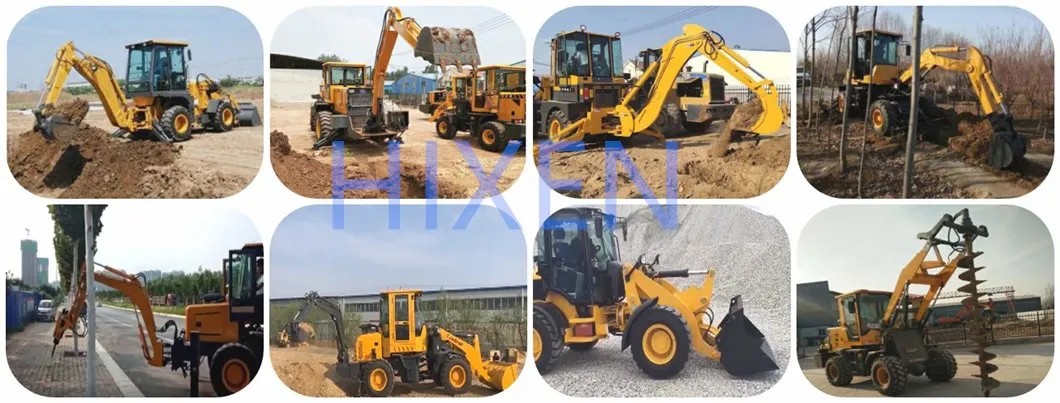

5. Application

6. Company Profiles

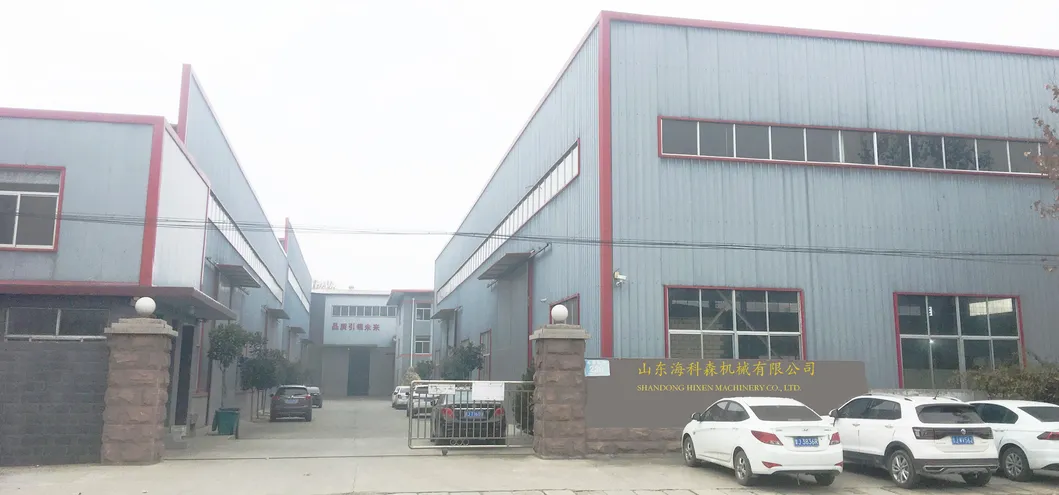

Shandong Hixen Machinery Co., Ltd, is a reputed manufacturer and exporter of construction machines, farm machines and mine machines with large years' experience.Located in the capital city Jinan of Shandong province, the company has developed into a comprehensive machinery group.
The products mainly include:Wheel loader, excavator, backhoe loader, skid steer loader, forklift, self-loading concrete mixer and mucking loader etc.Which are widely used in construction, farming, mining and all the related machinery areas.Besides domestic market, the products have also been supplied to numerous places all over the world which has earned large reputation and enjoyed great population.
Since established, the company has been devoted to the scientific and technological innovation, precision manufacturing and all-around service.With all the related certificates, we strictly follow the industry standard, fully control the production flow guaranteeing high quality of every product.We sincerely welcome your visit to reach a mutual success.

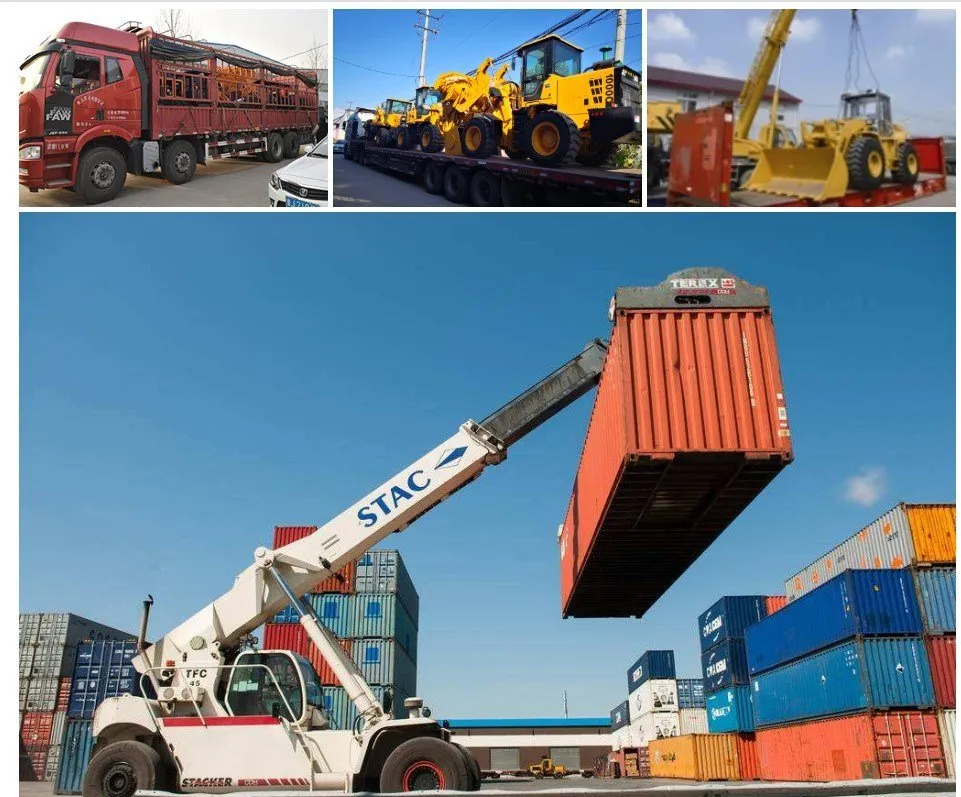

7. Packaging&Delivery

8. FAQ

Q1.What is the delivery period?
After receiving the initial payment, the goods will be ready for delivery within 5 days.The rest time depends on the distance and transport method which need to be negotiated.

Q2.What is the payment terms can you accept?
30% initial payment, 70% balance payment when the goods are ready for delivery by T/T.

Q3.How long is the product guarantee?
We provide one year quality guarantee.

Q4.What kind of service could you provide?
1) Pre-sale service:We could assist you finding the suitable equipment according to your requirement.
2) On-sale service:We strictly follow the commercial rules, contract signing, following the production process, controlling the goods quality, tracking the goods delivery, guaranteeing you receive the qualified goods safely.
3) After-sale service:We provide some consumables with the equipment;
We have operation manual for instructing the basic installation and operation;Video guidance for trouble shooting;Engineers ready for field maintenance and repairing when necessary.

Q5.Can we have the special order like specification change, logo making?
Yes, we accept the customization.We can make it clear in the contract and then our technical start design and production as per your requirement.

For more questions, please feel free to contact us.
We sincerely welcome all friends paying visits to us and reach a mutural success.
