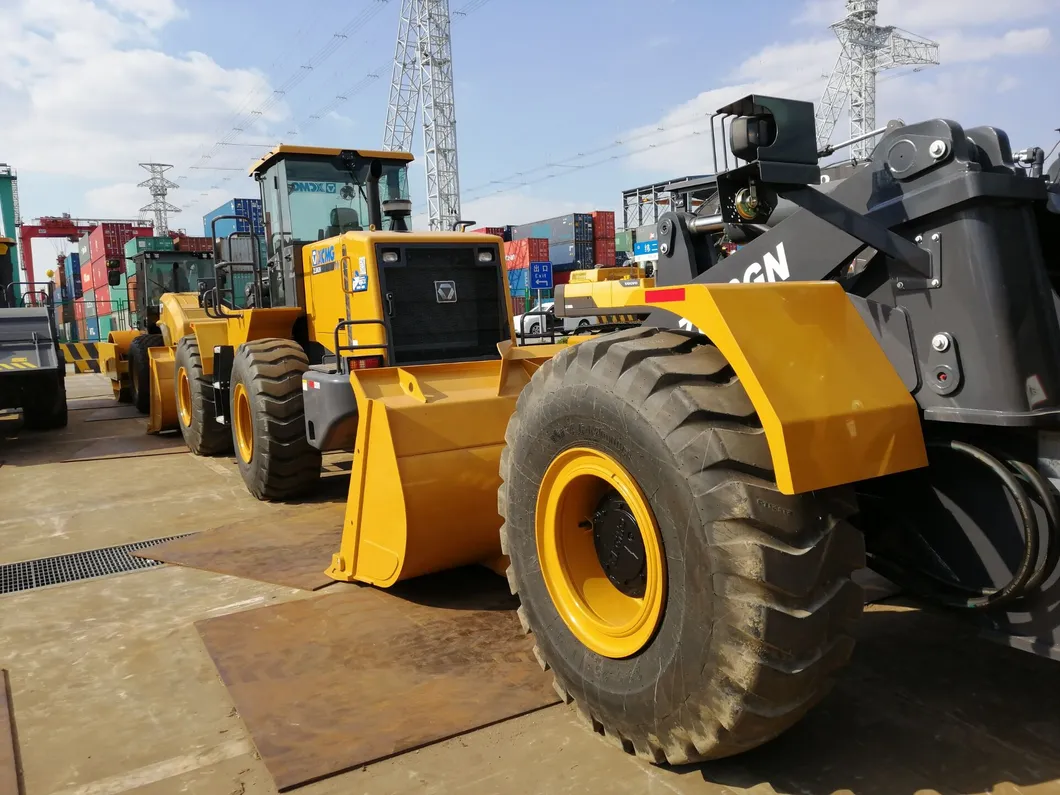

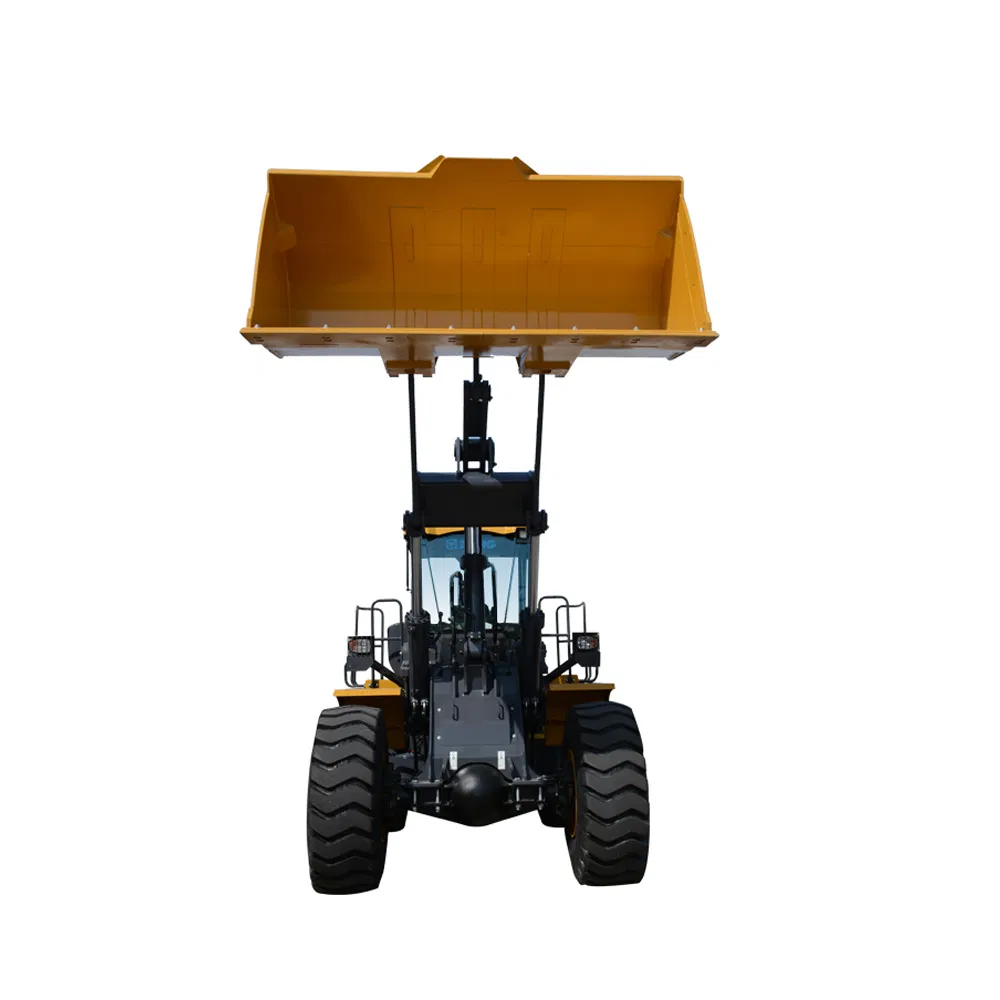

Heavy Duty Earth Moving Machines 6000kg Front End Wheel Loader

Earth moving machinery 6 ton big wheel loader price for sale

6ton Wheel Loader LW600FV introductions

LW600FV loader is equipped with  Weichai engine electronic control transmission, and patented automatic
power distribution (APD) hydraulic system. The steering plunger pump can, based on different working conditions and statuses of the loader, supplies the oil of different pressures and flows to the working system and steering system to automatically optimize the shares of engine power for drive system and hydraulic system, reduce the fuel consumption, and remarkably improve the working efficiency of machine.

Performance Highlights of wheel loader

The ≥17.4t traction force and ≥20.5t breakout force conquer all kinds of severe working conditions.

The 38° steering angle and the 3,350mm wheelbase adapt to diversified narrow working sites.

Model Characteristics of wheel loader

Electronic control transmission  heavy-duty electronic control countershaft transmission is in line with the international level in
terms of reliability, operation comfort, multi-functionality, and technologic advancement and has gained multiple national patents.

Integrated cab - The super-large, full-view, ultra-low noise, and slightly pressurized cab is fitted with audio system and A/C, the joysticks
are under follow-up status with the seat, and all control units are easily accessible to build the best operating environment.

Lightweight design technology exclusive high strength skeleton frame system is applied and the dynamics simulation
research, the in-depth finite element analysis, and the lightweight design are taken to realize that the "load-carrying material
ratio" is remarkably leading the industry products.

Patented bushing lubrication technology - The industry's pioneering bushing lubrication structure is applied to prolong the life of the
hinge pins by more than one time.

Patented double-limit technology - The combination mode of primary flexible limit and secondary rigid limit attenuates the impact
onto the frame and improves the operation comfort.

Specifications of wheel loader
