Hydraulic 7tons Wheel Loader with Factory Price
7 ton wheel loader with 4 wheel drive tractor 7ton Wheel Loader LW700HV introductionsLW700HV wheeled loader is rooted in customers' needs and relied on the international R&D platform tocomprehensivelyimprove the reliability, economy, comfort, efficiency, maintenance convenience, andadaptabil......
Send Inquiry
Product Description

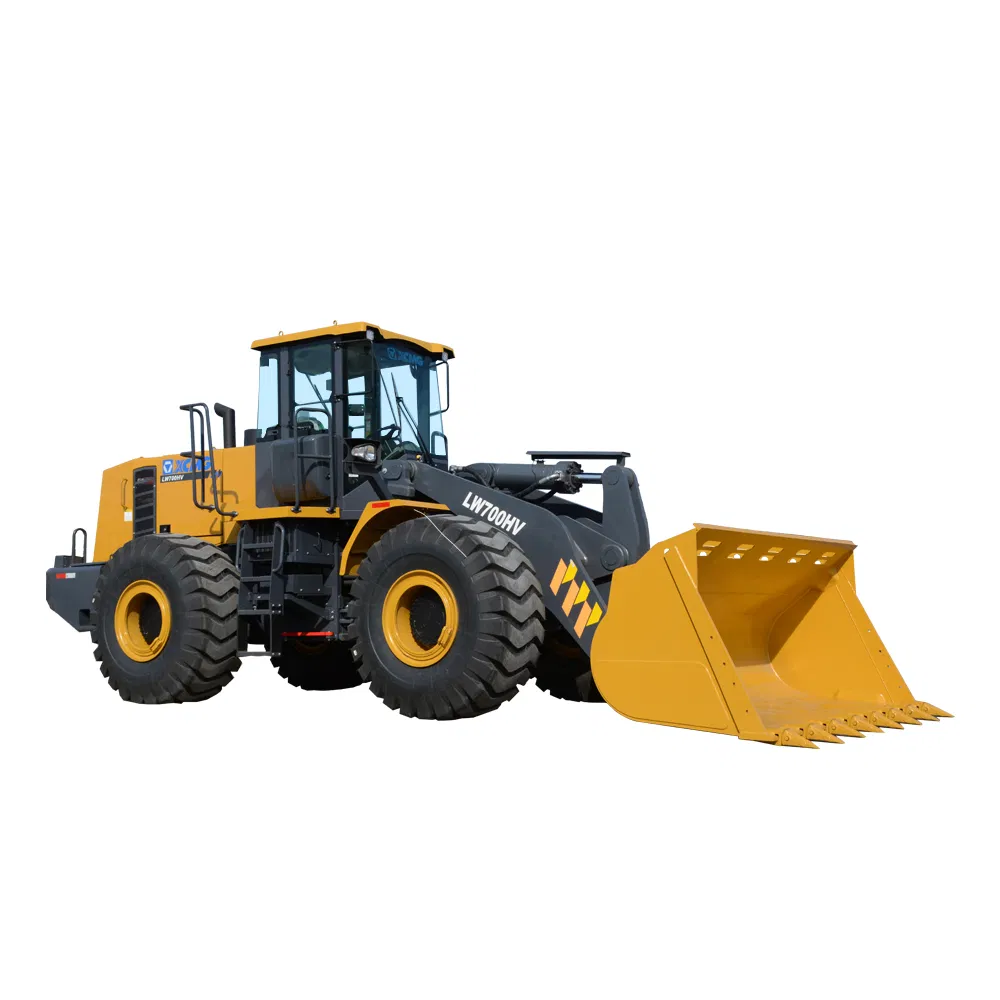

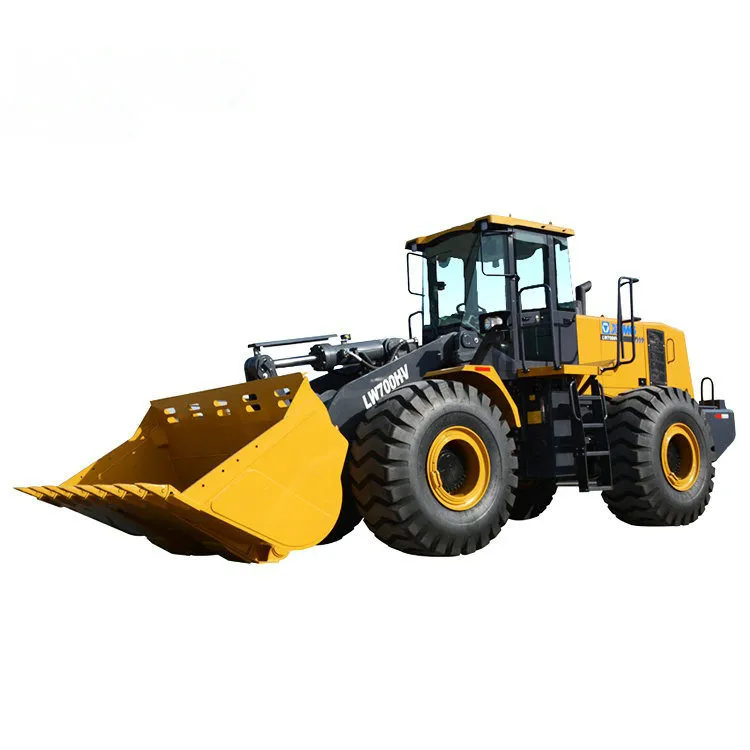

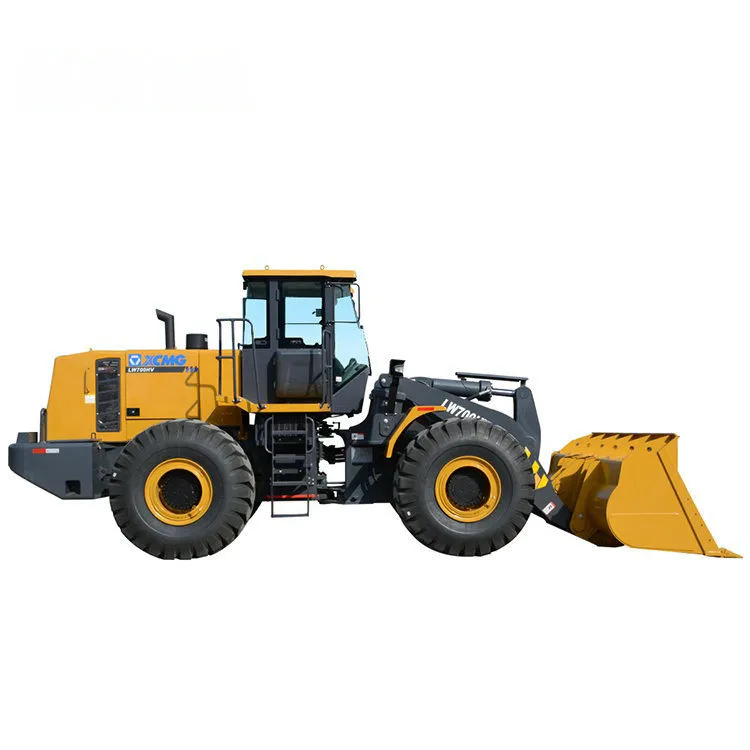

7ton Wheel Loader LW700HV introductions
LW700HV wheeled loader is rooted in customers' needs and relied on the international R&D platform to
comprehensivelyimprove the reliability, economy, comfort, efficiency, maintenance convenience, and
adaptability of the product. By means of the optimization of power matching, the imported ZF4BP230 full-automatic transmission is installed and the constant/variabledisplacement hydraulic system, CAN bus communication and intelligent control system are applied to realize the leading technologic level of the machine in the domestic loader industry.
LW700HV wheeled loader is extensively applied in the construction sites, ports, harbors, stations, and goods
yards, especiallyfor loading and short-distance transport of bulk materials, including loose soil, sandy soil,
gravel, and coal, and is a first-choicemachine for organization of production in the port, mining, engineering
construction, and logistics industries.
Specifications of wheel loader
Description | Specification | ||
Bucket capacity m3 | 4.2 m3 | ||
Rated operating load | 7000 kg | ||
Machine weight | 23600 kg | ||
Dump clearance | 3094 mm | ||
Reach lift | 1332 mm | ||
Wheel base | 3500 mm | ||
Tread | 2360 mm | ||
Overall machine length | 8900 mm | ||
Overall machine width | 3600 mm | ||
Overall machine height | 3200 mm | ||
Gradeability | 28 ° | ||
Articulation angle | ±38 ° | ||
Rear axle swing angle | ±12 ° | ||
Max.horse power | 192 KN | ||
Max.breakout force | 220 KN | ||
Tipping load | Straight | ≥17000 Kg | |
Full Steering | ≥16200* Kg | ||
Min.turning radius over tyres | 7120 mm | ||
Hydraulic cycle time-raise | ≤5.7 s | ||
Total hydraulic cycle time | ≤9.8 s | ||
Engine | model | WP10 | |
form |
Six-cylinder, four-stroke, turbocharged, electric sp | ||
power range | 190~210 kW | ||
Travel speed | I-gear | 0~6/0~6 km/h | |
II-gear | 0~12.7/0~12.7 km/h | ||
III-gear | 0~27/0~27 km/h | ||
IV-gear | 0~35 km/h | ||
