Lgcm CE Red Wheel Loader 0.8ton with Cheap Price
LGCM Ce Red Wheel Loader 0.8ton with Cheap Price Product DescriptionLAIGONG brand new CE wheel loaderLAIGONG CE wheel loader is a very powerful product, with compact size, strong engine power and optimized transmission, widely used in agriculture and forestryMain Features of CE wheel loaderEfficienc......
Send Inquiry
Product Description

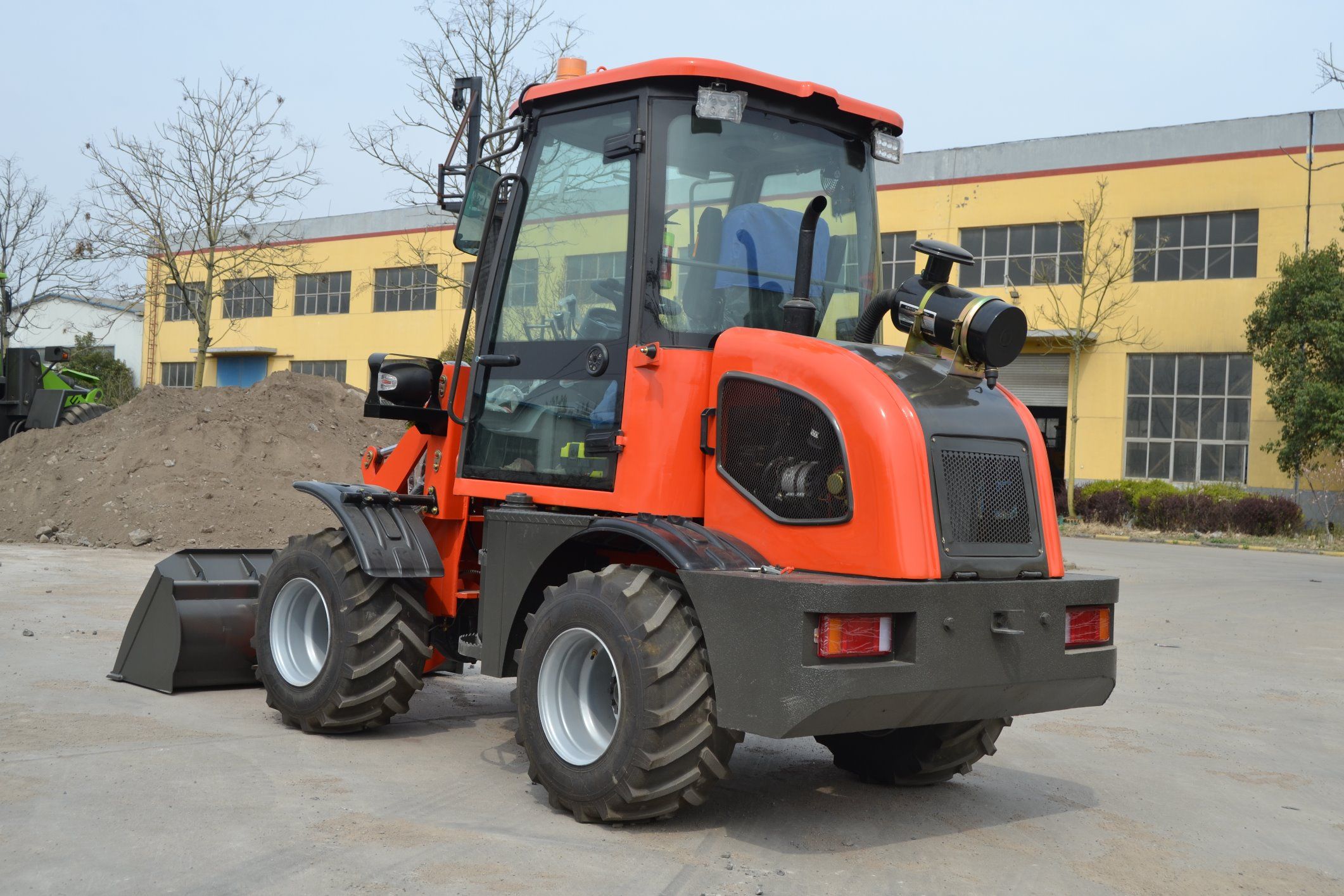

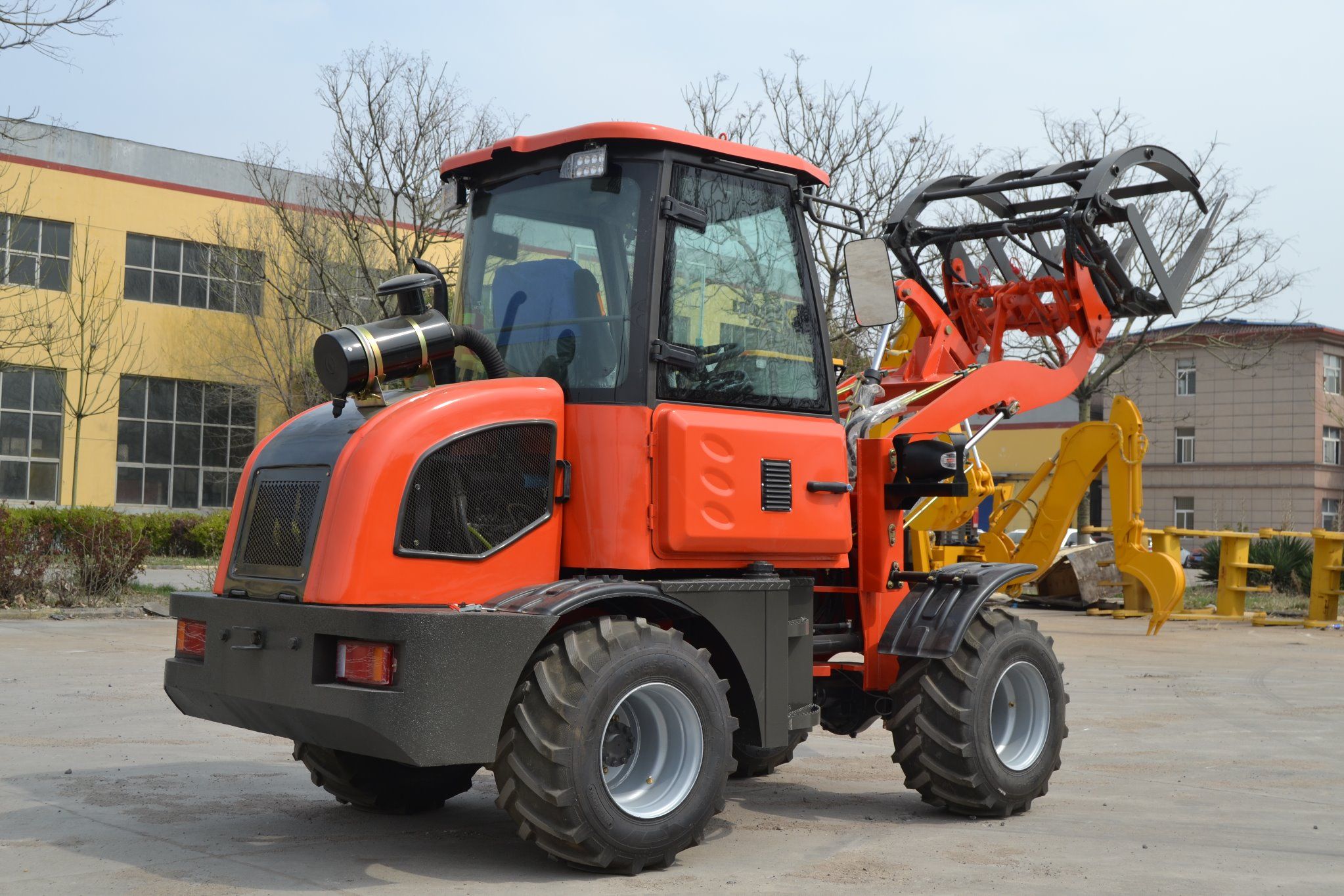

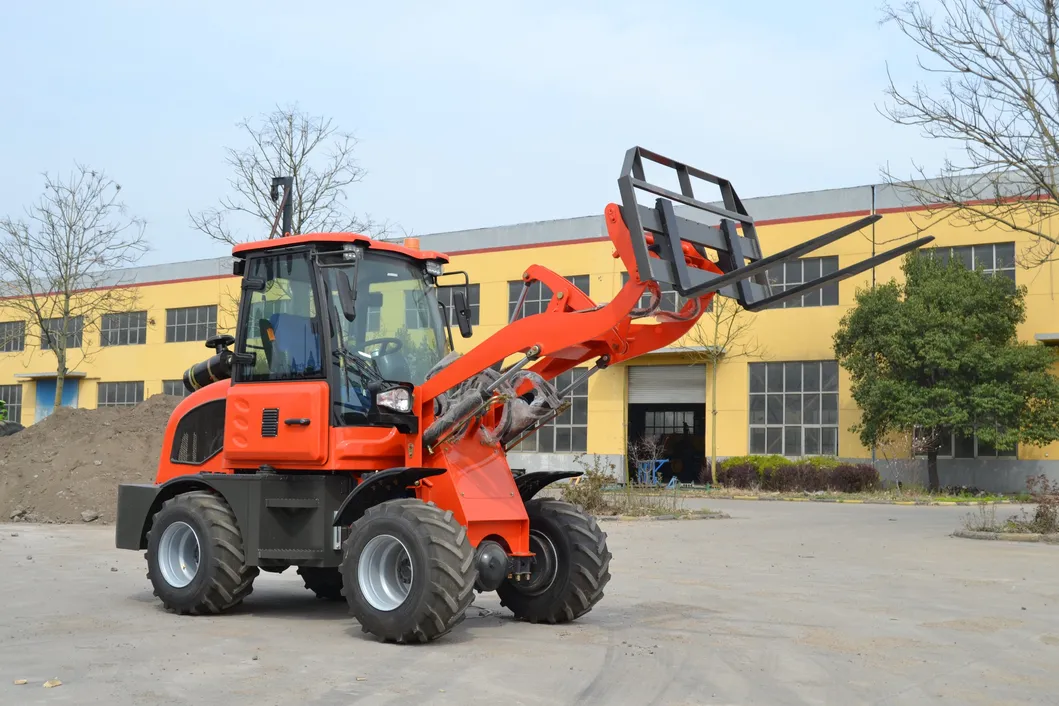

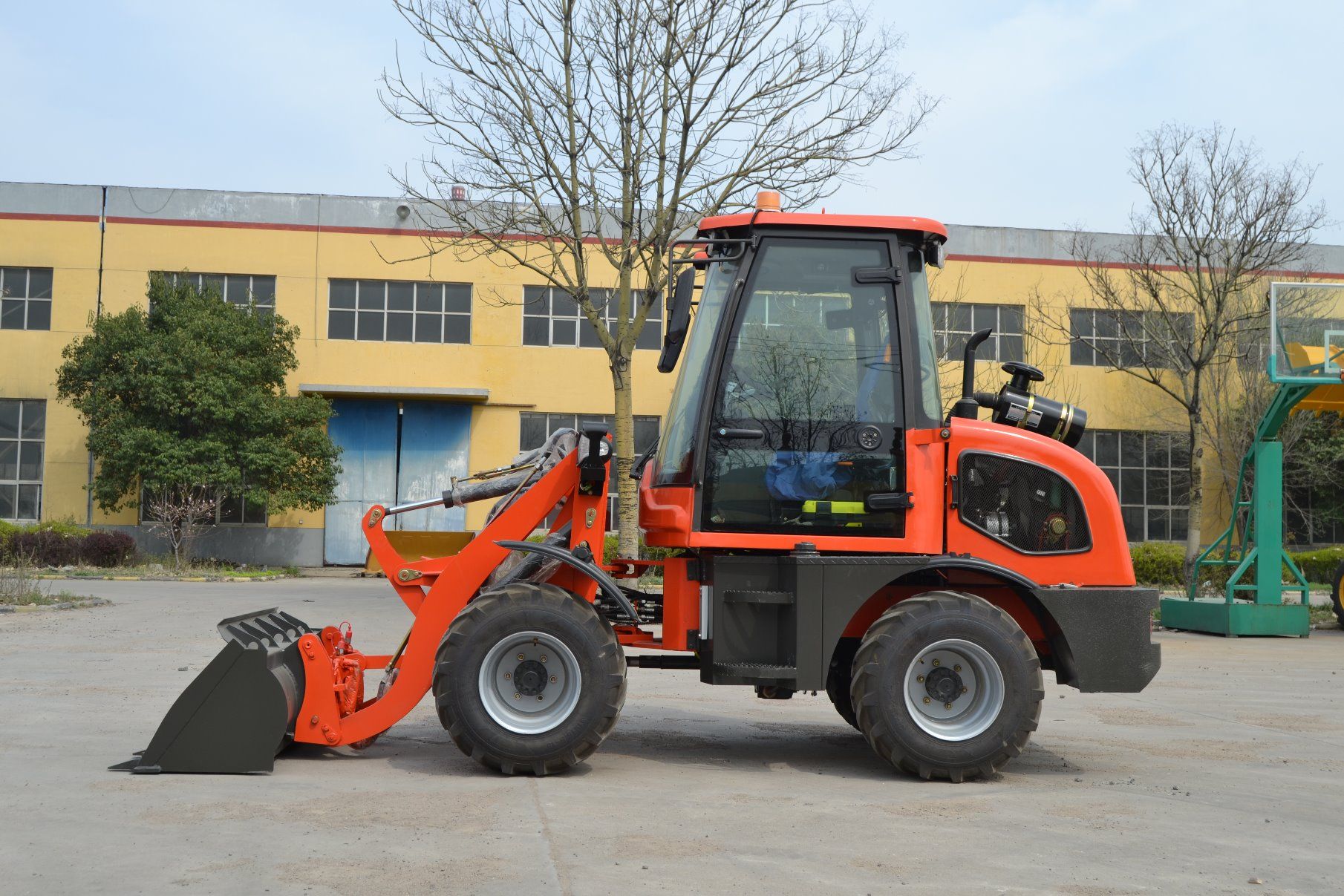

LAIGONG brand new CE wheel loader
LAIGONG CE wheel loader is a very powerful product, with compact size, strong engine power and optimized transmission, widely used in agriculture and forestry
Main Features of CE wheel loader
Efficiency
- High travel speed
- Small turning radius and good adaptability to various working sites
- Short total cycle time with flexible movement
- Reliable braking system
- Safe and comfortable operating environment
- Remarkable fuel and energy conservation, save 25% based on same configuration
- Low noise
- Reliable drive system
- Upgraded hydraulic system
- New design concept of electrical system
- Optimal designed structural components, Have passed 200,000 times of fatigue enhancement tests
- Cab space enlarged by 15%
- Low noise, shock-absorbed and dust proof cab
- side-flipped engine hood, easy for maintenance
- Humanization-designed operating lever
- Yunnei turbo engine is adopted for strong power, large torque reserve and excellent performance. Pumps with large displacement are equipped, which greatly increases working efficiency and decreases fuel consumption and noise, together with short total cycle time.
Reliability & Durability
- Structural components are of advanced design and manufacture, featuring excellent impact resistance, reliability and load capacity.
- Countershaft transmission is adopted, which is compact in structure. With high transmission efficiency, low failure rate, tiny impact of shifting and easy maintenance, it suits well to heavy duty mini loaders.
Specifications of CE wheel loader
| Model | LGE06T | |
| Engine systerm | Standard | Xichai 4DW91 |
| Emission | China | |
| Optional | Xinchai,E | |
| Rated power | Kw | 36.8 |
| Rated speed | rpm | 2400 |
| Bucket capacity | m3 | 0.4 |
| Rated load | kgs | 800 |
| Operating weight | kgs | 2550 |
| Transmission model | ZL10/YJ240 | |
| Max.Travel speed | km/h | 25 |
| Min.Turning Radius (outside of bucket) | mm | 4850 |
| Max.Truning angle | 30±1 | |
| Rasing time(full load) | s | 4 |
| The sum of three items | s | 9 |
| Overall length | mm | 4690 |
| Overall height | mm | 2550 |
| Overall width (Outside of wheel) | mm | 1400 |
| Max.dumping height 45° | mm | 2550 |
| Dumping reach 45° | mm | 900 |
| Bucket width | mm | 1400 |
| Axle model | Isuzu Narrow | |
| Ground distance | mm | 200 |
| Tyres | Size | 10-16.5 TL |
| Exp.Packing | sets | 4/40HC |

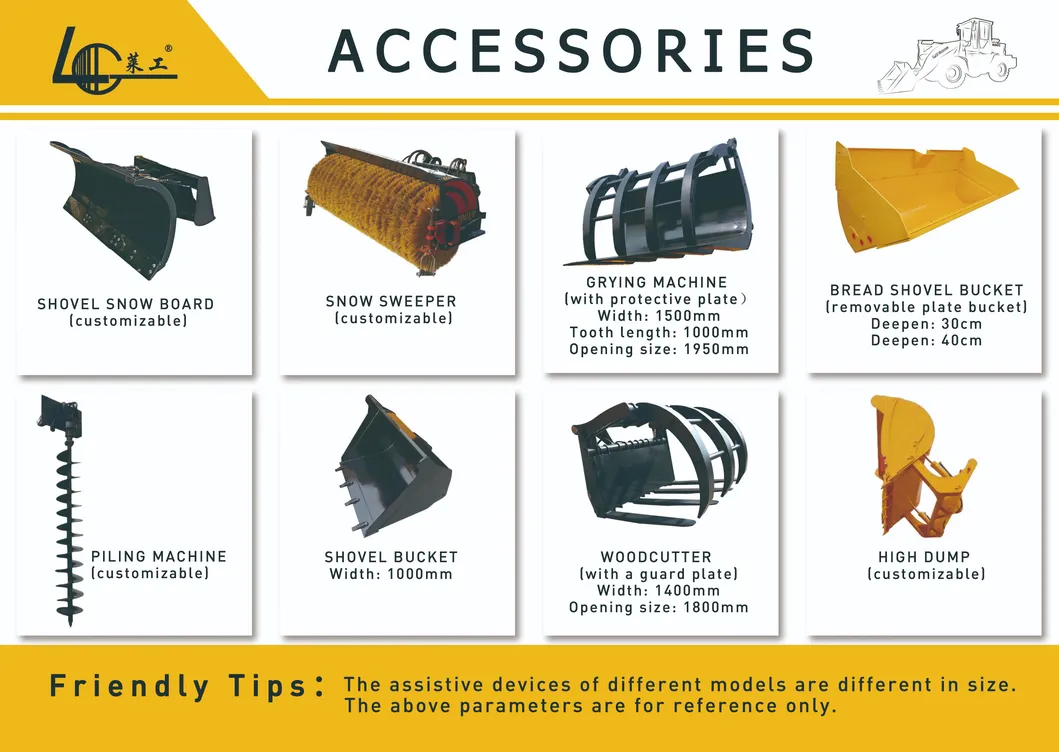

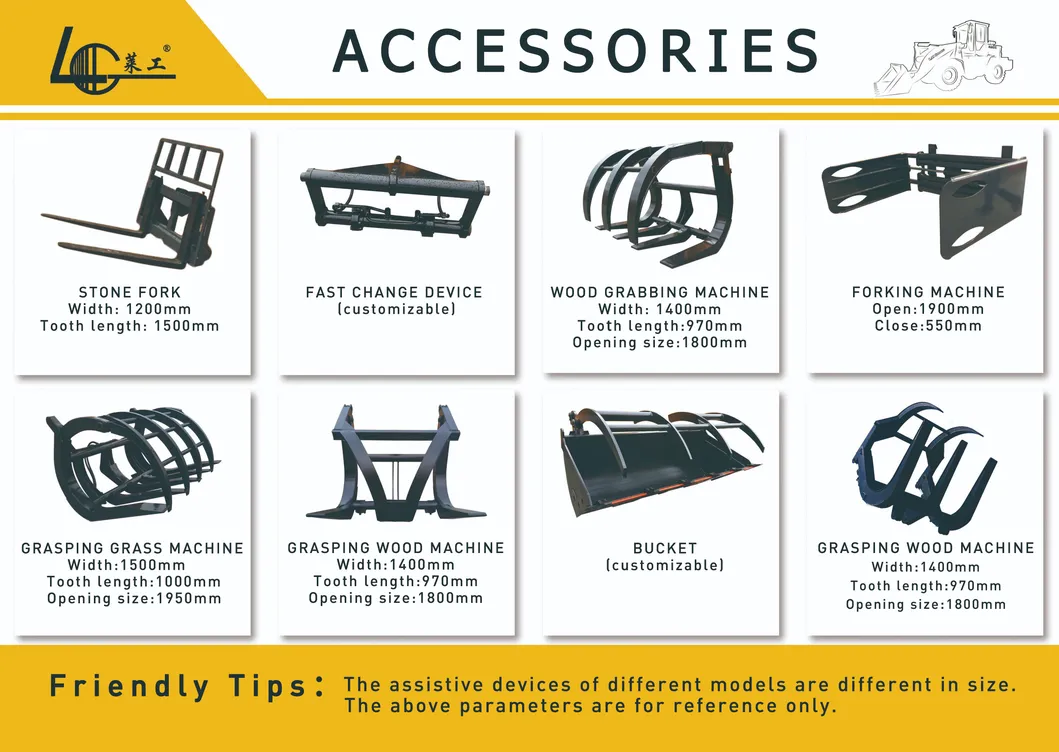

Accessories for different working conditions
1.How long is your lead time?
15-20days after receiving the deposit
2.How is the warranty?
Our warranty time is 6 months from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of LAIGONG?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.
Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from LAIGONG?
If there is any using problem, we can provide online or video guidance.
If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site.
Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose LAIGONG?

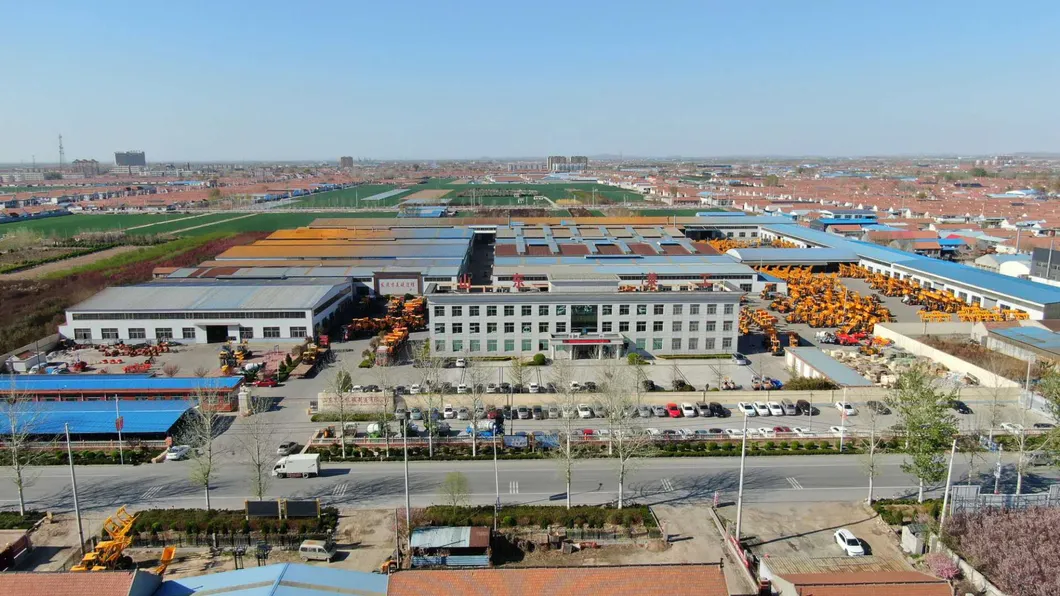

LAIGONG Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
