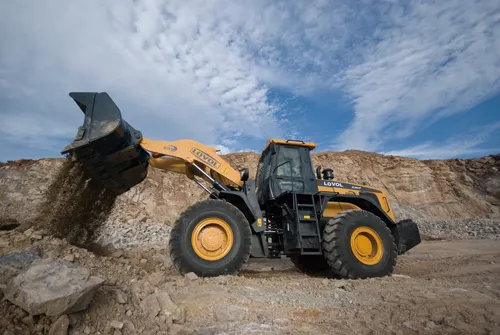

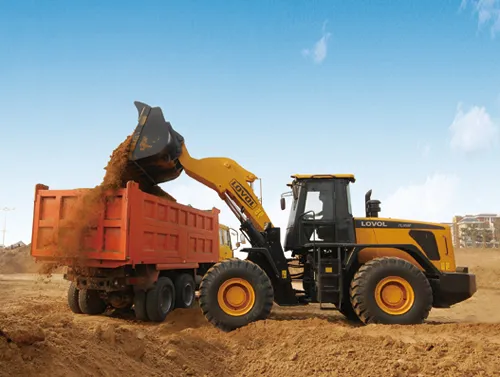

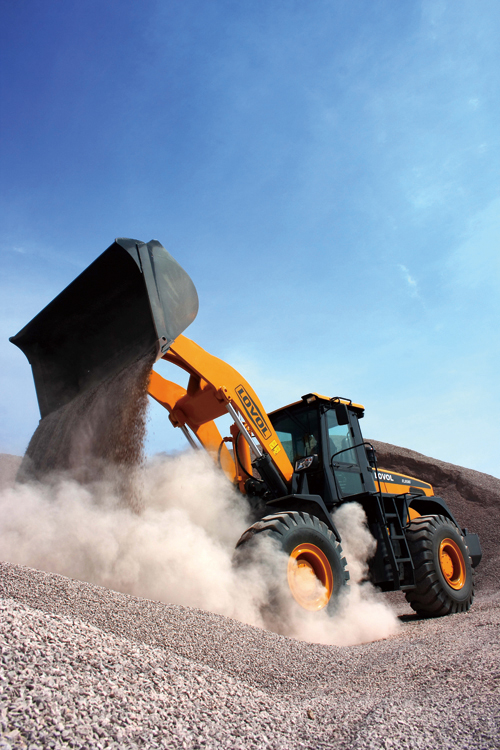

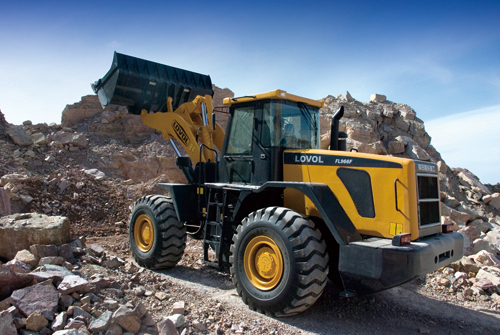

Loader Wheel Lovol 3.3cbm 5.5tons Wheel Loader FL956h

Loader Wheel Lovol 3.3CBM 5.5Tons Wheel Loader FL956H Contact with me:Lukas ParameterFL956HOperating Weight(kg)16970Bucket Capacity(m3)3.3Rated Load(kg)5500Max. Traction Force(kN)160Max. Breakout Force(kN)165Max. Gradeability(°)30Dumping Angel(°)44Lifting Height(mm)5645Max. Dumpi......

Send Inquiry

Product Description

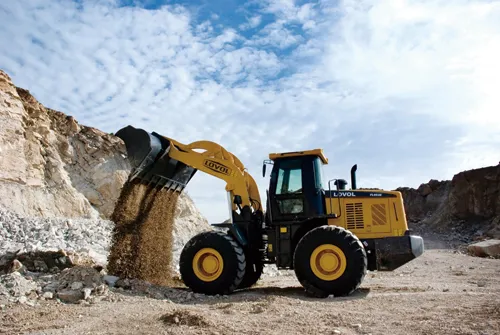

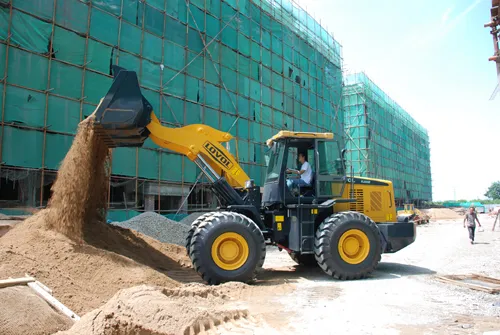

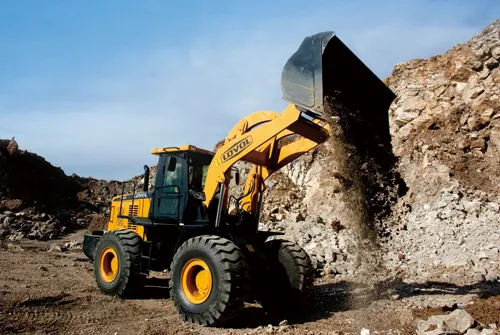

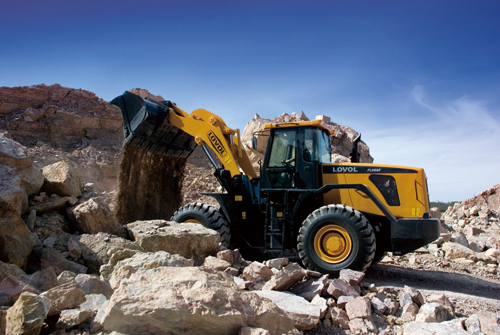

Loader Wheel Lovol 3.3CBM 5.5Tons Wheel Loader FL956H

Contact with me:Lukas

Parameter	FL956H
Operating Weight(kg)	16970
Bucket Capacity(m3)	3.3
Rated Load(kg)	5500
Max. Traction Force(kN)	160
Max. Breakout Force(kN)	165
Max. Gradeability(°)	30
Dumping Angel(°)	44
Lifting Height(mm)	5645
Max. Dumping Height(mm)	3100
Dumping Reach(mm)	1160
Mini. Ground Clearance(mm)	440
Wheel Tread(mm)	2150
Wheel Base(mm)	3300
Mini. Turning Radius of Outside Tire(mm)	7020
Dimension(L×W×H mm)	8360×2980×3380
Engine Model	Weichai WD10G220E24
Cylinder No.-Cylinder Dia.×Stroke(mm)	6-126*130
Max. Torque (N·m)	900
Rated Power(kW)	162
Rated Speed (rpm)	2000
Transmission Type	Mechanical shifting planetary
No. of Gears	Front2back1
Max. Speed km/h	42.0
Front 1 (km/h)	13.0
Front 2 (km/h)	42.0
Back1 (km/h)	17.5
Tire Size	23.5-25
Ply rating of Tire	16
Turning Angle	38º
Boom Lifting Time(s)	5.7
Total Cycle Time(s)	10.6
Brake Air Pressure(Mpa)	0.784
Oil Tank Capacity(L)	320
Hydraulic Oil Tank Capacity(L)	210
Voltage (V)	24
