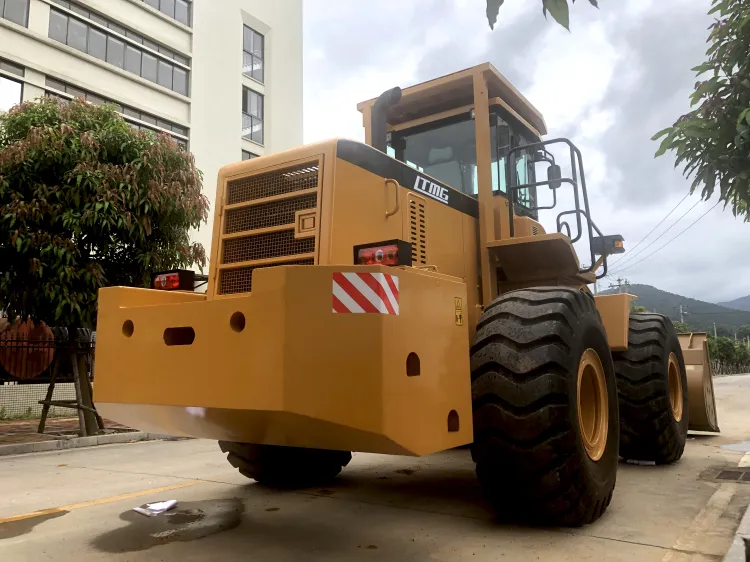

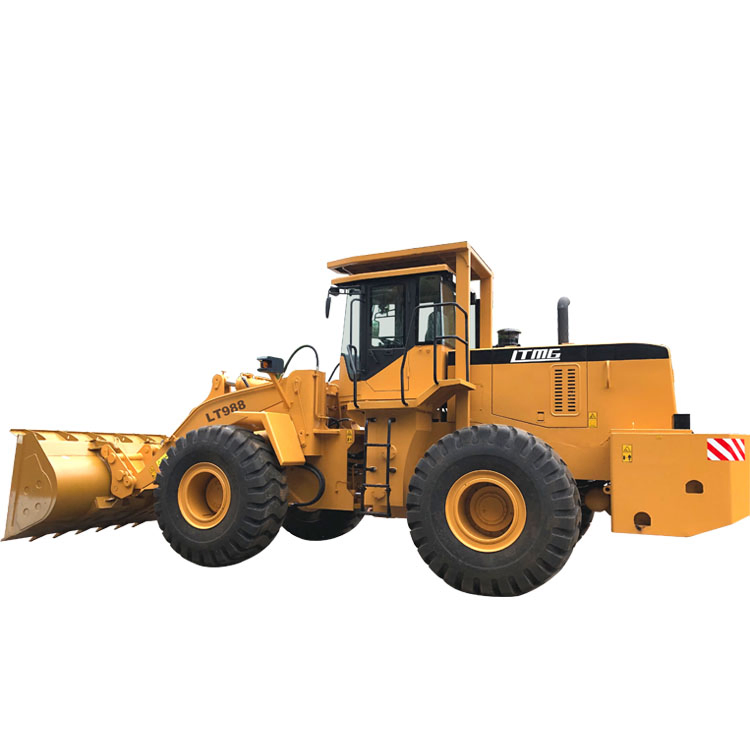

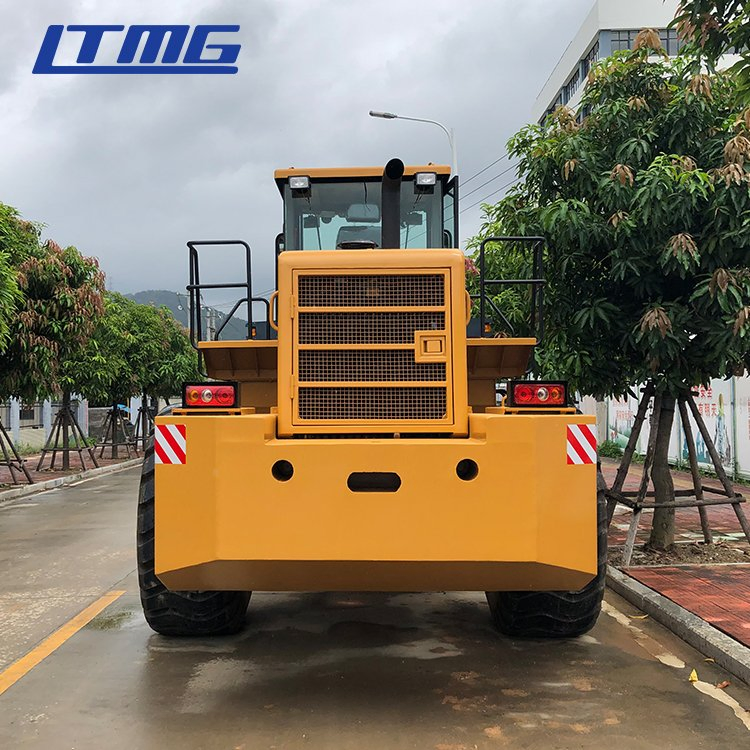

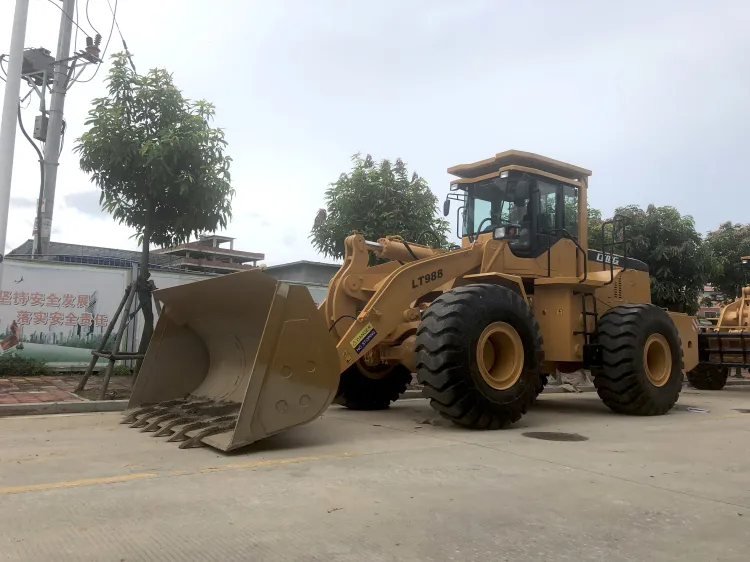

Ltmg USA Technology Transmission 8t 8 Ton 988 Wheel Loader with Cummin -S Engine
Ltmg USA Technology Transmission 8t 8 Ton 988 Wheel Loader with Cummin-s engineProduct specification The specification of hough loader 8 ton biggest front end loader wheel loaders for sale by ownerModelLT988Rated bucket capacity4.5-6cm3Rated load8000kgOperating weight28500kgMin.clearance480mmMax.tra......
Send Inquiry
Product Description
Ltmg USA Technology Transmission 8t 8 Ton 988 Wheel Loader with Cummin-s engine
Product specification
Product Features
1. Hydraulic transmission: Dual-pump combined technology, hydraulic flow expanding steering, and single-hanle guide control, flexible and convenient. Fully hydraulic wet brake, low pressure protection, combination of emergy brake and parking brake, ensuring the safe traveling.
2. Experienced parts: The main of the brake system, hydraulic system and lubricating system adopt the international famous brands to improve the reliability of the systems. The electrical system adopts the electronic monitor. The plug connectors adopt full sealing type, and are installed to the position where it is difficult to be rained and splashed.
3. Reliable structure strength: Heavy load structure design, thick board, high strength. The key structural parts adopt finite-element analysis to ensure the adaption to various kinds of dangerous conditions. The frame of single board structures high structure strength, and average stress distribution.
4. Convenient maintenance: With integrated oil filling, the service person could access to the maintenance point from the ground, featuring higher efficiency. The side plates of the shield and rear shield are opened easily, and it is convenient to check the engine and parts, and daily maintenance.
5.Optional attachment: floating forks, tire chain, log grapple, block fork, snow blade, grass fork, enlarged bucket and teeth etc.

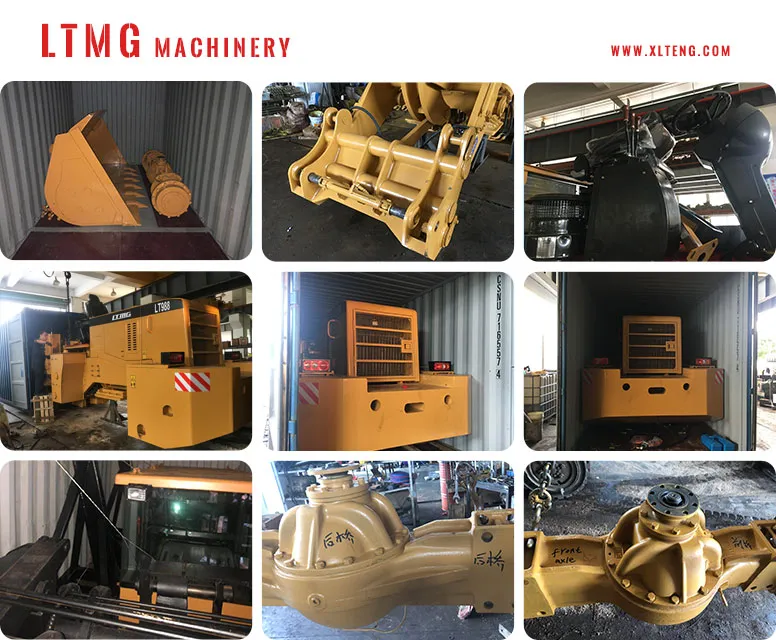

Packing & Delivering

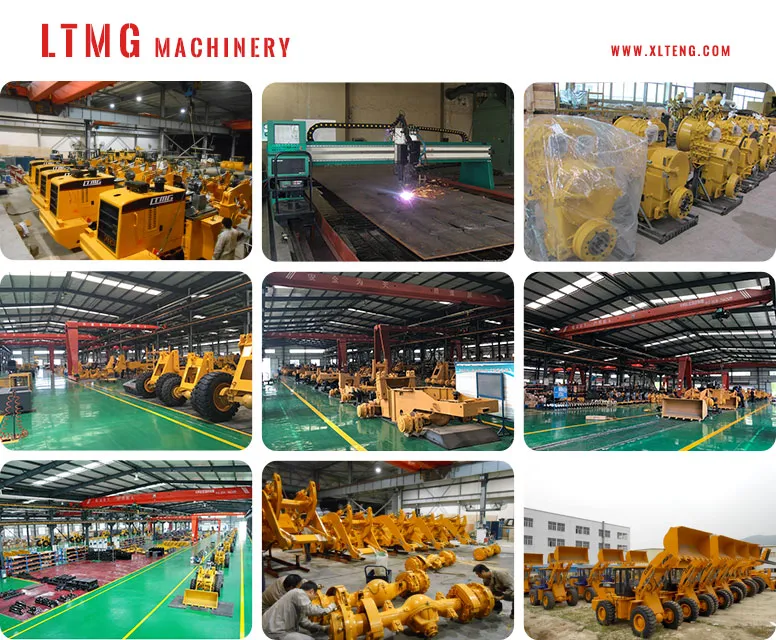

Our Factory
Exhibition and Customers

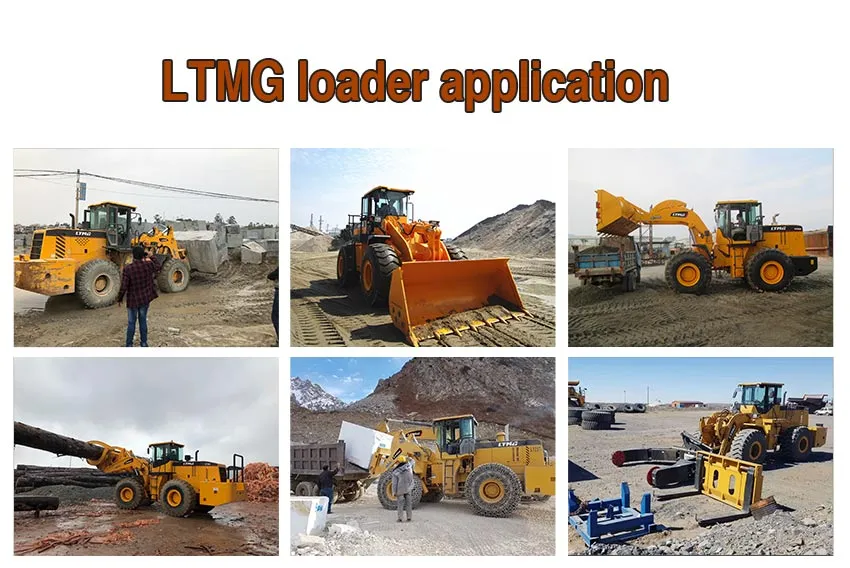

LTMG Machines Application

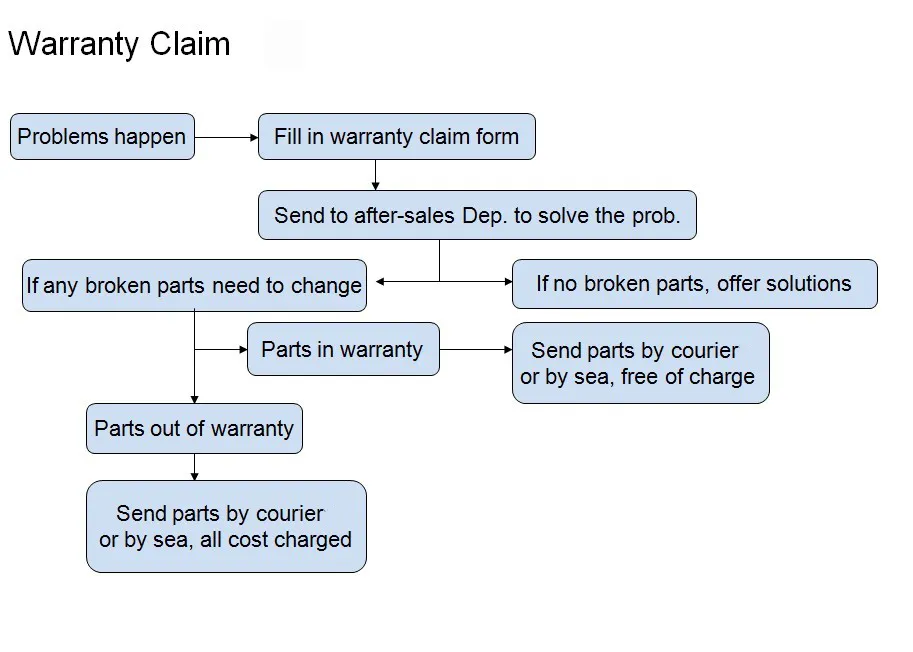

After-sale service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
FAQ
1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
Product specification
The specification of hough loader 8 ton biggest front end loader wheel loaders for sale by owner | ||
Model | LT988 | |
Rated bucket capacity | 4.5-6cm3 | |
Rated load | 8000kg | |
Operating weight | 28500kg | |
Min.clearance | 480mm | |
Max.traction | 245KN | |
Max.drawing force | 260KN | |
Boom lifting time | 6.9s | |
Engine | Type | Cummins/6LTAA8.9-C325 |
emission standard | II | |
Rated kw/rpm | 239@2200 | |
Max torque/rpm | 1350@1400 | |
No.of cylinder | 6 | |
displacement | 8.9L | |
Total time of three devices | 11.8s | |
Rated power | 250KW | |
Rated rotary speed | 2100r/min | |
Travel speed | Forward/Backward I Gear | 7/7km/h |
Forward/Backward II Gear | 11.5/11.5km/h | |
Forward/Backward III Gear | 24.5/24.5km/h | |
Forward/Backward IV Gear | 35.5km/h | |
Tyre Model | 29.5-25-22PR | |
Product Features
1. Hydraulic transmission: Dual-pump combined technology, hydraulic flow expanding steering, and single-hanle guide control, flexible and convenient. Fully hydraulic wet brake, low pressure protection, combination of emergy brake and parking brake, ensuring the safe traveling.
2. Experienced parts: The main of the brake system, hydraulic system and lubricating system adopt the international famous brands to improve the reliability of the systems. The electrical system adopts the electronic monitor. The plug connectors adopt full sealing type, and are installed to the position where it is difficult to be rained and splashed.
3. Reliable structure strength: Heavy load structure design, thick board, high strength. The key structural parts adopt finite-element analysis to ensure the adaption to various kinds of dangerous conditions. The frame of single board structures high structure strength, and average stress distribution.
4. Convenient maintenance: With integrated oil filling, the service person could access to the maintenance point from the ground, featuring higher efficiency. The side plates of the shield and rear shield are opened easily, and it is convenient to check the engine and parts, and daily maintenance.
5.Optional attachment: floating forks, tire chain, log grapple, block fork, snow blade, grass fork, enlarged bucket and teeth etc.
Packing & Delivering
Our Factory
Exhibition and Customers
LTMG Machines Application
After-sale service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
FAQ
1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
