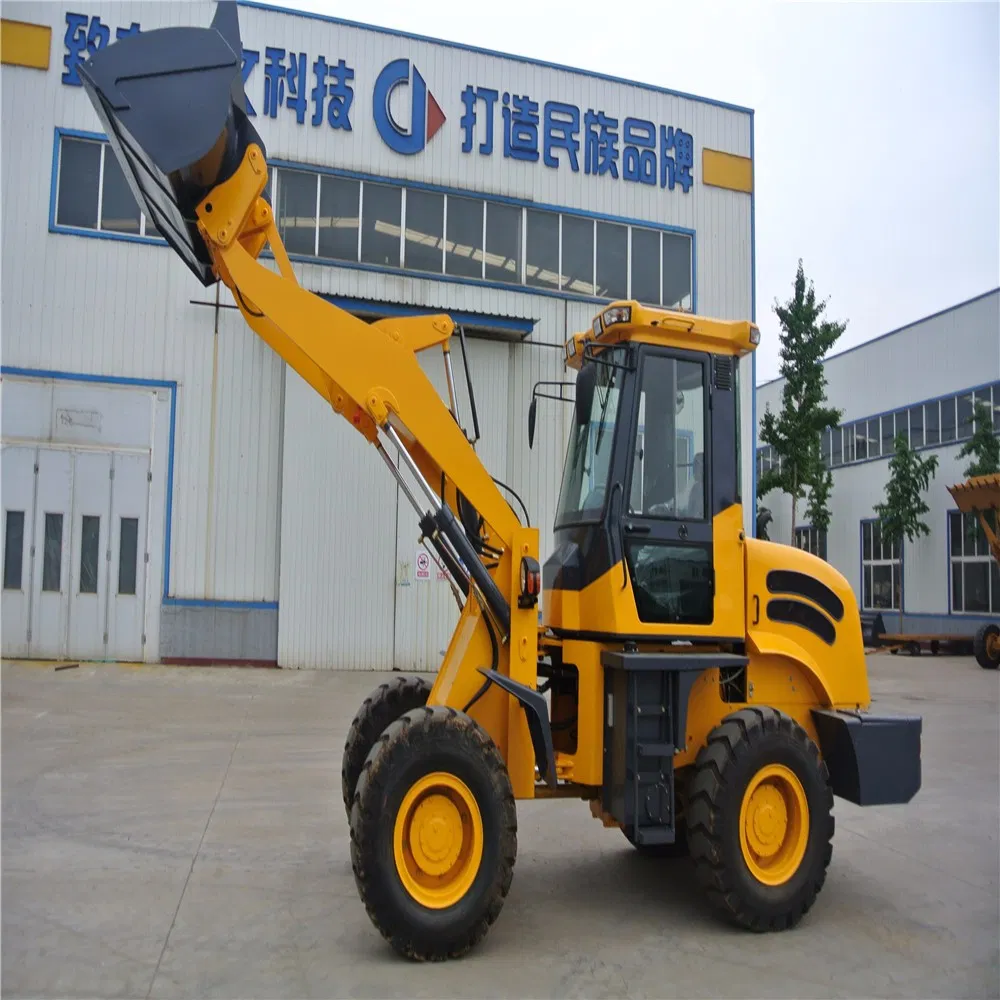

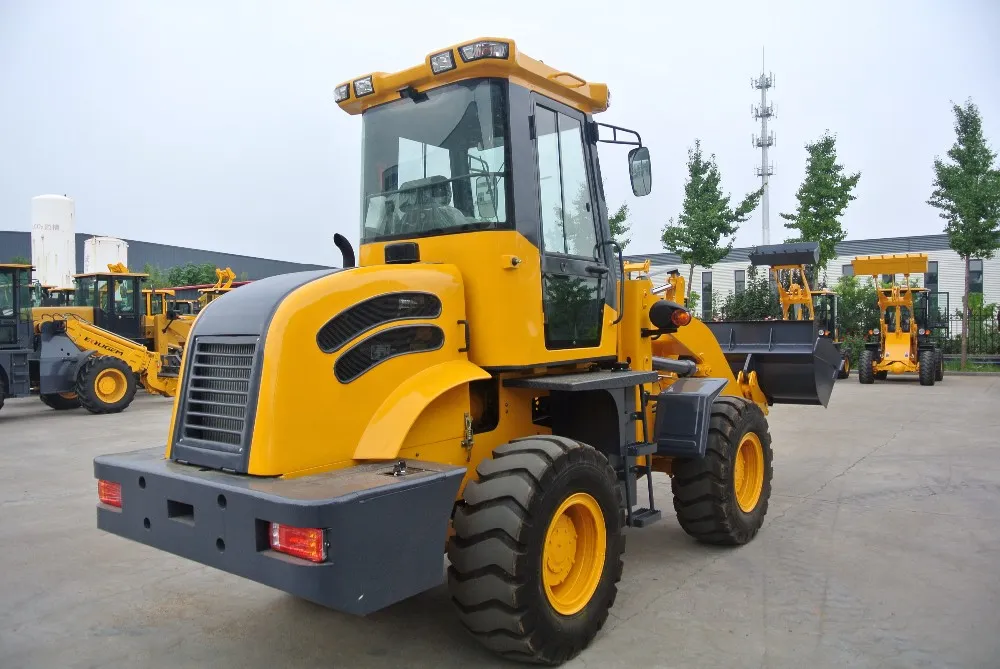

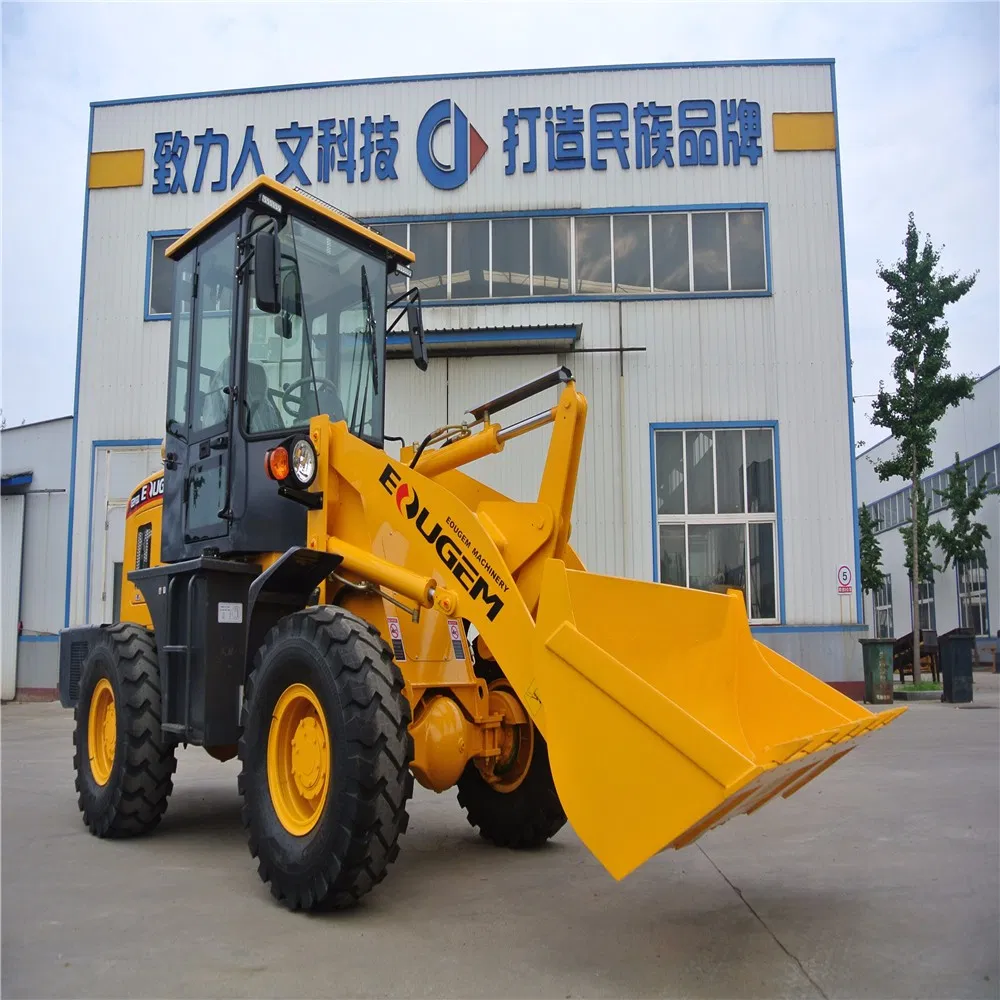

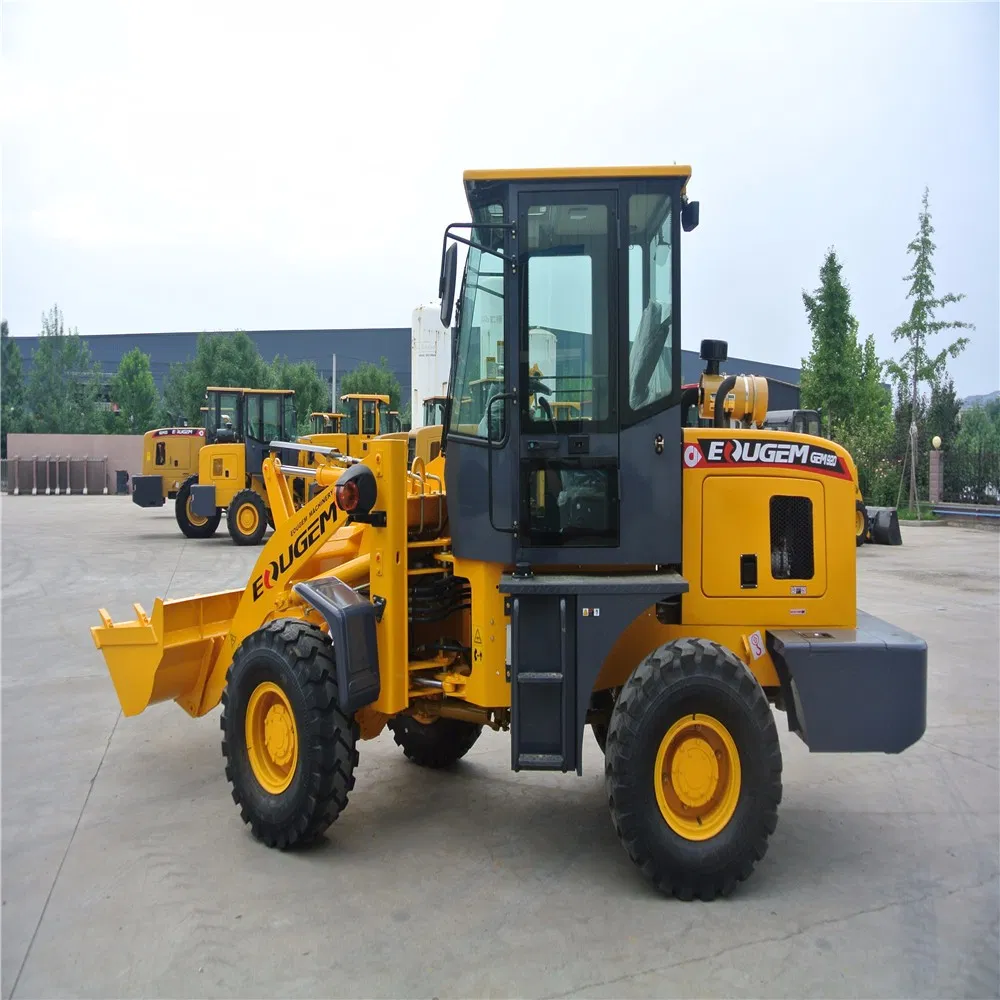

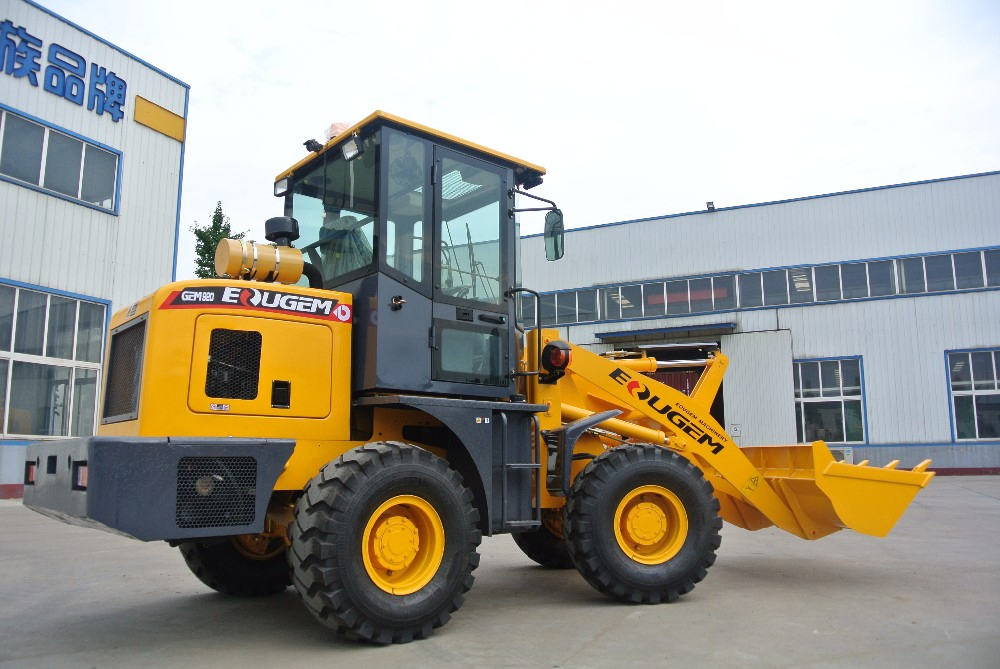

Weifang Wheel Loader 920

Product Description

Description of 920 wheel loader
Engine Details	Model:		Xichai 4102/ Xinchai 498BT(EURO III)
	Engine type:		In-line arrangement, water-cooled, four-cycle diesel Engine
	Rated Power:		37-45kw
	Rated Speed:		2200 r/min (rpm)
	Fuel Consumption ratio in standard working condition:		243g/kw.h
Transmission System	Torque Converter Model		YJ265
	Gear Box Model		YJB152 YJB152A
	Type:		Fixed-spindle Power shift
	Shift gear control oil pressure:		1.2-1.5MPa
	Rated input speed:		2500 (rpm)
	Speed	Gear Shift	2 Forward Shift, 2 Reverse Shift
		Max Speed	24km/h
Bucket	Bucket Capacity:		0.8m3
	Bucket width:		1620mm
	Bucket type:		Heavy-duty bolt on teeth
	Max. Breakout Force:		≥45
	Rated Load:		1600kg
	Operating Weight:		4500kg
Overall Dimensions	(1) Overall Length (Bucket on ground position):		5600mm
	Overall Height	(a) Ground to Cab Top:	2700mm
		(b) Ground to exhaust pipe:	It is below from the top of cabin
		(c) Dumping Height:	2800/3100/4300 mm
	Overall Width:		2000mm
Operating Specifications	Steering System:		Articulated Frame with hydraulic power steering
	Min Turning Radius:		4800mm
	Driving System:		Hydraulic converter
	Operation Weight		4500kg

Advantage
Rops approved:the cabin space is 30% larger than normal.
2.xinchai engine :powerful ,low emission ,low fuel consumption,low noise ,moneysaving.
3.Eougem wheel reductor,Oscillating rear alxe for best stability.
4.Extremely strong articulation joint
5.very strong carriage fast and safe hydraulic coupling of tools .
6.versatile due to big range of tools and optional equipment.
7.cabin can roll, so it is convenient to repair

Why choose us?
1). The quality is guaranteed due to strong technical support ,high quality component ,advanced production line and strict quality control system.
2). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of eougem warm reception, trustworthy and efficient professional services and persistent care.
3). we have testing center every machine must test 5 hours before delivered.
4). we have been in the line business for more than ten years.

Pre-Sales Service
1.Inquiry and consulting support in 24 hours.
2.View our factory.Drive and test the machine by customers.
3.Use trade assurance to ensure customer safety.
After-Sales Service
1.Training how to instal the machine, training how to use the machine.?
2.Engineers available to service machinery overseas.
