China Wheel Loader Front Loader and Excavators Backhoe Loader for Sale

Product Description

Item				Unit	Parameter
Backhoe bucket capacity				m³	0.3
Rated loading bucket capacity				m³	1
Rated Lifting Force				KN	>25
Total operating weight				kg	7840
Backhoe turning angle		Left		º	90
		Right		º	90
Backhoe parameter	Max. digging radius			mm	5481
	Max. dump height			mm	3737
	Radius at the max. dump height			mm	1084
	Max. digging radius at ground level			mm	5437
	Digging buckets max. rotating angle			º	163.2
	Max. digging depth			mm	4340
	Max. digging force			KN	50±10%
Loading parameter	Max. dump height			mm	2626
	Dump reach at max. dump height			mm	726
	Bucket drawback angle		Transportation position	º	43.5
			Ground position	º	36.5
	Dump angle			º	43.5
	Digging depth			mm	191
	Max. breakout force			KN	>40
Max. grade ability				º	>30
Max. traction power				KN	70-75

Min. turning radius				mm	4300
Total length				mm	7080
Total height (Cab)				mm	3420
Max. height for transportation				mm	2710
Total Width				mm	2880
Bucket width				mm	2328
Tire				14-17.5NHS-14PR	15.5/80-24
Voltage				V	12

Production description:

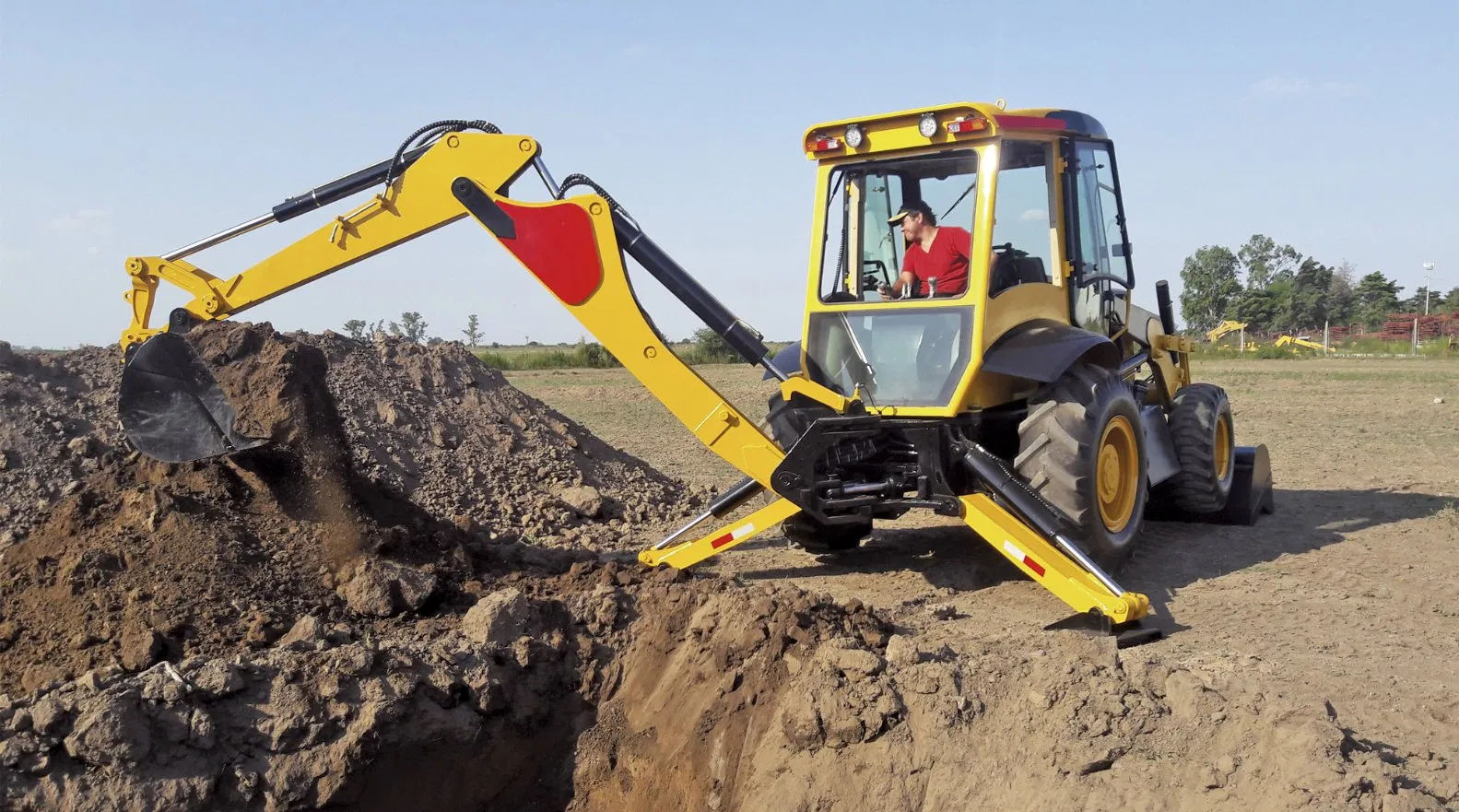

What is the main feature for backhoe loader ZTW30-25

1.7660kgs, CUMMINS engine, 4x4WD, Hydraulic torque converter transmission, Spacious cab, 0.3m3 bucket, 1m3 loading bucket, 707723503420mm

2.Low fuel consumption, low noise and strong power characteristics by using CUMMINS ENGINE (75kw)/XINCHAI ENGINE (60KW).

3.Super cab is designed with principle of ergonomics to provide the operator a low-noise environment, and possesses fine shock absorption.

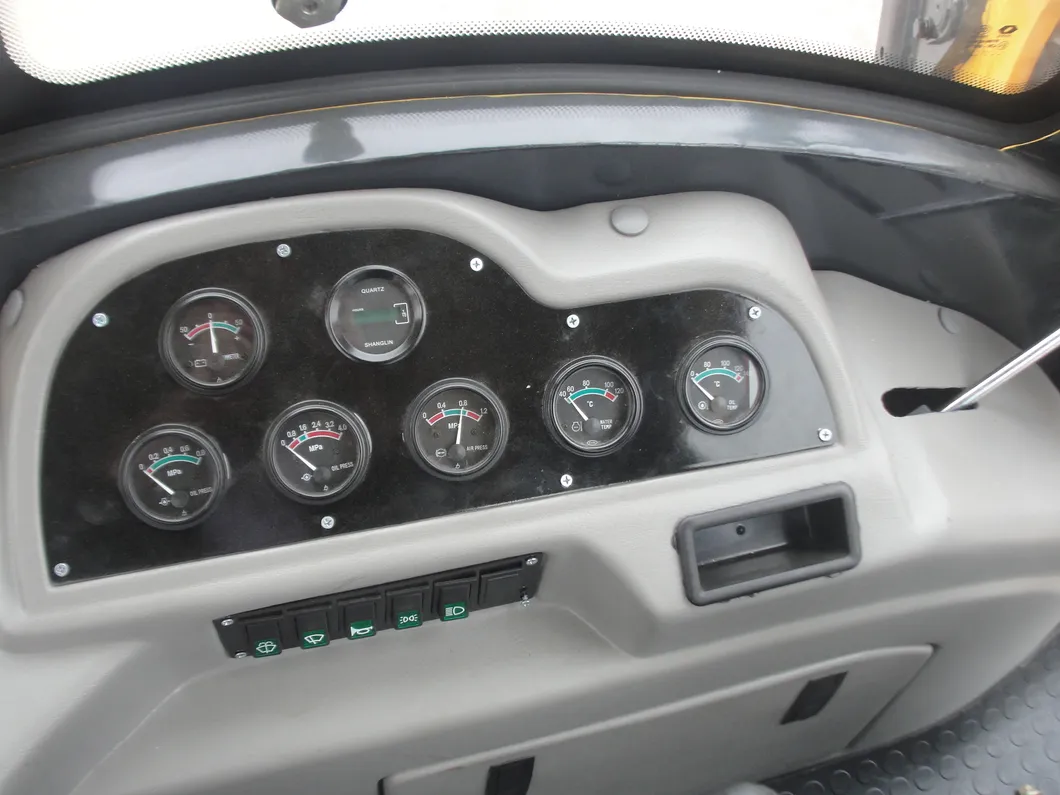

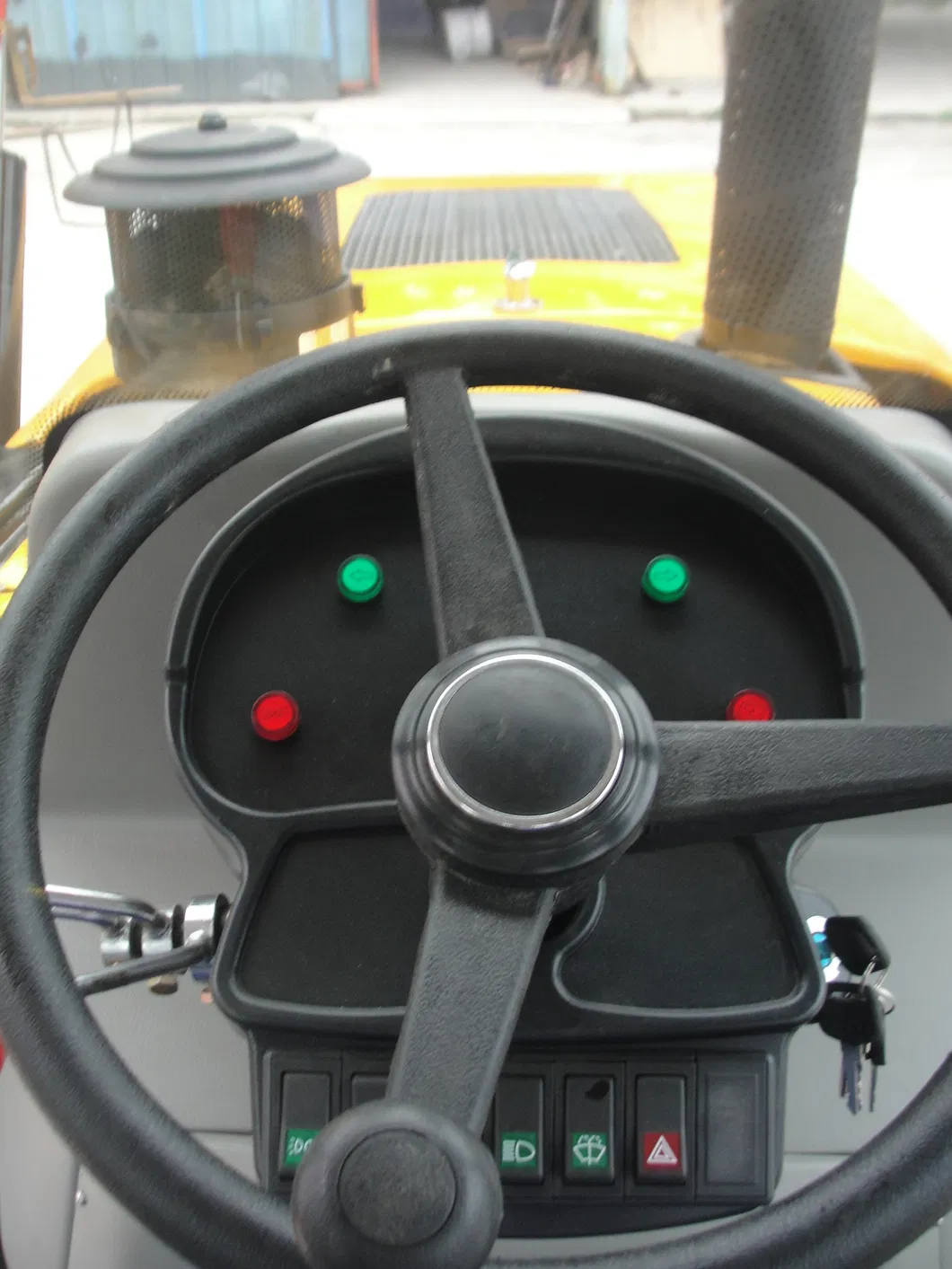

4.Working table:water temperature, oil temperature, current, are all in sight.

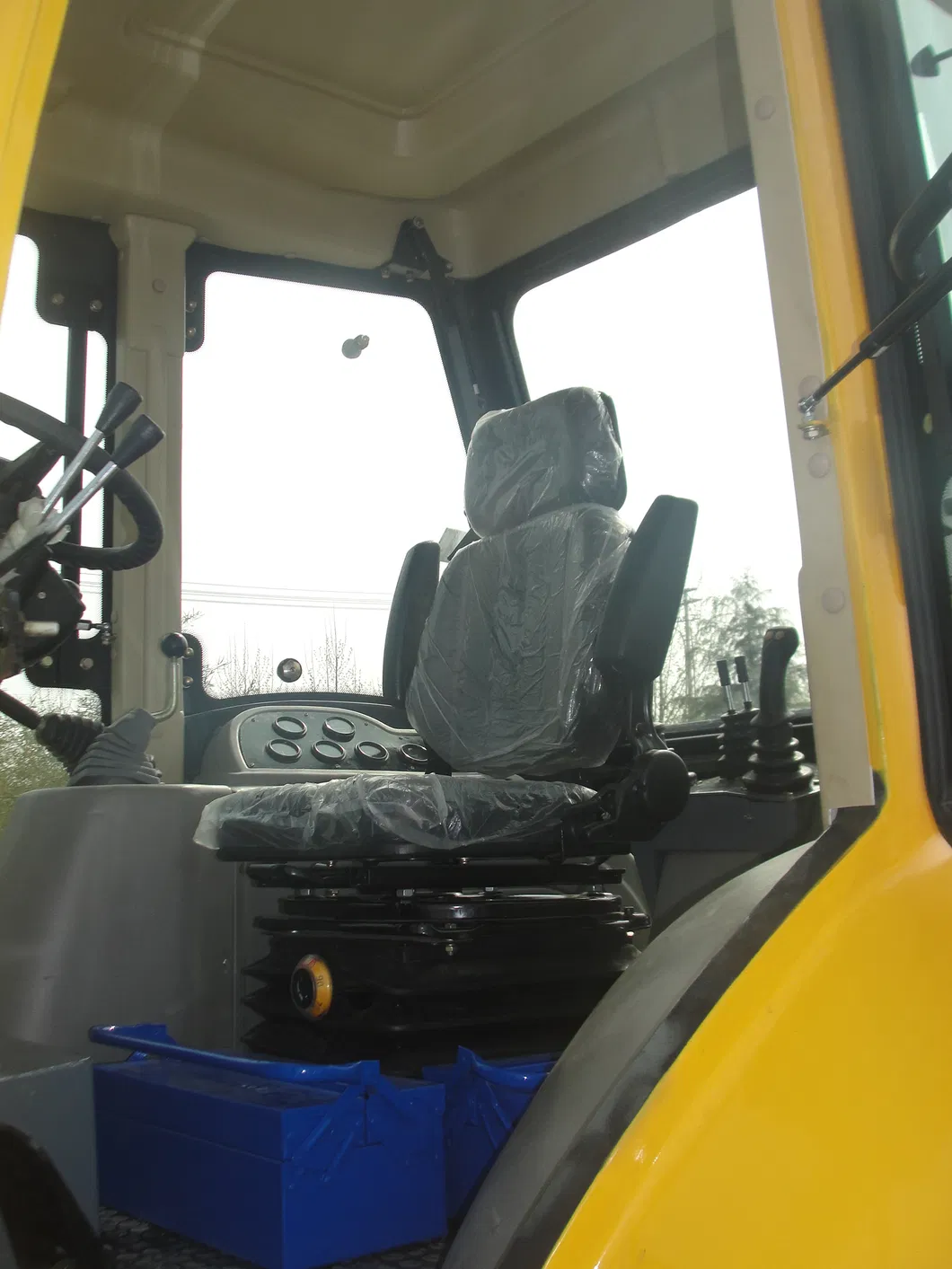

5.Adjustable seat, convenient and comfortable to use.

6.Completely have the all functions of mini type digging machines.

7.Ascendant performance of complete appliance, with extraordinary operation efficiency.

Wheel Loader Front Loader and Excavators Backhoe Loader for Sale

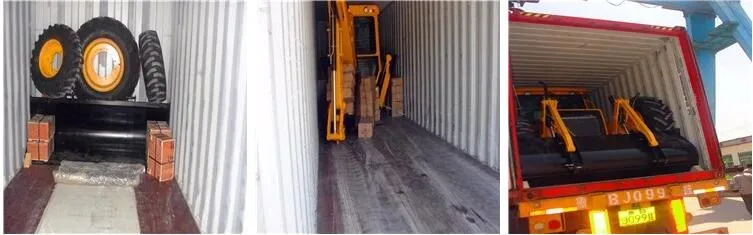

Packing & Delivery
Container 40HC 2 units can be installed
1.Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.

2. spare parts or wearing parts will be packed in wooden box or paper carton.

3. Standard shipping method is by container.
