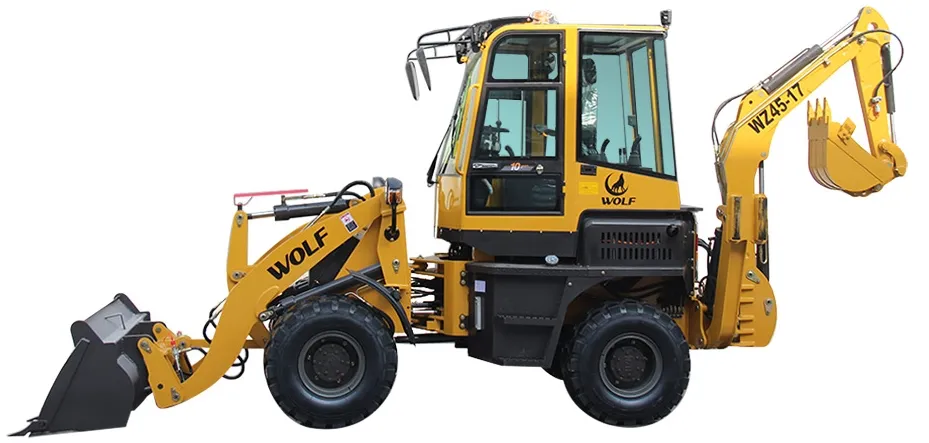

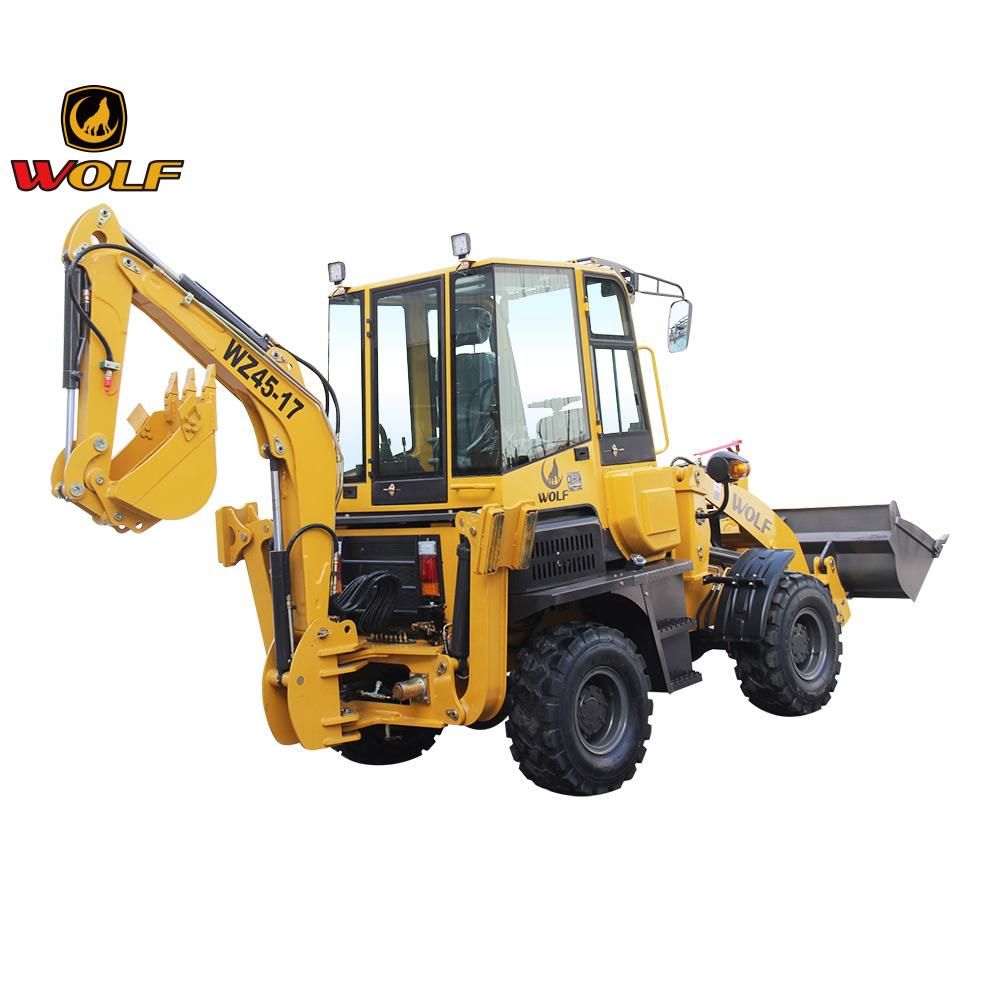

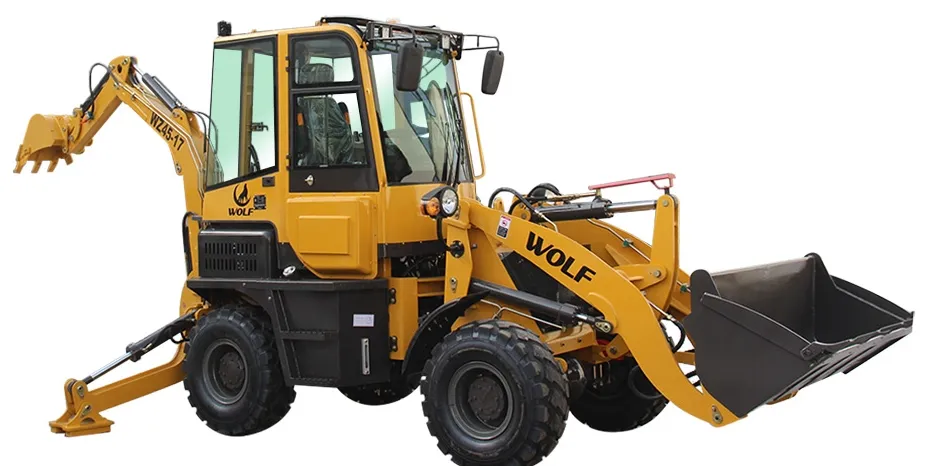

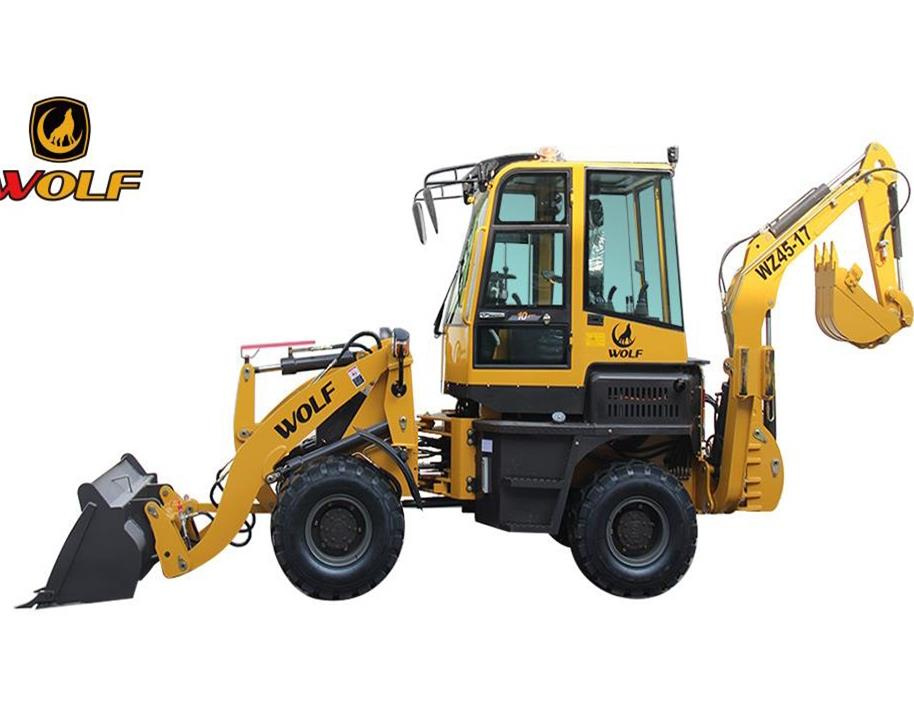

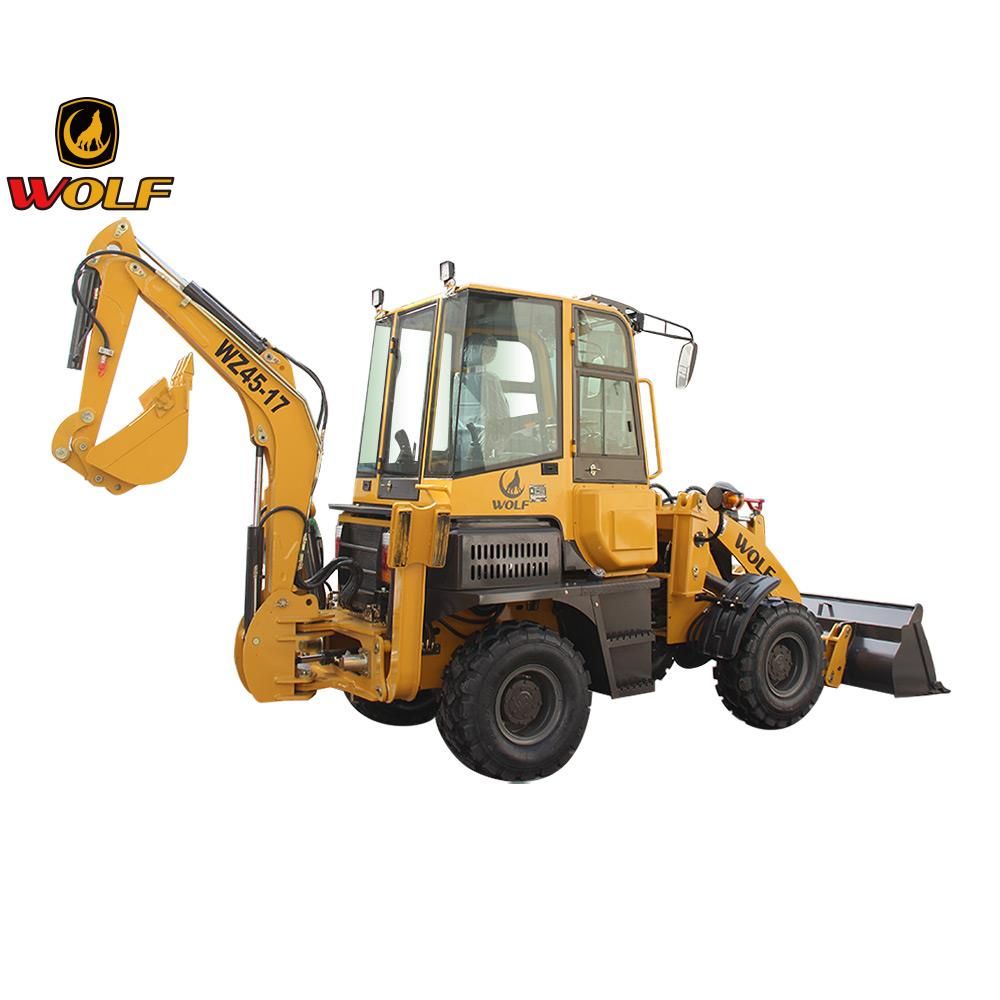

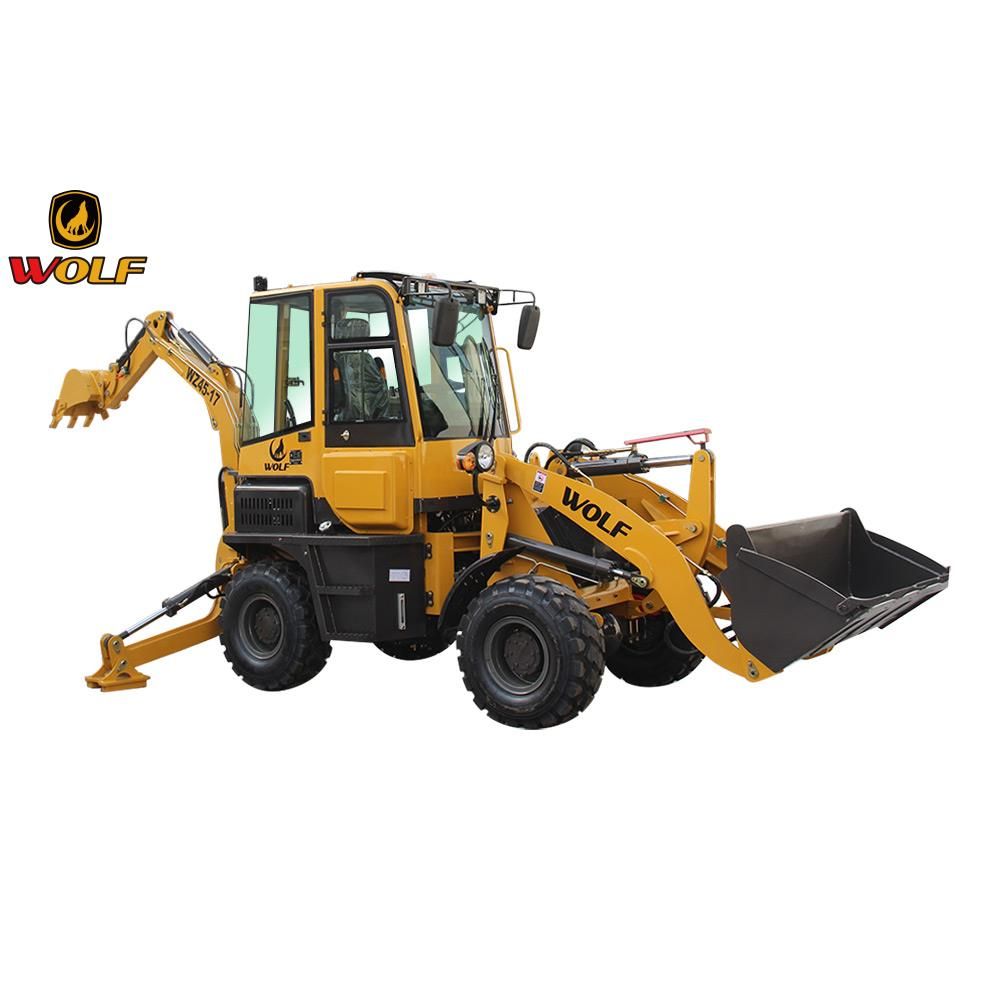

China Wolf Wz45-17 Mini Backhoe Loader

Product Description

Standard configuration

Backhoe loaderWZ45-17, Yunei YN27 engine 41KW, 20.5-16 tire, hydraulic joystick, rear view camera, window hammer, standard bucket and backhoe

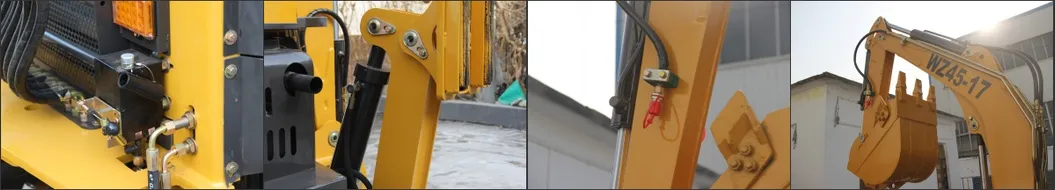

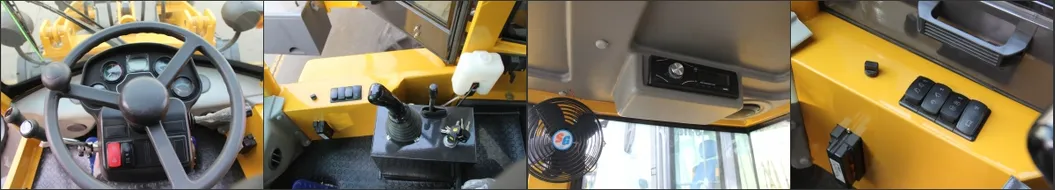

Learn more from the detail pictures:

Specification:

Performance	Rated loading	1600kg
	Overall weight	4900kg
	Rated backhoe bucket capacity	0.3m3
	Rated bucket capacity	0.7m3
	Max. tractive force	≥34KN
	Max. breakout force	≥51KN
	Max. grade ability	25°
	Max. digging height	5000mm
	Max. digging depth	2690mm
	Max. Digging radius	4630mm
	Max. dump height	2530mm
	Max. Vertical digging height	2555mm
	Rise height	3700mm
	Discharging height	2700mm
	Discharge distance	1000mm
	Overall dimension (L×W×H)	5100×1960×2900mm
	Minimum turning radius	4800mm
Engine	Engine model	Xinchai498 Euro3
	Type	Vertical, in-line, water cooled, 3-stroke diesel engine
	No. of cylinder-bore/stroke	3-88×102mm
	Rated power	36.8kw-2400r/min
	Maximum torque	100N.m
	Min fuel-consume ratio	≤0.1%
Transmission system	Torque converter	YJ1-26501
	Gearbox mode	Counter shaft power-shift
	Gear shift	2 forward shift 2 reverse shift
	Maximum speed	20km/h
Drive axles	Main reducing spiral	Circular Arc Bevel gear, single stage
	Decelerating mode	Single stage planetary type
	Wheelbase (mm)	2000mm
	Wheel tread	1530mm
	Ground clearance	310mm
Hydraulic system	System working pressure	16-18MPa
	Oil flow	40ml/r
	Boom lifting time	3.5s±0.2s
	Total time	9.2s±0.5s
	Fuel tank capacity	80L

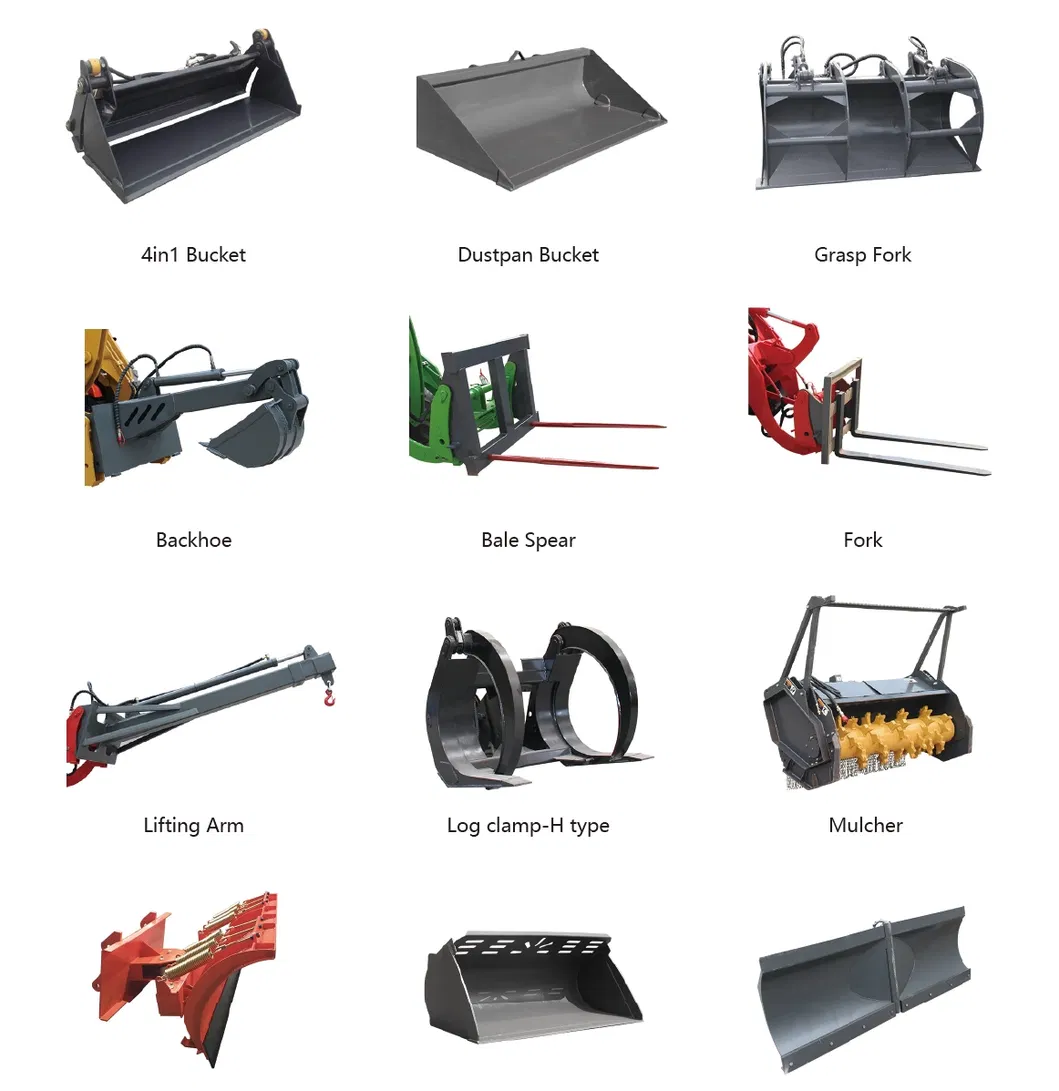

With different attachments, it can help you solve different works:

Packaging

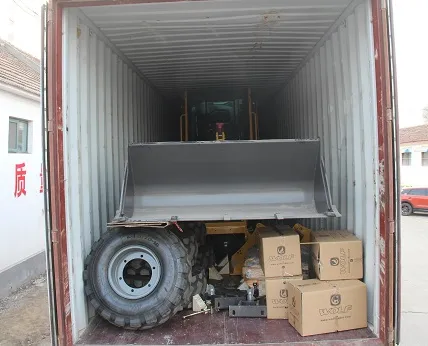

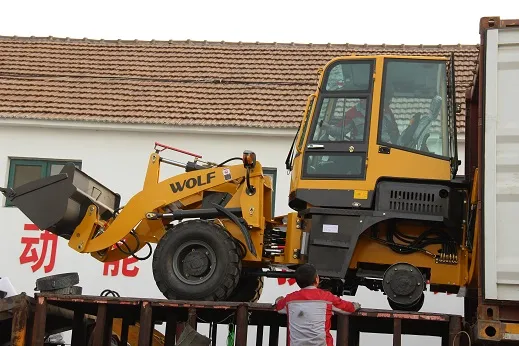

Loaders are put into container and fixed by steel cable to avoid collision during shipment.

Breif introduction
1.We are the professional manufacturer of wheel loader,backhoe loader,forklift,skid steer loader and all kinds of attachments,around 10 year experience.
And all our models are CE approved.
2.We could provide one year warranty for free,within the warranty,if there is any quality issues,we will send the new spare parts to you as soon as possible.

24-hours online service
Welcome to contact us for more information!
