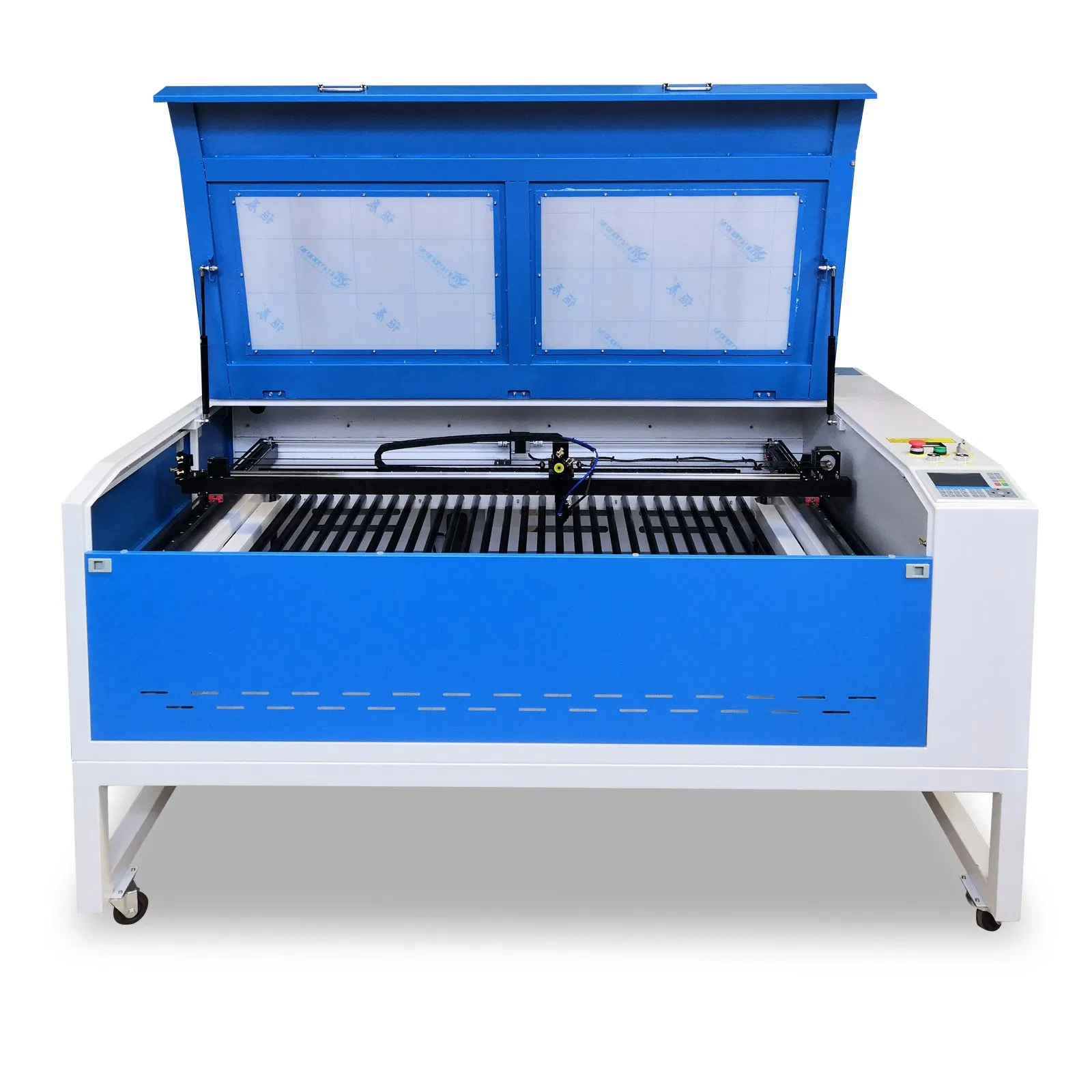

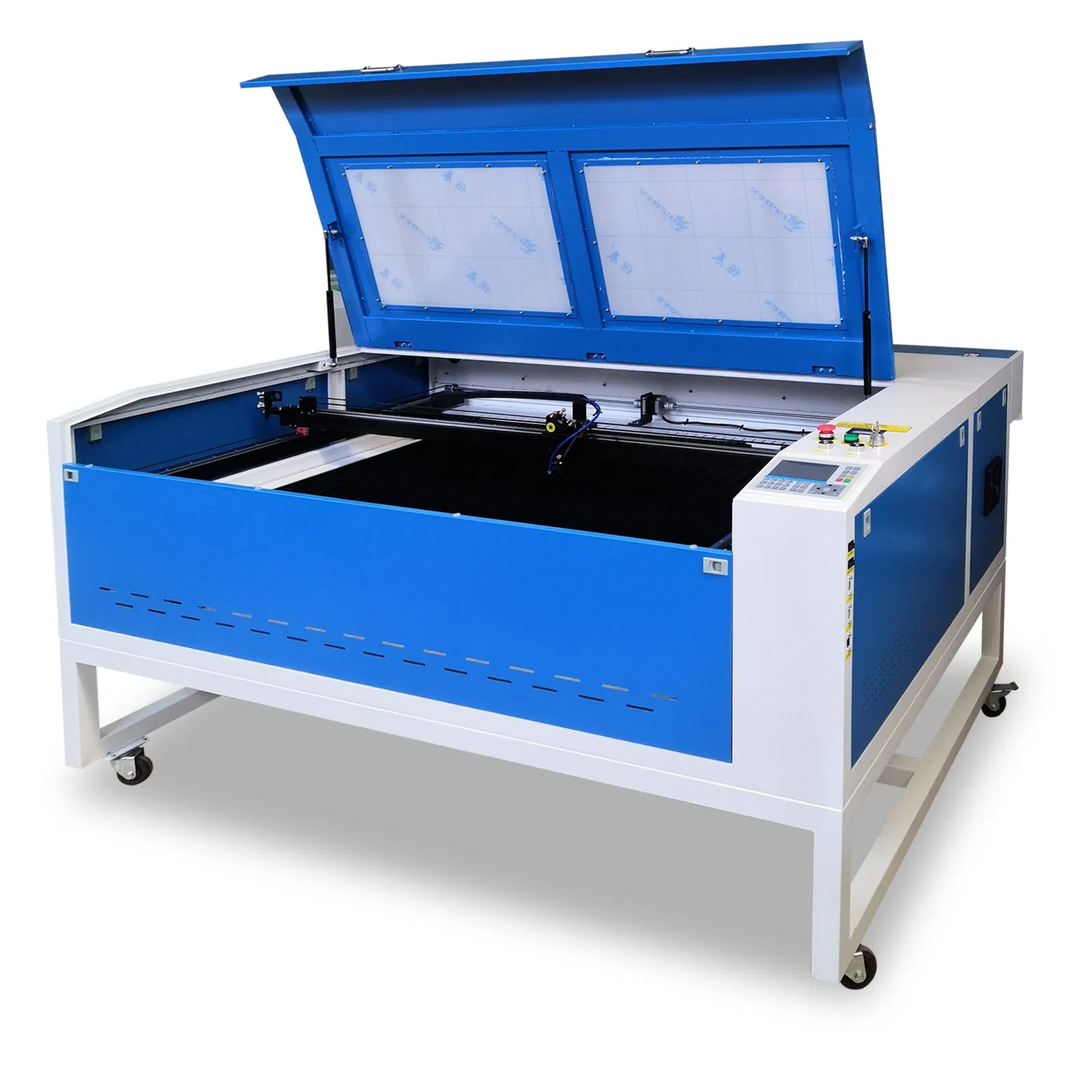

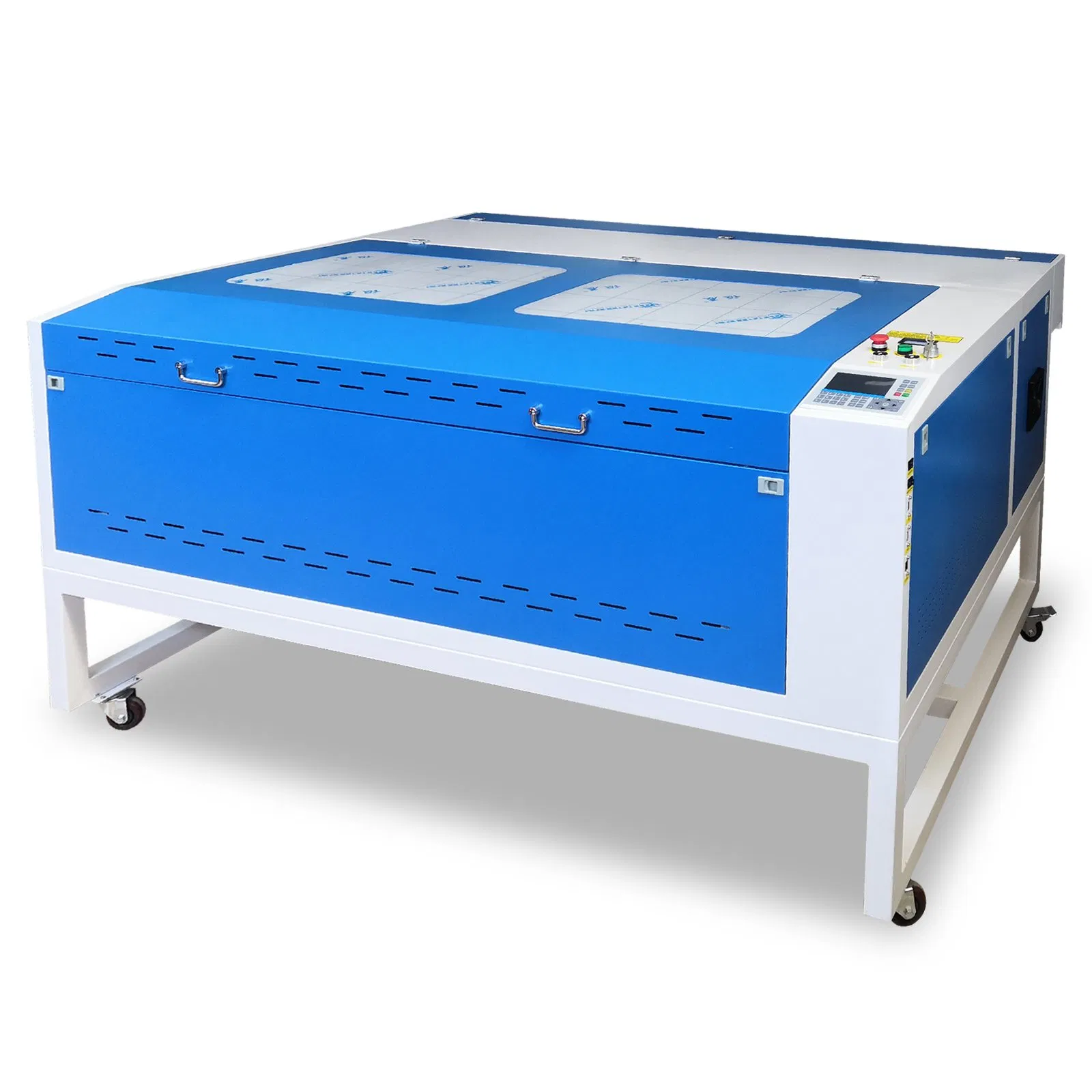

1390 1410 1610 CCD CO2 Laser Cutting and Engraving /Marking /Engraver/3D/Printing/Engrave for Acrylic Rubber MDF Frabrics Cloth Fiber Laser Cutting Machine

Motorized Up and down work plate: 7.87" (200mm) & HOneycomb Table

Working Area: 1300 mm* 900mm (51″x 36″), With double side open door


1. X Y axis uses 40 x 40 aluminum profile, with strong deformation resistance. Adopt TAIWAN 15mm Linear Guide Rail, high precision, high stability.
2. Equipped with high-speed DSP control system, can work offline, with multi-color cutting function
3. Industrial laser head, laser beam is stable and fast.
4. Air assist, attach an air compressor to our included air assist to remove heat and combustible gases from the cutting surface by directing a constant stream of compressed air across the cutting surface.
5.  Red dot positioning optional. Since the laser beam is invisible the red dot pointer allows you to have a visual reference for locating where the laser will fire.
6. Magnetic OVERRIDE SAFETY SWITCH, more reliable.
7. 0-200mm motorized up and down platform, can meet the needs of different thickness materials for carving.
8. With two way pass through, allow feeding bigger size material.
9. Ethernet, USB2.0 and U-disk transmission, compatible with Windows XP/Vista/7/8/10, work independently from PC, which is useful for the quantities of engraving and cutting production.
10. Full support for CorelDraw, AutoCAD, etc. CE and FDA certificate, more reliable.

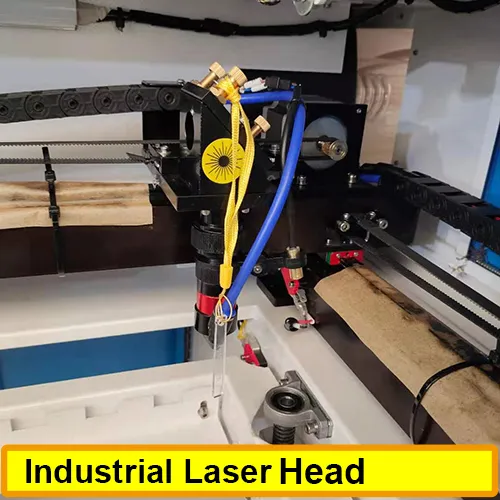

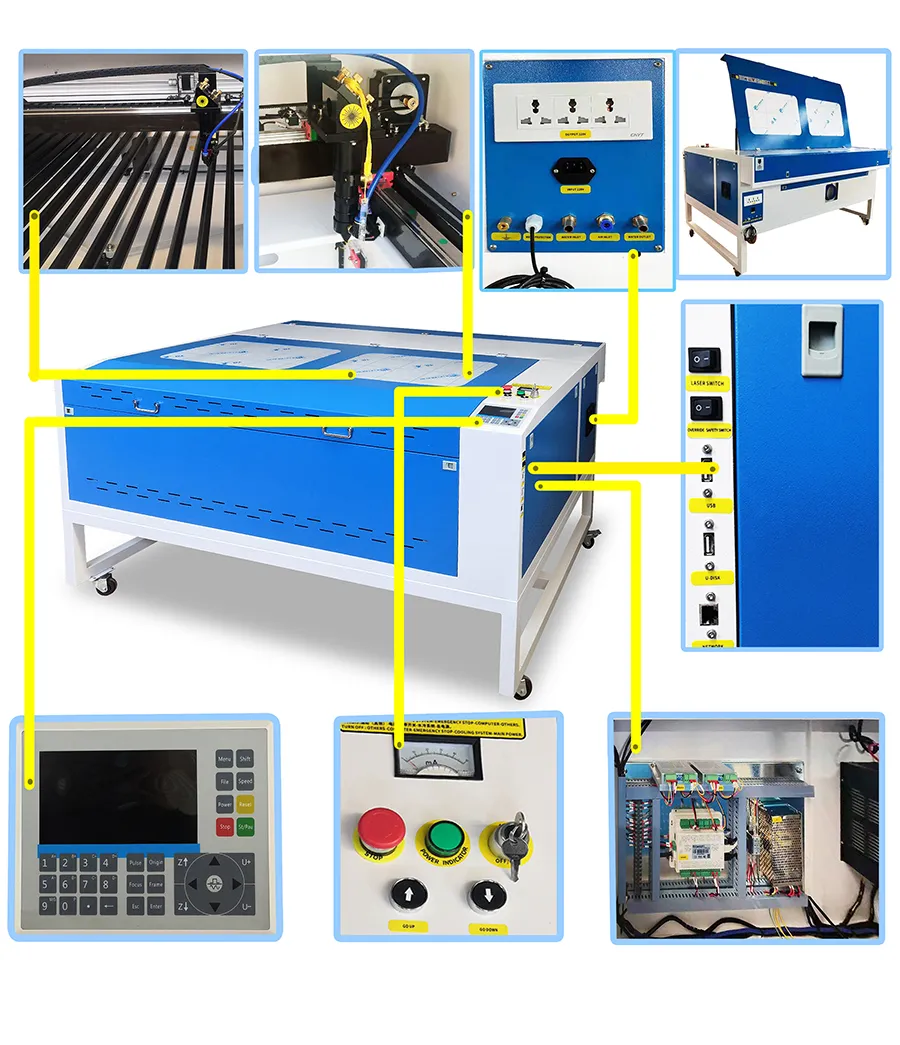

Industrial Laser Head makes the machine run faster and more stable.

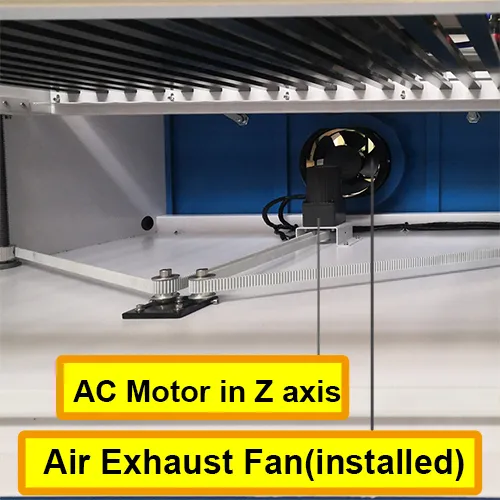

Motorized up and down Table 200 mm, and in the picture you can see the air exhaust fan(installed) and the AC motor.

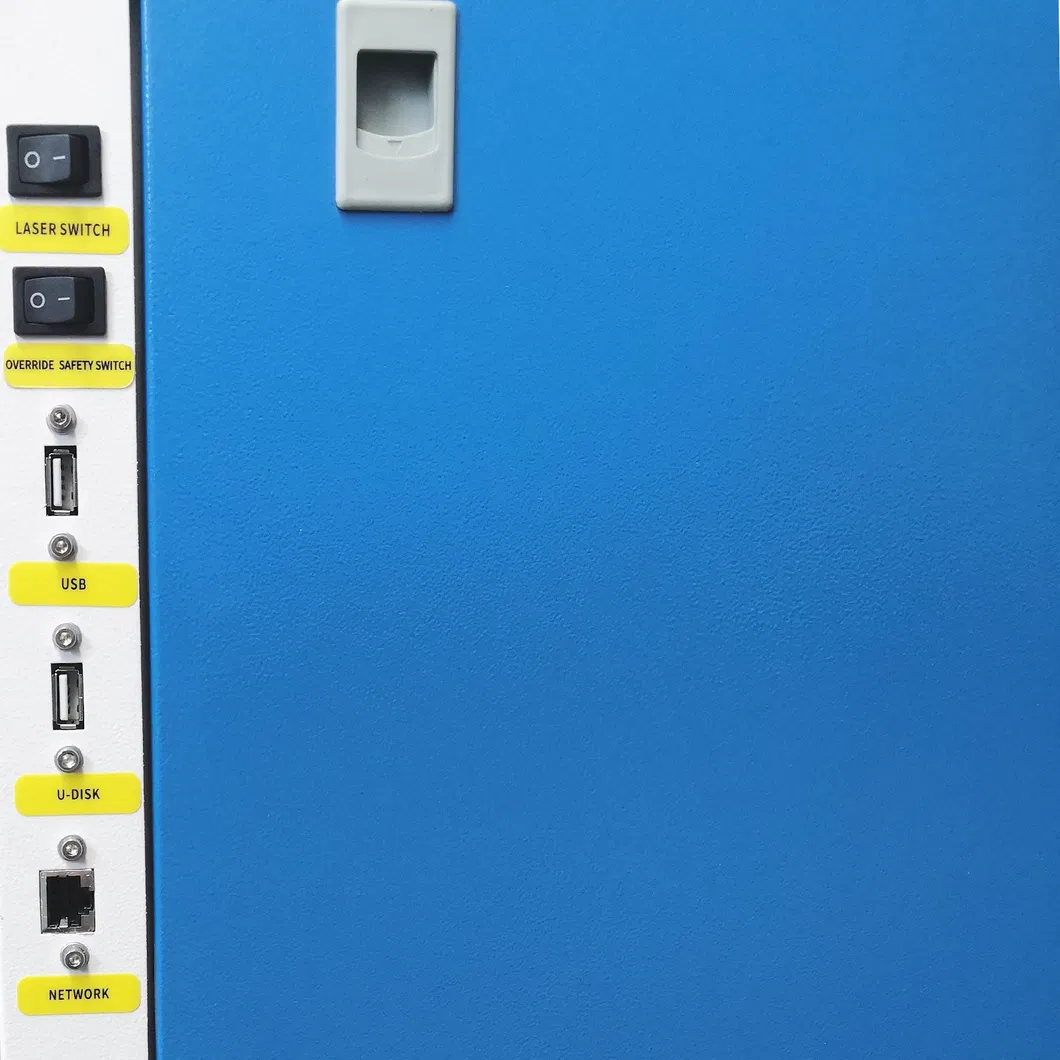

1. Laser Switch

The main and the laser supply power ON/OFF Switch. The switch is turned off before shipping.
2. Override Safety Switch  (Top flap protection sensor)
If the top flap is opened, no data is processed. When the protection cover is opened during working the motion system is stopped and the laser source is turned off. It means the machine will stop working immediately. Only after closing the top cover, the cutting machine can restart working again. Cover protection system can protect the safety of operators and before the machine leaves the factory, this switch is OFF.

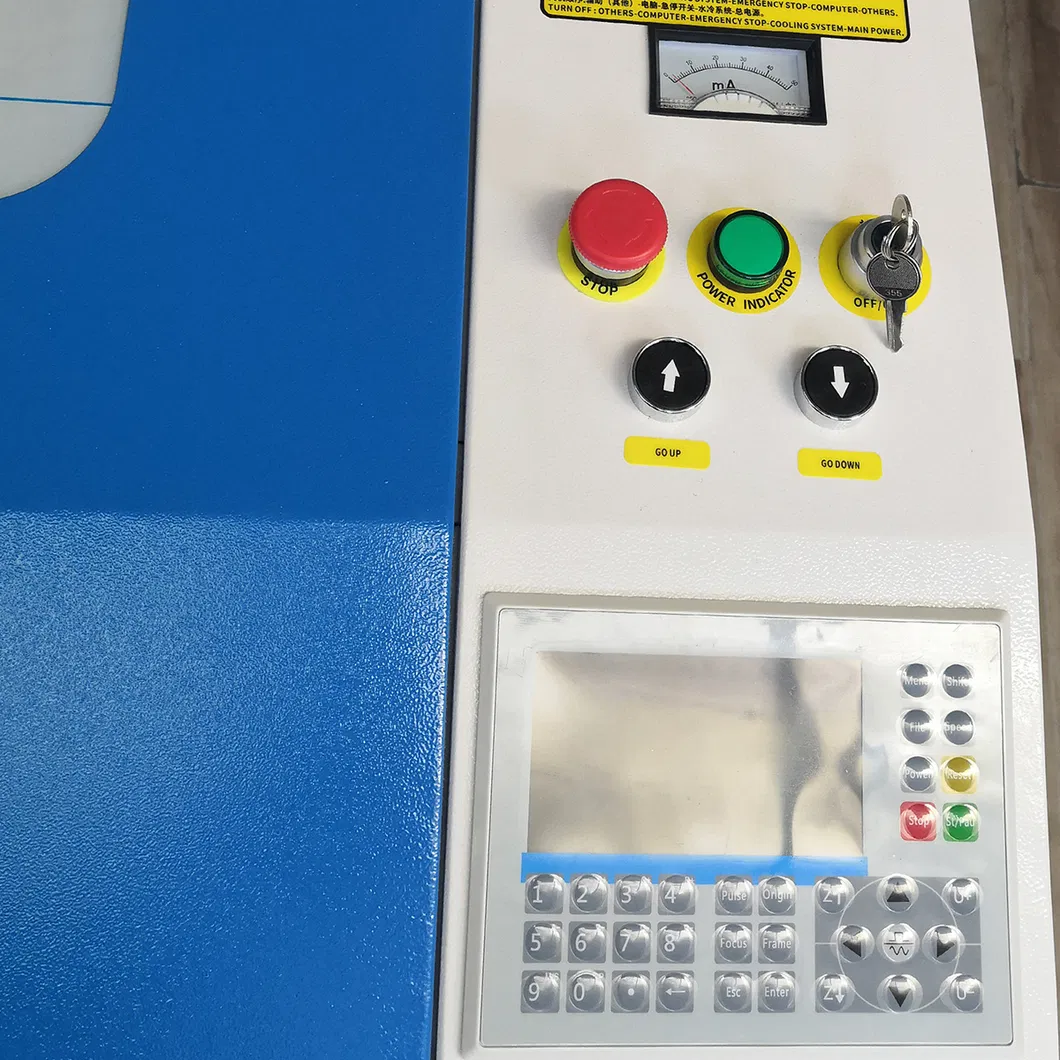

1. Emergency Stop Switch (E-Switch)
When the device abnormal situation, can quickly press the button, it will be cut off the laser power and motion power immediately. It prevent the users from suffer big loss. Turn the emergency stop button of the laser machine clockwise, the laser head will reset.
2. Power indicator light
After turning on the power of the machine, this indicator light is green, which can inform you the machine is power-on status.
3. Main switch: Control the main power on/off.
4. Up and Down button
You can control the movement of the lifting platform by pressing the "up" and "operate" operation buttons

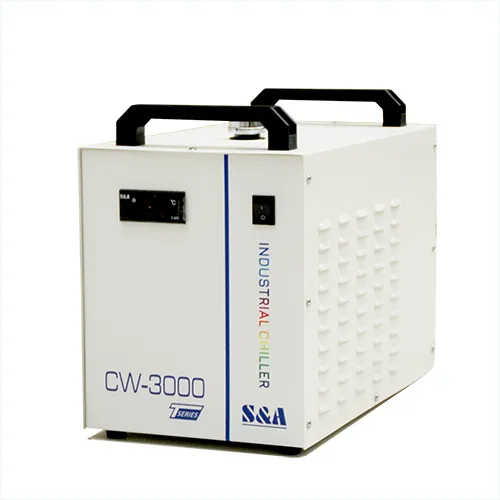

CW-3000 Water Chiller

CE FDA

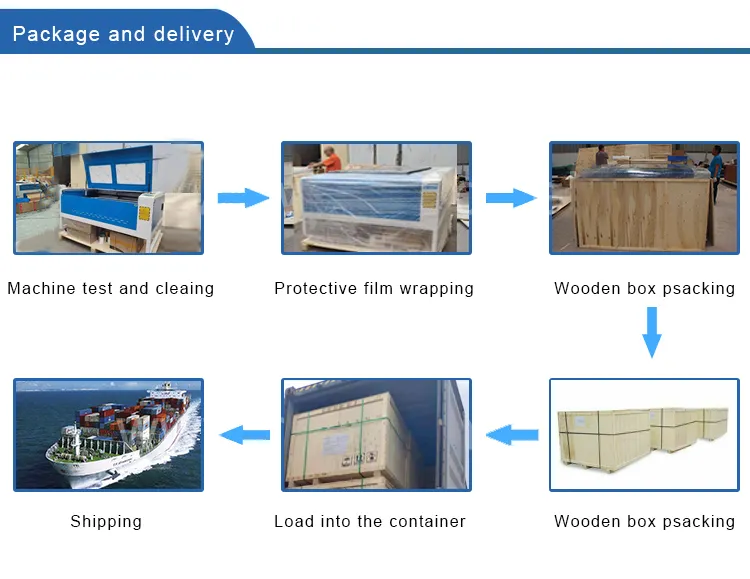

The machine is well packed in wooden box and we buy insurance for the shipping.

Q: Do I need two laser machines to engrave and cut separately?
A: No, the laser machines we provide are capable of both engraving and cutting. One machine alone can fulfill the two purposes.
Q: Do the laser machines need to be connected to a laptop or desktop computer to work?
A: Yes, either is ok. It supports Windows 10, Windows 2000, Windows XP, Win 7, and other operating systems.
Q: What kind of graphic format does it support?
A: JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc.
Q: How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length (relatively speaking, the longer, the bigger)
2. Laser tube diameter (relatively speaking, the thicker, the bigger)
3. The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger. So, it is better to use a machine with a low-power laser tube to engrave, such as 40W, 50W or 60W.
Q: Is it better to increase blow to improve laser processing performance?
A: For some thick materials, it works. But, when carving some other materials, you need to blow less.
Q: How long will it take to learn to operate a laser machine?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.
Q: Is a laser machine in operation harmful to our bodies?
A: It is not harmful as long as the laser is not exposed directly to skin and eyes.
