Factory Sale Directly CNC Laser CO2 100W 130W 150W 9060 1390 1410 1610 Acrylic Laser Cutting Machine
Product Description 1390 Co2 laser cutting machine and engraving machine1.--Blade or honeycomb table.Two kinds of of tables are available for different material2.--CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability, long service time.3.--Imported ......
Send Inquiry
Product Description

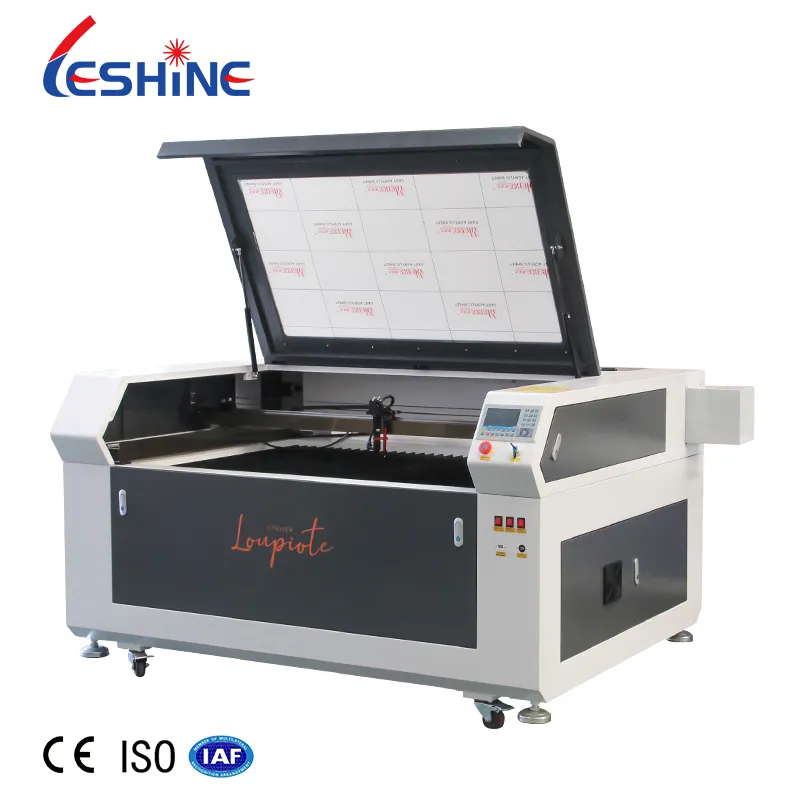

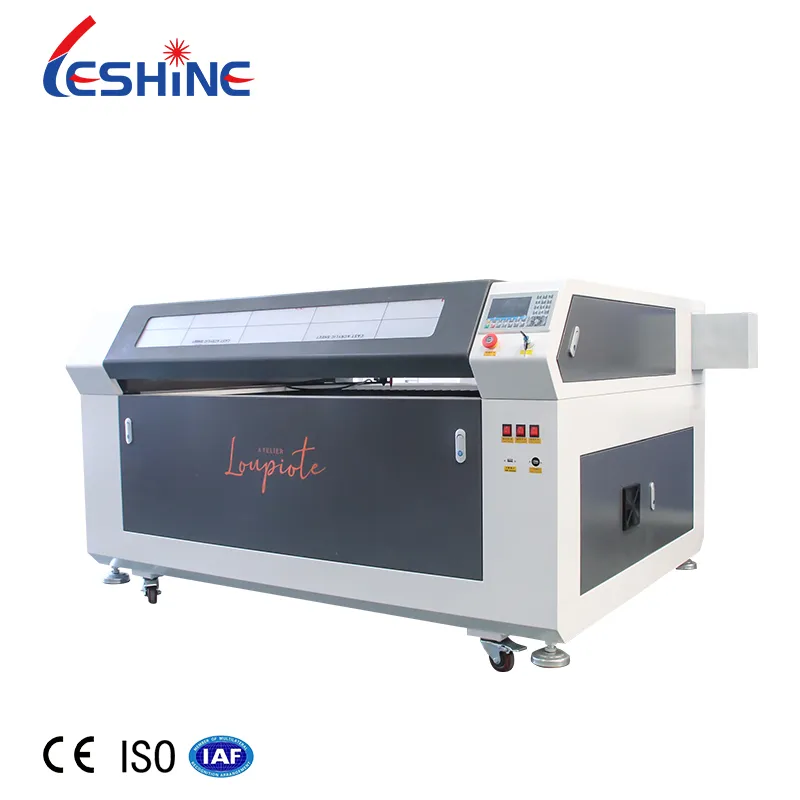

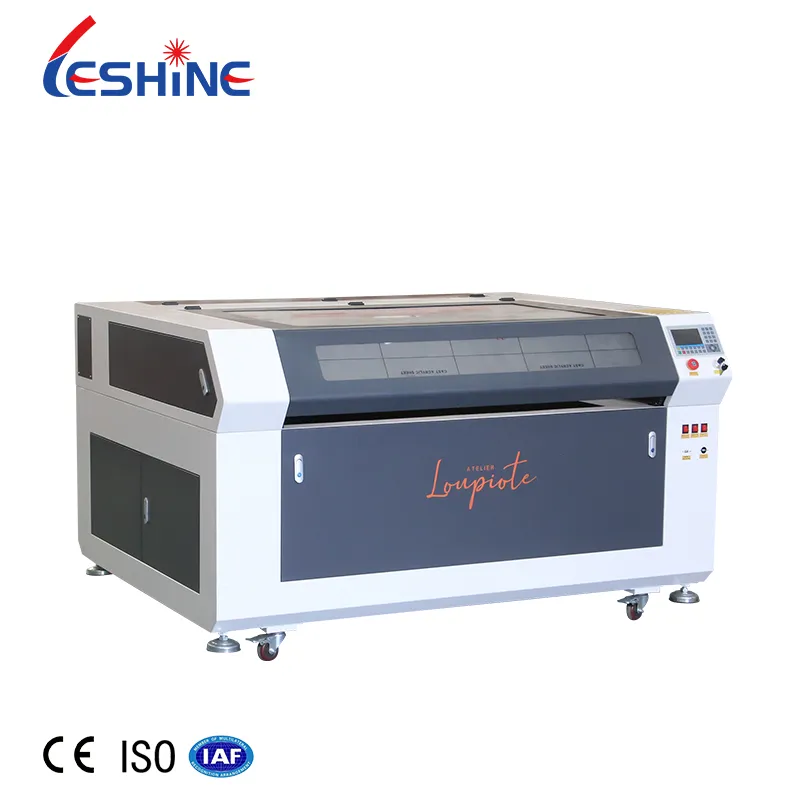

1390 Co2 laser cutting machine and engraving machine

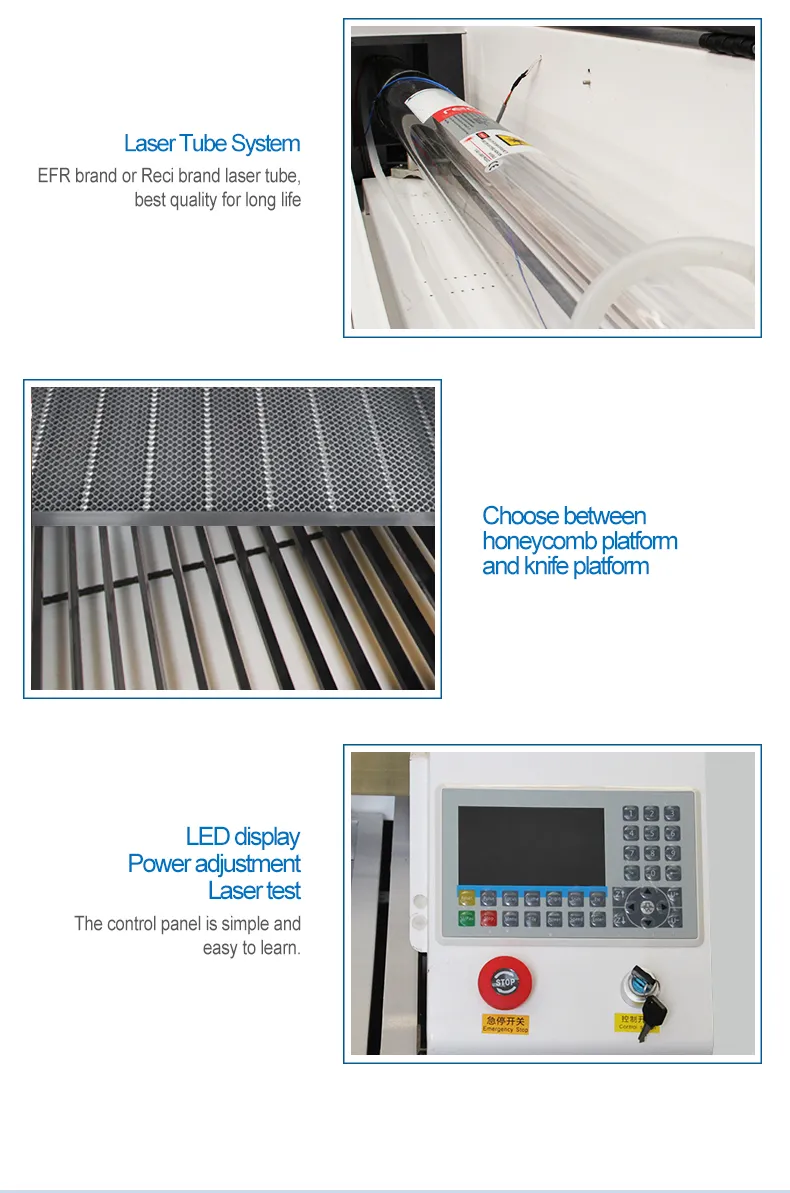

1.--Blade or honeycomb table.Two kinds of of tables are available for different material
2.--CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability, long service time.

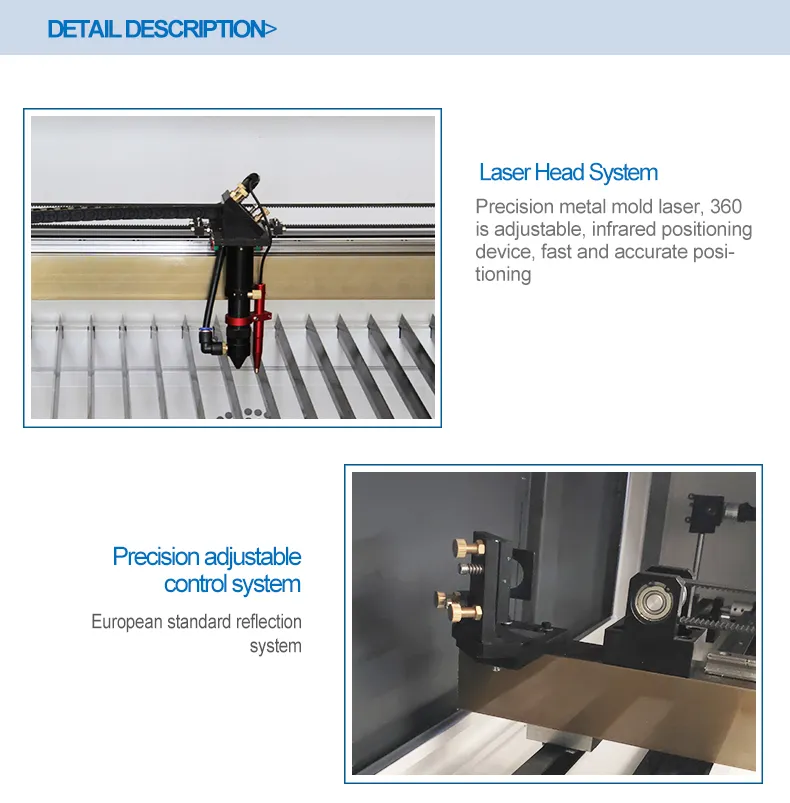

3.--Imported lens and mirrors. High transmittance, good focusing, reflection effect.
4.--Ruida Controller system, support online/offline working, English language system, adjustable cutting speed and power.
5.--High accuracy stepper motors and drivers. Belt transmission.
6.--Tiwan Hiwin Linear square guide rails, higher precision.
7.--Open style, the front and back of the machine is open which is possible for longer material, breakthrough the limit of the workpiece length.

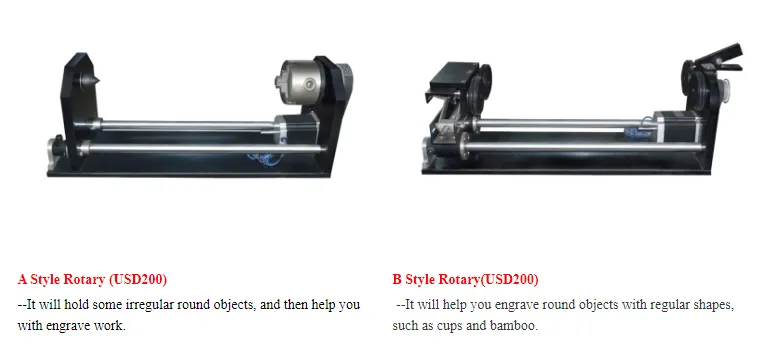

8.--Rotate cutting available.
1390 Co2 laser cutting machine | |
Worktable | honeycomb and blade |
Eneraving area | 1300*900mm |
Laser Power | 100w/ 150w / 180w |
Engraving Speed | 0-60000mm/min |
Engraving Depth | 0--35mm(Different thicknesses of different materials) |
Cutting Speed | 0-6000mm/min |
Cutting Depth (Acrylic) | 0-30mm (acrylic) |
Up and down work table | Ec Up and down 550mm adjustable |
Minimum Shaping Character | 1*1mm |
Resolution Ratio | 0.0254mm (1000dpi) |

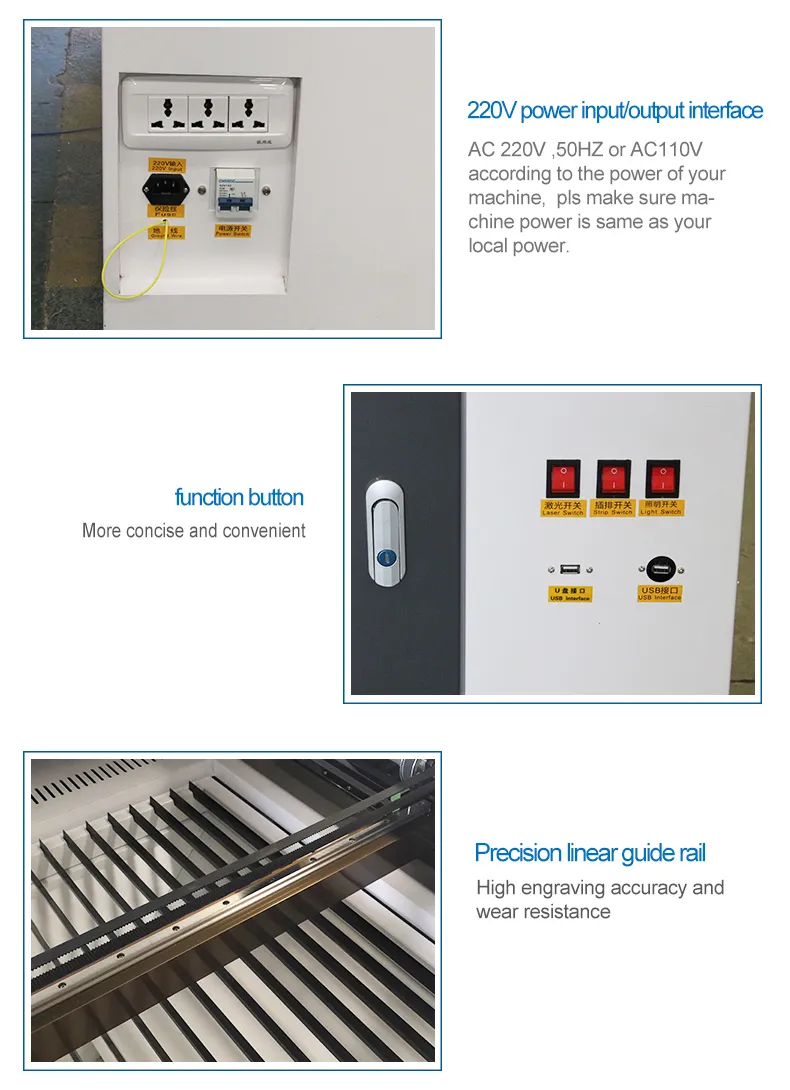

Power Supply | 220V(or110V)+/-10% 50Hz |
Resetting Positioning | Accuracy less than or equal to 0.01mm |
Water protecting sensor and alarm | Yes |
Operating Temperature | 0-45ºC |
Operating Humidity | 35-70ºC |
Graphic Format Supported | PLT/DXF/BMP/JPG/GIF/PGN/TIF |
Operation System | Windows 98/ME/2000/XP/VISTA/Windows 7/8 |
Software | RDWorks/LaserCAD |
Engraving on Curve Surfaces(Yes/No) | No |
Control Configuration | DSP |
Water Cooling(Yes/No) | Yes |
Maximum Height Of Materials To Engrave(mm) | 120mm |
Laser Tube | Sealed CO2 glass laser tube |

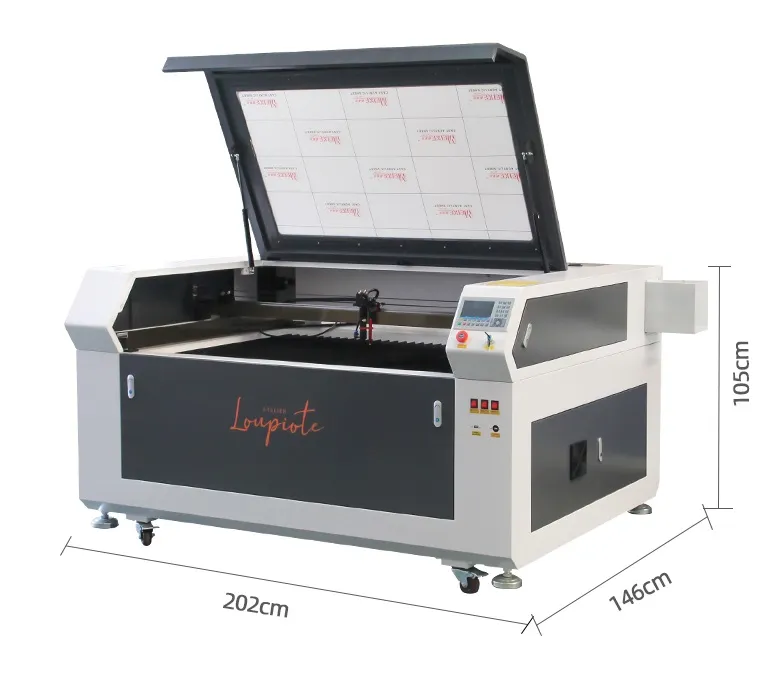

Machine Dimension | 2020x1400x1030(mm) |
Packing Dimension | 2100×1600×1320mm |
Gross Weight | 410kg |

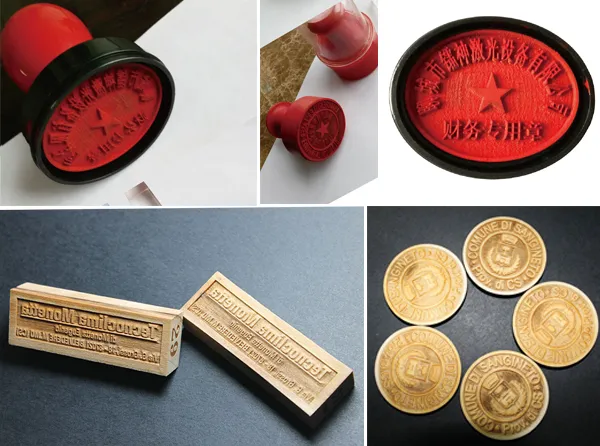

CO2 Laser Engraving Machine with different working area, laser power or working table, which application is engraving and cutting on acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other kinds of non-metal materials.
1390 laser cutting machine are widely used in clothing, shoes, luggage, computer embroidery clipping, model, electronic appliances, toys, furniture, advertising decoration, packaging and printing, paper products, handicrafts. Household appliances, laser processing and other industries.
1.-The machine is protected and packed in a wooden box
2.-Comply with sea/air transportation standards
3.--The machine uses plywood material.
Q1. Before send me an inquiry on our cnc laser, it is better for you to provide me the following information:
1) Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2) Your materials.
Metal/Acrylic/Plywood/MDF?
3)You want to engrave or cut?
If cut,could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.
Q2. If we don't know how to use the machine, can you teach us?
Yes. We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online helpsoftware. Or we can talk by phone,email or skype.
Q3. How long is the delivery time?
For standard machines, it would be 3-5 days; For non-standard machines and customized machines according to clien's specific requirements, it would be 7 to 10 days.
Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be stested to make sure they can work very well before being out of factory. Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
Q5. Do you arrange shipment for the machines?
Yes. For FOB or CIF price,we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
