1390 1610 1410 1325 CO2 Laser Cutting Machine for /Bamboo/ Leathe/MDF/ Wood/Glass/PVC/Paper CNC Laser Engraving Machines
1390 1610 1410 1325 CO2 Laser Cutting Machine for /Bamboo/ Leathe/MDF/ Wood/Glass/PVC/Paper CNC Laser Engraving Machines PRODUCTION : Main specification:1.use Taiwan linear guide rail(HIWIN)2.3 reflected mirrors and 1 focus lens3.Honeycomb 4.Exhaust fan5.Air compressor6.industry chiller(S&A ,CW......
Send Inquiry

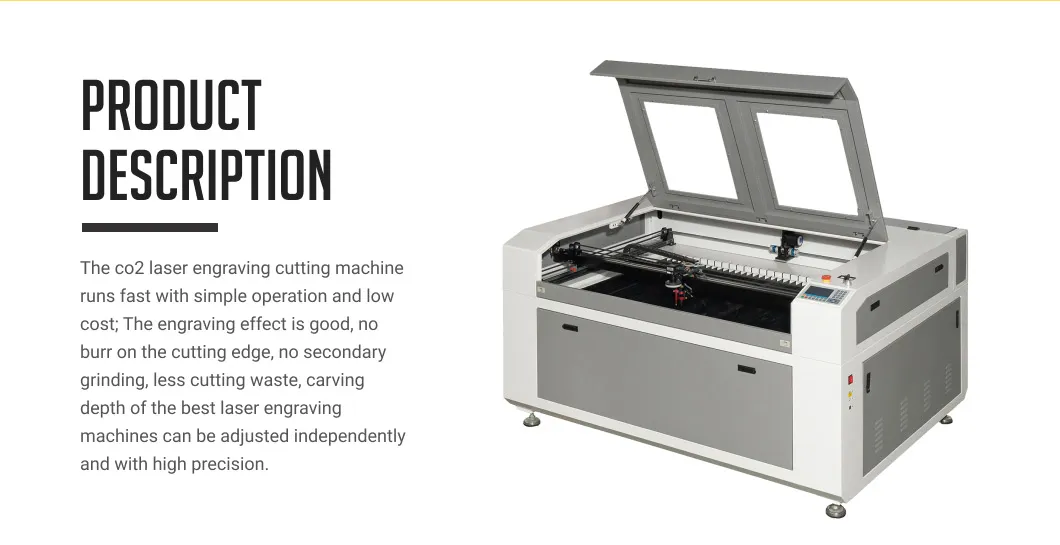

Product Description
PRODUCTION :
Main specification:
1.use Taiwan linear guide rail(HIWIN)
2.3 reflected mirrors and 1 focus lens
3.Honeycomb
4.Exhaust fan
5.Air compressor
6.industry chiller(S&A ,CW5200)
7.Stepper motor*2
8.CNC control system
9.CX Cutting System
TECHNICAL PARAMETER :
| Model | MAN-1390 |
| Working area | 1300*900mm |
| Laser power | 60w/80w/100w/Option |

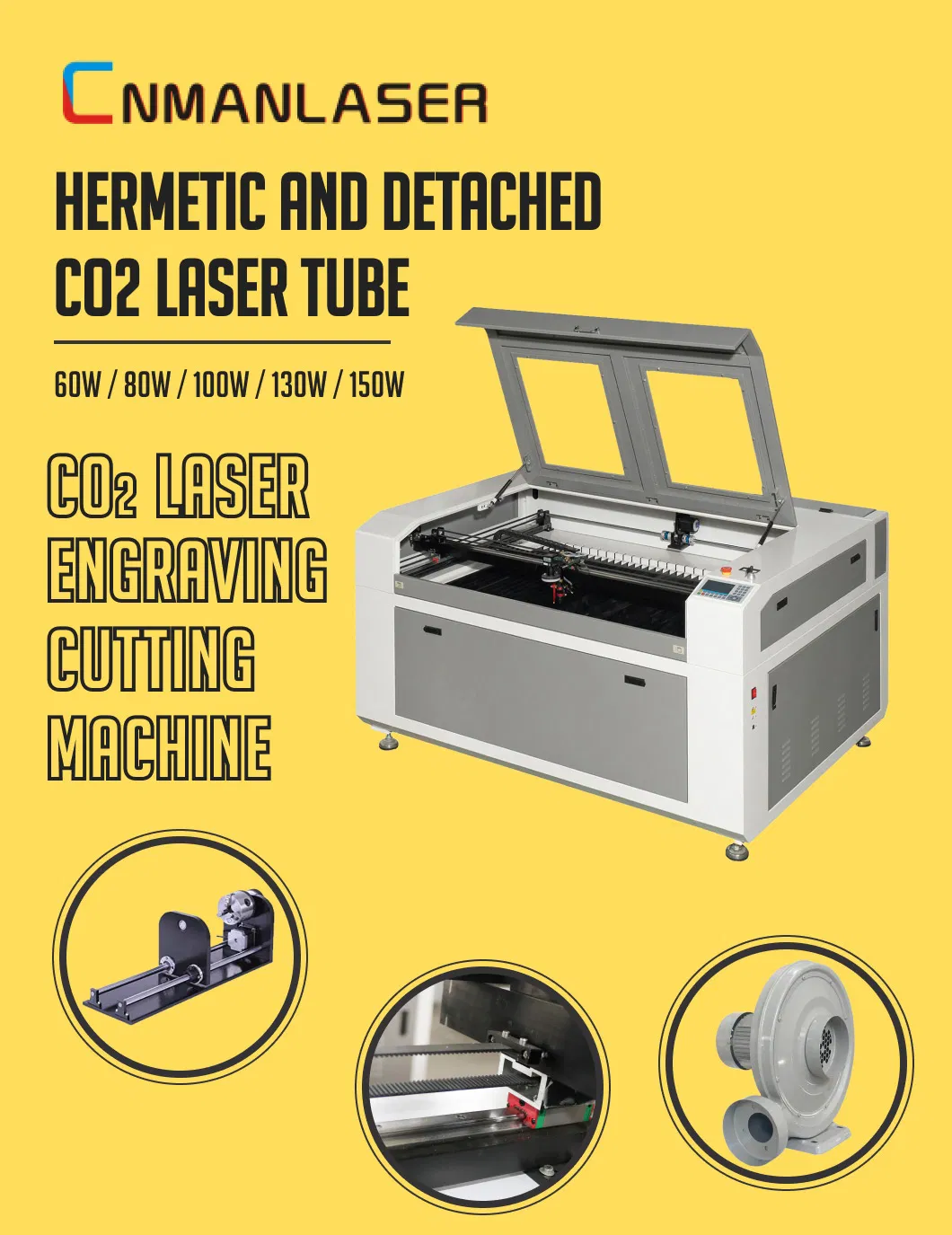

| Laser type | Sealed CO2 laser tube |
| Cooling type | Water cooling |
| Engraving speed | 0-60000mm/min |
| Cutting speed | 0-30000mm/min |
| Laser output control | 0-100% set by software |
| Min engraving speed | Chinese: 2.0mm*2.0mm, English letter: 1.0mm*1.0mm |
| Locating precision | +0.01mm |
| Controlling software: | DSP control system |
| Graphic format supported | DST PLT BMP DXF DWG AI LAS,etc |
| Compatible software | TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,etc |
| Color separation | Yes |
| Drive system | High-precision stepper motor |
| Auxiliary equipments | Exhaust fan and air exhaust pipe |
| power supply | AC110V-220V+10%,50HZ/60HZ |
| Working environment | Temperature:0-45, Humidity 5-95%(No condensate water) |
| Optional parts | up&down table, Auto-focus device, rotary device etc |

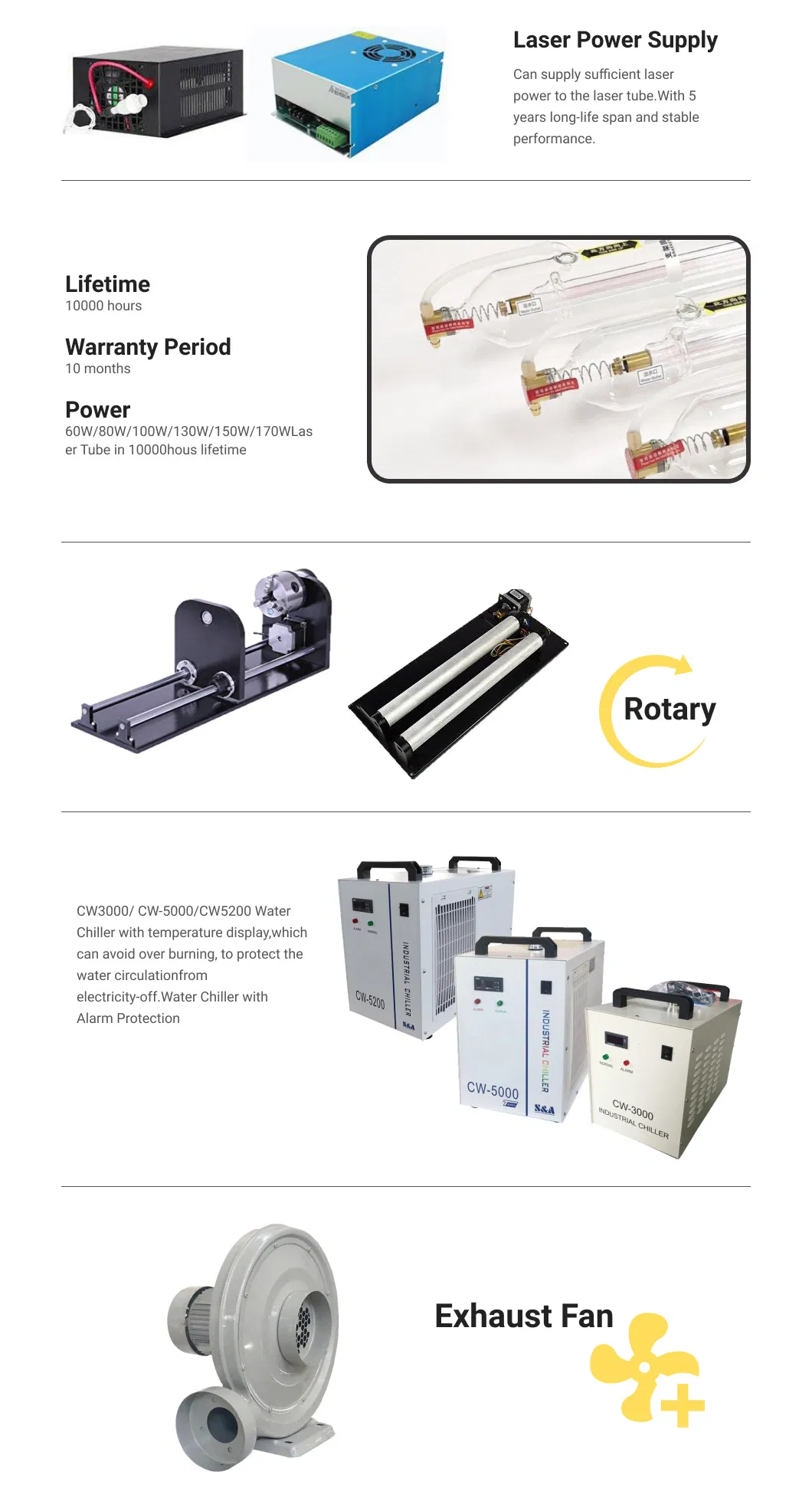

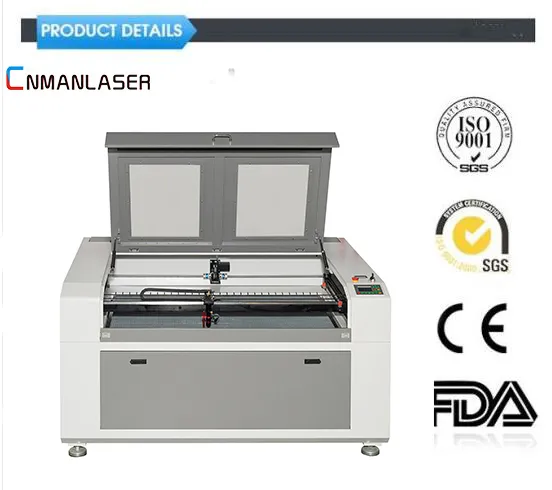

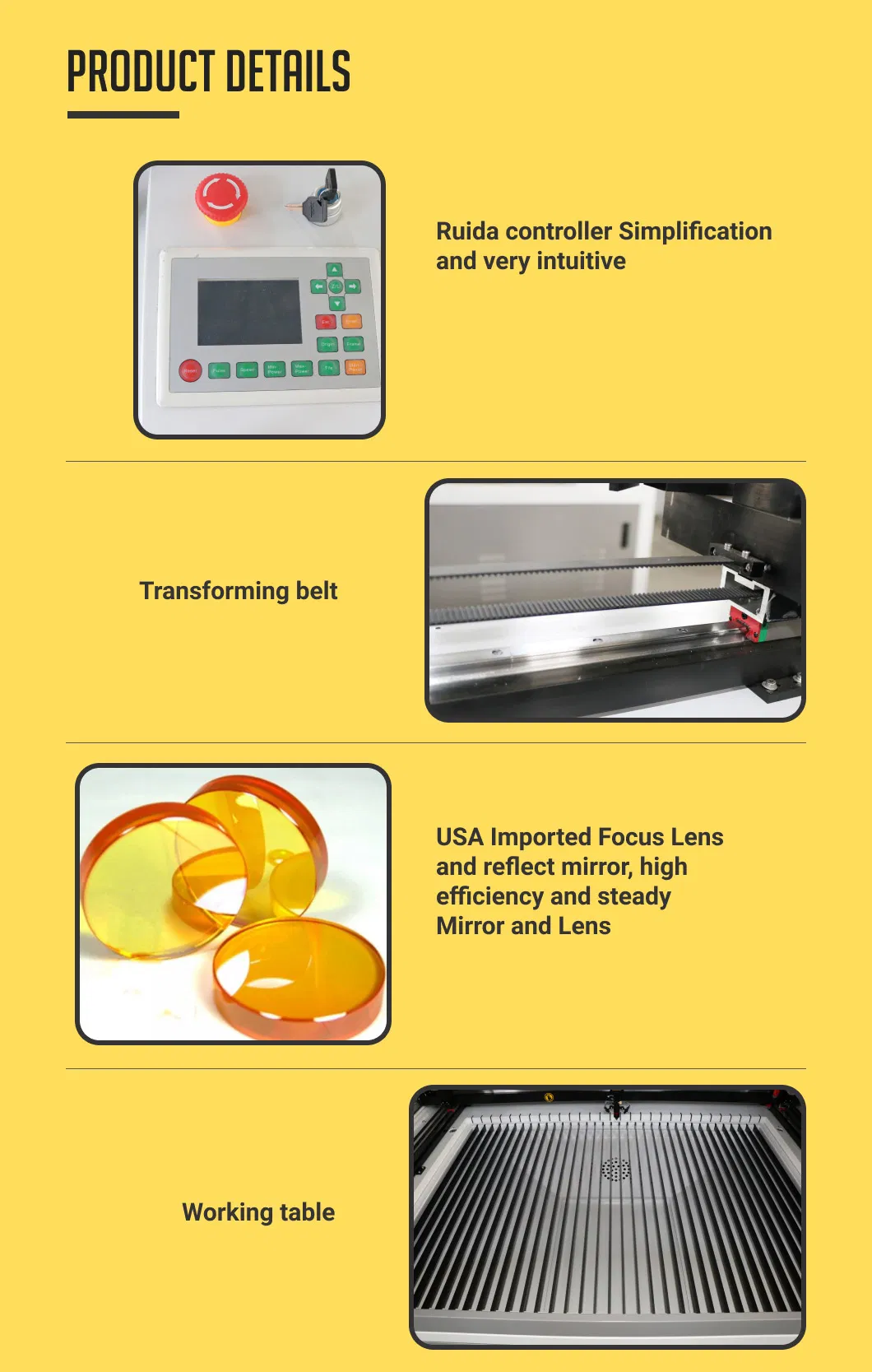

DETAILS IMAGES :
Feature :
1) Working Area:600*900mm,this can be customized as your requirements
2) Laser power:60w 80w 100w 150w - you can choose RECI laser tube,working hours:8000-10000 hours
3) DSP control system - with only a few buttons very easy to use
4) Knife worktable - suitable for hard materials such as wood,acrylic,you also can choose honey comb table use for soft materials such as
leather,fabric etc.
5) High resolution laser head.-good quality and long lifetime
6) Water pump-used for cooling laser tube to protect it has long life.
7) Air pump/Compressor.-cooling the laser head to avoid the materials being burned.
8) Exhaust fan - Blow away the smoke
9) USB cable-To connect the machine and computer.
10) Tool box-Included the CD,User manual,and some wrenches for your work.
SAMPLE SHOW :
PACKAGING & SHIPPING :
Packages:
Firstly our worker will make sure your machine clean before package, then add Stretchy film for the whole machine and spare parts for sweet
protection, at last we will make export standard strong plywood case package according to your needs.
Transport:
We will provide various ways of transportation.
1 By sea / 2 By air / 3 By train / 4 By car
SERVICES :

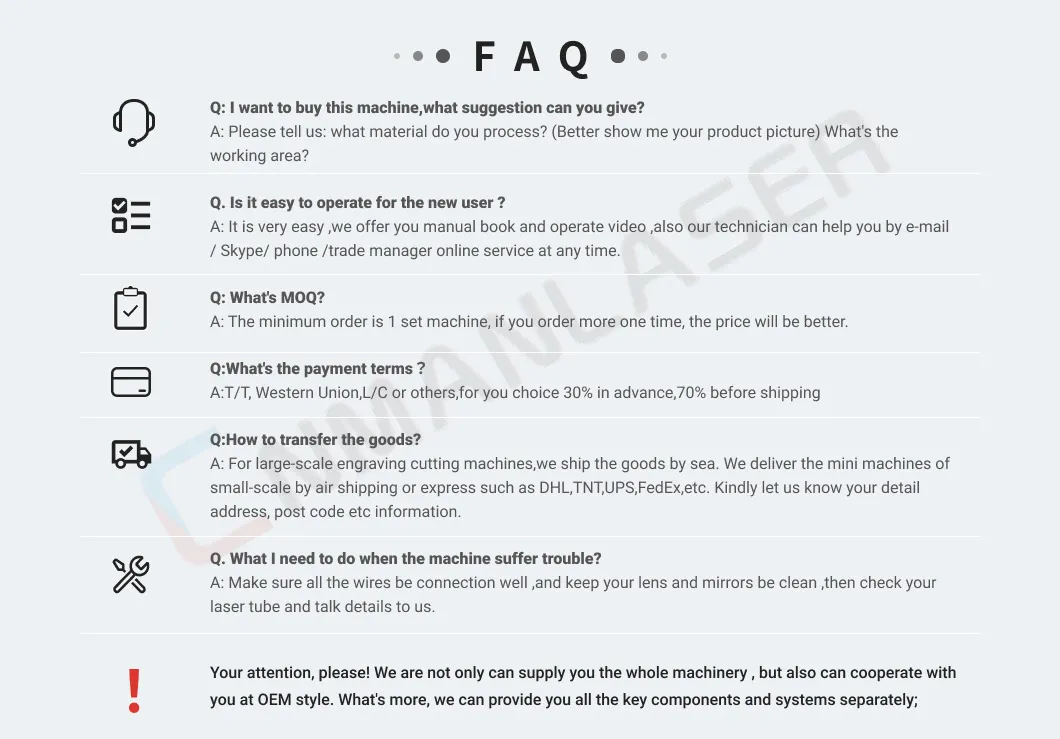

FAQ :
