150W Laser Cutting Machine Metal 1390 1410 1610 1325 CO2 Laser Machine Price
High Quality 150W 1390 CO2 Metal Acrylic Wood Laser Engraving Machine Cutting Machine Machine Feature 1.Compact design,small footprint,conwenient place to save space,suitable for cutting small items.2. High accur......
Send Inquiry
Product Description
Machine Feature
1.Compact design,small footprint,conwenient place to save space,suitable for cutting small items.
2. High accuracy for high precision parts and letter cutting.
3. Fast speed: 100 times speed than wire cutting.
4. Small hot affecting area keeps flat and nice cutting line.
5. High performance to price ratio: the price is only 1/3 of that of CO2 laser cutter and 2/5 of that of CNC

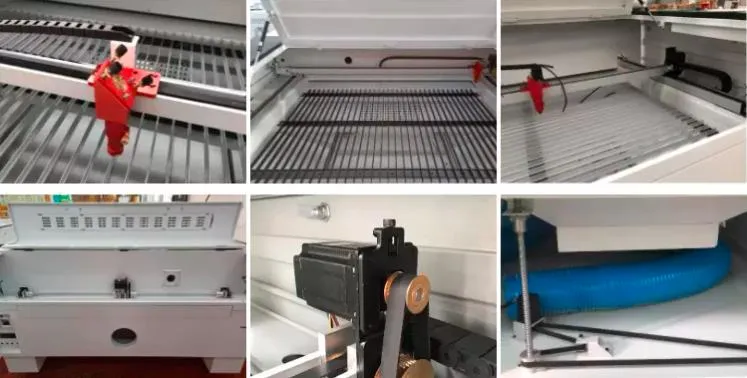

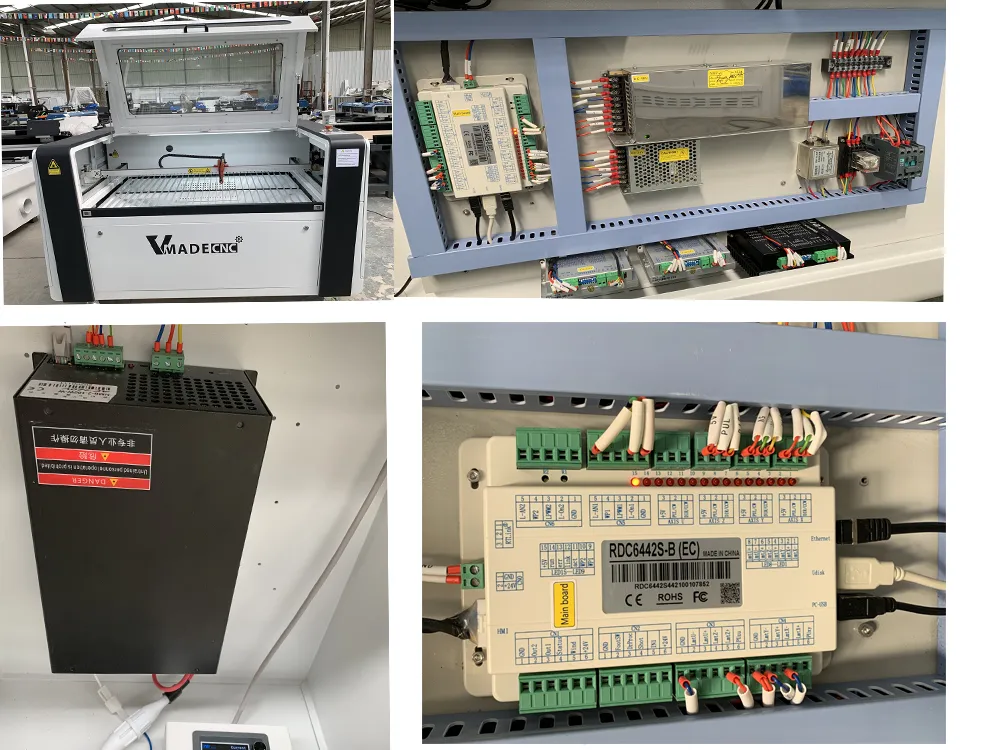

Machine Parts
Technical Parameter
Model | VML1309X(H)2H(M) | VML1610X(H)2H(M) | VML1812X(H)2H(M) |
Working Area | 1300*900mm | 1600*1000mm | 1800*1200mm |
Laser Power | 60w/80w/100w/130w//150w | ||
Laser Type | CO2 Sealed Laser Tube,10.6μm | ||
Cooling Type | Water Cooling | ||
Engraving Speed | 0-60000mm/min | ||
Cutting Speed | 0-40000mm/min | ||
Laser Output Control | 0-100% Set by Software | ||
Min.Engraving Size | Chinese:2.0mm*2.0mm,English Letter:1.0mm*1.0mm | ||
Highest Scanning Precision | 4000DPI | ||
Locating Accuracy | ≤+0.01mm | ||
Controlling Software | DSP Control System | ||
Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc | ||
Compatible Software | CORELDRAW,PHOTOSHOP,AUTOCAD,TAJIMA,etc. | ||
Color Separation | Yes | ||
Drive System | High-precision 3-phase Stepper Motor | ||
Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe | ||
Power Supply | AC110V/220V+10%,50HZ/60HZ | ||
Working Environment | Temperature:0-45C,Humidity5-95%(No Condensate Water) | ||
Samples
Company information
Jinan Vmade CNC Machine Co.,Ltd was established in 2010. Located in high-tech zone, Jinan City, Shandong Province of China. It is a professional team which specialized in Optic, ElectricityMechanics, and R&D field. Vmade keep delicate
andattentive attitude on every step and always keep to learn the most advanced technology and create more humanized products to all our customers.
FRQ
1.What is your working size?
2.What material do you need to cut/engrave?
3. What is the thickness and size of each materials?
4.What is your business industry? signage or art craft works or what else ?
5.What is your full name,email,company name,website and contact number ?
