2000W Handheld CNC Laser Soldering Welding Machine for Galvanized Sheet
2000w Handheld cnc laser soldering welding machine for galvanized sheetProduct DescriptionNo. Model XTW-1000 XTW-1500 XTW-2000 I.laser source Raycus/IPG Raycus/IPG Raycus/IPG 1 Output Power (w) 1000w 1500w 2000w 2 Center wavelength ......
Send Inquiry
Product Description
2000w Handheld cnc laser soldering welding machine for galvanized sheet
Product Description
No. | Model | XTW-1000 | XTW-1500 | XTW-2000 |
I.laser source | Raycus/IPG | Raycus/IPG | Raycus/IPG | |
1 | Output Power (w) | 1000w | 1500w | 2000w |
2 | Center wavelength | 1080nm ±5 | ||
3 | Fiber Cable length | 8m | ||
II. Water Cooling | 1.5P | 2P | 2.5P | |
III.Laser head (XINGHONG from Wuhan),standard model. Qilin /WSX (Optional) | ||||
1 | Spot size (mm) | 1.5/1.8/2.0 (XINGHONG) | 0.2-5mm adjustable (Qilin) | 0-4mm adjustable (WSX) |
2 | Working Mode | "O"(XINGHONG) | dot/line/circle (Qilin) | "Z"(WSX) |
3 | Protective lens | D20*2 | ||
4 | Auto Wire-feeding | Optional | ||
IV. Gas | N2/Ar | |||
V.Total Power Consumption | 7.5KW | 8.5KW | 10KW | |
VI.Voltage | 220±20% VAC 50/60Hz | 380±20% V AC 50/60Hz | ||
VII.Dimension (CM) | 62.5*174.6*109 | 62.5*175.6*124 | ||
Product Feature
A .Environmental protection
In traditional argon arc welding, considerations such as arc radiation, metal fume, and harmful gases make recruitment difficult. However,compared with fiber-optic handheld laser welding machines, it is easy to solve.
B .Portable design

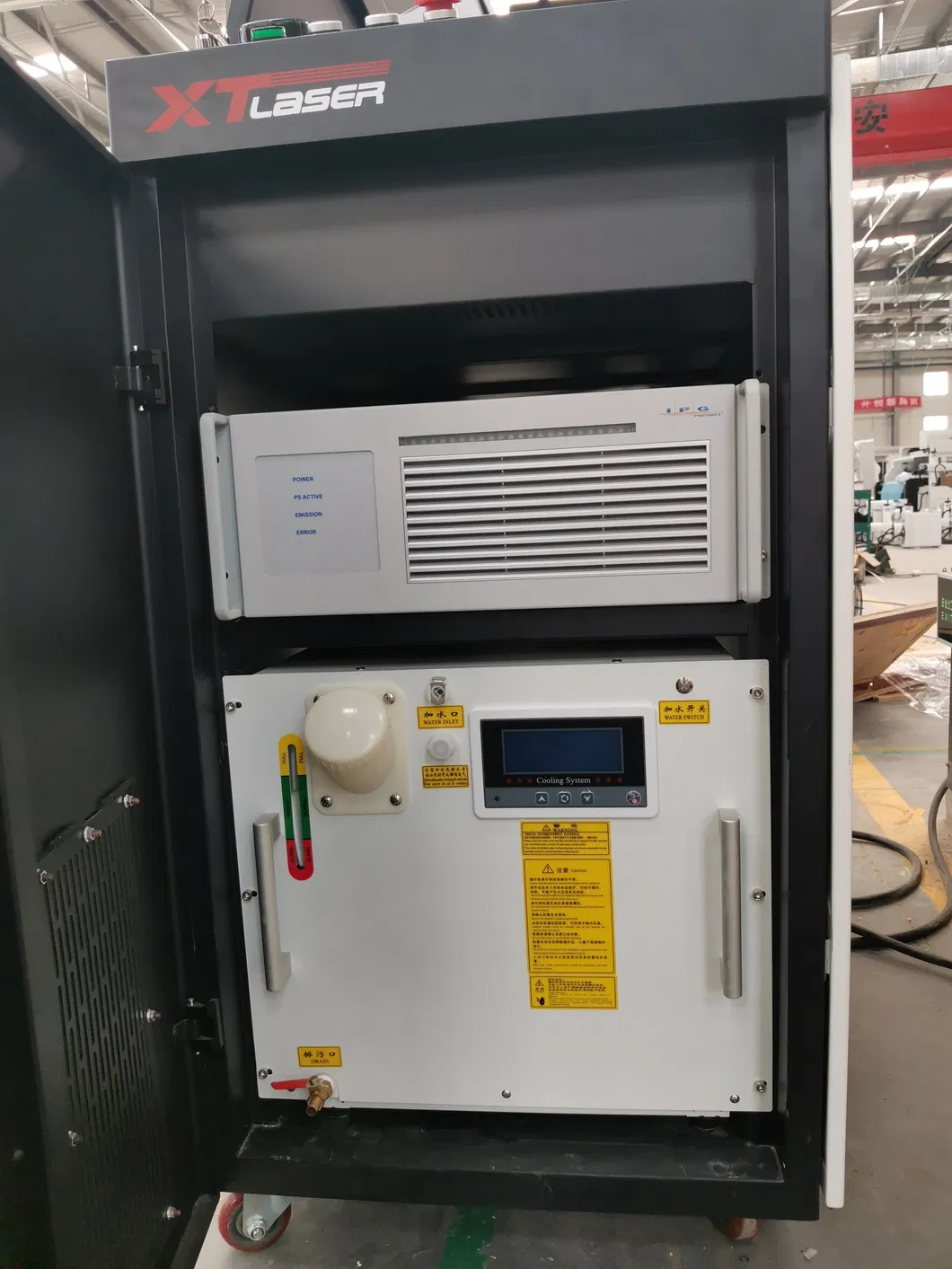

Because XTLASER's handheld fiber laser welding machine uses the design of an integrated cabinet. Which integrates lasers, cooling devices, software control, etc. And has the advantages of small footprint, convenient movement, and powerful functions.
C .More convenient for operation
Now hand-held welding, using a hand-held welding gun instead of a fixed light path, is more convenient to operate. The welding work piece has no deformation, no welding marks, and the welding is firm.

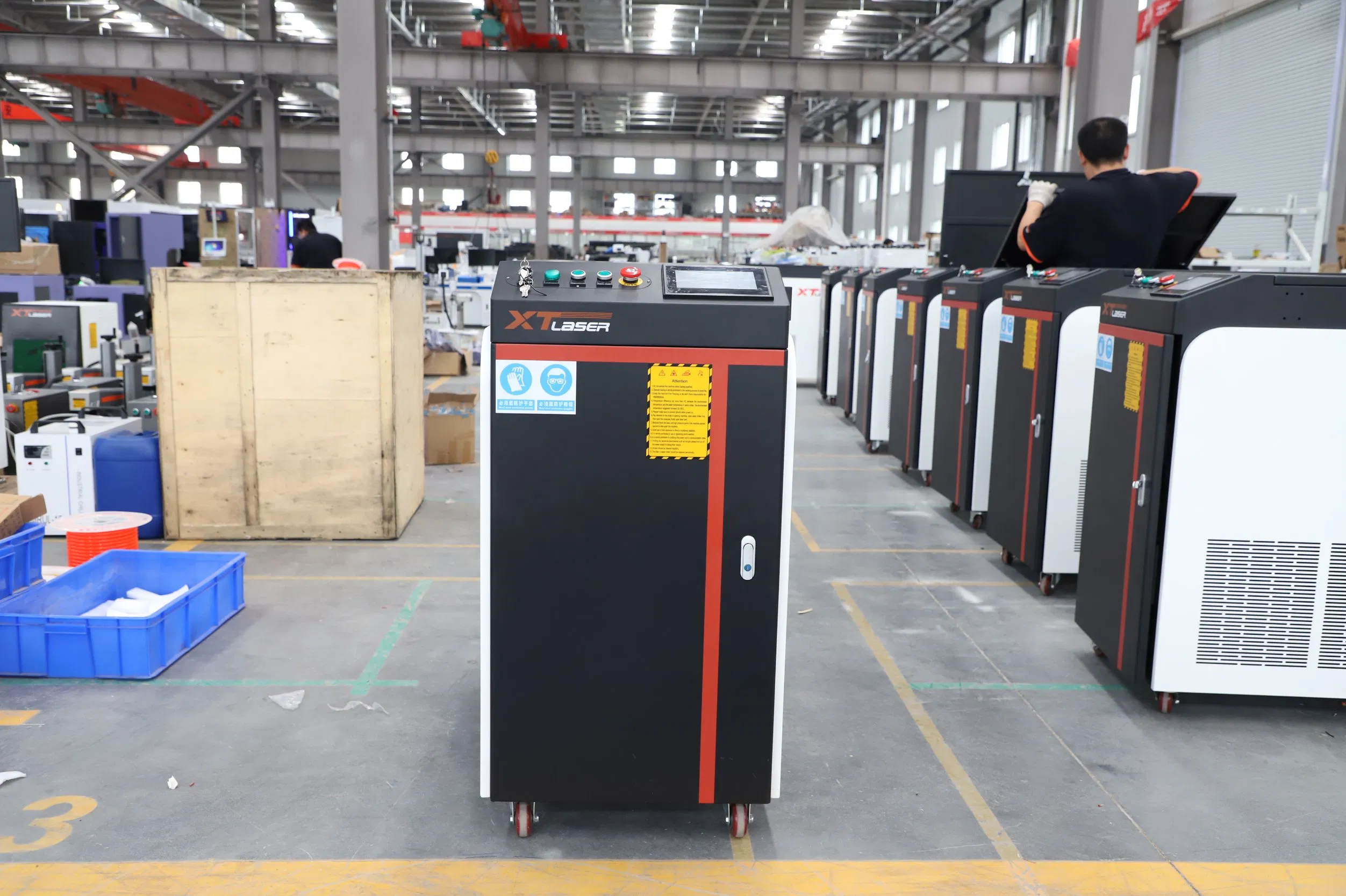

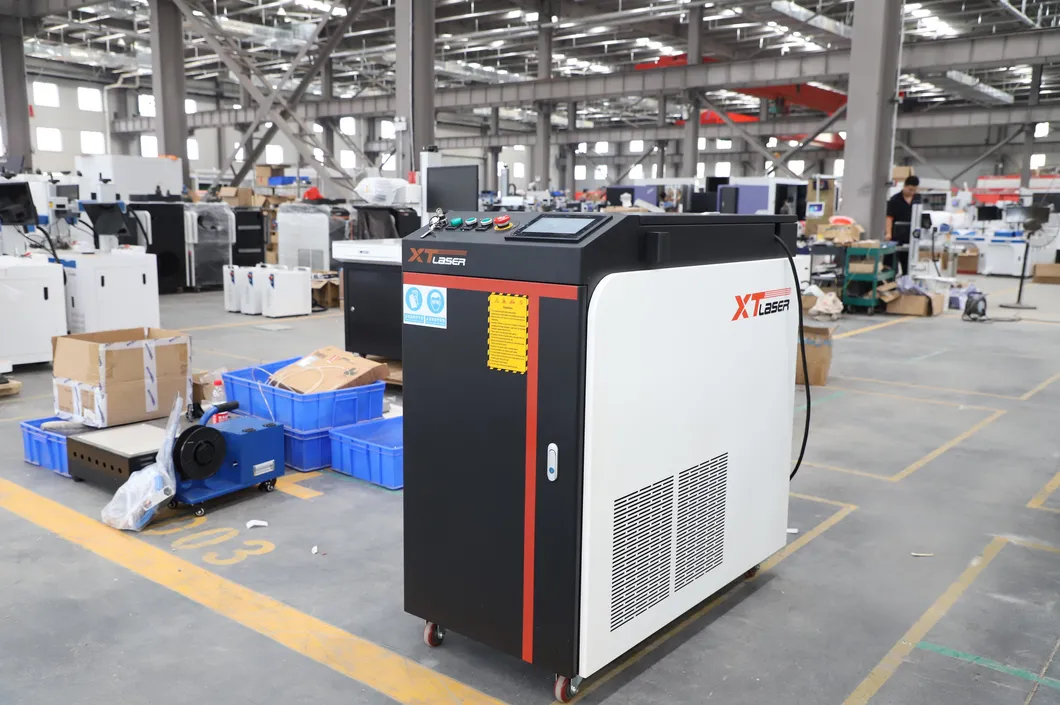

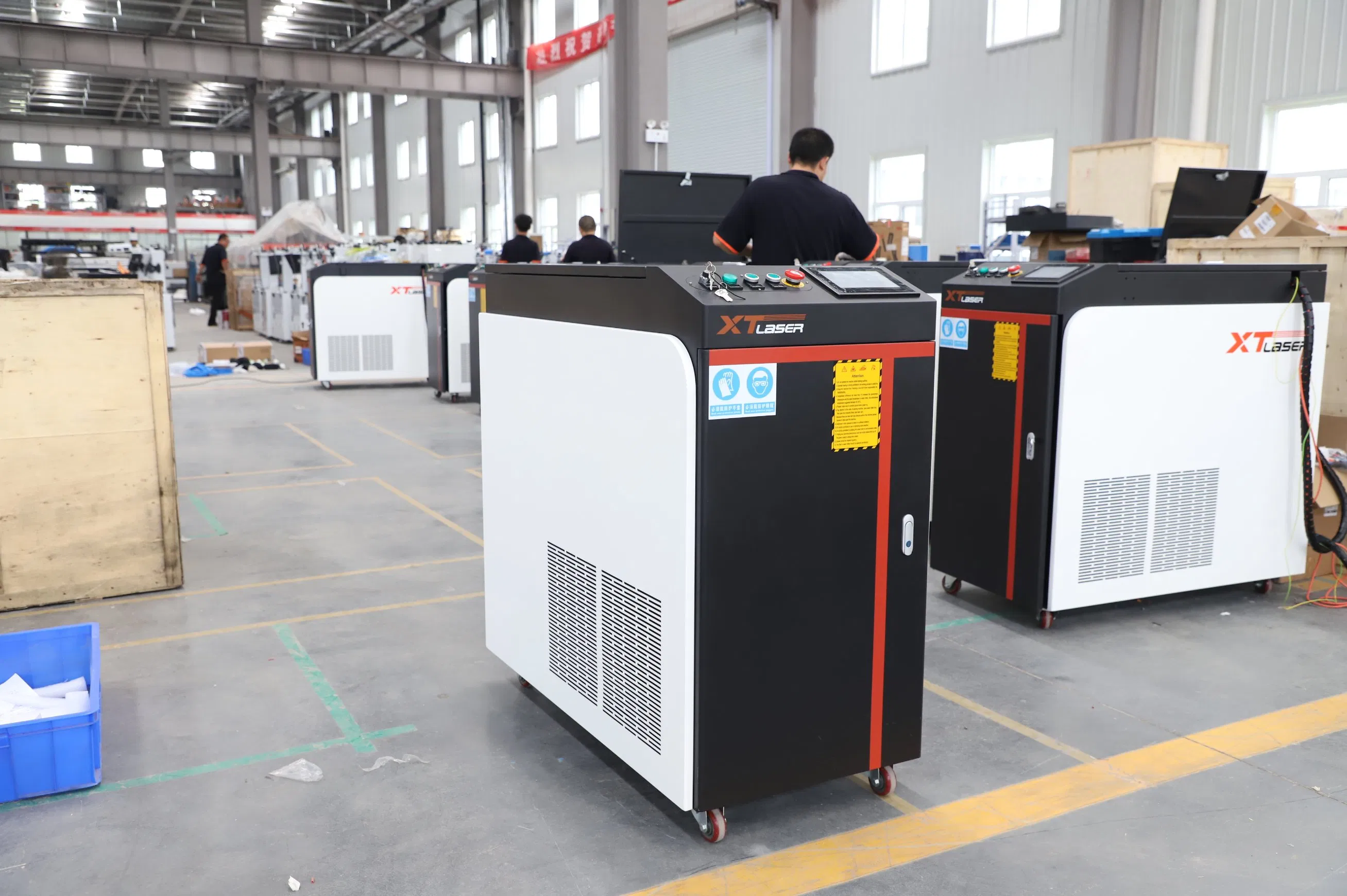

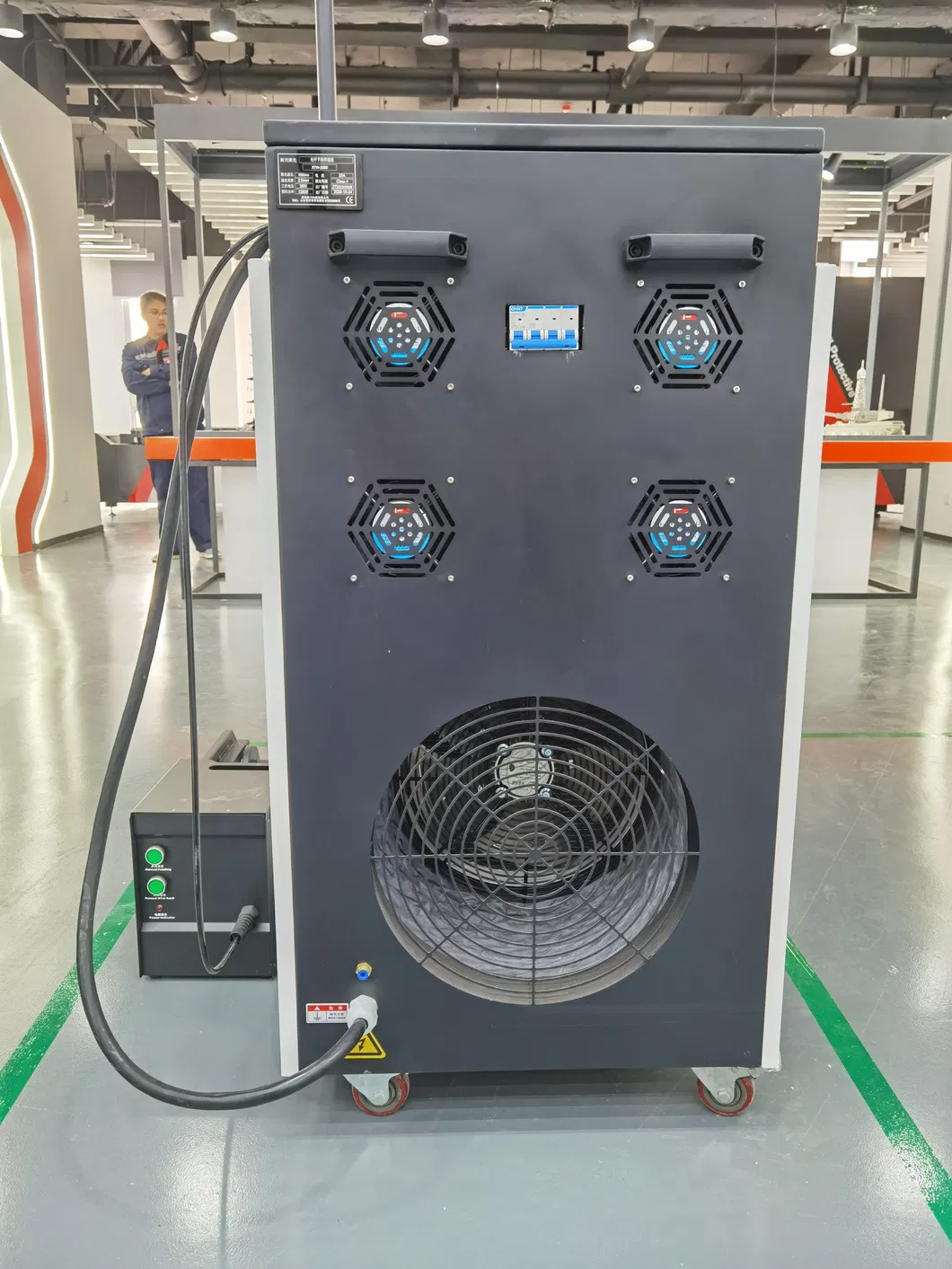

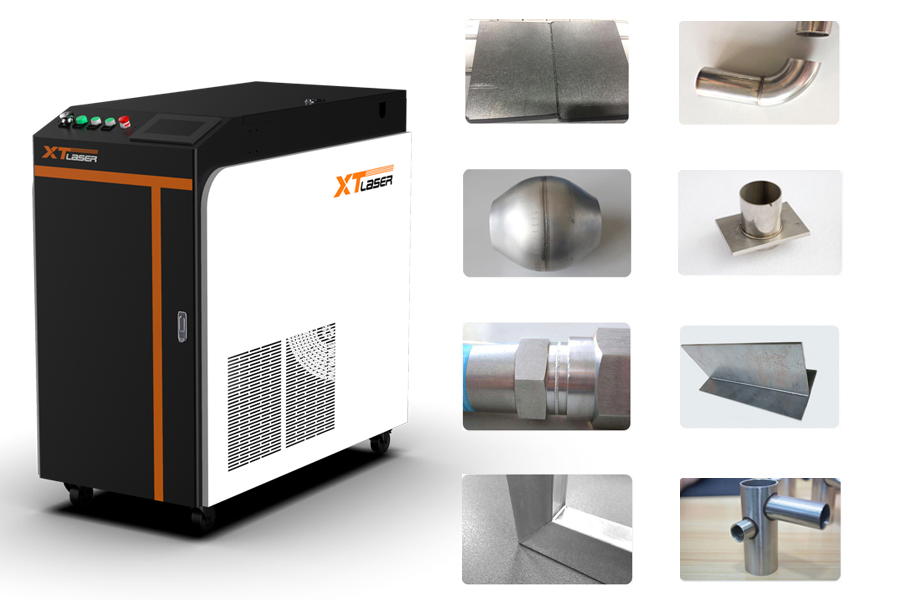

Detailed Images
 |  |
 |  |
Application area
Sheet metal processing
Railway transportation
Automobiles
Construction machinery
Agricultural and forestry machinery
Electrical manufacturing
Elevator manufacturing
Household appliances
Food machiner
Textile machinery
Tools Processin
Petroleum machiner
Food machinery
Kitchen and bathroo
Decorative advertisin
Laser external processing service
Railway transportation
Automobiles
Construction machinery
Agricultural and forestry machinery
Electrical manufacturing
Elevator manufacturing
Household appliances
Food machiner
Textile machinery
Tools Processin
Petroleum machiner
Food machinery
Kitchen and bathroo
Decorative advertisin
Laser external processing service
Advantages
1.Hand-held laser welding machine, fixed optical path, flexible and convenient, long-distance laser welding
2.Hand-held welding head is light and flexible, meeting a variety of angles, welding in multiple positions
3.Infrared positioning, the welding position is more accurate, ensuring a more beautiful weld
4.Fast welding speed, easy operation, reduced time and cost
5.Laser welding depth is large, welding is strong, suitable for all kinds of complicated welding
2.Hand-held welding head is light and flexible, meeting a variety of angles, welding in multiple positions
3.Infrared positioning, the welding position is more accurate, ensuring a more beautiful weld
4.Fast welding speed, easy operation, reduced time and cost
5.Laser welding depth is large, welding is strong, suitable for all kinds of complicated welding
