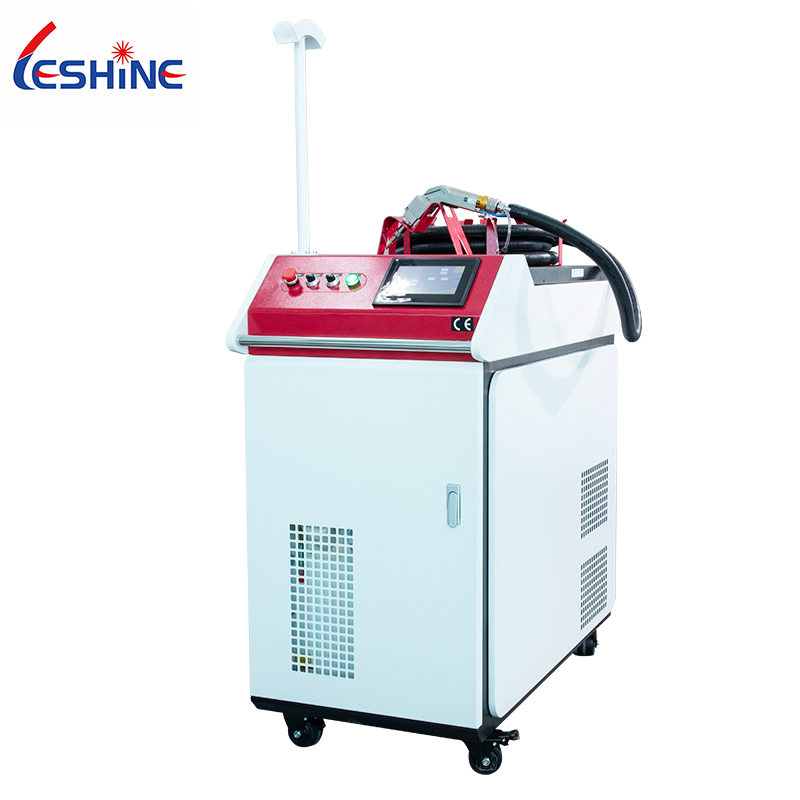

China Manufacturer 1500W Handheld Fiber Laser Welding Machine

Product Description500W 1000W 1500W Handheld Fiber laser welding machineApplication field--Handheld laser welding machine can be widely used in cabinets, kitchens, staircases, elevators, racks, ovens, stainless steel doors and windows guardrail, distribution boxes, stainless steel home and other ind......

Send Inquiry

Product Description

500W 1000W 1500W Handheld Fiber laser welding machine

Application field

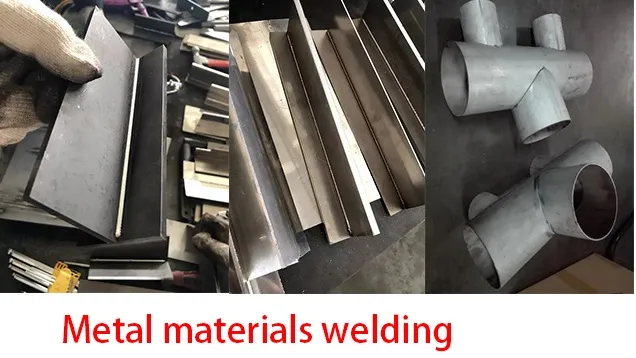

--Handheld laser welding machine can be widely used in cabinets, kitchens, staircases, elevators, racks, ovens, stainless steel doors and windows guardrail, distribution boxes, stainless steel home and other industries complex and irregular welding process.

Product name	500w fiber laser welder	1000w fiber laser welder	1500w fiber laser welder
Rated output power	500W	1000W	1500W
Adjustment range	500W±2%	1000W±2%	1500W±2%
Laser type	Continuous fiber laser
Laser wavelength	1080nm
Spot diameter	5~7mm
Welding speed range	1~120mm/s
Weldinggap requirements	≤0.5mm
Wire width	≤4mm	≤5mm
Welding thickness	<1.2mm stainlesssteel <0.8mm Carbon steel	<2.5mm stainless steel <1.5mm Carbon steel <1mm aluminum	<4mm stainless steel <2.5mm Carbon steel <2mm aluminum
Beam quality	M²<1.1	M²<1.15	M²<1.2
Output fiber length	Standard 10m / customizable lengthening
Fiber bending radius	100mm
Way of working	Continuous CW/modulation
Working environment temperature range	15~35°C/<70% without condensation
Weld head operating mode	Normal / hand-held swing welding mode
Power Consumption of the Whole Machine	4KW	6KW	9KW
Cooling mode	Built-in chiller
Power requirements	AC220V±10%/50Hz/40A Three-phaseAC380V±10%/50Hz/40A

China Manufacturer 1500W Handheld Fiber Laser Welding Machine

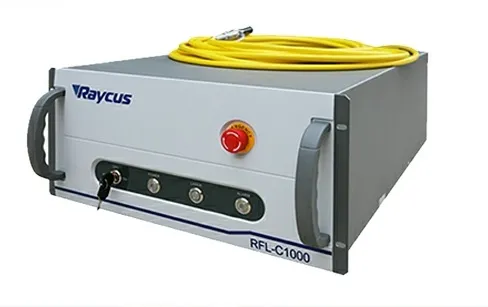

	High power laser source --It has the advantages of good beam quality and long service life.

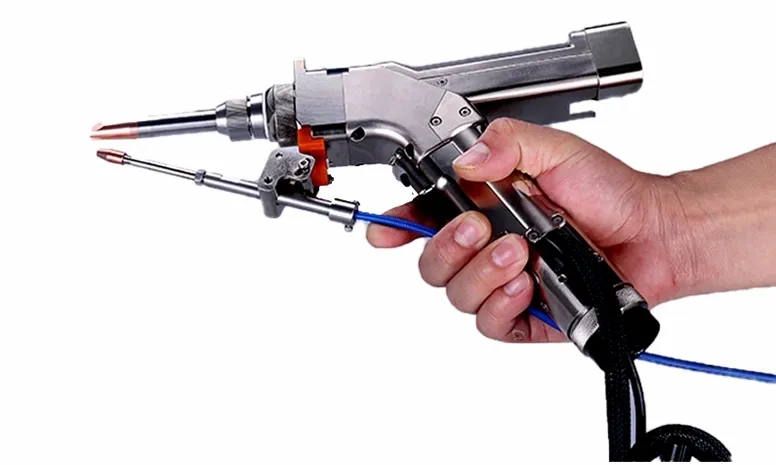

	Laser welding gun --Light weight, easy to use and very flexible. --With a unique faucet double pendulum.

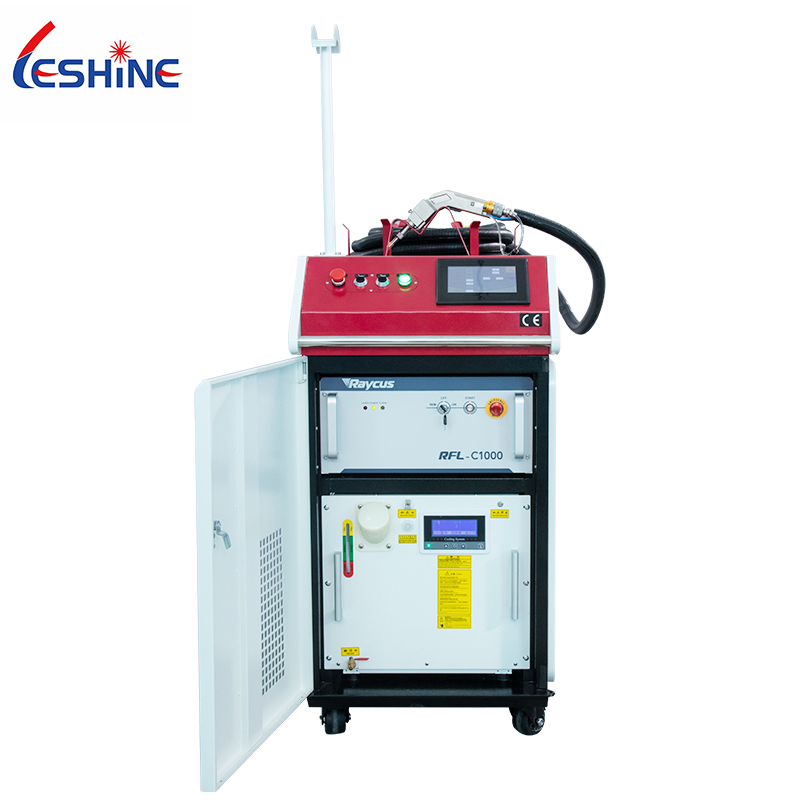

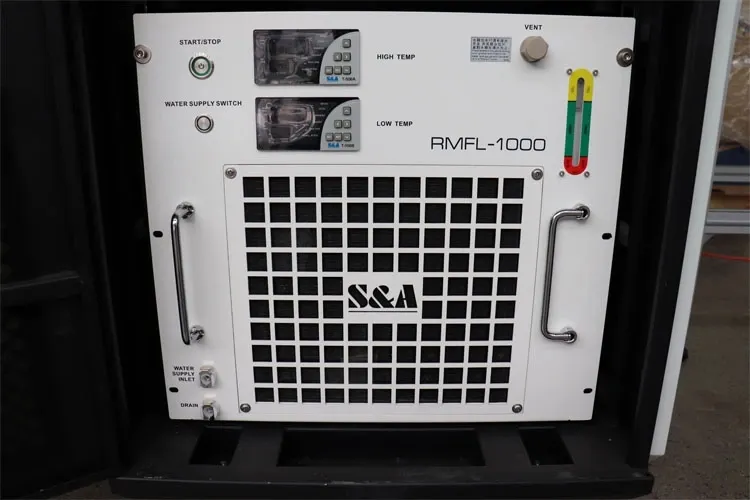

	Industrial chiller --Reduce the temperature of the machine and maintain the machine to work stably for a long time.

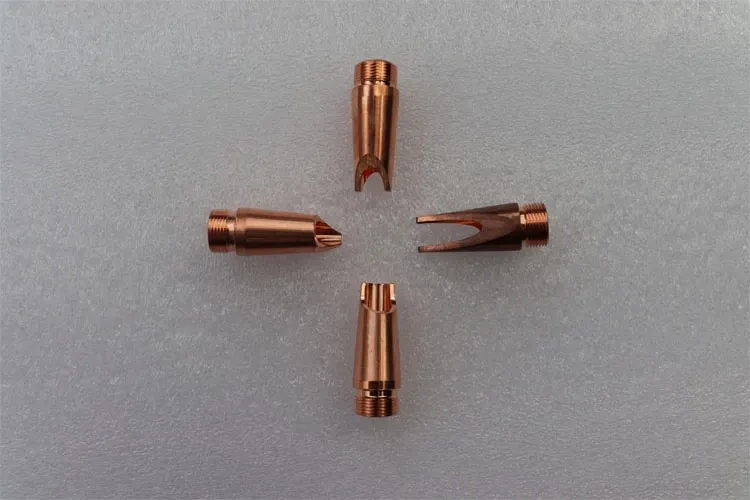

	Welding copper nozzle --You can install different shapes of welding copper nozzles on the laser welding gun according to your needs. --Our machine comes with a complete set of welding copper nozzles.

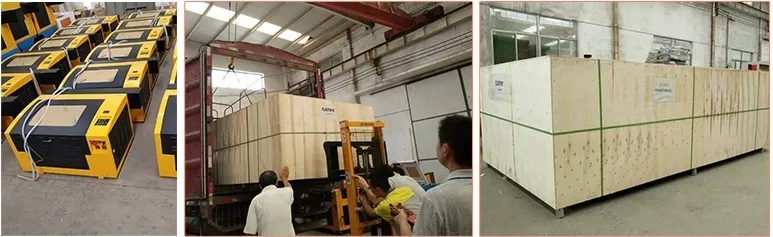

Packaging & Shipping detail:

1).Outside package: Standard marine export plywood case.
2). Inner package: Stretchy film and plastic film for humidity.
3). Machine packing size:1350*780*1350mm ,GW: 350kg

Shipped in 7-15 working days after payment.
1) Machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB

China Manufacturer 1500W Handheld Fiber Laser Welding Machine

Q1: I know nothing about this machine, what type of machine should I choose?
A:We will help you choose the suitable machine and share you the solution; you can share us the following information
1. what material will you weld
2. The welding material thickness
3. Is it joint welding or over-lay welding
4. What is the exact usage for the machine , for product welding or repair or other application

Q2: When I got this machine, but I don't know how to use it. What should I do?
A:We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

Q3: If some problems happen to this machine, what should I do?
A:We provide 3 years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.

Q4: What's consumables of laser marking machine?
A: nozzle. our machine with 3 nozzles when delivery. It's very economical and cost effective.

Q5: What's package, will it protect the products?
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.

Q6: What's delivery time?
A: As per your requirement , we will suggest the suitable machine . The exact delivery time as per your machine.

Q7: How is the shipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement.
