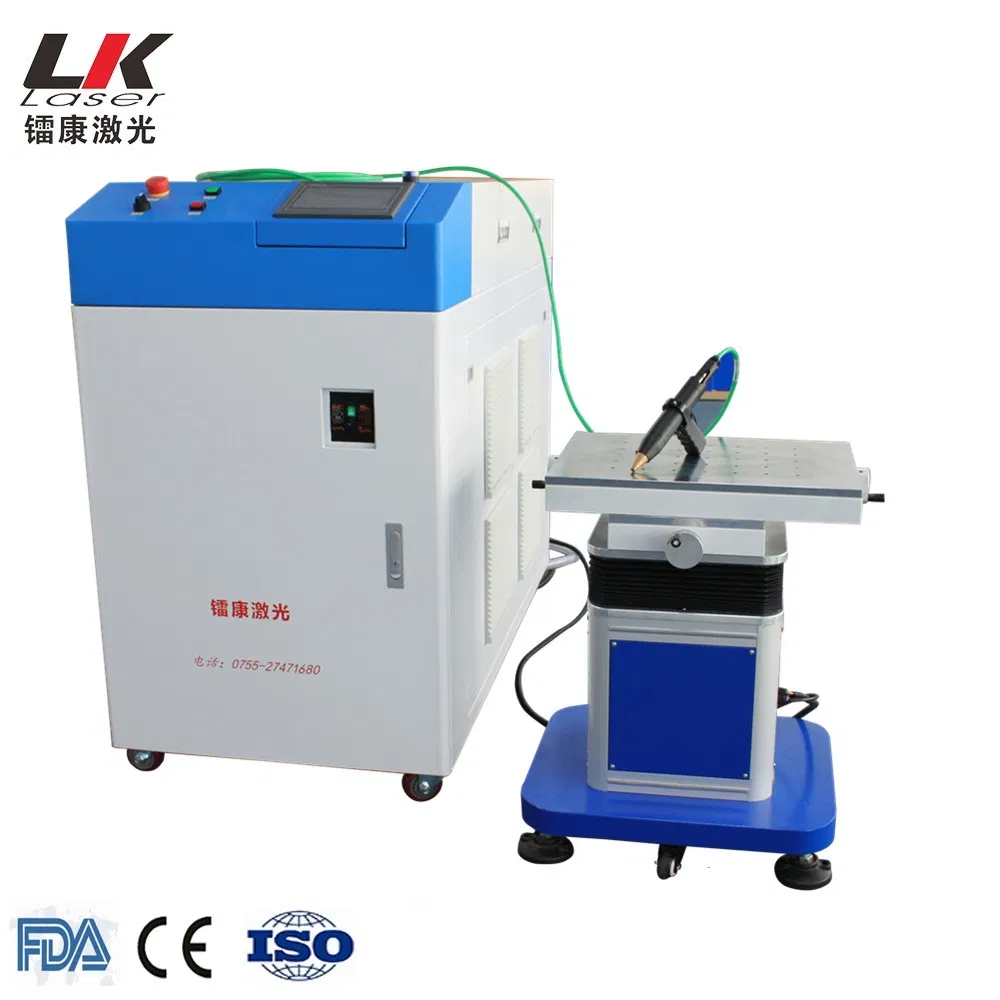

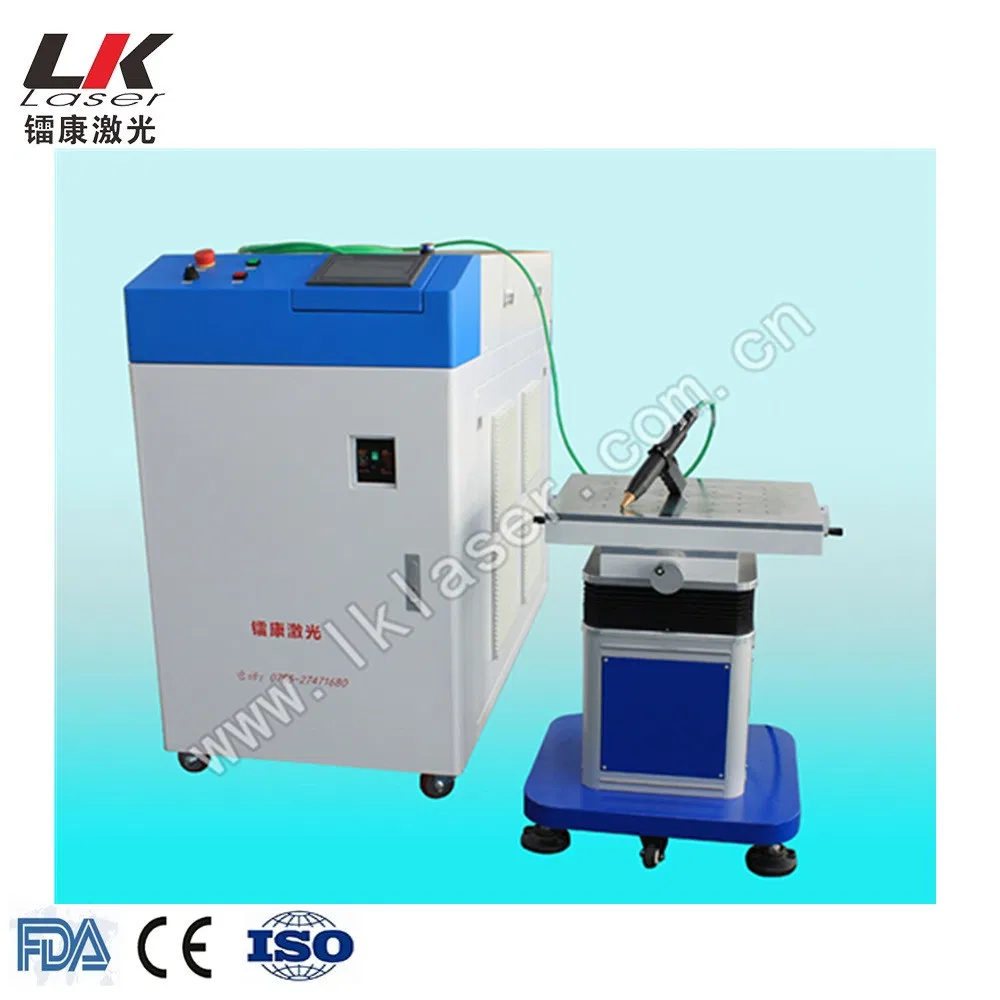

Manual Handheld Spot YAG Laser Soldering Machine Handheld YAG Laser Welder
Manual handheld spot YAG laser soldering machine handheld YAG laser welder FeatureThis machine is a new model which is having laser wire with welding gun ,operate by hand It is very flexible for welding some unusual angle Convenient for welding and easy for maintenance 1)The energy, pulse width, fre......
Send Inquiry
Product Description
Feature
This machine is a new model which is having laser wire with welding gun ,operate by hand
It is very flexible for welding some unusual angle
Convenient for welding and easy for maintenance
1)The energy, pulse width, frequency and light spot size can be adjusted in a large range to realize different welding effects. The parameters are adjusted by the lever in the seal cavity, which is simple and highly efficient.
2)Ceramic converging cavity is imported from the Britain. It is corrosion resistant and high temperature resistant with 8-10 years service life. The life of xenon lamp is more than 8 million times.
3) Most advanced light shielding system eliminates the irritation to eyes by laser during working.
4) Able to work for 24 hours continuously; stable performance; free of maintenance in 10,000 hours.
5) Human-based design accords with ergonomics, avoiding fatigue after long time working.
6) High speed, high efficiency, deep enough, slightly deformation, small heat effect area, high welding quality, pollution free, environmental friendly.
7)The size of light spot can be adjusted accordingly and automatically.
Technical Parameters| Model | LK-SWF200 | LK-SWF300 |
| Max.Laser Power | 200W | 300W |
| Laser type | YAG | YAG |
| Laser Wavelength | 1064um | 1064um |
| Pulse Energy | 80J | 120J |
| Pulse Frequency | 0-50HZ | 0-50HZ |
| Laser Welding Depth | 0.1-2.8mm | 0.1-2.8mm |
| Size of Welding Spot | 0.2-0.6mm | 0.2-1.0mm |
| Adjustment Range Of Light Spot | 1.8mm | 1.8mm |
| Max.Bearing Of Standard Work Bench | 100kg | 100kg |
| Cooling System | Water cooling | Water cooling |
| Max. Output Power | 200W | 300W |
| Inter Power Of Standard | <5kw | 5kw |
| Power Supply | AC220VAC/380VAC+-15%/50HZ/25A | AC220VAC/380VAC+-15%/50HZ/25A |
| Dimensions | 1100*600*1250mm | 1100*600*1250mm |

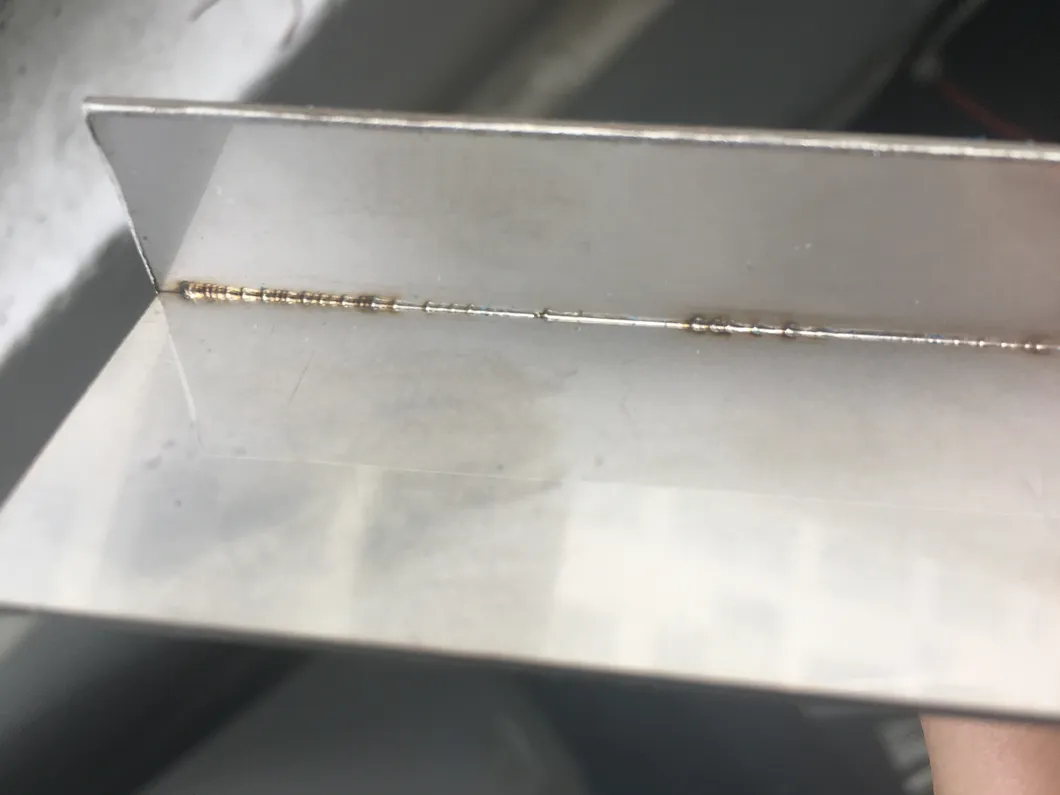

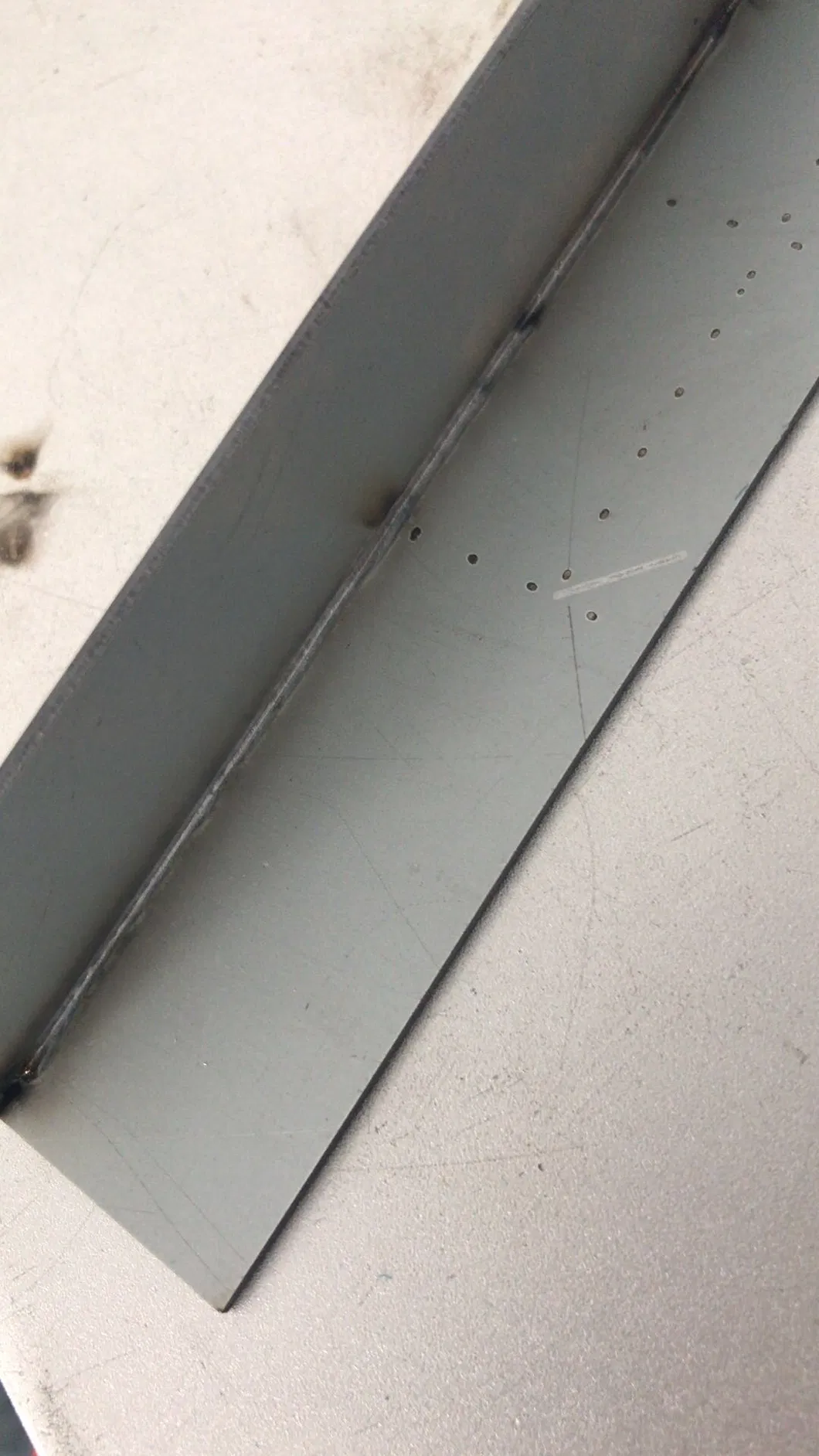

Sample
This model is fit for welding stainless steel ,aluminum ,alloy ,zinc etc ,such as :large stainless steel box fixed ,large mold repair
Specialized in some unusal welding range of products
It is widely use in large advertising word welding ,car mold repair or any large product which put in on the floor
Packing &Shipping
1.Standard plywood case, its compressive strength and bearing quality is better.
2.the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3.when importing, the plywood case is with fumigation-free, the procedure is simple.
4.Delivery Detail: within 3-5 days after received your payment
Our Service
1.One year quality guaranty, the machine with main parts(excluding the consumables)shall be changed free of charge when if any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery
