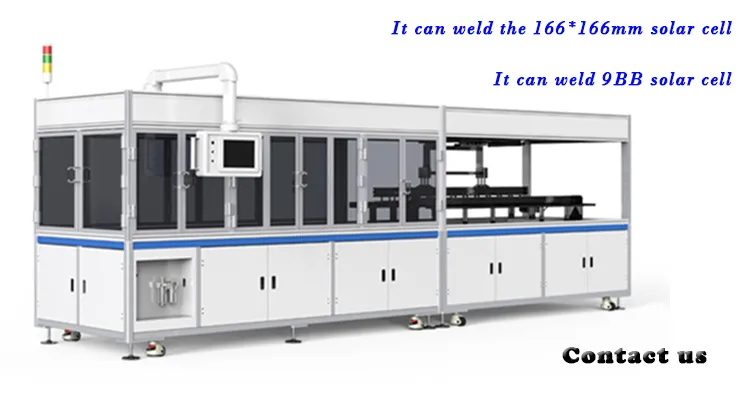

Stringer Machine Tabbing Solar Cell PV Modules Manufacturing Machines

Product Description

stringer machine tabbing solar cell pv modules manufacturing machines

Parameters

battery sheet

1)Cell type: 156 * 156-166*166 (whole piece),

2)156 ×78 (1/2 piece)

3)Cell thickness: 160um-300um

4)Number of cell grids: 3bb, 4bb, 5bb, 6bb (fixture switching)

5)9BB (Welding tape width 0.7-0.9mm), you need to add 9BB clip / slot plate / welding tape

processing mechanism according to the cell plate screen.

Welding tape

1)Solder tape type: leaded or lead-free

2)Welding tape width: 0.9-2.0mm

3)Welding strip thickness: 0.18-0.32mm

Battery String

1)Maximum length: 2000mm, accuracy ± 1mm

2)Cell spacing: 0-10mm adjustable, accuracy ± 0.3mm

3)Head and tail welding tape extension length: the length can be set independently at the

beginning and end, the range is 0-15mm

Welding

1) Welding method: infrared tube

2) Welding machine exposure ratio (piece): less than 0.2mm, more than 96%; 0.2mm-0.3mm,

less than 3%; more than 0.3mm, less than 0.3%. 0.2mm)

3) The welding tension is not less than 1.5n × the width of the main grid line, which depends

on the quality of the cell.

operating efficiency

1) Up time ≥ 95% (unplanned downtime of equipment / 24H), unplanned downtime refers to

equipment failure or abnormal downtime.

2) Fragmentation rate ≤ 0.2% (a grade film)

Weight: 1800 Kg

Average power: 6KW ,Max Power: 10KW

Air consumption: peak 1000L / min, average 300L / min

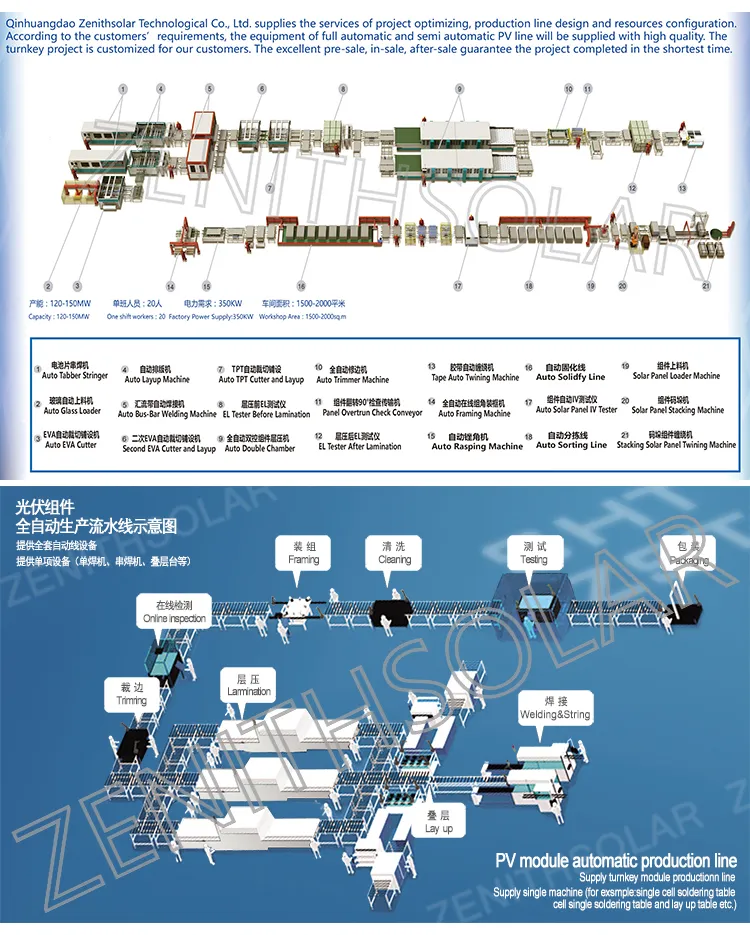

About production line

We can supply the customized complete production line. The engineer can adjust the layout and performance of the production line according to different requires of customers.
