1212/ 1218 /6090 1325 3D Wood/ Woodworking/ Plywood Carving Engraving Automatic Tool Change Atc CNC Router Machine for Furniture Advertising
1212/1218/6090 1325 3D Wood/ Woodworking/ Plywood Carving Engraving Automatic Tool Change Atc CNC Router Machine for Furniture AdvertisingAdvantage Features of 1325 cnc router:1).Welded structure by thick profiled steel stabilized under high temperature, ensures minimum distortion, excellent rigidit......
Send Inquiry
Product Description

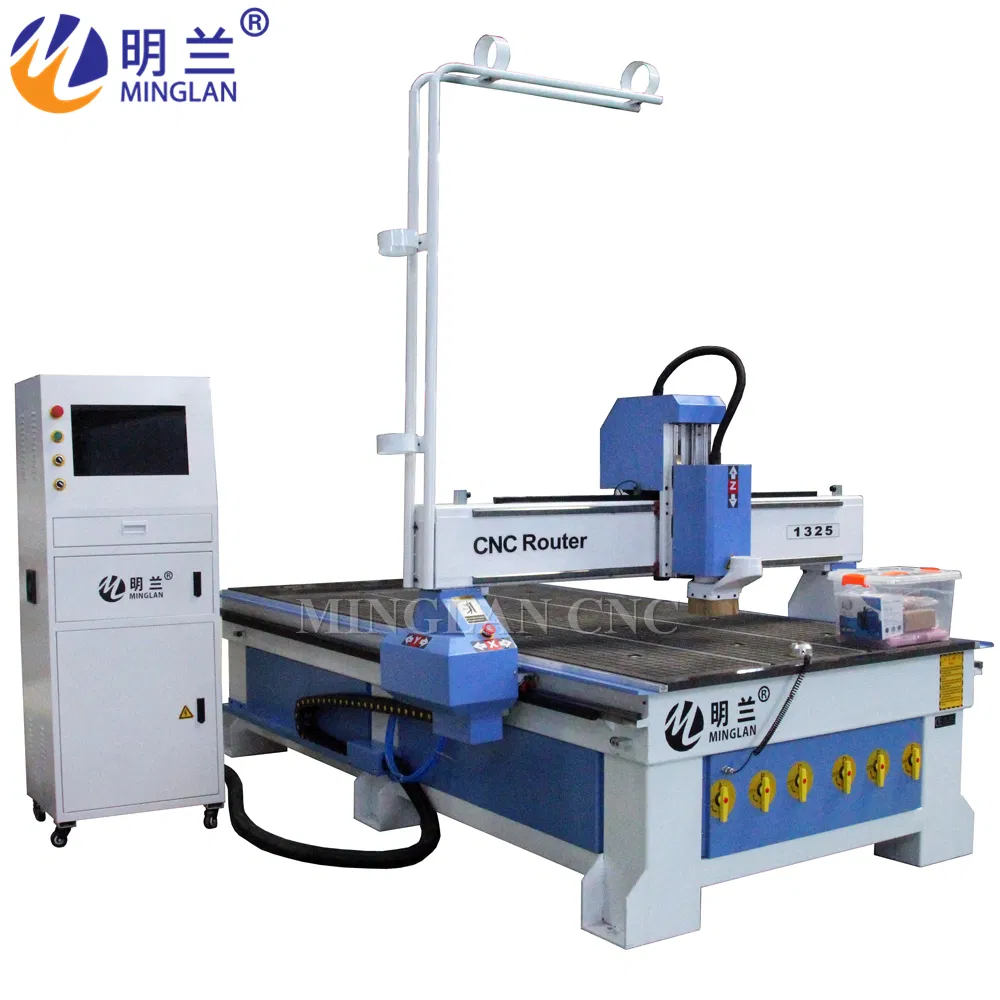

1212/1218/6090 1325 3D Wood/ Woodworking/ Plywood Carving Engraving Automatic Tool Change Atc CNC Router Machine for Furniture Advertising
Advantage Features of 1325 cnc router:
1).Welded structure by thick profiled steel stabilized under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.

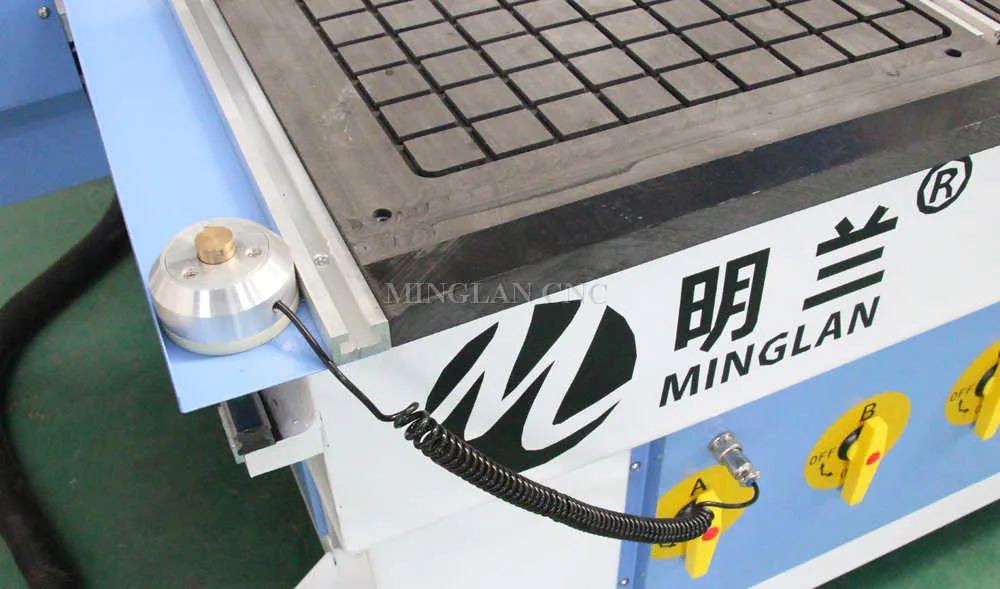

2).Machine is mainly assembled with precise parts. Japanese YAKSAWA servo motor or China stepper motor make machine stable running with low noise, high speed and high accuracy. Italy HSD spindle or China made, make machine with high precision and long service time and stable movement. Tool sensor enables the machine compensate the tolerance of the tool length.
3)Vacuum working table with double cavities and Bakelite material with high absorption power.
4)Imported control system, separated keyboard control, color LCD display and DSP add machine more versatility.
5).Strong dust collector ensures site cleanliness during the machine operation.
6)Auto lubricating system, one touch can finish periodic maintenance easily.
Application of 1325 cnc router:
1.Mainly used for woodworking industry, door, cabinets, kitchen utensils, chairs, decoration business, mould industry, wood panel, wave board processing, MDF sheet carving, screen, calligraphy tablet design , relief, wood furniture, computer tables, panel furniture, office furniture, instrument industry, and so on.
2.Also can for advertising signs, acrylic brands, 3D characters, garden or wall decoration, logo, forming system module, billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold,

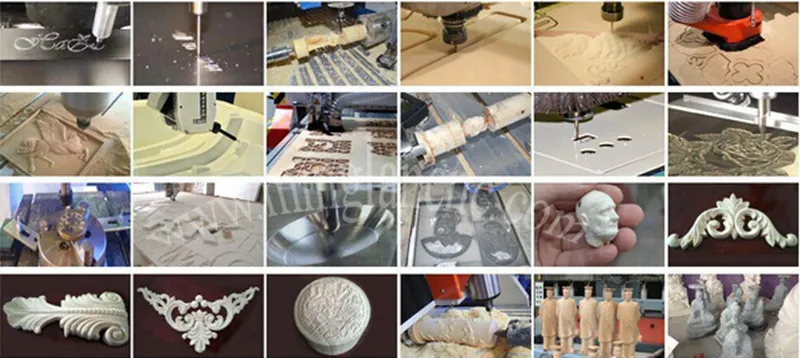

Samples photos of 1325 cnc router,

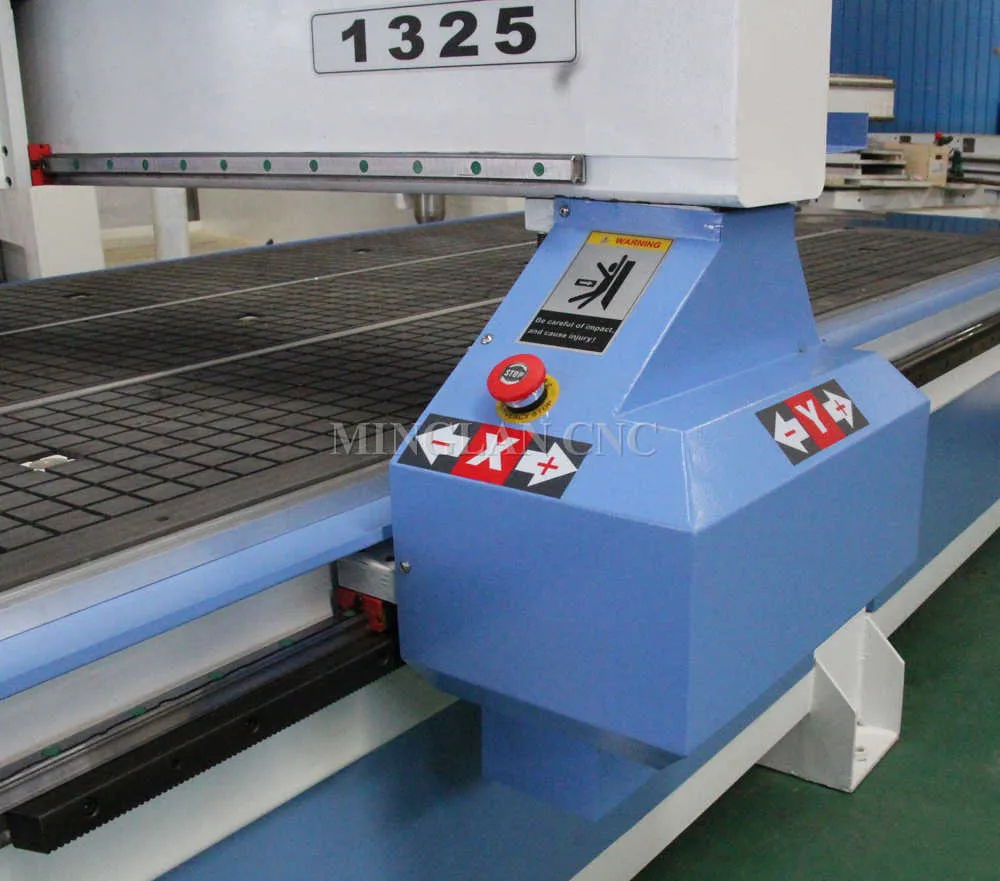

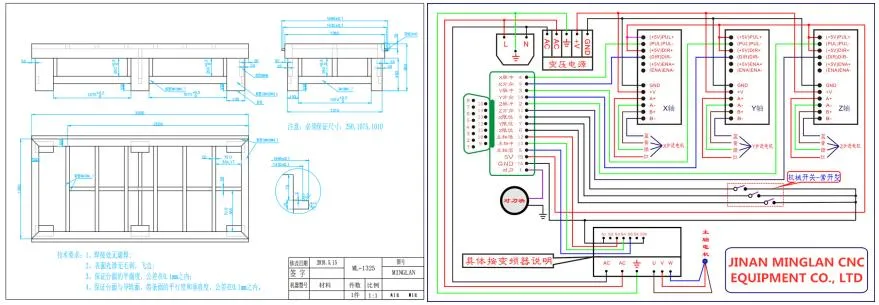

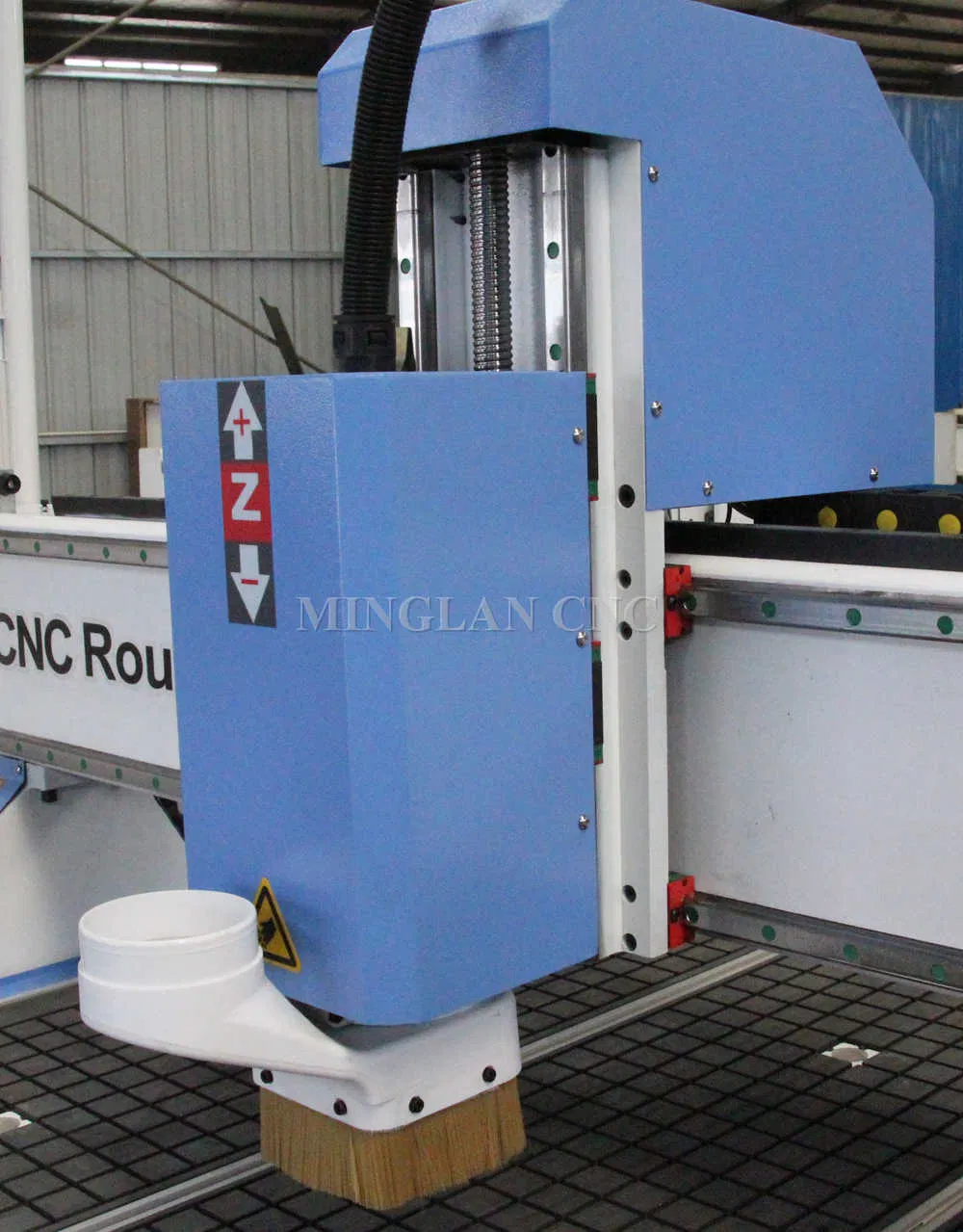

Machine details of minglan 1325 cnc router,
Specification:
Advantage Features of 1325 cnc router:1).Welded structure by thick profiled steel stabilized under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.
2).Machine is mainly assembled with precise parts. Japanese YAKSAWA servo motor or China stepper motor make machine stable running with low noise, high speed and high accuracy. Italy HSD spindle or China made, make machine with high precision and long service time and stable movement. Tool sensor enables the machine compensate the tolerance of the tool length.
3)Vacuum working table with double cavities and Bakelite material with high absorption power.
4)Imported control system, separated keyboard control, color LCD display and DSP add machine more versatility.
5).Strong dust collector ensures site cleanliness during the machine operation.
6)Auto lubricating system, one touch can finish periodic maintenance easily.
Application of 1325 cnc router:
1.Mainly used for woodworking industry, door, cabinets, kitchen utensils, chairs, decoration business, mould industry, wood panel, wave board processing, MDF sheet carving, screen, calligraphy tablet design , relief, wood furniture, computer tables, panel furniture, office furniture, instrument industry, and so on.
2.Also can for advertising signs, acrylic brands, 3D characters, garden or wall decoration, logo, forming system module, billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold,
Samples photos of 1325 cnc router,
Machine details of minglan 1325 cnc router,
Specification:
| 6090 1325 CNC Router | |||
| PRODUCT DETAIL | |||
| Model | ML-6090 | ML-1325 | Lead Time |
| Working area | 600*900*150mm | 1300*2500*200mm | 5-7 working days |
| Machine body | Cast iron bed | ||
| Table style | Aluminum T-slot table with PVC | Warranty | |
| Guide rail | Hiwin linear square guide rail | 12 months for machine | |
| Driving method | Taiwan original TBI ball screw | ||
| Spindle | 1.5KW water | 3.2KW | Delivery Method |

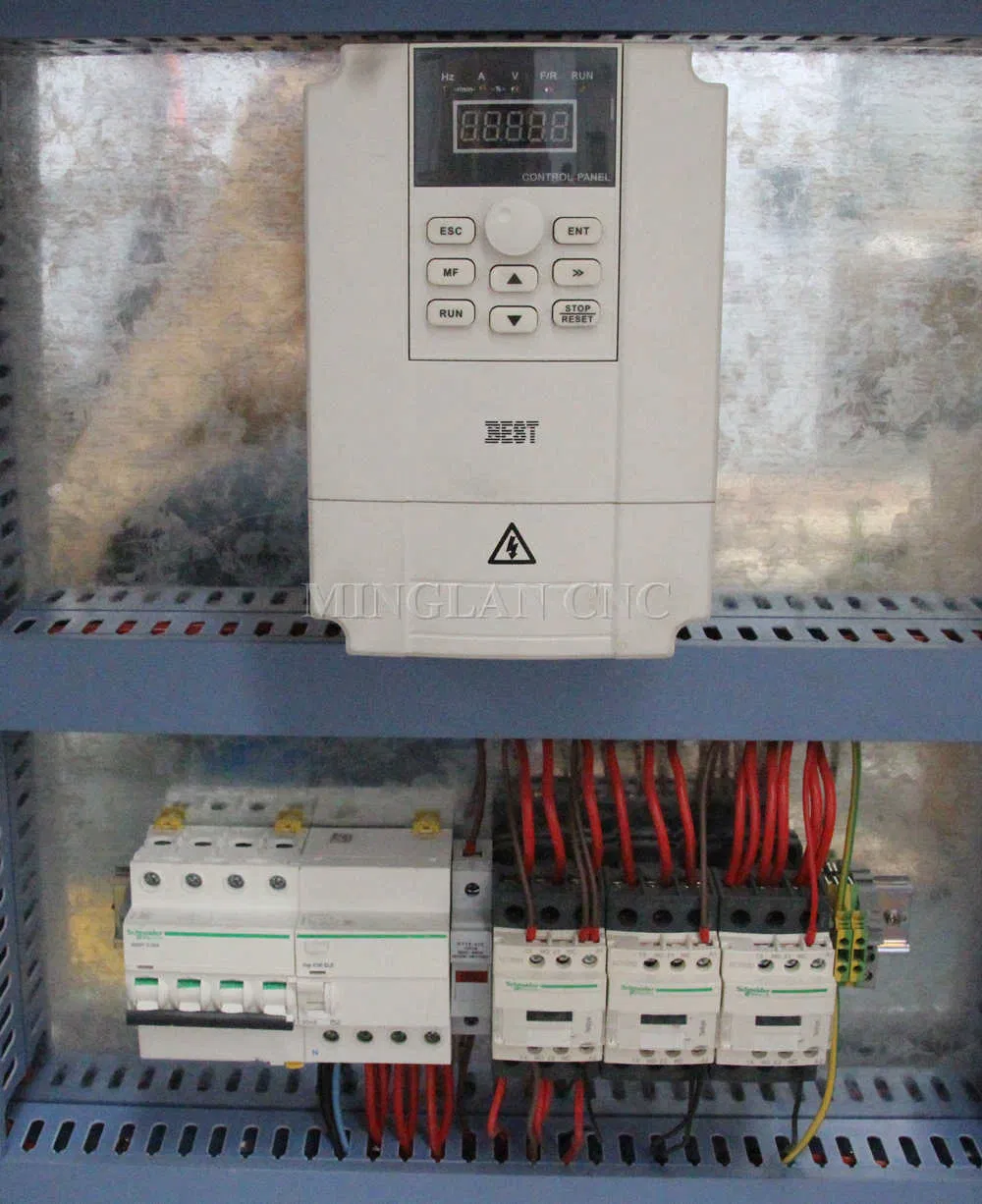

| Inverter | Fuling/BEST inverter | By ocean shipping | |
| Collect size | ER11 | ER20 | |
| Spindle speed | 0-24000rpm | ||
| Motor and driver | 450A stepper motors and drivers | ||
| Control system | Ncstudio system | ||
| Working accuracy | <0.03/300mm | ||
| Working speed | <7000mm/min | ||
| Traveling speed | 0-7000mm/min | ||
| Instruction format | G code *.u00 *.mmg *.plt | ||
| Working voltage | AC220V, Single phase, 50-60Hz | ||
| Standard software | Artcam/ JDPaint | ||
| Compatible software | Type3/Castmate/Coreldraw/AutoCAD or other CAM/CAD software | ||
| Environment temperature | 0-45ºC | ||
| Environment humidity | 30%-75% No coagulate water | ||
| Oiling system | Manual | ||
| Tool sensor | Yes | ||
| Toolbox | English manual,Tool box,Tool sensor,etc. | ||
Good feedback of Minglan 1325 cnc router,
