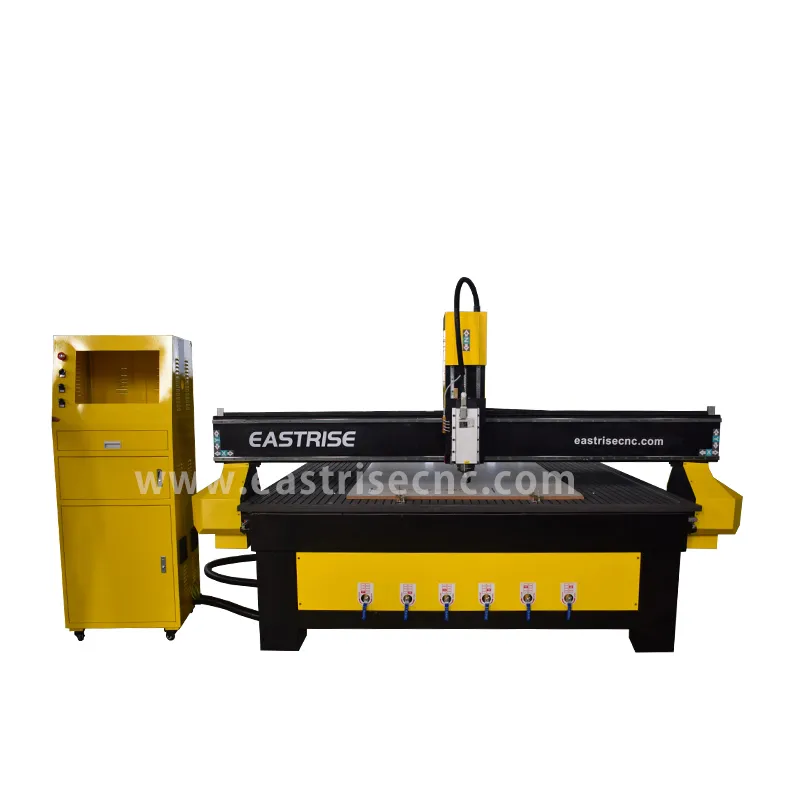

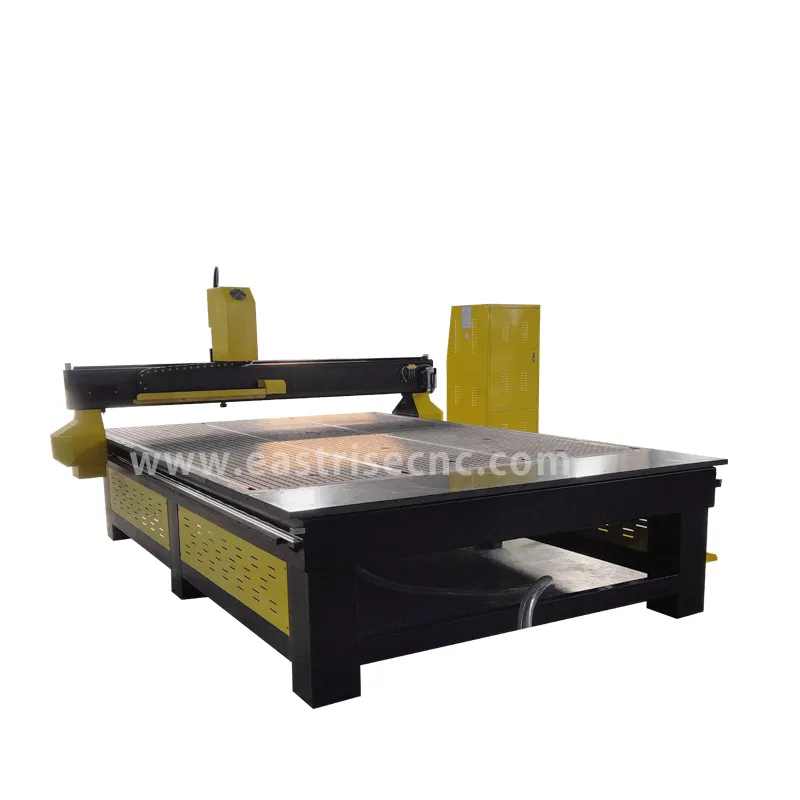

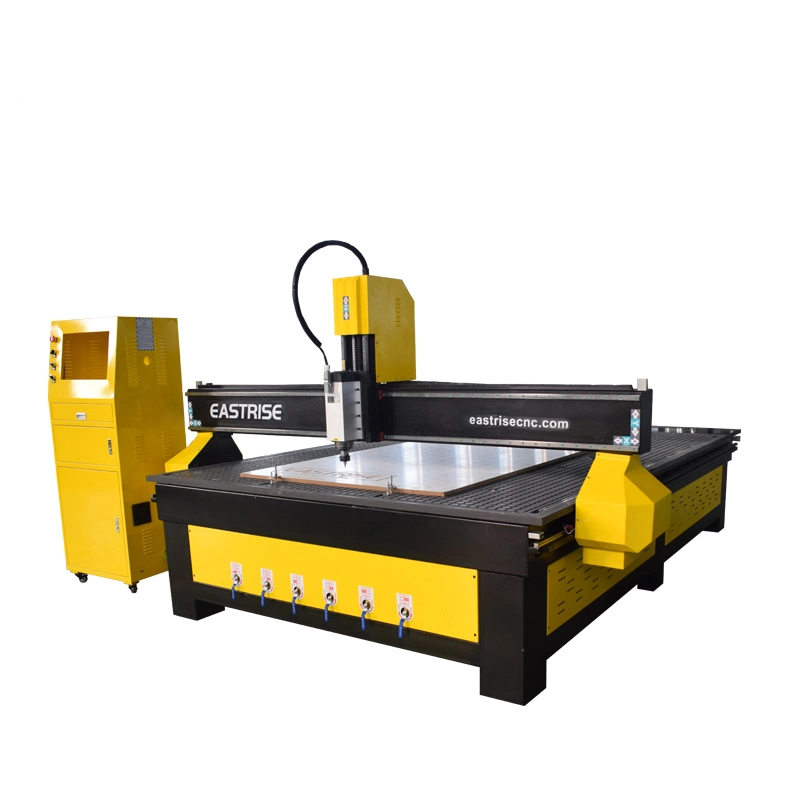

    Factory Supply CNC Router 1218 1235 1520 2030 Woodworking CNC Machines
    • Factory Supply CNC Router 1218 1235 1520 2030 Woodworking CNC MachinesFactory Supply CNC Router 1218 1235 1520 2030 Woodworking CNC Machines
    • Factory Supply CNC Router 1218 1235 1520 2030 Woodworking CNC MachinesFactory Supply CNC Router 1218 1235 1520 2030 Woodworking CNC Machines
    • Factory Supply CNC Router 1218 1235 1520 2030 Woodworking CNC MachinesFactory Supply CNC Router 1218 1235 1520 2030 Woodworking CNC Machines
    • Factory Supply CNC Router 1218 1235 1520 2030 Woodworking CNC MachinesFactory Supply CNC Router 1218 1235 1520 2030 Woodworking CNC Machines

    Factory Supply CNC Router 1218 1235 1520 2030 Woodworking CNC Machines

    Factory supply cnc router 1218 1235 1520 2030 woodworking cnc machines Application Applicable industry: wood furniture ,wooden crafts processing industry, suitable for large panelcutting,large relief carving products and large carpentry engraving.Applicable material: solid wood panel, artificial boa......

    Send Inquiry

    Product Description

    Factory supply cnc router 1218 1235 1520 2030 woodworking cnc machines
    Factory Supply CNC Router 1218 1235 1520 2030 Woodworking CNC Machines
    Application

    Applicable industry: wood furniture ,wooden crafts processing industry, suitable for large panel
    cutting,large relief carving products and large carpentry engraving.
    Applicable material: solid wood panel, artificial board,Acrylics , PVC,MDF,Plexiglass, plastic .
    etc non-metal panels.
    Factory Supply CNC Router 1218 1235 1520 2030 Woodworking CNC Machines
    Advantage

    1.The three axis adopts the Taiwan straight square rail Big power ,anti-dust  water cooling spindle., Small noise,
    strong and powerful,maintenance free, can achieve  continuous operation.
    2.Intelligent processing cross-border protection, Preventing body collision due to processing format reach out
    working size
    3.Intelligent high-speed module high-speed operation, can achieve power recovery, breakpoint continued carving,
    the next day processing, convenient and easy.
    4.Type3/Artcam/Castmate/PRO-e/Ug/CAD/Illustrator softwares compatible:Advanced professional control system,
    compatible with a variety of software Type3/Artcam/Castmate/PRO e/Ug/CAD/Illustrator

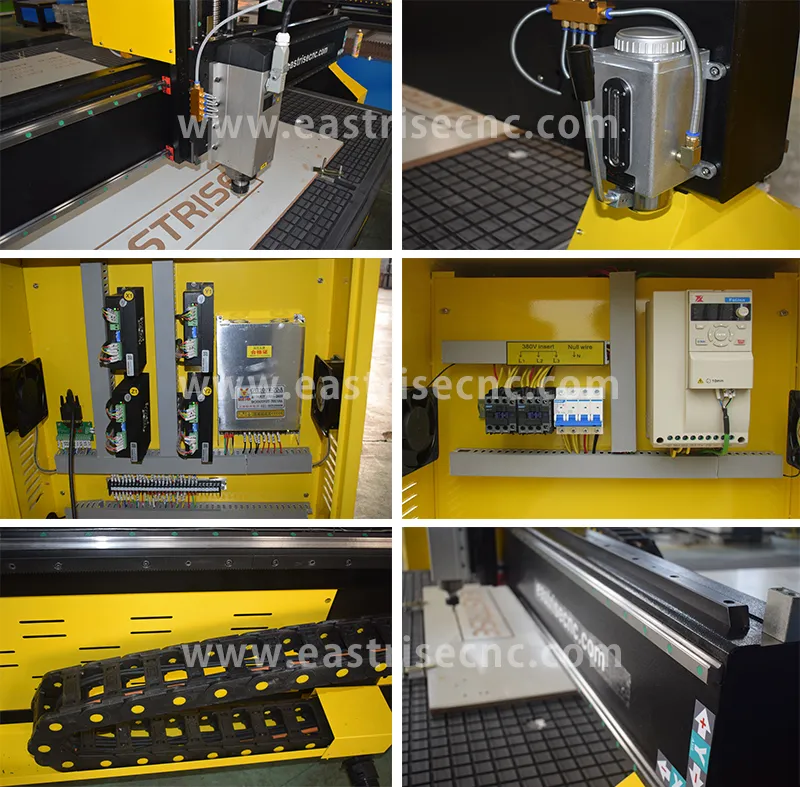

    Features

    1.Working area:2000*3000*200mm
    2.3.5KW/4.5/6KW HQD air cooling spindle
    3.Nc-studio/DSP/Mach3 control system
    5.Mist cooling sprayer for working on metal
    6.Taiwan linear guide rail
    7.Taiwan TBI high precision ball screw
    8.T-slot vacuum table
    9.Servo/stepper motor and driver
    10.Fuling/Best/Delta inverter
    PS :We can customize different size and different configurations for you.
    Factory Supply CNC Router 1218 1235 1520 2030 Woodworking CNC Machines
    Technical parameters

    Model

    ERM2030

    Working size

    2000*3000mm

    Max feeding height

    200mm(or customized)

    Max traveling speed

    20m/min

    Transmission

    High precision Ball screw

    Software environment

    WindowsXP/7/8/10

    Power without spindle

    2KW

    Voltage

    220V/1P,380V/3P

    Recognizing language

    G code(nc),mmg,plt,eng,dxf

    Spindle speed

    6000-24000rpm/min

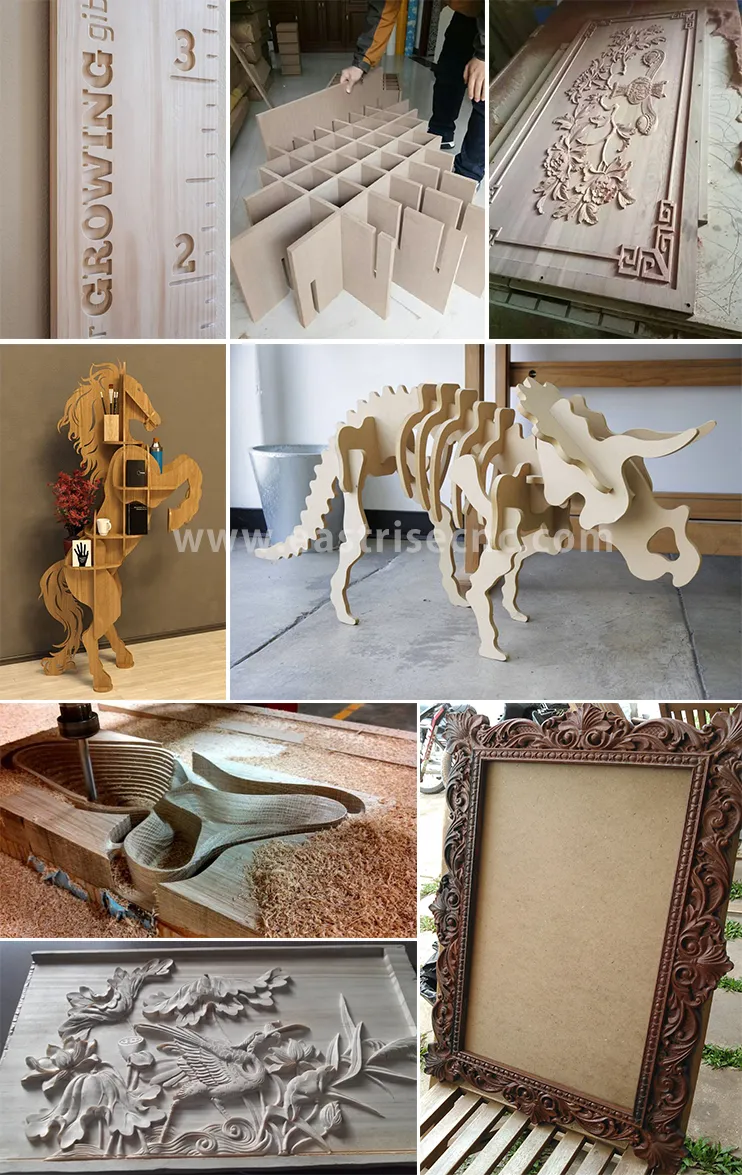

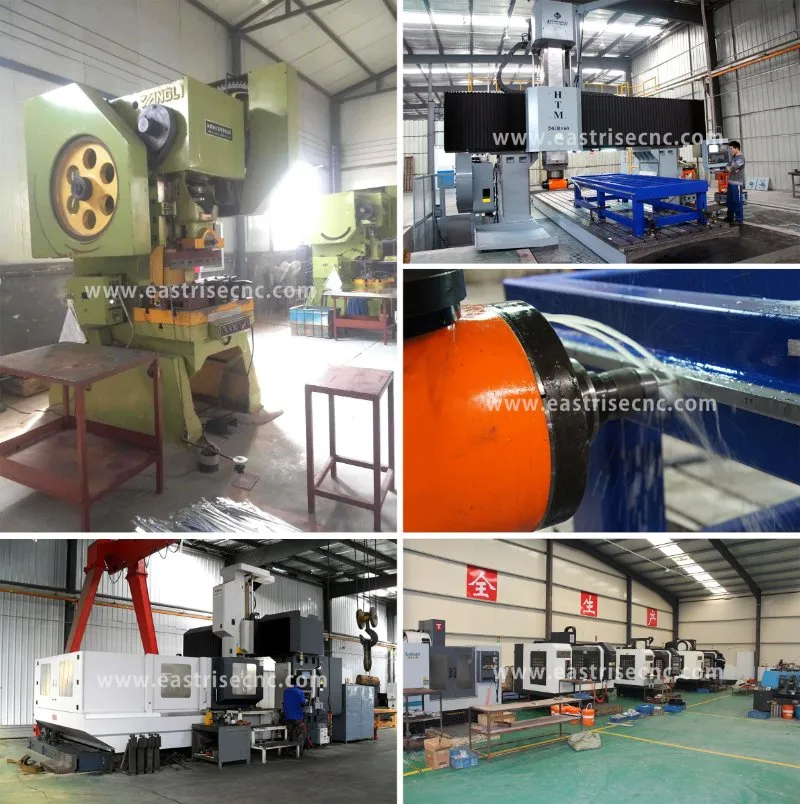

    Machining
    Factory Supply CNC Router 1218 1235 1520 2030 Woodworking CNC Machines

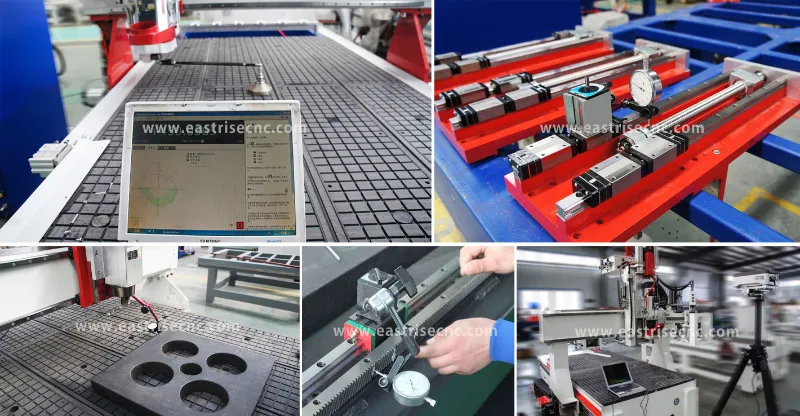

    Testing
    Factory Supply CNC Router 1218 1235 1520 2030 Woodworking CNC Machines

    Certificates
    Factory Supply CNC Router 1218 1235 1520 2030 Woodworking CNC Machines

    Exhibition
    Factory Supply CNC Router 1218 1235 1520 2030 Woodworking CNC Machines
    Technical Department
    Factory Supply CNC Router 1218 1235 1520 2030 Woodworking CNC Machines
    FAQ

    1.How long is your machine's warranty?

    3 years

    2.How about your after-sales service ?

    Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.

    3.How can we install the machine?

    English version manual and operation video CD disk.

    4.How about the payment terms?

    30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal

    5.How about package of shipment?

    Inner packing:water-proof film
    Outter packing:plywood case
    Bottom:strong steel tube
