China Furniture Machinery Woodworking CNC Router 1224 / 1530 / 2030 / 2040

Product Description

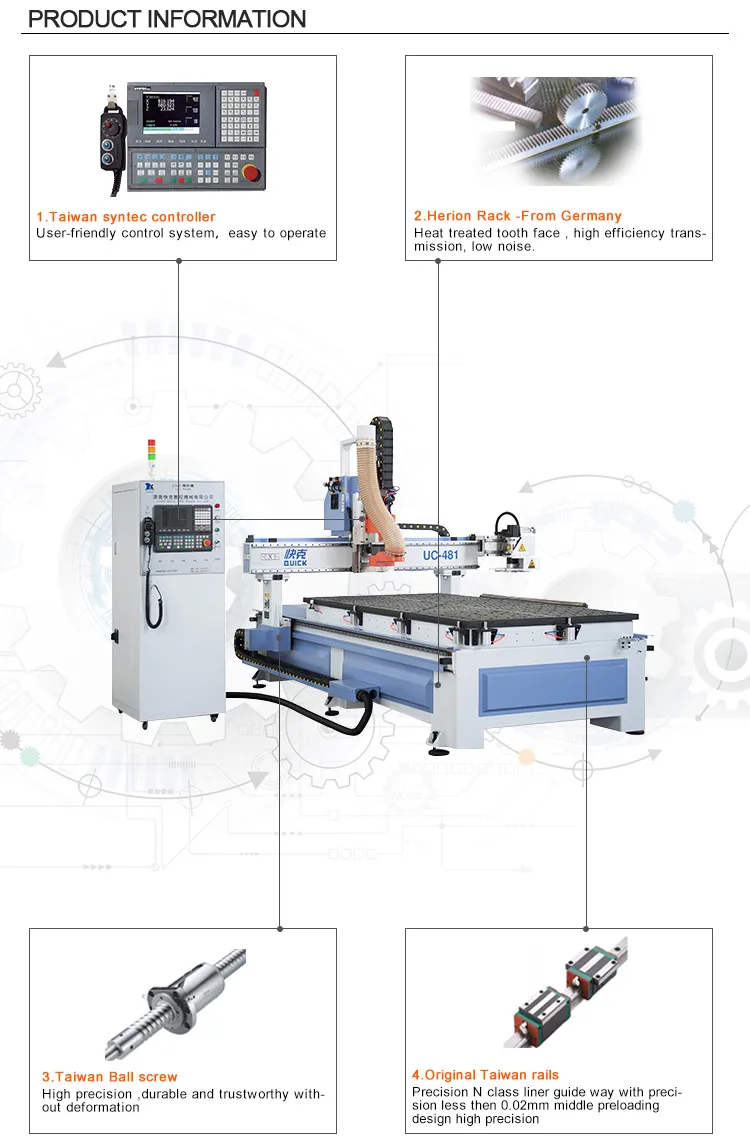

QUICK CNC NEW MODEL,THE SECOND GENERATION OF UC-481.WITH MORE COMPACT MACHINE BODY, WITHOUT REDUCING THE STRENGTH AT THE SAME TIME MORE FLEXIBLE AND CONVENIENT FOR
PLACE MENT,THE NEWLY 10PCS CAROUSEL TOOL MAGAZINE IS ALSO AN IMPROVEMENT.

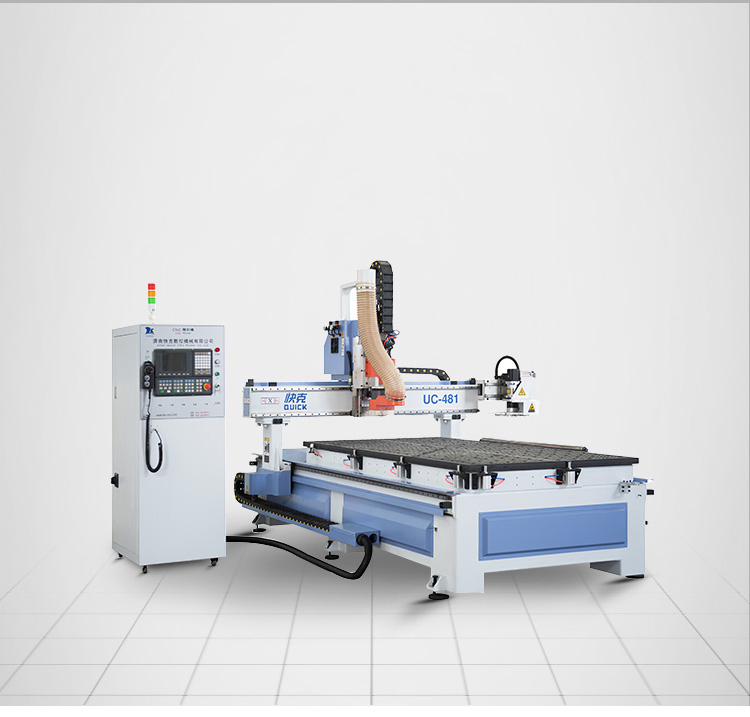

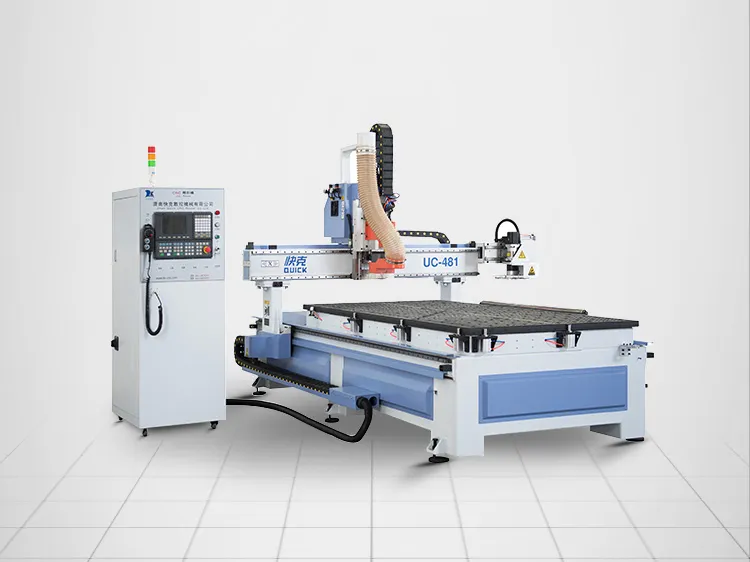

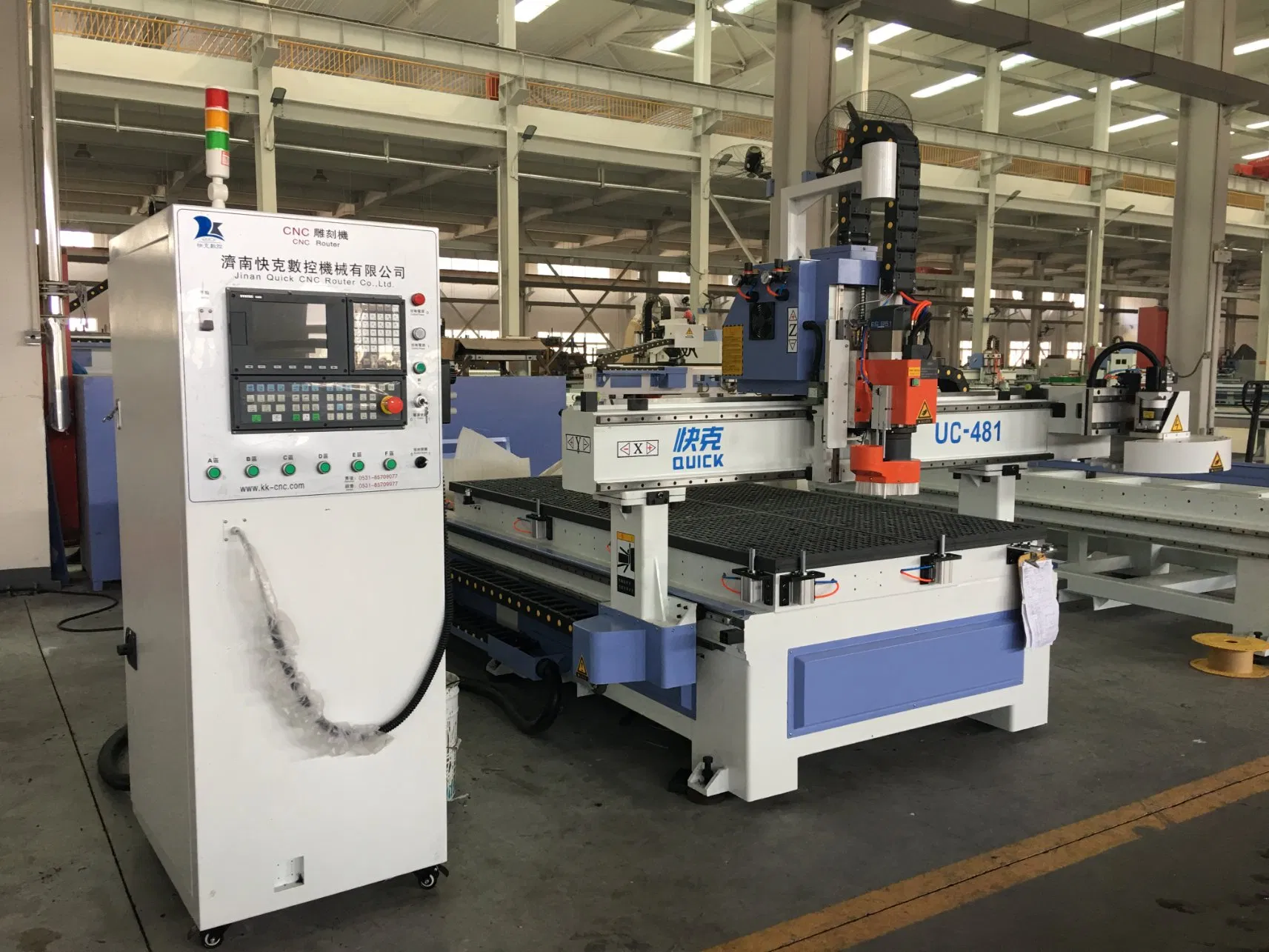

UC-481
X-Y-Z axis working area	1,220 x 2,440 x 200mm
Machine size	2,200 x 3,400x2200mm
Repositioning resolution	0.02mm
X-Y movement	rack and pinion, gear drive
Z movement	ball screw drive/Taiwan
Guide	Linear ¢25 square/Taiwan
Max. speed	50,000mm/min
Max. cutting speed	30,000mm/min
Spindle power	9.6kw Italy HSD ISO30
Spindle speed	24,000rpm
Inverter power	11kw Delta

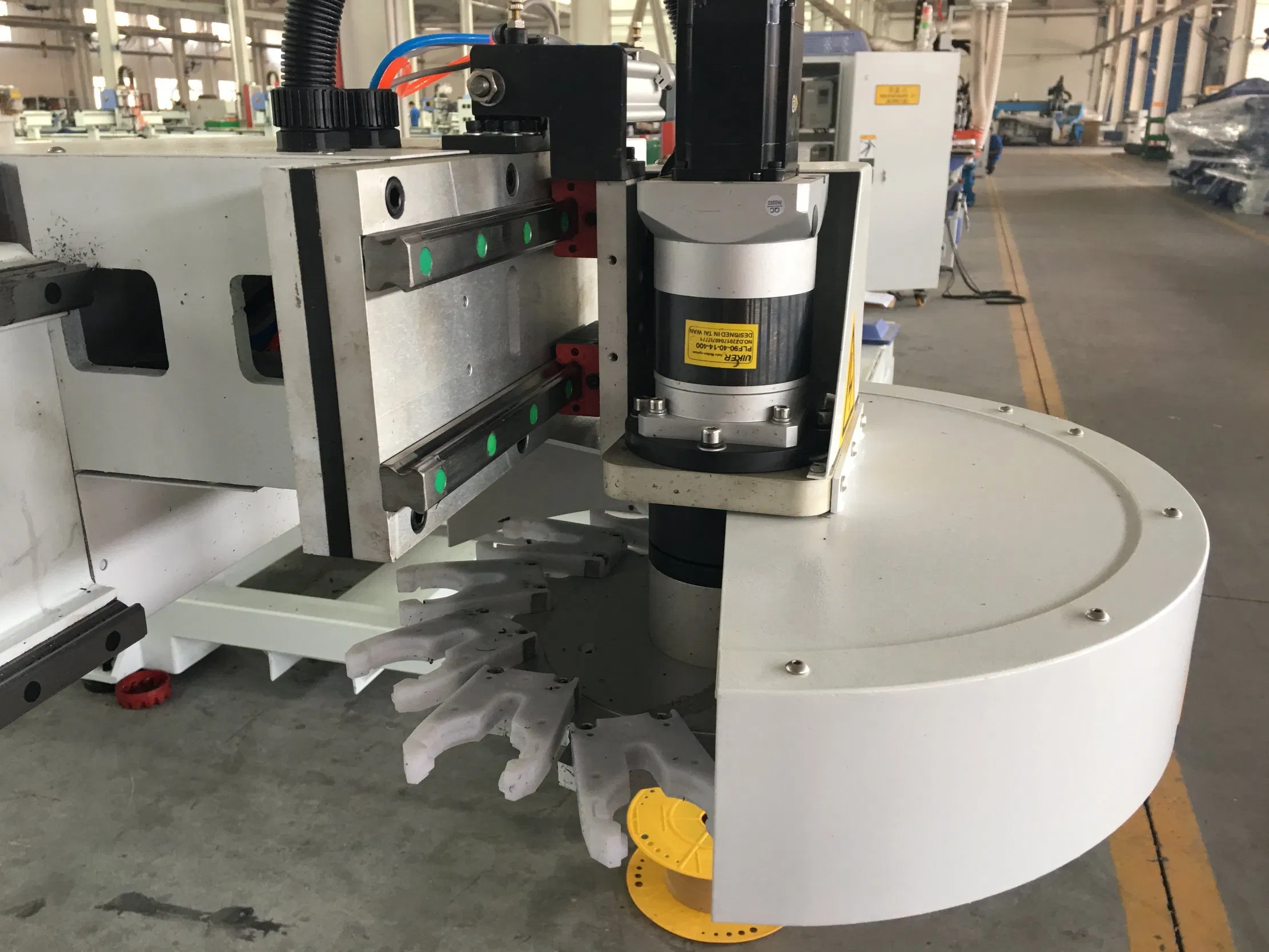

Tool Magazine	servo motor carousel type
Drive motors	Servo/Japan YASKAWA
Working voltage	AC380V/50-60Hz, 3-phase
Command code	G code
Computer interface	USB 2.0
Table	vacuum table with 4kw BECKER pump
Positioning air cylinder	x axis
	y axis
	auto tools sensor
software	Artcam ,Alphacam copy
Standard Accessories:
- Tool holder for router bits	ER-32, ISO 30
- Collet for router bits	ER-32, 3~13mm
- Cutter
- Dust collecting diameter	φ6"
