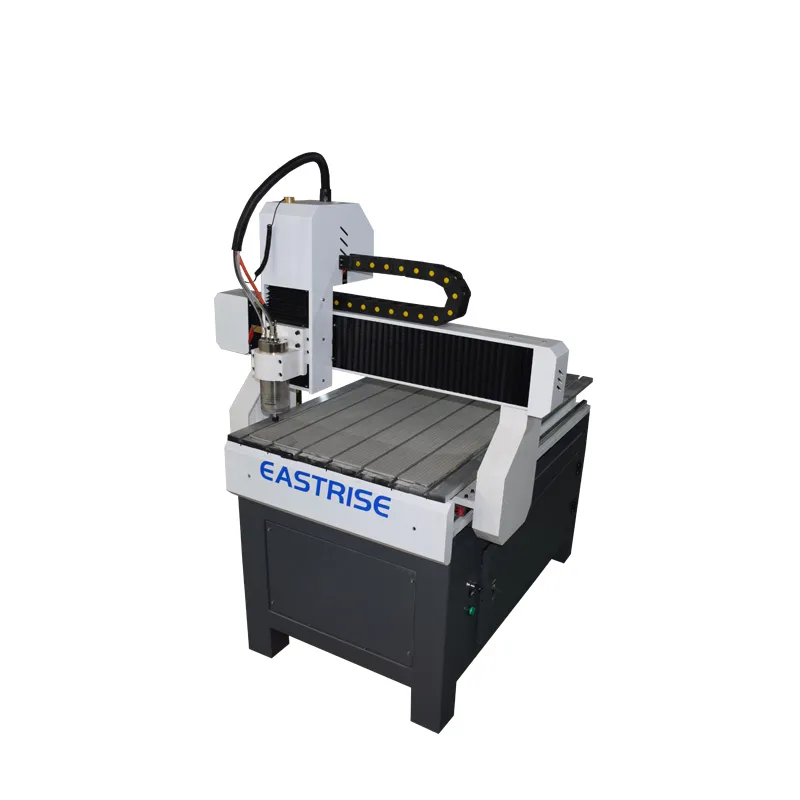

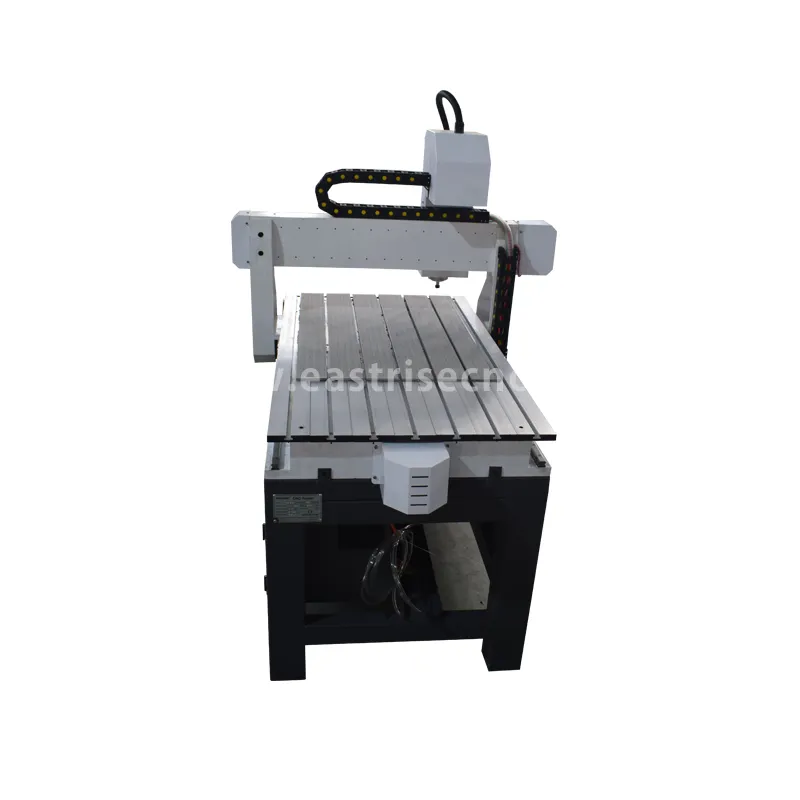

Wood Carving CNC Router 6090 1212 1218 1224 Mini Size CNC Machine 1.5kw 2.2kw Spindle CNC Engraving Machine
Wood carving cnc router 6090 1212 mini size cnc machine 1.5kw 2.2kw spindle cnc engraving machineApplication Applicable to model production, boards, stone and hard objects in the material of the three-dimensional relief and line engraving, cutting, drilling, two-dimensional sculpture.Applicable mate......
Send Inquiry
Product Description
Wood carving cnc router 6090 1212 mini size cnc machine 1.5kw 2.2kw spindle cnc engraving machine
Application
Applicable to model production, boards, stone and hard objects in the material of the three-dimensional relief and line engraving, cutting, drilling, two-dimensional sculpture.
Applicable materails
Part of soft metal, plastic, wood materials, insulation materials, PVC, acrylic and other materials.
Advantage
1.The three axis adopts the Taiwan straight square rail Big power ,anti-dust water cooling spindle., Small noise,strong and powerful,maintenance free, can achieve continuous operation.
2.Intelligent processing cross-border protection, Preventing body collision due to processing format reach out working size
3.Intelligent high-speed module high-speed operation, can achieve power recovery, breakpoint continued carving,the next day processing, convenient and easy.
4.Type3/Artcam/Castmate/PRO-e/Ug/CAD/Illustrator softwares compatible:Advanced professional control system,compatible with a variety of software Type3/Artcam/Castmate/PRO-e/Ug/CAD/Illustrator
Features
1.Working area:600*900*200mm
2.1.5KW/2.2KW HQD water cooling spindle
3.Nc-studio/DSP control system
5.Manual oil mist cooling sprayer for working on metal
6.Taiwan linear guide rail
7.Taiwan TBI high precision ball screw
8.T-slot table
9.Stepper motor and leadshine drivers
10.Fuling/Best/Delta inverter
PS :We can customize different size and different configurations for you.
Technical parameters
Model | ERG6090 |
Working size | 600*900mm |
Max feeding height | 200mm(or customized) |
Max traveling speed | 20m/min |
Transmission | High precision Ball screw |
Software environment | WindowsXP/7/8/10 |
Spindle power | 1.5KW/2.2KW(Optional) |
Power without spindle | 1KW |
Voltage | 220V/1P,380V/3P |
Recognizing language | G code(nc),mmg,plt,eng,dxf |
Spindle speed | 6000-24000rpm/min |
Control system | NC studio/DSP |
Machining
Testing
Exhibition
Technical Department
Certificates
FAQ
1.How long is your machine's warranty?
3 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.How about package of shipment?
Inner packing:water-proof film
Outter packing:plywood case
Bottom:strong steel tube
