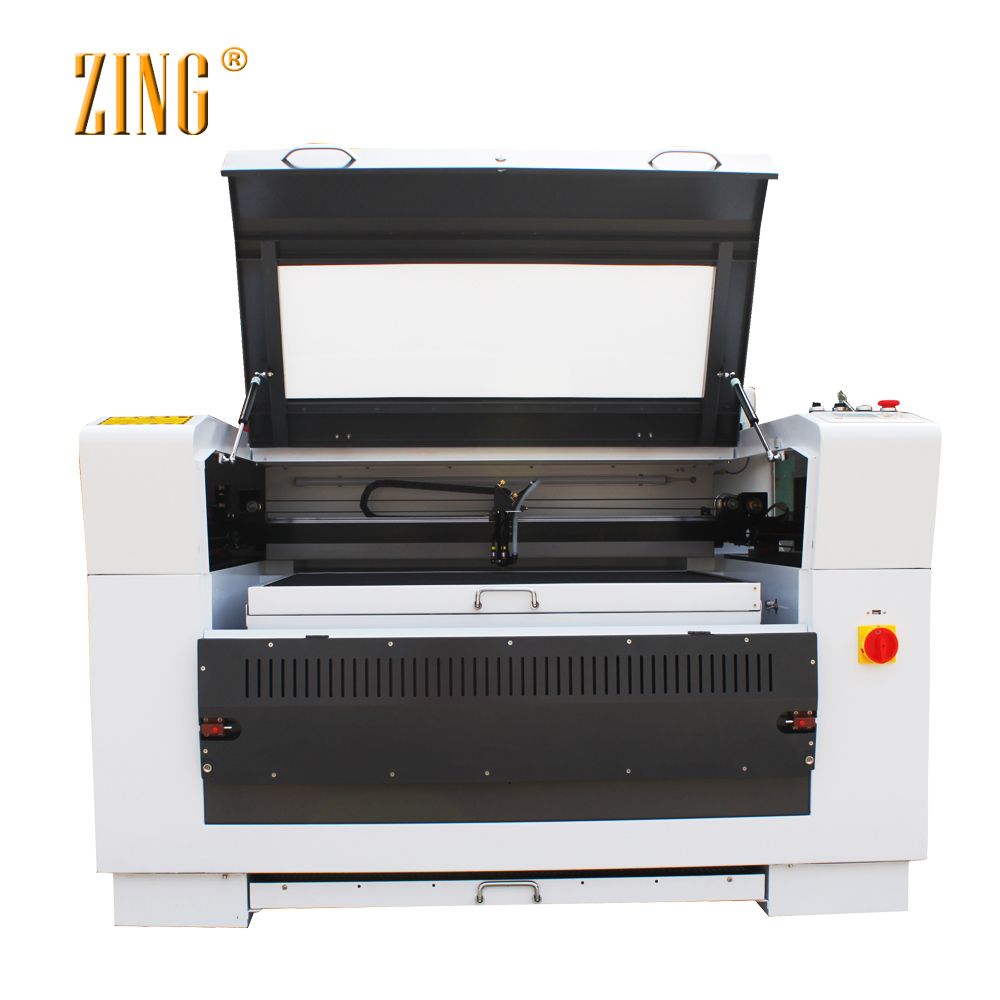

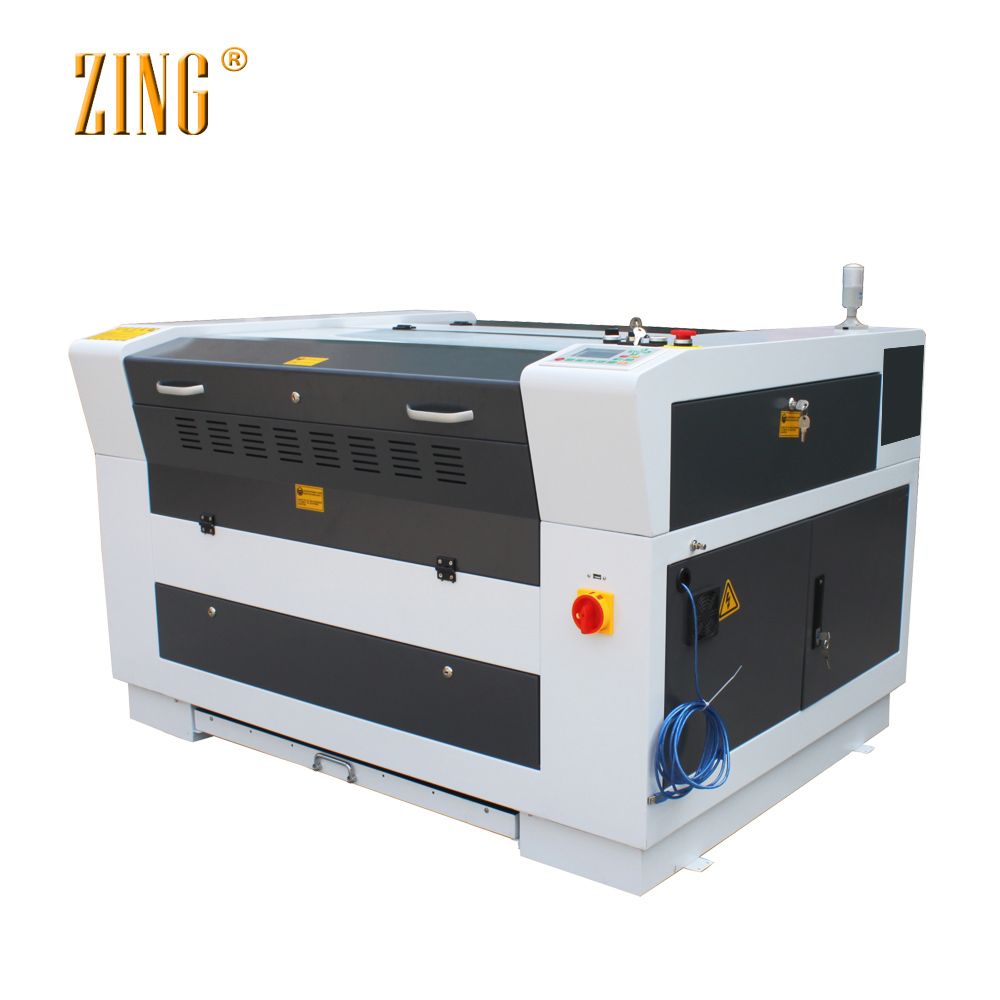

100W 150W CO2 CNC Laser Cutting Engrave Engraver Engraving MDF Plywood Leather Wood Acrylic Engraving Machine CNC Laser CO2

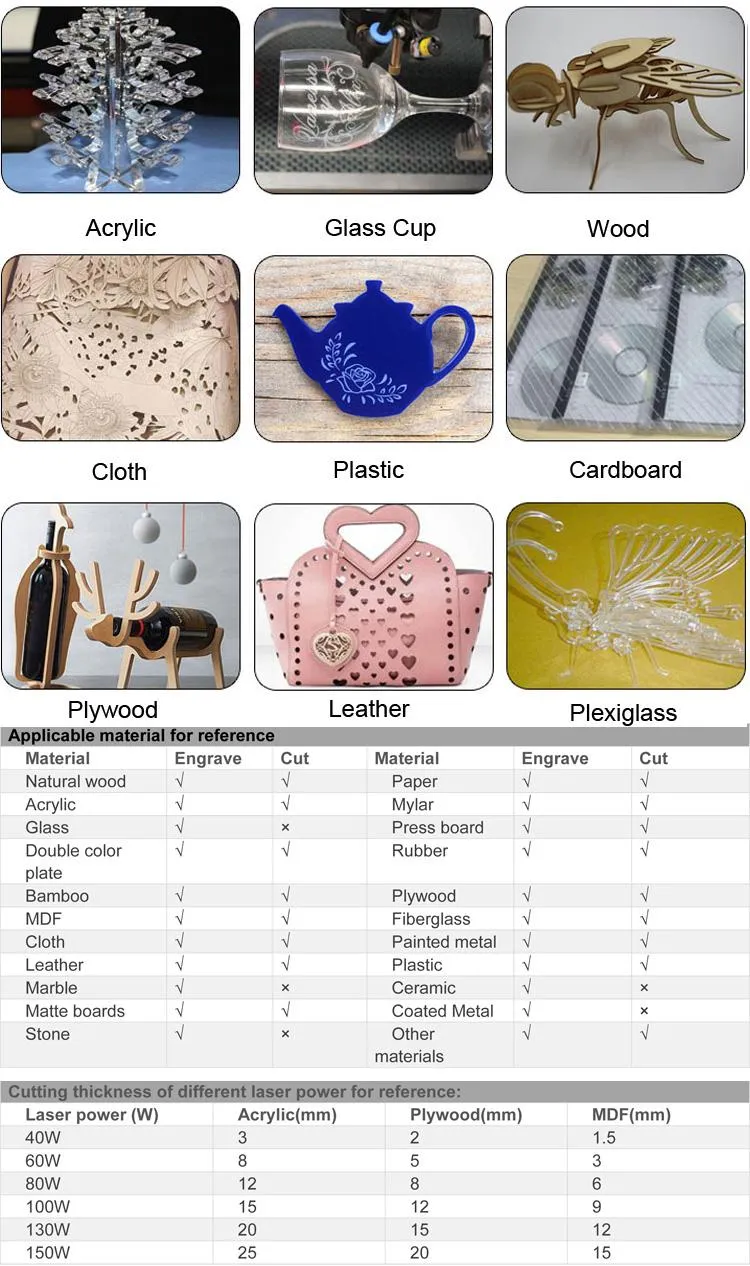

Product DescriptionCO2 Laser machine can engrave and cut on all types of non metal material,such as wood, mdf, plywood acrylic, plastic, fabric, textile,leather, paper, cardboard, glass, marble stone, PET,PVC plastic, plexiglass etc. Laser tube power can be 60W. 80W, 100W, 120W, 130W, 150W and 180W.......
Send Inquiry
Product Description
CO2 Laser machine can engrave and cut on all types of non metal material,such as wood, mdf, plywood acrylic, plastic, fabric, textile,leather, paper, cardboard, glass, marble stone, PET,
PVC plastic, plexiglass etc.
Laser tube power can be 60W. 80W, 100W, 120W, 130W, 150W and 180W.
the power is bigger, the cut speed is faster and cut material is deeper. and the machine price is higher.
For Example:
80W Laser can cut acrylic about 8mm
100W Laser can cut acrylic about 10mm
130W Laser can cut acrylic about 13-15mm
150W Laser can cut acrylic about 15-17mm
180W Laser can cut acrylic about 20-22mm
Products model | Z6040 | Z9060 | Z1390 |
Working area | 600x400mm | 900x600mm | 1300x900mm |
Laser Types | Hermetic And Detached CO2 Laser Tube | ||
Engraving speed | 0-75,000mm/min | ||
Cutting speed | 0-40,000mm/min | ||
Location precision | ≤0.01mm | ||
Resetting positioning accuracy | ≤0.01mm | ||
Power supply | AC 220V/50~60Hz (110V is optional) | ||
Gross power | <1,000W | ||
Operating temperature | 0 - 45° | ||
Operating humidity | 5 - 95% | ||
Minimum shaping character | English 1×1mm | ||
360°slope engrave | YES | ||
Motors driving system | Stepper (servo is optional) | ||
Cooling mode | Water-cooling and protection system | ||
Operating system | Windows XP, VISTA, Windows7, Windows8 | ||
Software | RDWorksV8(compatible with CorelDraw, AutoCad, Illustrator, PS) | ||
Graphic format supported | DXF,AI,PLT,DST,DSB,CDR,BMP,JPG,GIF,PNG,MNG etc | ||

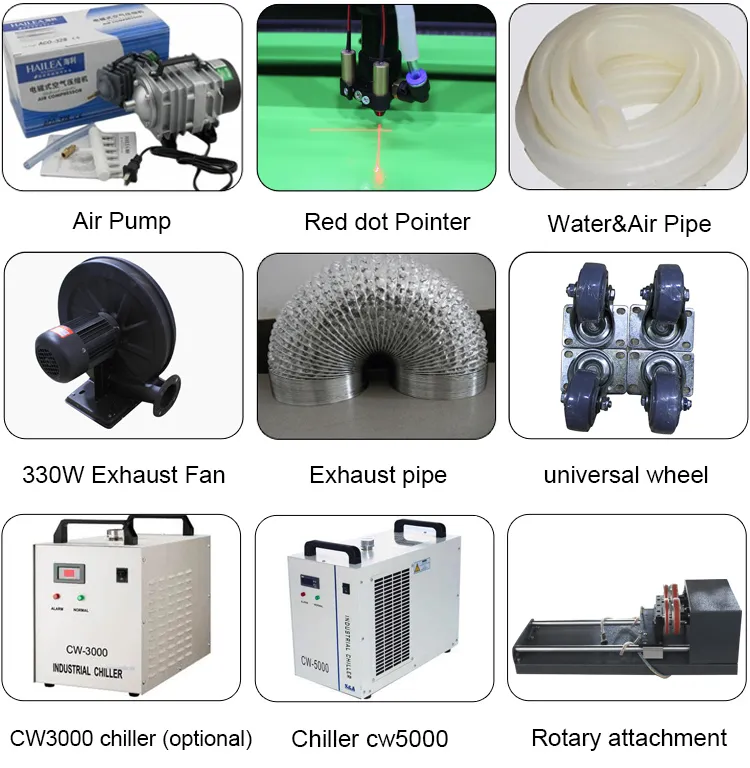

Standard accessories | Water pump, air pump, exhaust fan, water pump | ||
Optional parts | Electrical up/down table, rotary clamp, red light pointer, water chiller | ||
Model | Machine size(L*W*H) | Packing size(L*W*H) |
Z6040 | 1460*810*900mm | 1600*950*1100 |
Z9060 | 1710*1010*900mm | 1900*1250*1100 |
Z1390 | 1760*1310*900mm | 1950*1950*1100 |
| 1. Guarantee for 3 years. |
| 2. Maintenance free of charge for 3 years . |
| 3. We will provide the consumable parts at an agency price. |
| 4. 24 hours online service, free technical support. |
| 5. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me. |
| 6. We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance. |
|
