Best Sale 1410 1400*1000mm Engraver Machine CO2 Laser Engraving Cutting Machine with Competitive Price
Product Descriptionbest Sale 1410 1400*1000mm engraver machine co2 laser engraving cutting machine with competitive priceDescription:New Laser Engraving and Cutting Machine. The machine is a kind of Laser Engraving Machine System equipped with CO2 laser Tube, it is used to engrave on wood, bamboo, p......
Send Inquiry
Product Description
best Sale 1410 1400*1000mm engraver machine co2 laser engraving cutting machine with competitive price
Description:
New Laser Engraving and Cutting Machine. The machine is a kind of Laser Engraving Machine System equipped with CO2 laser Tube, it is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics and glass and etc. It is most suitable and the preferred choice of equipments in industries such as advertisement, gifts, shoes,toys and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on.

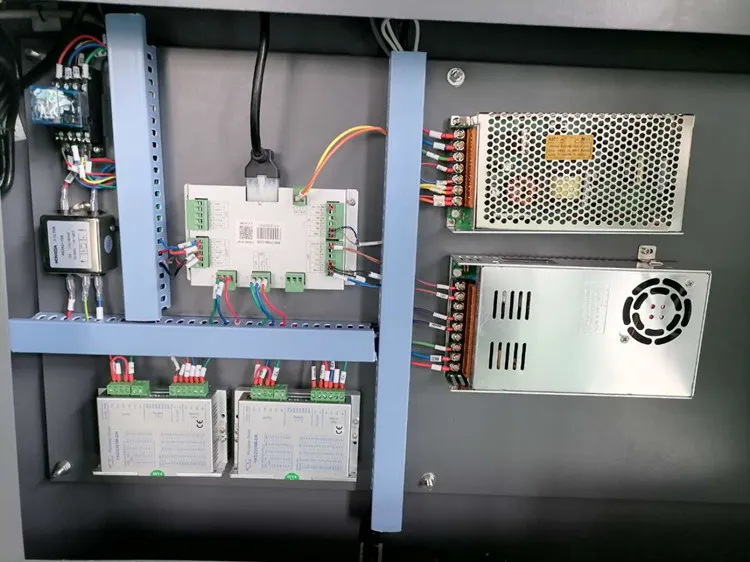

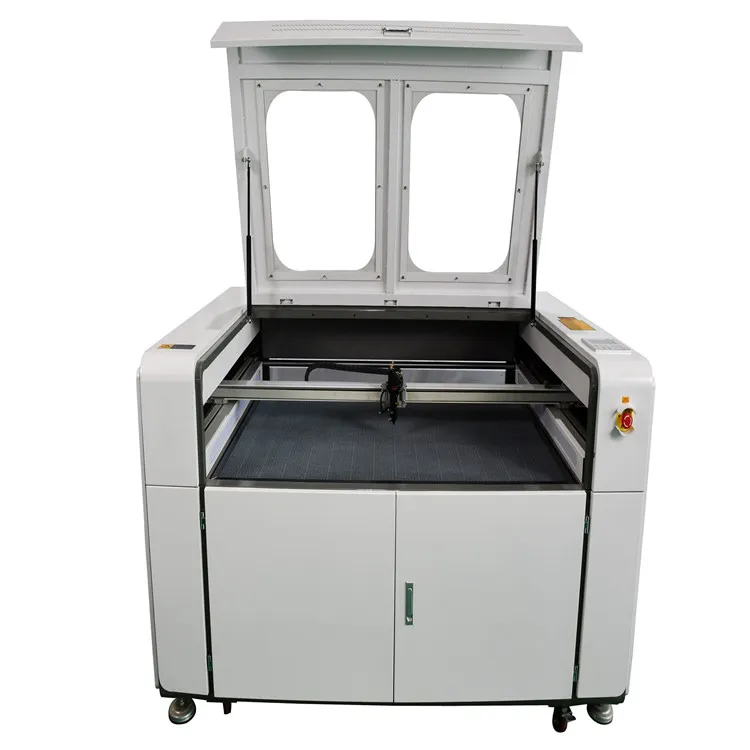

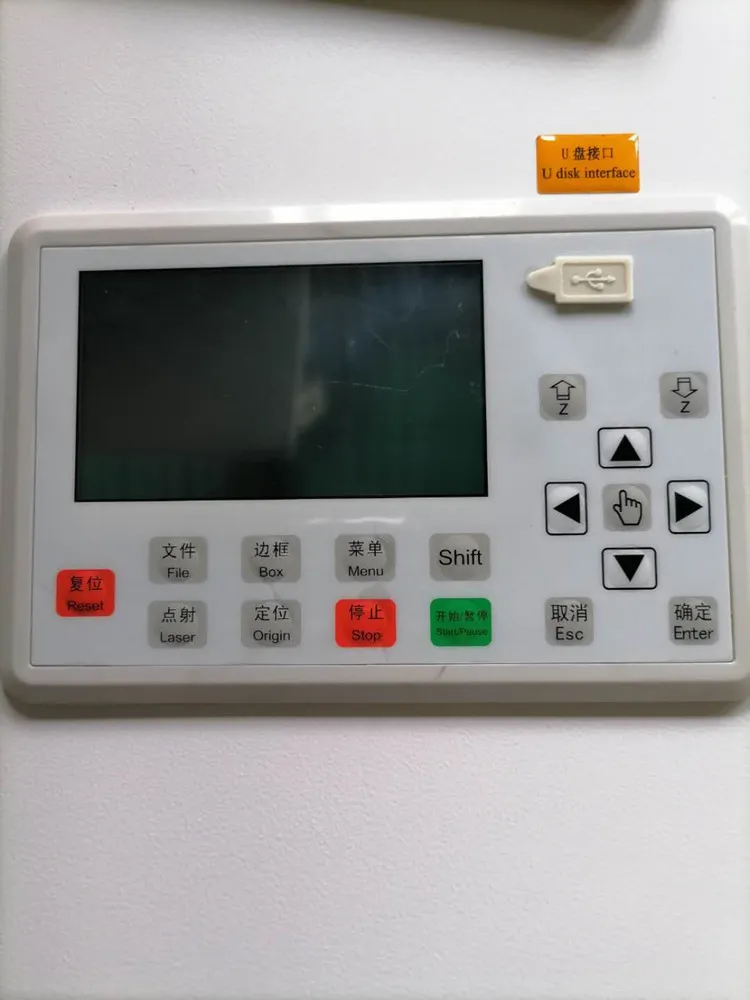

This machine is equipped with DSP Control System for RDdraw directly,also supports CoreDraw and Auto CAD and other advance software. It must connect with computer with USB cable when you change the settings of machine for the design files,you can transfer the file with USB memory stick to the machine, or can download it to the machine directly with USB cable from computer. Even on the same Job, you can do setting with different colour in the software and also can making holes.And it can the legs separate from the main body of the machine. The machine has doors which can be opened to accommodate larger materials.All laser engraving machines can not carve and cut metal.
- Premium Quality
- Safety & Reliability
- Powerful Performance
- High Compatibility
Features:
2: The belt is widened, the load is large, the mechanical efficiency is high, the long-term use is trouble-free, the service life is long.
3: the use of closed carbon dioxide laser tube, with good beam mode, strong stability, long life, fast speed and so on.

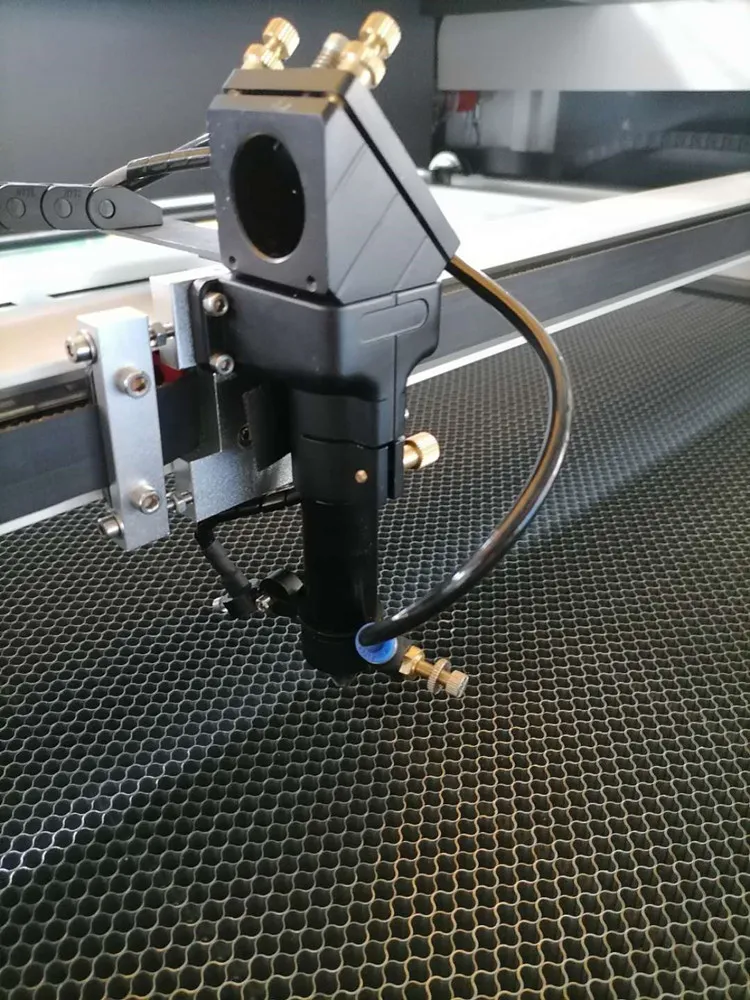

4: the use of industrial laser head to improve the engraving accuracy, so that the edge of the engraving effect is smooth and round.
5: imported lens, can withstand high power density, durable and not easy to fall off, the film is firm, strong durability.

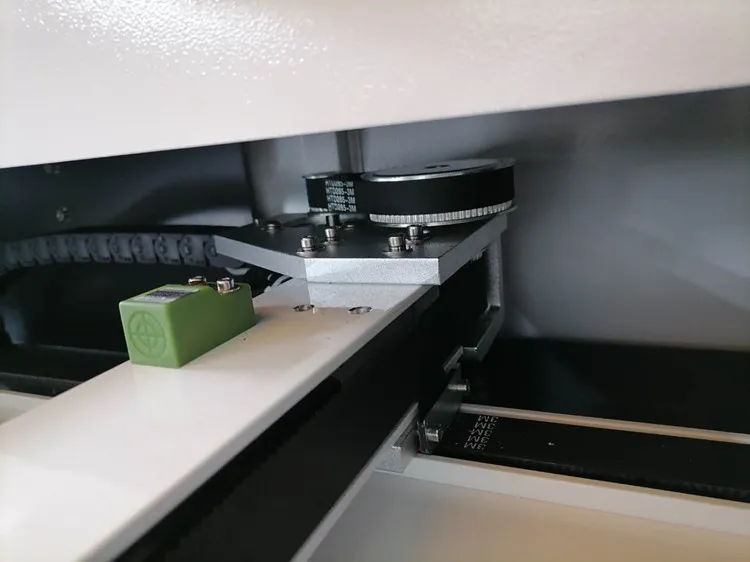

6: Adopts Raiser motor and drive, equipped with high precision PMI linear guide rail and belt drive system, so that the motor, drive, guide rail, combined with each other greatly improves the accuracy and speed of the machine.
7: Customers can choose electric lifting and moving lifting according to their needs to meet the engraving and cutting needs of different thickness materials.
parameter:
| Model | SH1410 |
| Working area | 1400*1000mm |
| Laser power | 80W/100W /130W/150W/180WHermetic CO2 glass tube |
| motor drive | Reiser motor drive |
| Software | Gancheng Software or Ruida Software |
| guide rail | Genuine PMI guide rail |

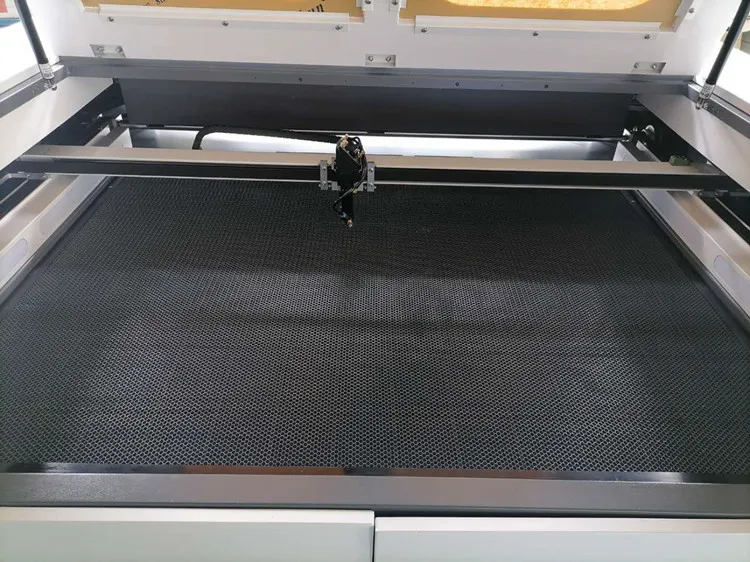

| working platform | Lifting honeycomb platform or blade platform |
| graphic format | AI,CDR,BMP ,JPG, DST,PLT,DXF, DWG ,TIFF PSD |
| support software | CoreIDraw, Photoshop ,AutoCAD |
| system support | WINDOWS2000/WINDOWS XP/VISTA/WIN7 |
| Minimum forming character | English 1*1mm |
| Minimum formed text | 3*3mm |
| Cooling way | Water cooling /protection system |
| Power supply | AC110V/220V±5% 50/60HZ |
| Machine power | <2000W |
| repeated positioning accuracy | ±0.01mm |
| resolution ratio | 0.025mm |
| Highest scanning Precision | 2500DPI |
| cutting speed | 1-300mm/s |
| engraving speed | 1-500mm/s |
| Operating temperature | 0-45(ºC) |
| operating humidity | 5%-95% |
| Machine size | 1920*1390*1040mm |
| package size | 2020*1490*1240mm |
| packed weight | 480KG |
Packing List:
1 Xlaser engraving machine
1 X specification
| Material | Engrave | Cut |
| Wood | Yes | Yes |
| Jade | Yes |
|
| Acrylic | Yes | Yes |
| Glass | Yes |
|
| Ceramic | Yes |
|
| Delrin | Yes | Yes |
| Cloth | Yes | Yes |
| Leather | Yes | Yes |
| Marble | Yes |
|
| Matte Board | Yes | Yes |
| Melamine | Yes | Yes |
| Paper | Yes | Yes |
| Mylar | Yes | Yes |
| Press Board | Yes | Yes |
| Rubber | Yes | Yes |
| Wood Veneer | Yes | Yes |
| Fiberglass | Yes | Yes |
| Tile | Yes |
|
| Plastic | Yes | Yes |
| Cork | Yes | Yes |
| Corian | Yes | Yes |
| Ceramics | Yes |
|
| Stainless Steel | * |
|
| Brass | * |
|

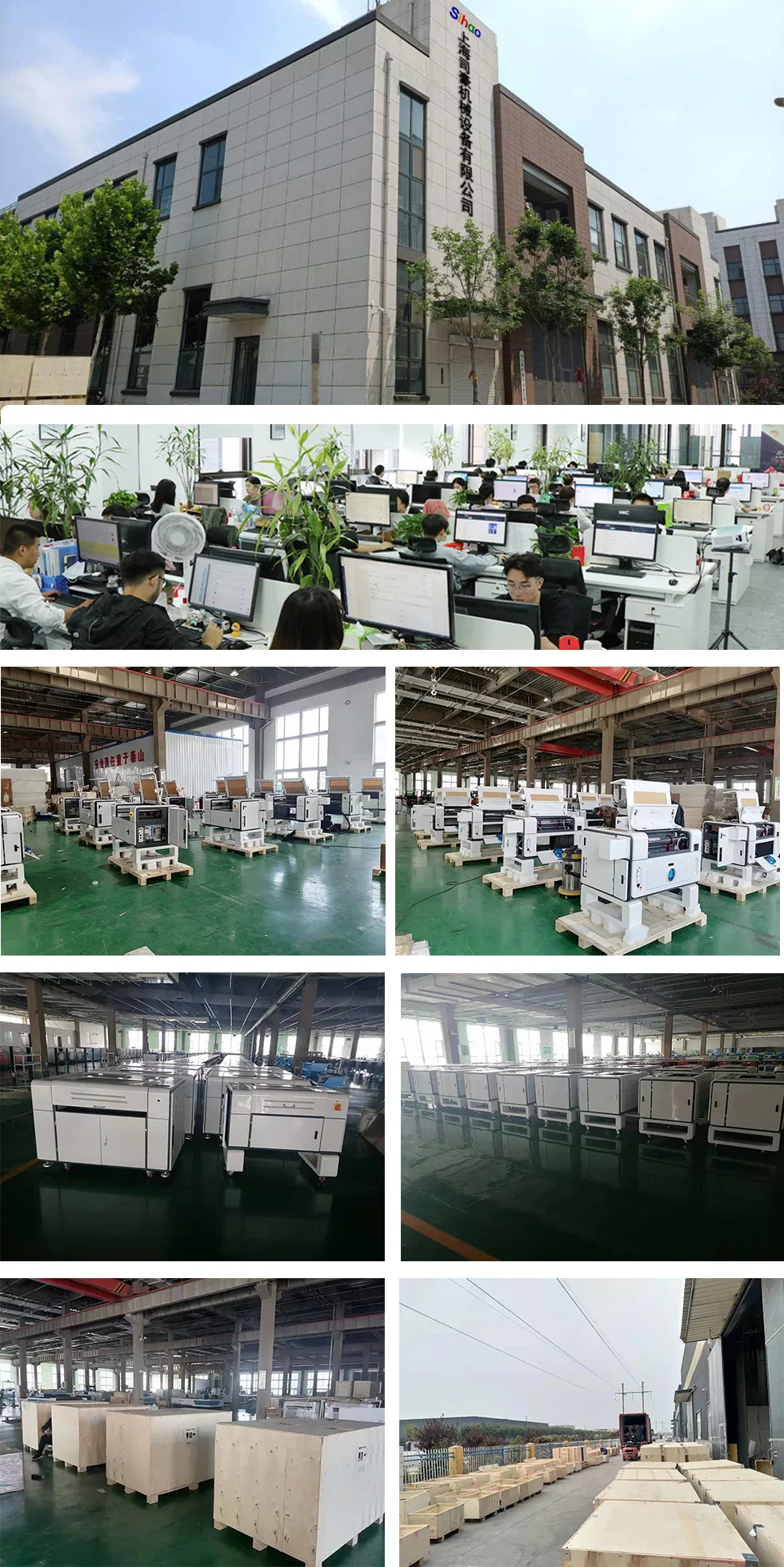

Shanghai Sihao Machinery Equipment, Co, Ltd was founded in 2007, mainly engaged in the cross-border e-commerce business for 14 years. Our headquarters is in Shanghai, China, and the controlled office is in Hong Kong, Los Angeles, Bremen, and Sydney. At present, the company operates more than 10000 kinds of products with more than 100 employees.
