Ce FDA Certificate 1390/ 1410 CO2 Laser Cutting and Engraving Machine for Acrylic/Wood/Leather
Production : Technical Parameter : Laser type Hermetic CO2 glass tubeLaser power 80 W/100W/130W/150W (optional) Driving SystemStepper motorPower supplyAC220±10% 50HZ/AC110±10% 60HZTotal power≤2,000WWorking area1300*900mmMax moving speed0-30000mm/minWorktableUp&down......
Send Inquiry
Product Description
Production :
Technical Parameter :
Details Images :
Advantage :
Applicable materials:
wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,
glass and other nonmetal materials.
Applicable industries:
advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry
About US :
Pre-sale service:
call us no matter cooperate or not. you may get unexpected harvest. We would discuss the future development of this line together according to
many years experience on selling and producing which could help to enlarge the profits and improvement for both of us.
studying the customer's requirement carefully, we would help customer to choose the most suitable machine and will offer you the relative samples
and suggestions promotely and considerately, according to customer's production scale and technical requirements.
Selling service:
promotely and paintely answer customer's questions. put our heart and soul into service for customer, including supply some suggestions on
choosing the place, how to save cost, and play the maxium value of our machine
After-sale Service:
1. our technicans will provide on-site service to customers in china. We will supply the whold day online service to foreign customer. According to
foreign customer's requirement, we will arrange technicans go abord to install or maintenance the machine
2. within the warranty period and the machine parts damage under normal using condition, we will offer new ones for free for replacement
3. We will offer software upgrade for free for life
4. 2 years for the laser machine , 6 months for the tube and mirrors .
after the expiry of warranty, we can renewal of the contract, which can enjoy the same service that during the waranty period
5. our company will research the staffs service attitude aperiodically to improve the service satisfaction
Technical Parameter :
| Laser type | Hermetic CO2 glass tube |
| Laser power | 80 W/100W/130W/150W (optional) |
| Driving System | Stepper motor |
| Power supply | AC220±10% 50HZ/AC110±10% 60HZ |
| Total power | ≤2,000W |
| Working area | 1300*900mm |
| Max moving speed | 0-30000mm/min |
| Worktable | Up&down worktable/fixed worktable (optional) |
| Location precision | ±0.1mm |
| Mini shaping character | Chinese Character, 2*2mm, English Letter, 1*1mm |
| Resolution ratio | ≤4500DPI |
| Control configuration | RUIDA Controlling System |
| Data transfer interface | USB (offline) |
| System environment | Windows 2000/ Windows XP /Win 7 |
| Cooling way | Water cooling and protection system |
| Graphic format supported | files which CorelDraw,Photoshop can identify (BMP,GIF,JPGE,PCX,TGA,TIFF |
| Cutting thickness | 0-20mm (depends on different materials) |
| Color separation | Separation of cutting up to 256 colors |
| Operating temperature | 0-45ºC |
| Operating humidity | 5-95% |
| Cuts off the water supply the protection | Yes |
| Net weight | 300kg |
| Optional Parts | High-grade cooling system/imported focus lens/double-head/cylinder rotary . |

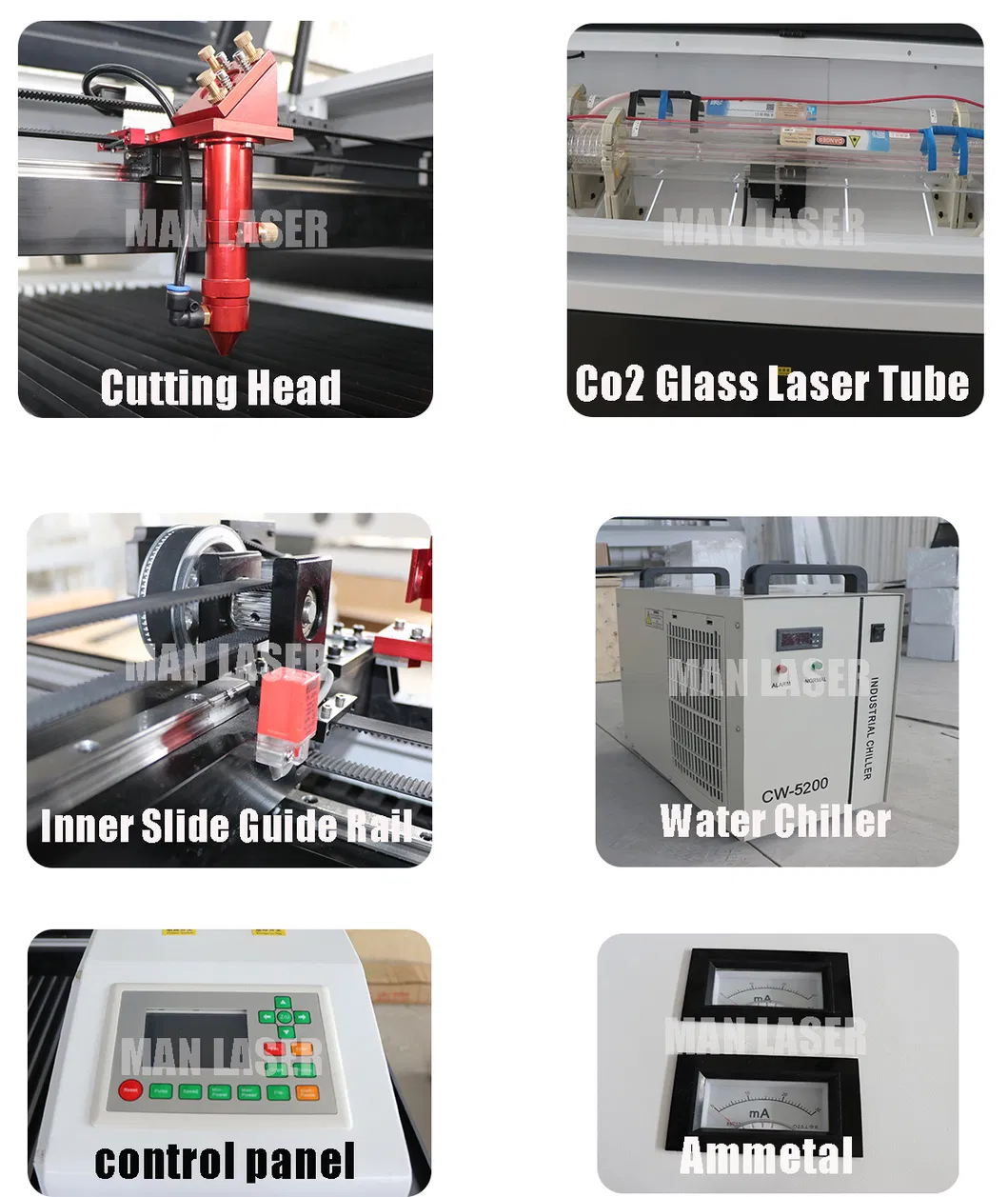

Details Images :
Advantage :
1). The "front" and "back" of our laser machine can be open, suitable for super-length material process.
2)Honeycomb and blade material worktable, which meet the needs of diversified laser procession
3). RED /LEETROcontrol panel in English, convenience of operation control.
4). Import guide rail with high engraving precision.
5). offline control system can not only work without computer, also connect to USB.
6). Imported lens and mirrors, with good ability of reflection and focusing, long working life.
7).Red light position system realizes the exact position and frame of machine is stable, ensure the precision.

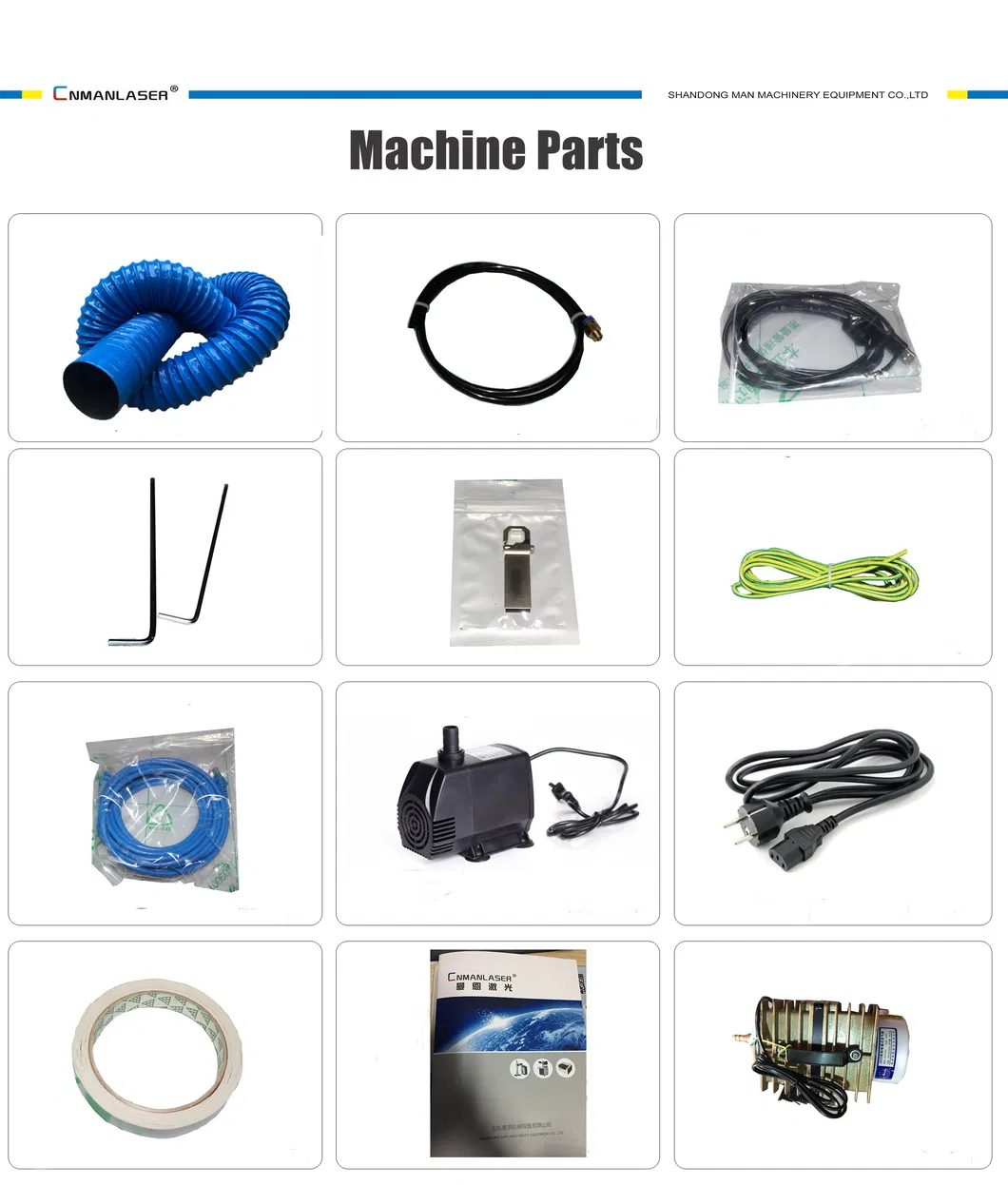

Optional Laser parts for the laser machine :
Applicable materials:
wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,
glass and other nonmetal materials.
Applicable industries:
advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry
About US :
Pre-sale service:
call us no matter cooperate or not. you may get unexpected harvest. We would discuss the future development of this line together according to
many years experience on selling and producing which could help to enlarge the profits and improvement for both of us.
studying the customer's requirement carefully, we would help customer to choose the most suitable machine and will offer you the relative samples
and suggestions promotely and considerately, according to customer's production scale and technical requirements.
Selling service:
promotely and paintely answer customer's questions. put our heart and soul into service for customer, including supply some suggestions on
choosing the place, how to save cost, and play the maxium value of our machine
After-sale Service:
1. our technicans will provide on-site service to customers in china. We will supply the whold day online service to foreign customer. According to
foreign customer's requirement, we will arrange technicans go abord to install or maintenance the machine
2. within the warranty period and the machine parts damage under normal using condition, we will offer new ones for free for replacement
3. We will offer software upgrade for free for life
4. 2 years for the laser machine , 6 months for the tube and mirrors .
after the expiry of warranty, we can renewal of the contract, which can enjoy the same service that during the waranty period
5. our company will research the staffs service attitude aperiodically to improve the service satisfaction
