CO2 Laser Cutting Machine Laser Cutter Machine for Sale

Product Description

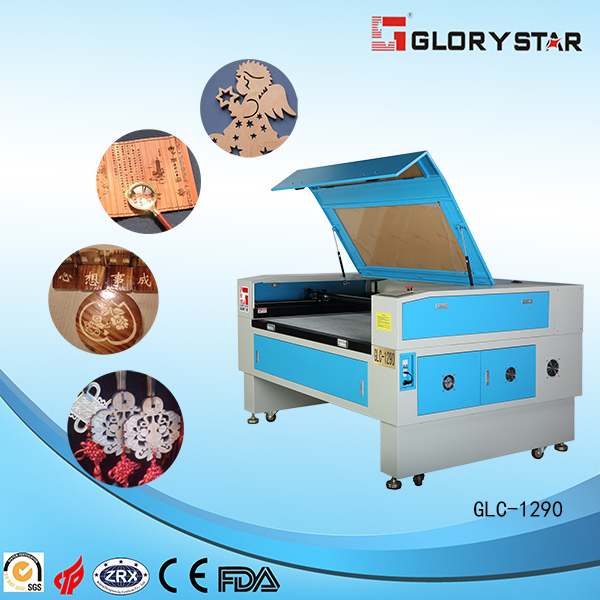

Single Head Laser Cutting Engraving Machine for Shoes/Garment/Greetings Card/Wood Crafts/Advertising

Parameter	Model	GLC-6040	GLC-9060	GLC-1080	GLC-1290	GLC-1490	GLC-1610
	Working area(mm)	600*400	900*600	1000*800	1200*900	1400*900	1600*1000
	Laser power	70W/80W/100W/130W/150W
	Laser type	CO2 glass tube
	Control system	DSP
	Drive mode	Stepping Motor Microstep drive
	Cooling mode	Water-cooling and protection system
	Working speed	0-1000(mm/s)
	Graphics mode	Plt, Dxf, Bmp, Pcx, Dst, etc
	Platform types	Honeycomb table, blade strip table (Optional)
	Repeatability precision	≤0.02mm
	Working voltage	AC 220±10%/50-60Hz
	Overall power consumption	≤1250w
	N.W.	200KG	220KG	340KG	400KG	500KG	530KG
	G.W.	290KG	320KG	440KG	520KG	600KG	660KG
	Package Dimension(mm)	16309601270	185012501270	170015001270	190016001270	210016001270	224016601270
Body configurations	Optical design	Adopting the imported lens and mirros to ensure long lifetime of laser tube and high cutting efficiency
	Mechanical design	1. The patented body adopts the most solid design which can ensure no deformation long time operation and transportation.
		2. Adopts imported stepping motor and driver with its unique high speed outer guide rail.
	Software design	1. Adopts International advanced DSP control technology, ensure high cutting engraving speed, high accuracy and high stability.
		2. The machine system can be commanded by U disk without PC connection.
		3. Can be directly support Autocad, Coreldraw software or their output, the documents like PLT, PCX, DXF, BMP etc.,
		4. It has the function of imitative cutting, color separaing cutting, non-stop cutting one off power, etc
Working Environment	Operating Humidity	5%-95%
	Operating Temperature	0ºC-45ºC
Applications	Applicable industry	Applicable for the garment, toy, handbag, glove industries, also inclusive of precise cutting and engraving like acrylic and MDF board, mold, advertisements, decoration, electrical appliance and plastic industries.
	Materials	Wood, paper, leather, cloth, organic glass, resin, acrylic, woolens, plastic, rubber, bamboo, and other non metal materials

Why choose us?
- CE, SGS, FDA, ISO approved. Audited supplier. Experienced, passionate and highly skilled technical team.
- Customized design available. Professional training on installation, operation and maintenance for free. Free samples made of materials from you.
- Timely and reliable delivery.
- Aim to respond to your enquiry within 12hrs.
- 24-hour call out service on after-sales.

Agents and distributors wanted all over the world!
