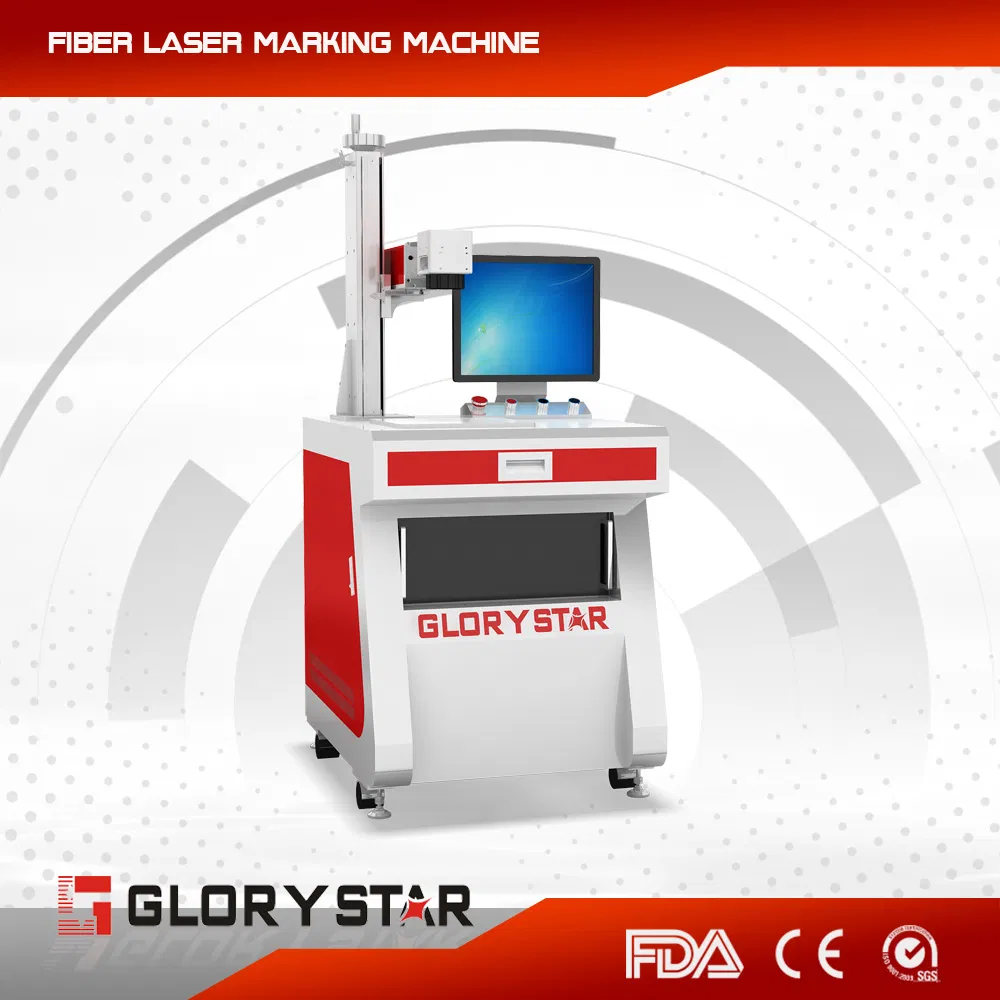

Fiber Laser Marking Machine Series for Metal
1.Product structure :1.It is environmental friendly, low consumption,fully automatically and leading laser system.2. This creative laser system makes the optical conversion rate up to 38%-50%.3......
Send Inquiry
Product Description
1.Product structure :
1.It is environmental friendly, low consumption,fully automatically and leading laser system.
2. This creative laser system makes the optical conversion rate up to 38%-50%.
3.The air cooling can meet the system requirements.
4.This laser system is small and compact size. Fiber output,can flexibly makes 3D processing system.
5.The backward reflecting isolator,which uses the particularity of wavelength and direction of laser, and the special structure inside the backward reflecting isolator can block the laser reflected by work piece to avoid the laser entering the laser oscillator again to damage the laser oscillator.
2.Applicable Industry:
Translucent plastic buttons, IC chips, digital product components, precision machinery, jewelry, sanitary ware, measuring and cutting tools, watch glasses, electrical appliances,electronic components, hardware accessories, hardware tools, mobile communications components, automobile parts, plastic products, medical equipment, building materials,pipes and other high-precision product marking.
3.Applicable Materials
Metals and a variety of non-metallic materials, high hardness alloys, oxides, plating, coating, ABS, epoxy resin, ink , plastic , etc.
Technical parameters:
1.It is environmental friendly, low consumption,fully automatically and leading laser system.
2. This creative laser system makes the optical conversion rate up to 38%-50%.
3.The air cooling can meet the system requirements.
4.This laser system is small and compact size. Fiber output,can flexibly makes 3D processing system.
5.The backward reflecting isolator,which uses the particularity of wavelength and direction of laser, and the special structure inside the backward reflecting isolator can block the laser reflected by work piece to avoid the laser entering the laser oscillator again to damage the laser oscillator.
2.Applicable Industry:
Translucent plastic buttons, IC chips, digital product components, precision machinery, jewelry, sanitary ware, measuring and cutting tools, watch glasses, electrical appliances,electronic components, hardware accessories, hardware tools, mobile communications components, automobile parts, plastic products, medical equipment, building materials,pipes and other high-precision product marking.
3.Applicable Materials
Metals and a variety of non-metallic materials, high hardness alloys, oxides, plating, coating, ABS, epoxy resin, ink , plastic , etc.
Technical parameters:
| Model No. | FOL-10 / 20 / 30 |
| Laser power | 10W/ 20W/ 30W |
| Wavelength | 1064nm |
| Beam quality | <1.5 |
| Output power | 10% ~ 100% continuously to be adjusted |
| Output frequency | 20 KHz ~ 100KHz continuously to be adjusted |
| Power stability | < ±1% rms |
| Focus spot diameter | <0.01mm |
| Matching size | 50mm*50mm / 110mm*110mm / 175mm*175mm |
| Carving depth | ≤1.2mm |
| Carving speed | 800 standard characters / second |
| Minimum line width | 0.012 mm |
| Minimum character | 0.15mm |
| Repeated accuracy | ± 0.003mm |
| System operation environment | Windows XP/ 2000 / 98 |
| Cooling mode | Air cooling |
| Temperature of operation environment | 15ºC ~ 35ºC |
| Power requirement | 220V / single phase / <400W |
| Life of laser module | 100000 Hrs |
