Product Description
High Quality Durable Using Various 80W 100W 130W 150W 180W Small CO2 Laser Engraving Machine
Description:

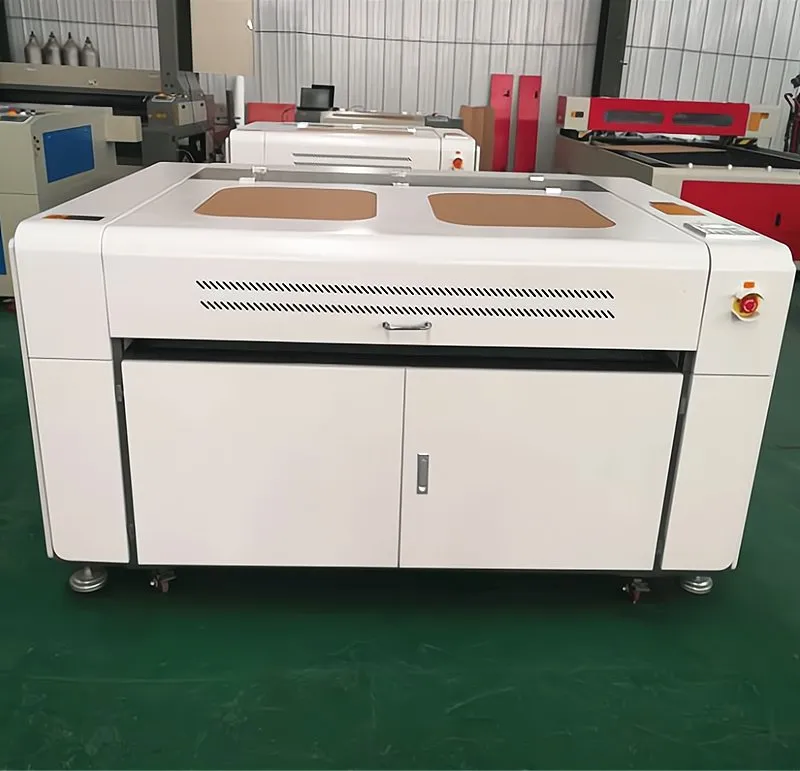

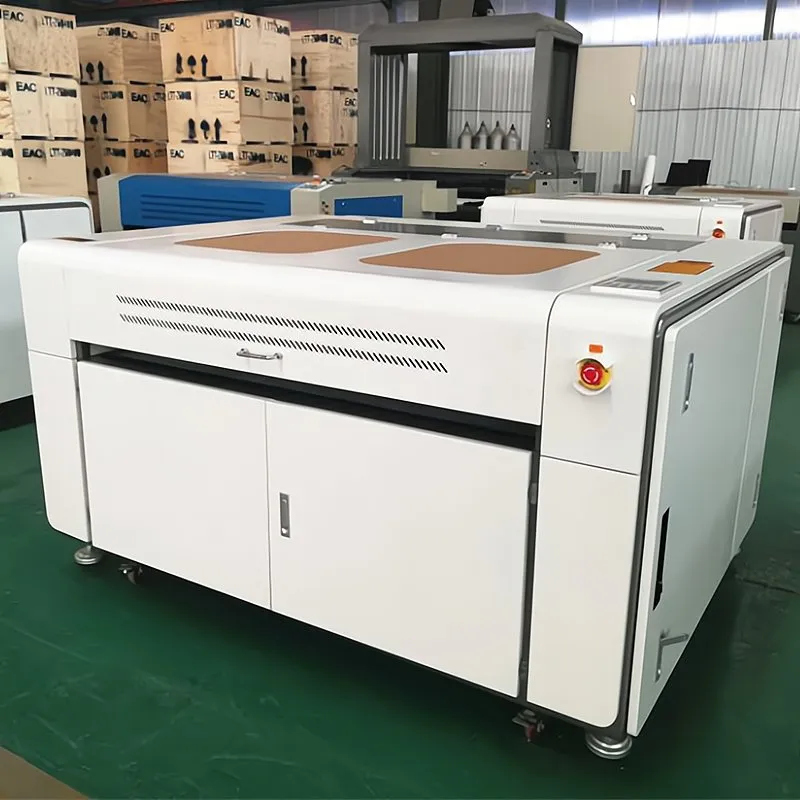

New Laser Engraving and Cutting Machine. The machine is a kind of Laser Engraving Machine System equipped with CO2 laser Tube, it is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics and glass and etc. It is most suitable and the preferred choice of equipments in industries such as advertisement, gifts, shoes,toys and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on.

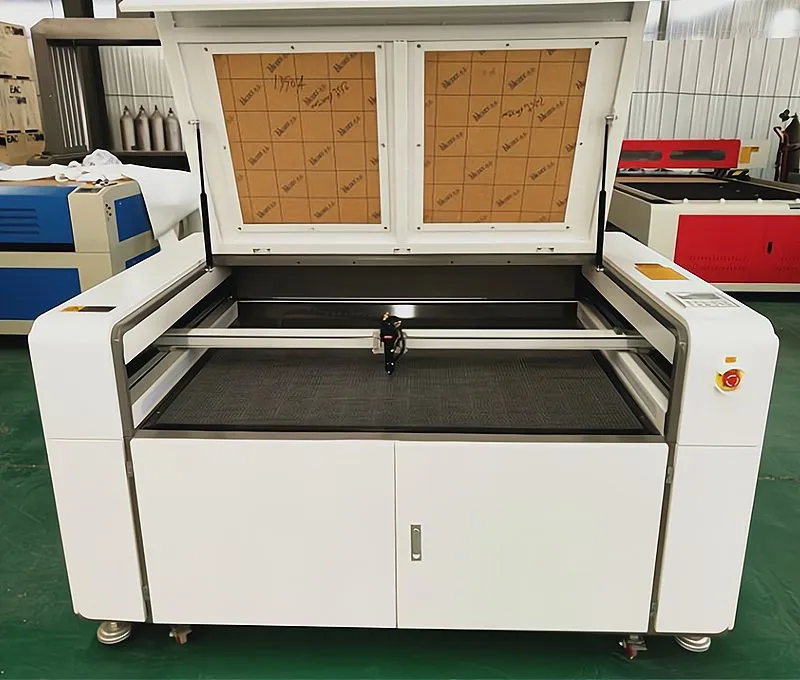

This machine is equipped with DSP Control System for RDdraw directly,also supports CoreDraw and Auto CAD and other advance software. It must connect with computer with USB cable when you change the settings of machine for the design files,you can transfer the file with USB memory stick to the machine, or can download it to the machine directly with USB cable from computer. Even on the same Job, you can do setting with different colour in the software and also can making holes.And it can the legs separate from the main body of the machine. The machine has doors which can be opened to accommodate larger materials.All laser engraving machines can not carve and cut metal.
- Premium Quality
- Safety & Reliability
- Powerful Performance
- High Compatibility
parameter:
| Model | 9060/1410/1610/1810E laser cutting machine |
| Color | Grey and white |
| Max Working Area | 900*600/1400*1000/1600*1000/1800*1000mm |

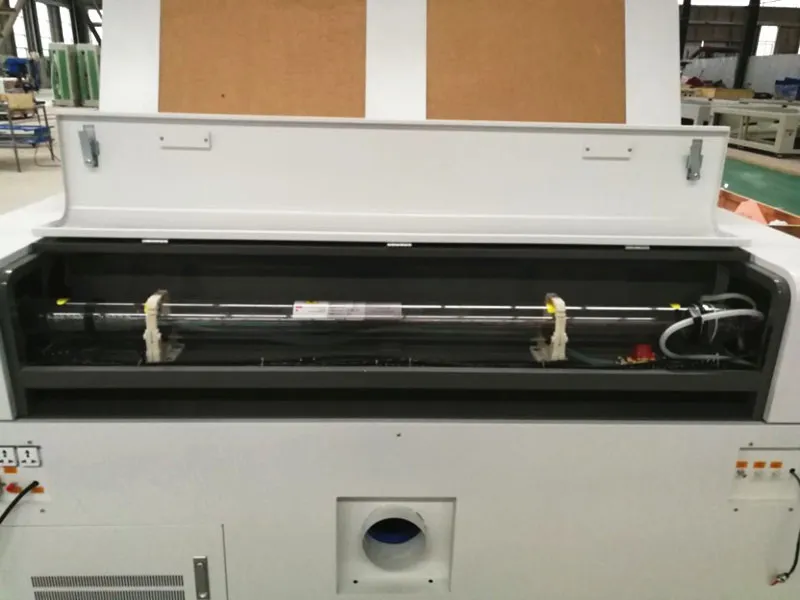

| Laser Type | sealed CO2 glass laser tube |
| Laser Power | 80W/100W/130W/150W/180W |
| Cooling Type | water cooling and protection system |
| Water-break protection | Yes |

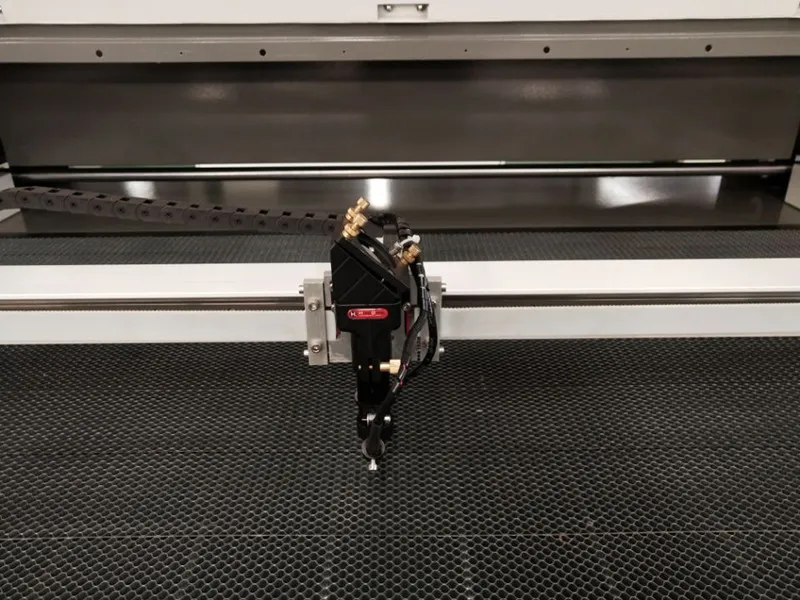

| Working Table | Honeycomb or blade |
| Table Lift and down | Yes |
| Engraving Speed | 0-60000mm/min |
| Cutting Speed | 0-10000mm/min |
| Cutting Thickness | 0-30mm according to different material |
| Resolution Rate | ±0.05mm |
| Working Voltage | 220V±10% 50Hz |
| Minimum Character | English 1X1 mm |
| Controlling Software | Trocen control system |
| Supported Graphic Formats | BMP, PCX,TGA, TIF, PLT,CDR |
| Supporting Software | coreldraw, autocad, artcut, photoshop |
| System Environment | WINDOWS2000/WINDOWS XP/Vista/Win7 |
| Data transfer interface | USB2.0 offline |

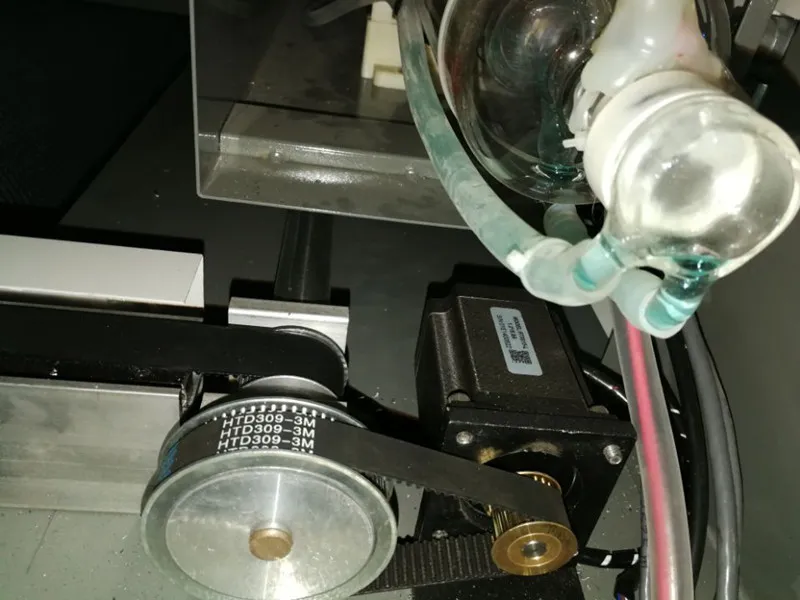

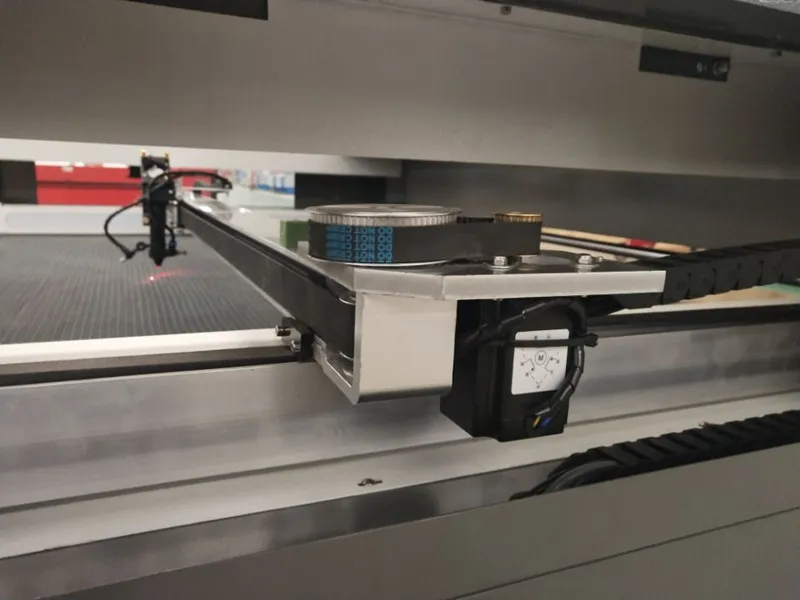

| Driving System | Stepper |
| Optional parts | water chiller CW-5000 |
| Working Tempetature | 0-45°C |
| Working Humidity | 5%-95% |
| Warranty | 1year, damage spare parts laser tube, mirrors 6 month |
| Applicable Materials | rubber, plastic ,cloth, leather, crystal, bamboo and wooden products, etc |
Features:
- SAFETY & RELIABILITY- With air assist, removing heat and combustible gases from the cutting surface to prevent burning during engraving working, and with a built-in cooling fan for effective ventilation; Owns FDA,CE Certification, ISO9001 Quality Certification.
- POWERFUL PERFORMANCE- Support USB2.0 port, U disk reading and writing, support U disk system upgrade; Able to work independently from PC; Visible red dot pointer for better guidance; Use virtual array list and additional off-cut graph to realize the off-cut function; With feeding devices to realize the cyclical model of working-feeding-working; Separation of cutting up to 256 Colors.
- HIGH COMPATIBILITY- Supports multiple graphic formats, including HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI, etc. Adopts advanced DSP digital control system, able to directly output from CorelDraw and Auto CAD.
- WIDELY USED- Can be used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, glass, and etc. Suitable for advertisement, gifts, shoes, toys and etc.
| Material | Engrave | Cut |
| Wood | Yes | Yes |
| Jade | Yes |
|
| Acrylic | Yes | Yes |
| Glass | Yes |
|
| Ceramic | Yes |
|
| Delrin | Yes | Yes |
| Cloth | Yes | Yes |
| Leather | Yes | Yes |
| Marble | Yes |
|
| Matte Board | Yes | Yes |
| Melamine | Yes | Yes |
| Paper | Yes | Yes |
| Mylar | Yes | Yes |
| Press Board | Yes | Yes |
| Rubber | Yes | Yes |
| Wood Veneer | Yes | Yes |
| Fiberglass | Yes | Yes |
| Tile | Yes |
|
| Plastic | Yes | Yes |
| Cork | Yes | Yes |
| Corian | Yes | Yes |
| Ceramics | Yes |
|
| Stainless Steel | * |
|
| Brass | * |
|
