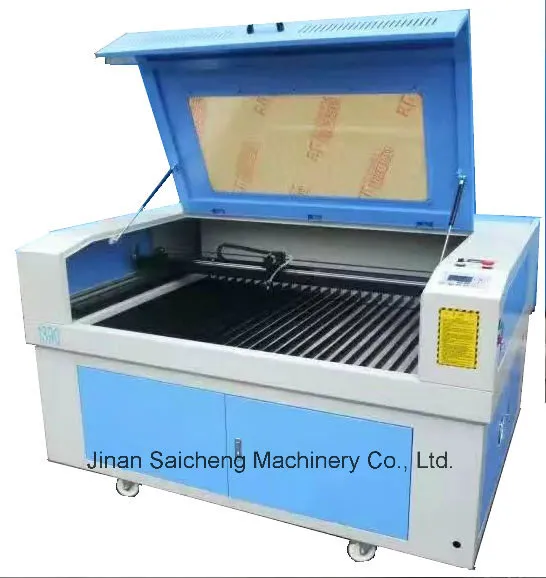

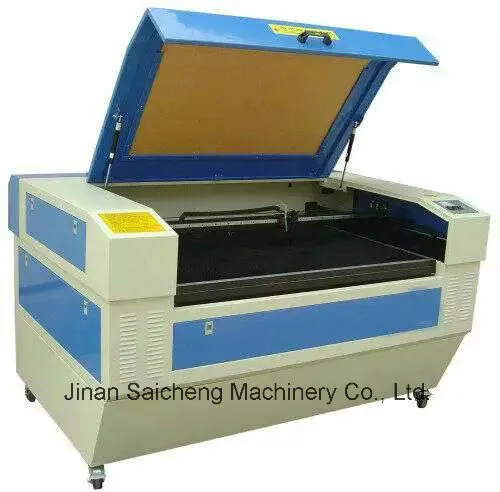

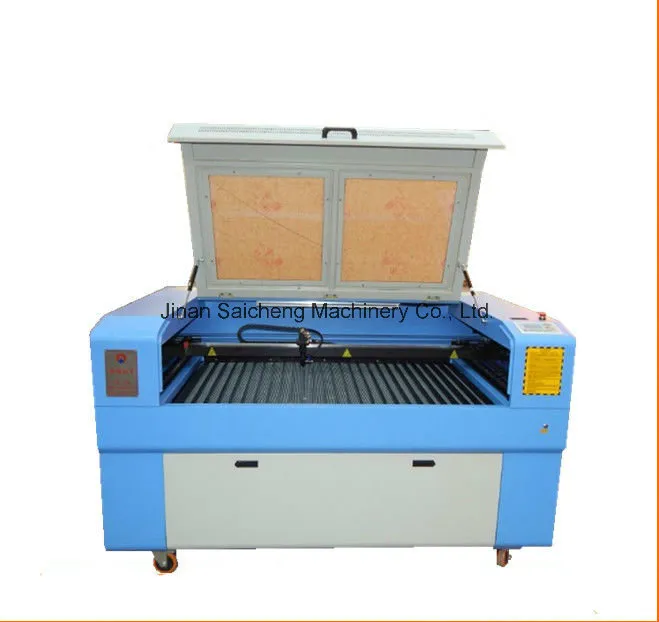

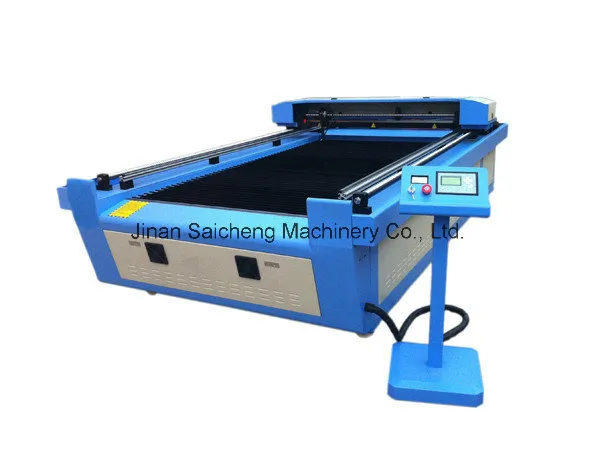

Hot Sale Non-Metal CO2 Laser Cutting and Engraving Machine
Product DescriptionAC-1325 Hot Sale China Factory Supply Laser Cutting Machine With CE SGSPerformance Features1) Lathe bed structure ensures the stable operation while carving and cutting at high speed2) Beam is drawn out of high hardness alloy aluminum material and driven by a large power subdivisi......
Send Inquiry
Product Description
Product Description
AC-1325 Hot Sale China Factory Supply Laser Cutting Machine With CE SGS
Performance Features
1) Lathe bed structure ensures the stable operation while carving and cutting at high speed
2) Beam is drawn out of high hardness alloy aluminum material and driven by a large power subdivision server-motor
3) Laser unit served by special radiator and protected without water makes it stable and safe with a longer life span
4) It matches accessories such as rotation platforms, double laser units
5) Operation handle can be chosen
6) It can also be made according to customer's demands
Parameter
| Model | AC1390 CO2 laser cutting machine |
| Working area | 1300x900mm |
| Laser power | 80W/100W/130W |
| Laser type | CO2 sealed laser tube,water-cooled |
| Cutting speed : | 10000mm/min |
| Power supply | 220V±10% /50HZ , 110V±10%//60HZ |
| Min. shaping character | Letter 1.0 x 1.0mm |
| Graphic format supported | BMP, PLT, DST, DXF, AI,CDR |
| Software supported : | CorelDraw, PhotoShop, AutoCAD |
| Laser Output Control | 1-100% software setting |
| Highest Scanning Precision | 2500DPI |
| Resolution ratio | <0.01mm |
| Location precision: | <0.01mm |
| Working temperature: | 5°C-40°C |
| Operating humidity | 5%-95%(without condensed water) |
| Optional parts | Up-down worktable, Red light pointer, Auto focus, Rotary device |
| Type | AC-4060 | AC-6090 | AC-1290 | AC-1490 | AC-1610 | AC-1613 | AC-1325 | |||
| Laser power: | 40w | 60w | 80w/100w/120w /150w | |||||||
| Engraving Area (mm) | 400*600 | 600*900 | 1200*900 | 1400*900 | 1600*1000 | 1600*1300 | 1300*2500 | |||
| Gross power | 1200w | 1200w | 1600w/1800w/2000w | |||||||
| Laser type: | CO2 Laser tube | |||||||||
| Cutting depth: | acryl 0-20mm | |||||||||
| Engraving speed : | 0-1000mm/s | |||||||||
| Cutting speed: | 0-600mm/s | |||||||||
| Resetting positioning accuracy: | <0.01mm | |||||||||
| Maximum forming character: | English:1.5 x 1.5mm | |||||||||
| Power supply: | 220V±10% 50HZ or 110V±10% 60HZ | |||||||||
| Software supported: | ArtCut, CorelDraw, PhotoShop, AutoCAD | |||||||||
| Graphic format supported: | PLT, DXF, BMP, JPG, GIF, PGN, TIF | |||||||||
| Engraver for Curve surfaces: | we can provide rotary system so as to engrave on curse surfaces | |||||||||
| Water Cooling: | Yes | |||||||||
| Maximum Height of Materials to Engrave: | 280mm(by motor) | |||||||||
| Assistant Equipment: | Water pump | Exhaust Fan | Aluminum alloy worktable | Air compressor | ||||||
| Optional Spare Parts: | RF Laser Tube | Rotary System | Cooling water system | Red dot pointer | ||||||
| Recommended Spare Parts/Consumables | Laser Tube and Lens | |||||||||
Material Cut Engrave
Acrylic, Plexiglass, Pmma, Perspex, Organic board, Double color plate Yes Yes
Plastic, PP, PET, PC, PMMA, PS, PES, PA, Plastic Foils&Films, Polycarbonate, polyester or polyimide membrane keyboards YesYes
Wood, Bamboo, Veneer, MDF, Blasa wood, Plywood YesYes
Leather, Pig leather, Cow Leather, Sheep leather YesYes
Textile, cotton, silk, felt, lace, synthetic & technical textiles, aramid, polyester, fleece YesYes
Foam & Filter, Mats Polyester (PES), Polyethylene (PE), Polyurethane (PUR)
Neopren® YesYes
Paper, Cardboard, Chipboard, Press Board YesYes
Stone, Ceramic, Granite, Marble, Natural stone, Pebble stone, Slate NoYes
Rubber stamps, Synthetic & Silicone Rubber, Natural rubber, Microporous foam
Silicone rubber, Synthetic rubber YesYes
Glass, Pressed glass, Float glass, Crystal glass, Mirror glass NoYes
Guarantee&Aftersales Service
(1)Guarantee for two yearS
(2)24-hour technical support by email or phone
(3)English manual and video CD for machine using and maintaining
(4)Jinan saicheng machinery Co., Ltd provides free operation training service in Hongye factory.
