Product Description

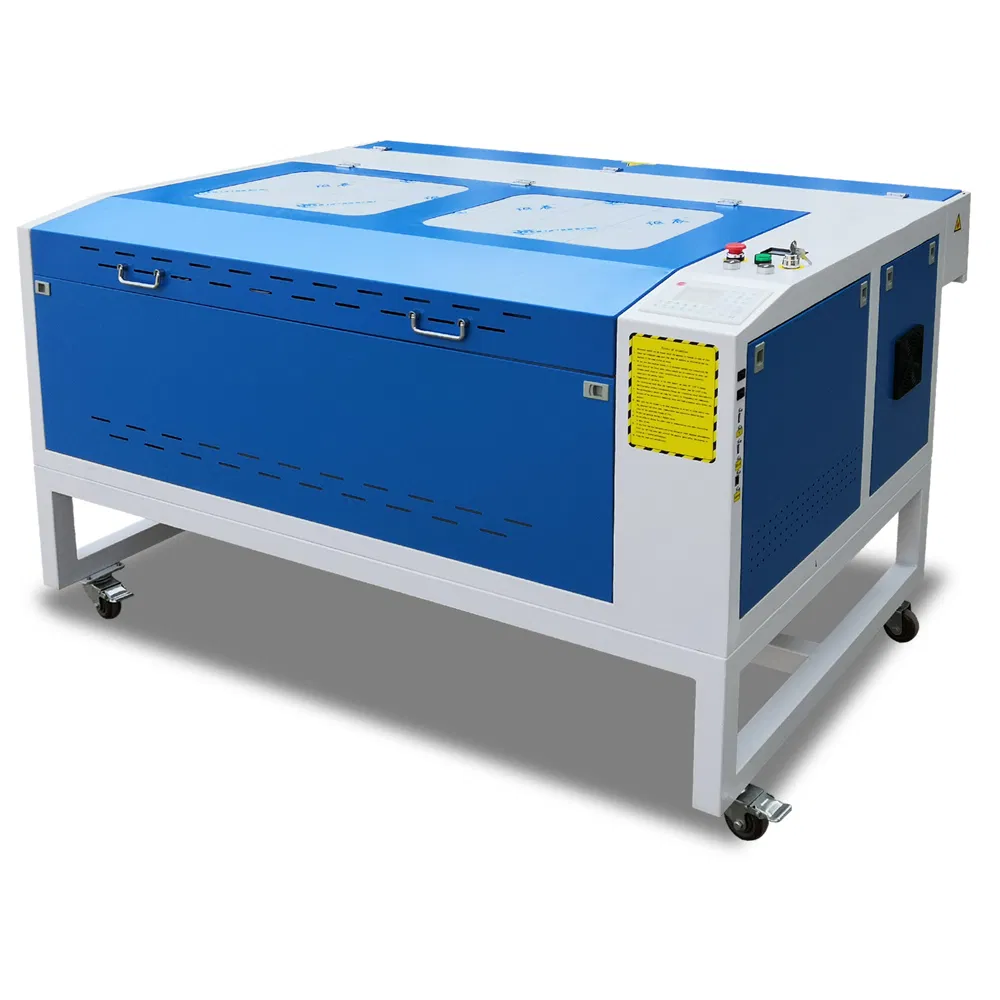

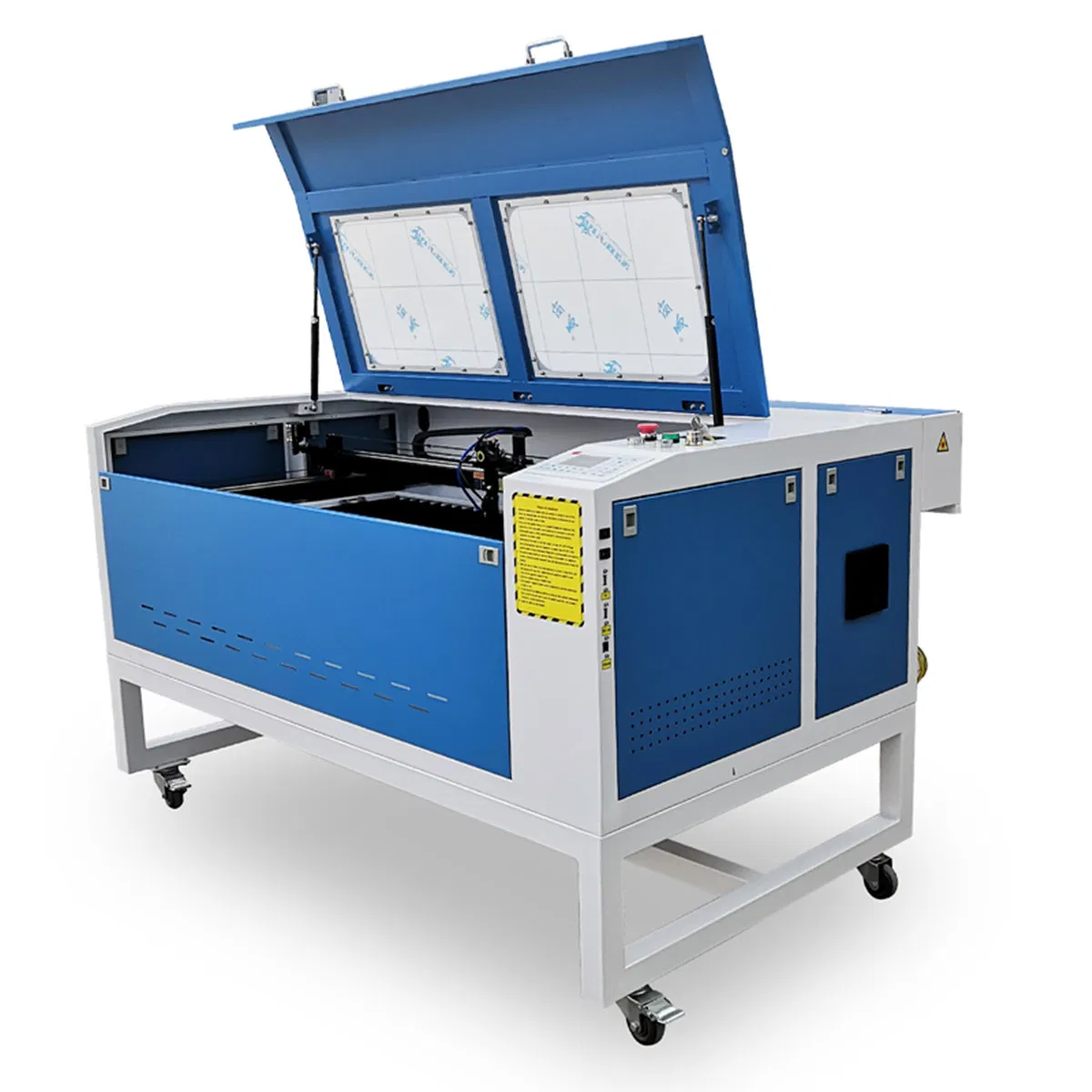

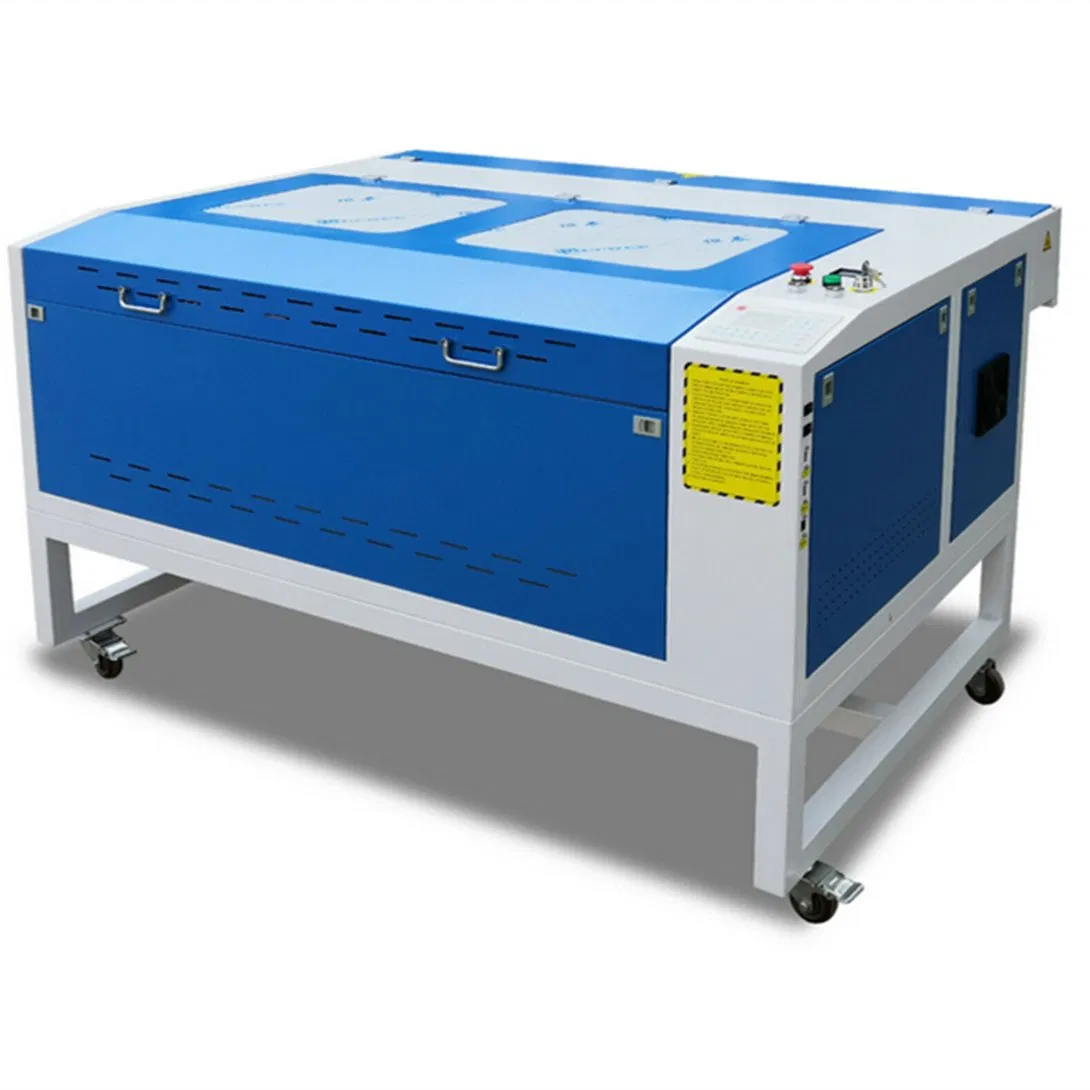

Reci 80W Ruida CNC CO2 Laser Engraving and Cutting Machine with Honeycomb Table Save Money

Laser Engraver is a kind of Laser Engraving Machine System equipped with Co2 laser Tube, It is used to engrave on wood, bamboo, Plexiglas, crystal, leather, rubber, marble, ceramics and glass and etc., engrave Painted Metals and Anodized aluminum are also OK. It is most suitable and the preferred choice of equipment in industries such as advertisement, gifts, shoes, toys and etc.

Control system: DSP
Working size: 39″x 24″(1000mm x 600mm) with double side open door
Laser tube type: Co2 Glass sealed laser tube
Laser power:Reci 80W
Software: RDWorks
Adjust table: Motorized up and down
Cooling system: Water pump
Driver type: Micro Stepping Motor
Max speed: 1000mm/s
Resolution: 1000 DPI
Location precision: 0.01mm
Voltage: 110V~240V/50Hz~60Hz
PC Interface: USB2.0 and USB Disk
Controller: Top Wistom(Auto laser software)
Image form: HPGL, BMP, DXF, GIF, JPG, JPEG, DST, AI
Warranty: 12 Months for machine (18 months for Laser tube and 3 months for mirrors)
Package: Standard Wooden case for export
Machine's size: 1600mm*1040mm*970mm
Packing size: 1660mm*1100mm*1100mm

Laser Engraving software Package (English Version)
User Manual (CD)
Air Pump
Fan installed on machine
Water pump
Honeycomb table
Exhaust pipe
Communication cable
3 Reflect optics (installed in the machine)
1 Focus optics (installed in the machine)
1 Laser tube
Other tools

1) Red-dot Positioning Function
2) Rotary
3) 100W laser tube
4) RDWorks Software
5) Water chiller

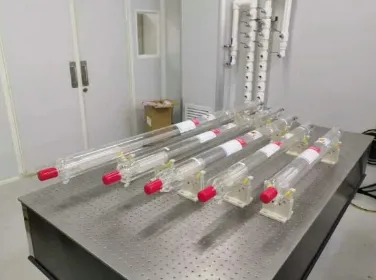

Laser tube

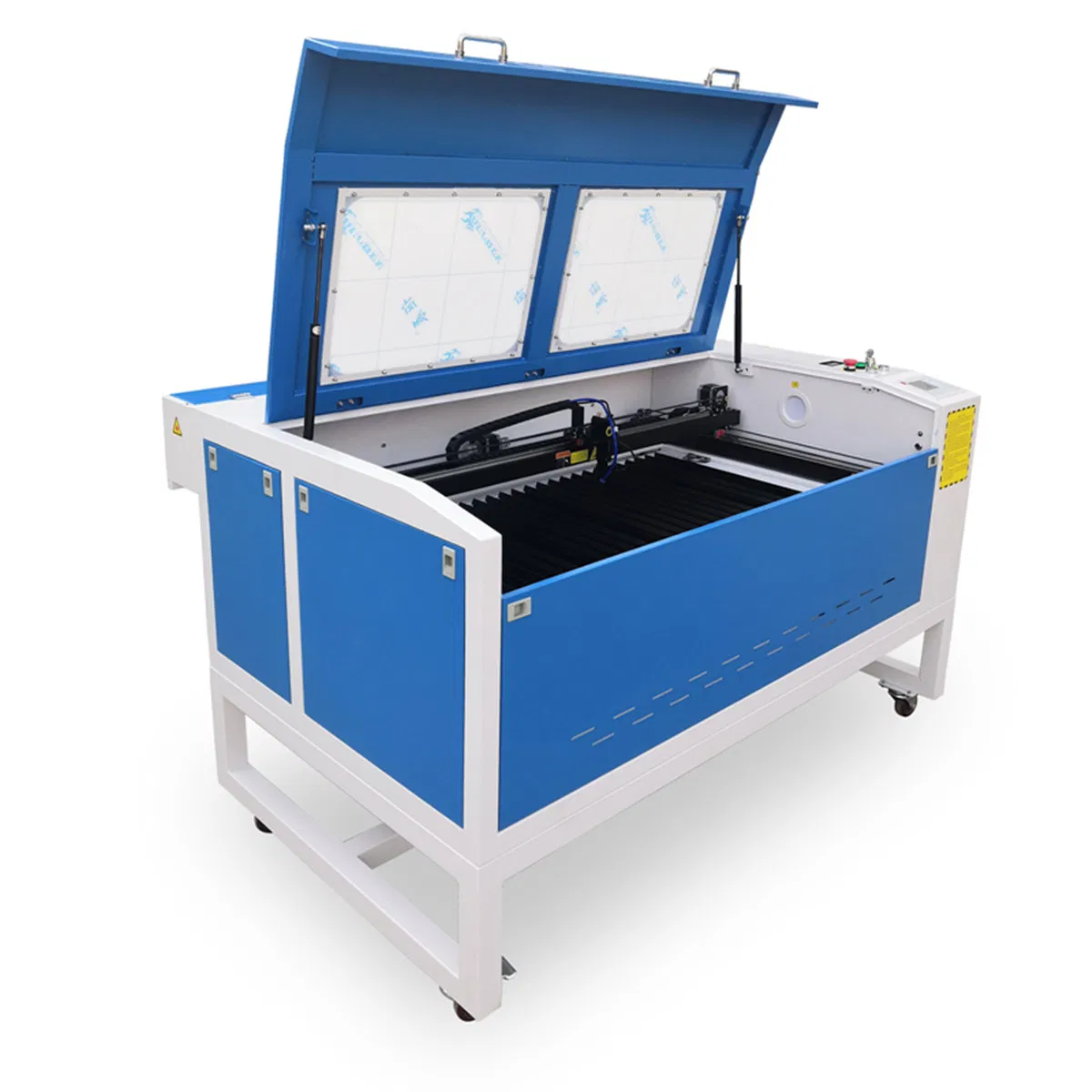

Honeycomb table

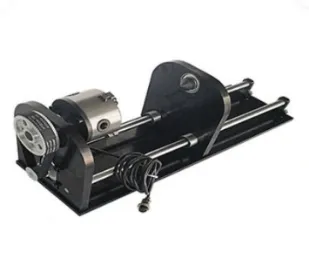

Rotary

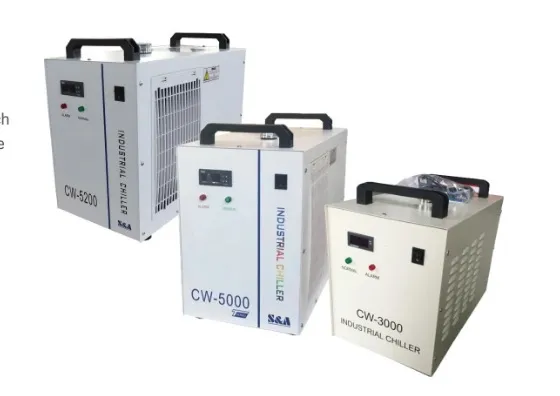

Water chiller

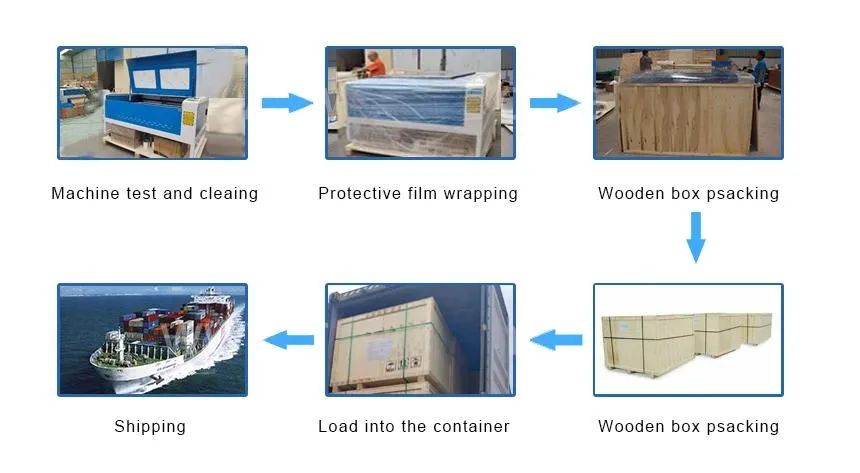

We will carefully check all items before shipping, if the package is damaged during shipping, please contact us firstly.
After clearing payment and all shipping information, machine will be dispatched 5 business days later and we will arrange the earliest shipment.
When the item is delivered, we highly recommend buyer to open the box to see if any damage for the products before make a signature.
Because you purchase the machine from China, as an importer, you are responsible for paying the surcharge of harbour, handling charges and clear custom and pay import duty, etc. .
Local Pick up via is free.
When the machine arrive the harbor as we confirmed before shipping, please pick up the machine from the warehouse in the harbor soon, if some customer refuse to pick up the machine from the warehouse, we will not refund the payment

1. We accept return on this item within 30 days from the date you receive the package. Buyer must contact us to obtain a Return Authorization from our company.
2. The returned item must be in the original box, together with all original accessories and documentation that came with your order, and must be in the same condition as when it was sent.
3. Suggest the professional user to bid the machine, we don't accept the Return if the buyer don't know how to make the design files. The buyer is responsible for return shipping costs.

Q. Can the machine engraving and cutting?
A. Yes, even on the same Job, you can do setting with different color in the software and also can making holes.
Q. Is the machine must work with computer?
A. Must connect with computer with USB cable when you change the settings of machine. for the design files,you can transfer the file with USB memory stick to the machine, or can download it to the machine directly with USB cable from computer.
Q. Do you available spare parts?
A. We can provide all of spare parts of any model we listing.
Q. Can I put larger materials in the machine?
A. Yes, the machine has doors which can be opened to accommodate larger materials.
Q. How about the after sell service?
A. Free tech support for the whole life of the machine, and 24 hours telephone support.
